Fanuc A06B-6127-H105 Servo Amplifier Module 400 V
Fanuc A06B-6127-H105 Servo Amplifier Module 400 V
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Fanuc A06B-6127-H105 is a single axis Alpha i series servo amplifier module, model aiSV 80HV, designed for use in CNC machine tools and high voltage automation systems. This 400 V input series module operates within a rated input voltage range of 565 to 679 VAC and delivers a rated output of 18.2 amps at 5.8 kW. The unit features the FSSB fiber optic interface used in Fanuc Series 16i, 18i, 21i, 30i, 31i, and 0i Model B and C generation controls, providing closed loop position and velocity feedback for compatible Alpha i and Beta i AC servo motors.

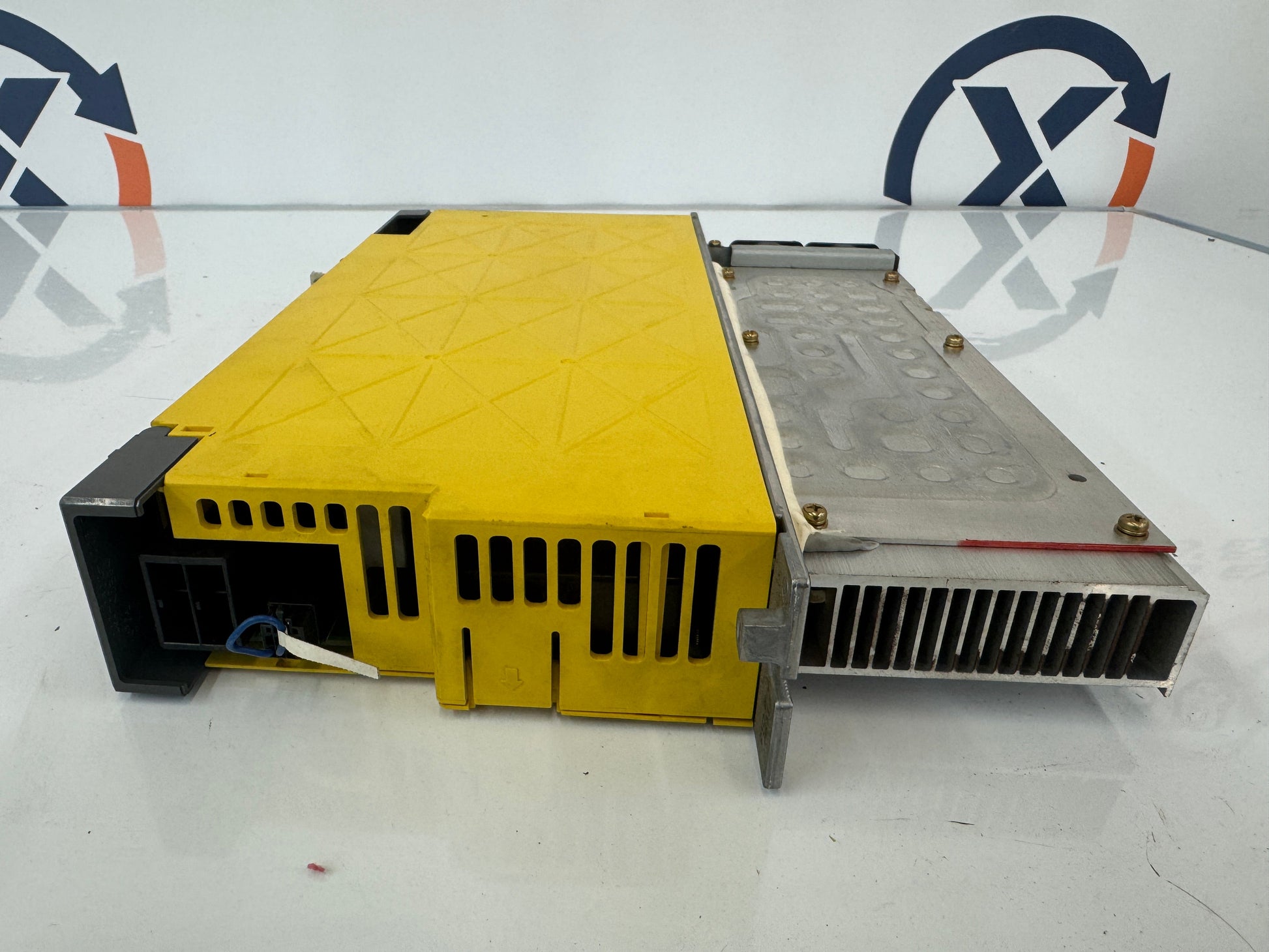

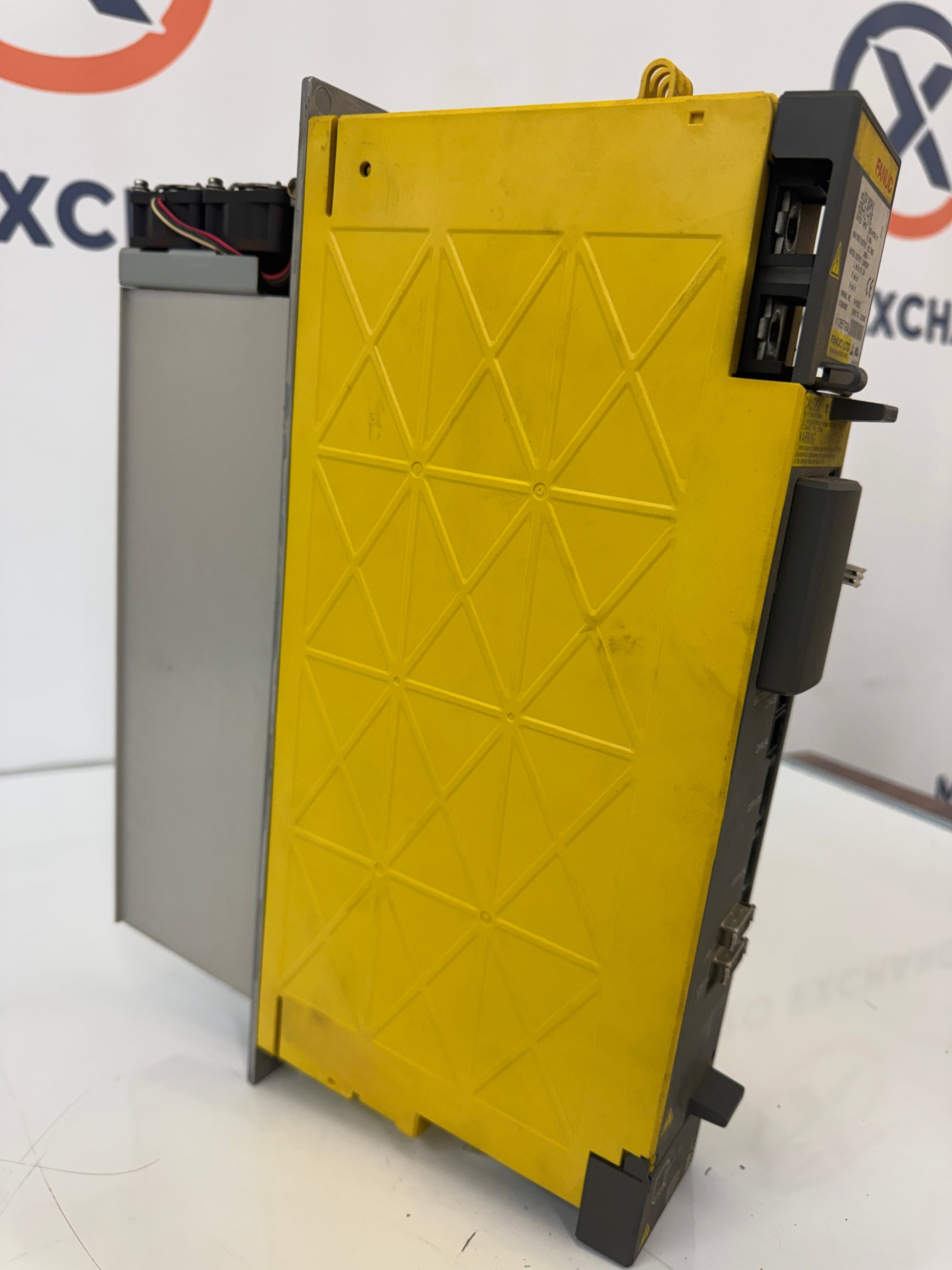

The module is housed in the standard Fanuc yellow plastic enclosure with an integrated external aluminum heatsink. Front panel connections include CXA2A and CXA2B amplifier link interfaces, JYP1B and JYP2B feedback connectors, a battery compartment for absolute encoder backup, and a status display window. The DC link charge confirmation LED is located on the front panel for safe servicing.
Compatible motor pairings include the Alpha iF series, with the H105 variant suited to mid range high voltage servo applications. The 80 amp rating identifies this module as part of the SVM1-80HVi class within the Alpha i lineup. Internal construction uses Fanuc original power and control boards within the A06B-6127 product series.

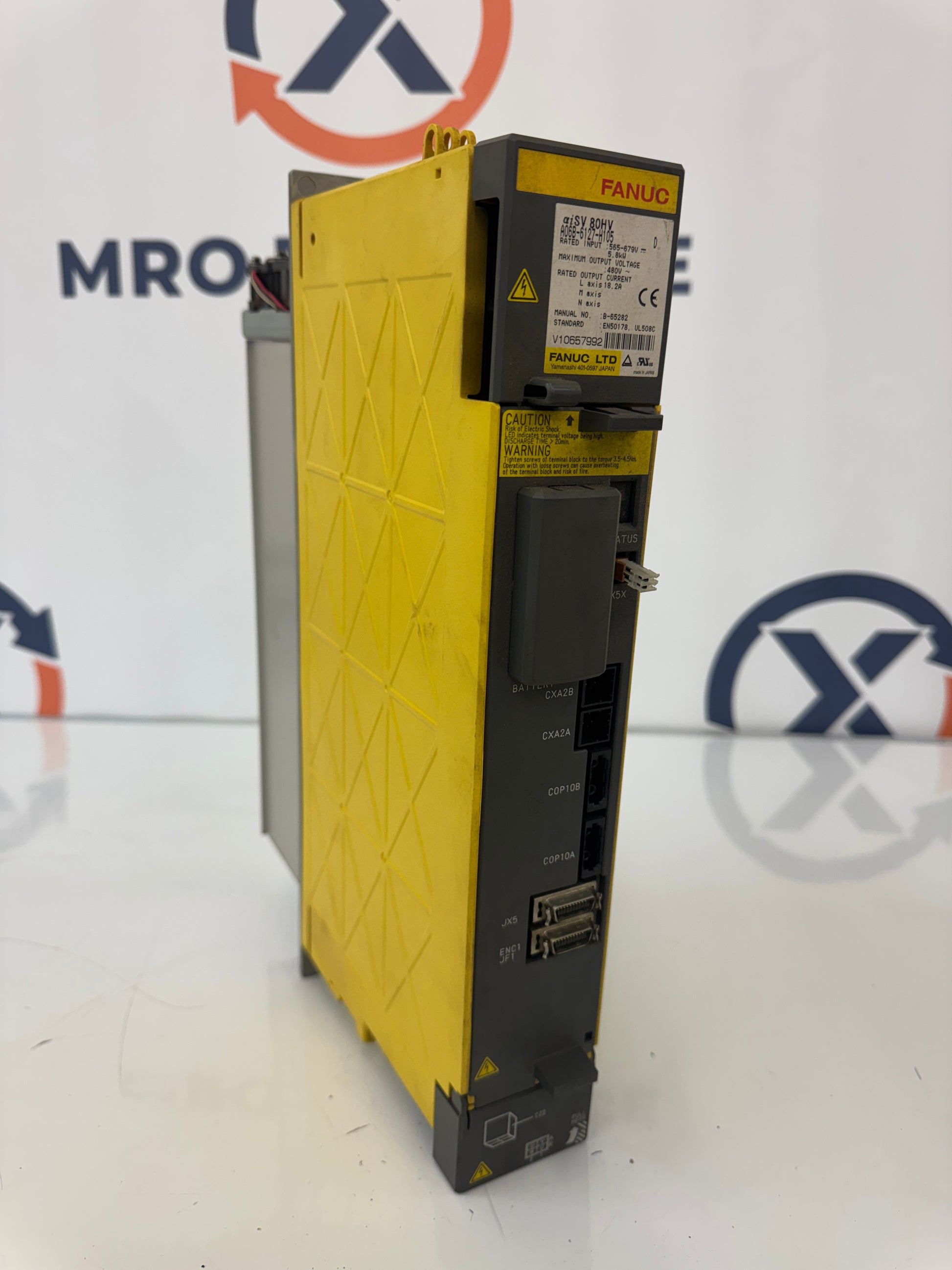

Markings on the unit include the Fanuc Ltd brand, the A06B-6127-H105 ordering number, CE compliance marking, and the rating plate listing serial number and date code information. Connector designations visible on the lower front face include CXA2A, CXA2B, JYP1B, JYP2B, and the battery interface BATTERY/CX5XB.
Stock # 0226-142
