FANUC AC Servo Motor A06B-0239-B200#0100 - 3 kW 3000 RPM
FANUC AC Servo Motor A06B-0239-B200#0100 - 3 kW 3000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

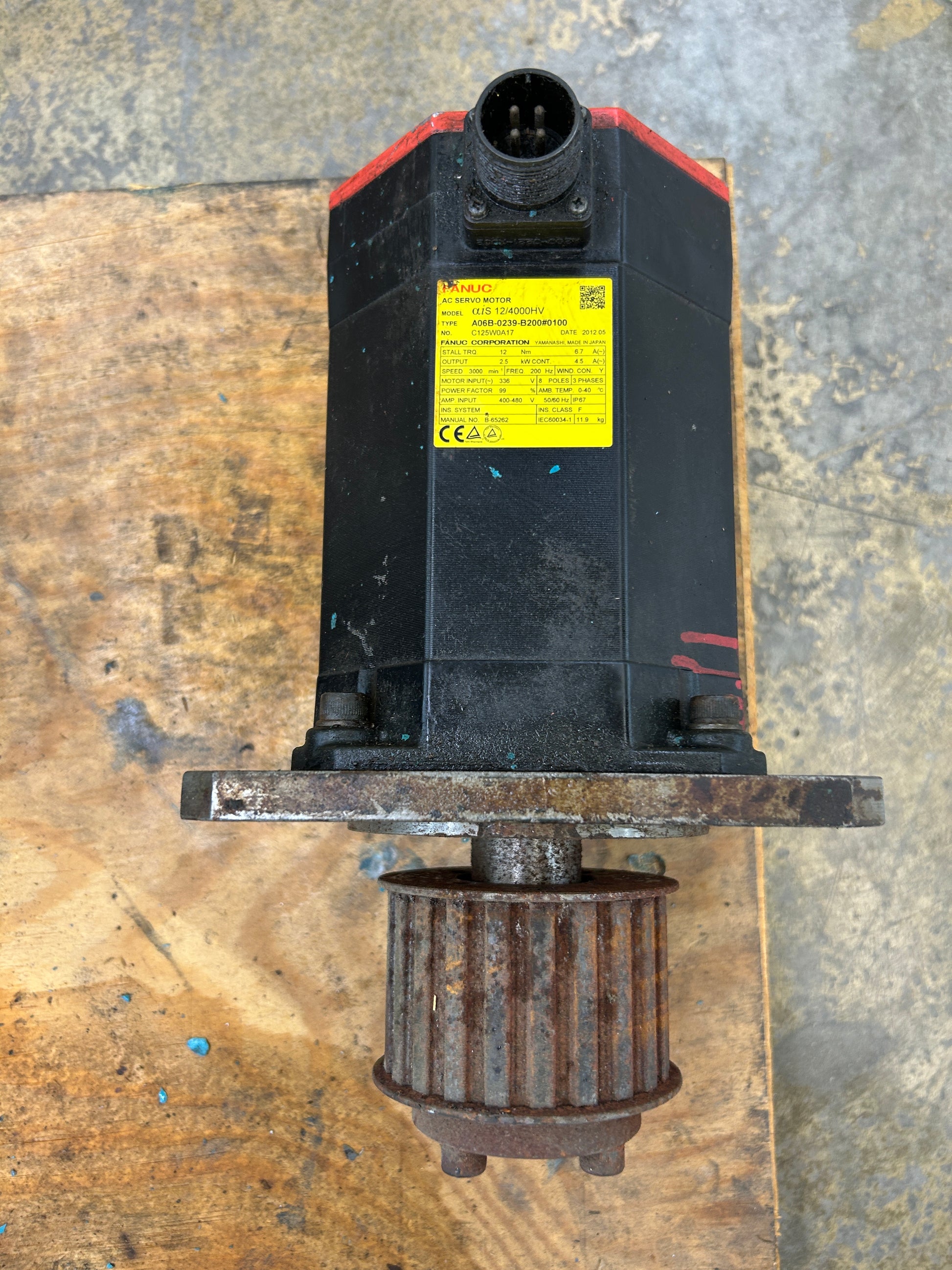

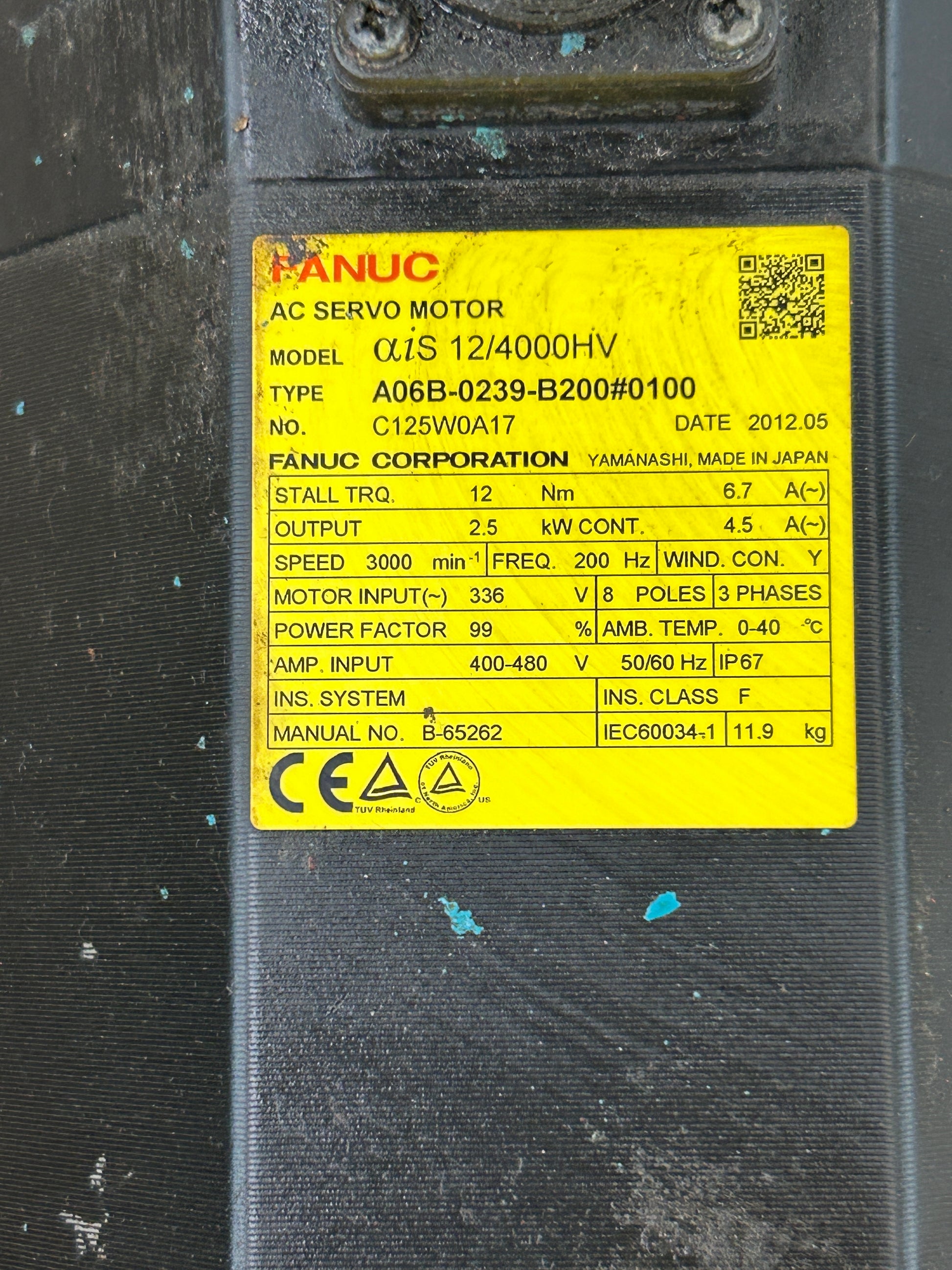

The Fanuc A06B-0239-B200#0100 is an AC servo motor from the Alpha iS series, designated model aiS 12/4000HV. Manufactured by Fanuc Corporation in Yamanashi, Japan, this high voltage servo motor is built for CNC machine tool and industrial automation applications requiring precise closed loop motion control. The nameplate confirms a continuous output rating of 2.5 kW with a stall torque of 12 Nm and a stall current of 6.7 A. Rated motor input is 336 V at 200 Hz with 4.5 A continuous current draw, configured as 3 phase, 8 pole, with a power factor of 99 percent. Maximum rated speed is 3000 min to the negative 1. Amplifier input range is 400 to 480 V at 50/60 Hz. The motor carries an IP67 rating for protection against immersion, with insulation system class F. Ambient temperature range is 0 to 40 degrees C. Winding connection type is Y. The unit is fitted with a Fanuc Alpha iA1000 absolute pulse coder for high resolution position feedback. Manual reference number is B 65262, and the motor complies with IEC 60034 1. Nameplate weight is listed at 11.9 kg. Serial number C125W0A17 and date code 2012.05 are present on the rating plate. Marked CE and TUV Rheinland certified. Compatible with Fanuc Alpha i series servo amplifiers for high voltage spindle and feed axis drive applications on CNC lathes, machining centers, and multi axis production equipment. Discontinued OEM successor part references may apply.
Stock # 0226-116
