FANUC Servo Motor A06B-0269-B200#0100 - 5 kW 3000 RPM
FANUC Servo Motor A06B-0269-B200#0100 - 5 kW 3000 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

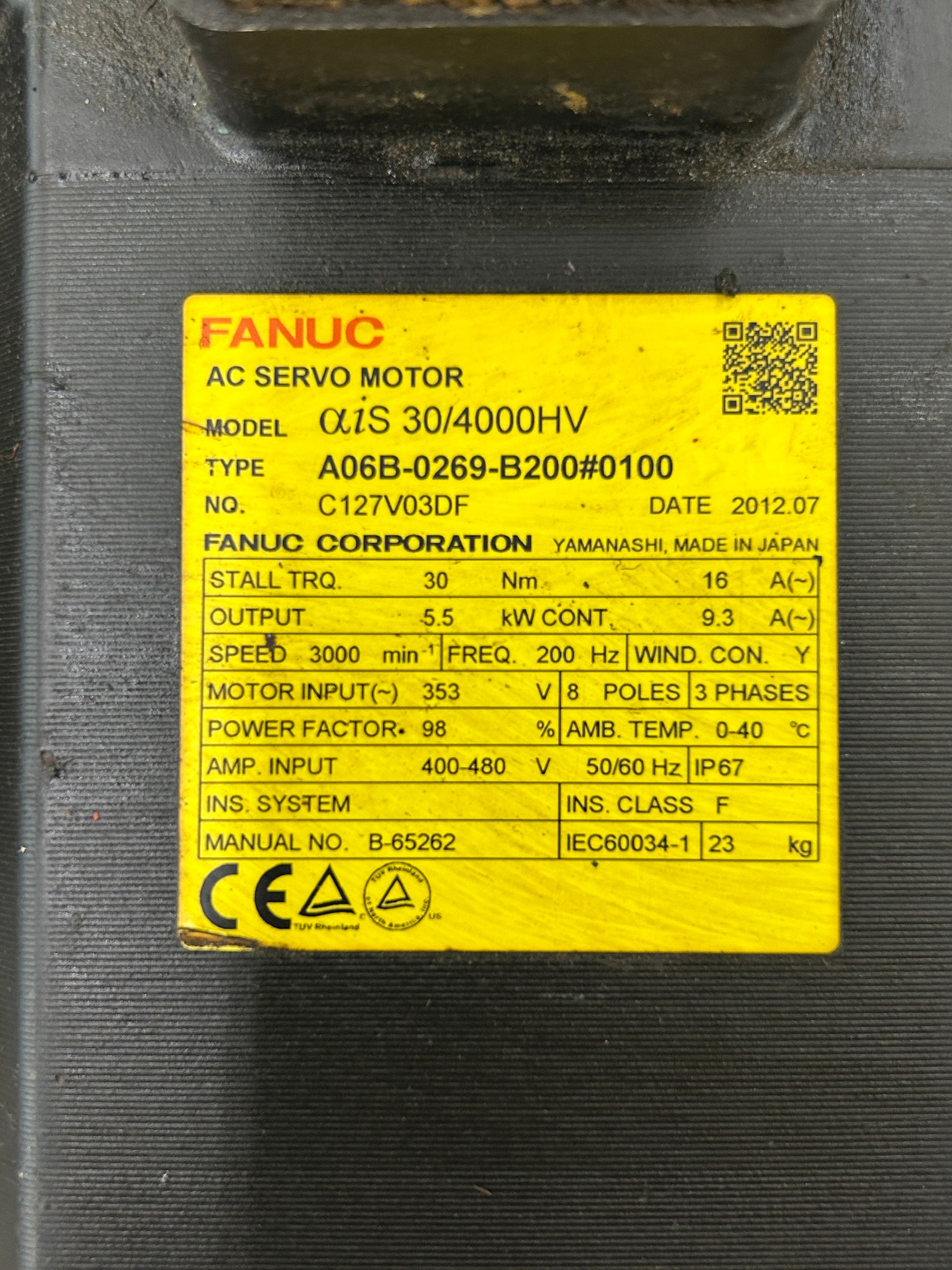

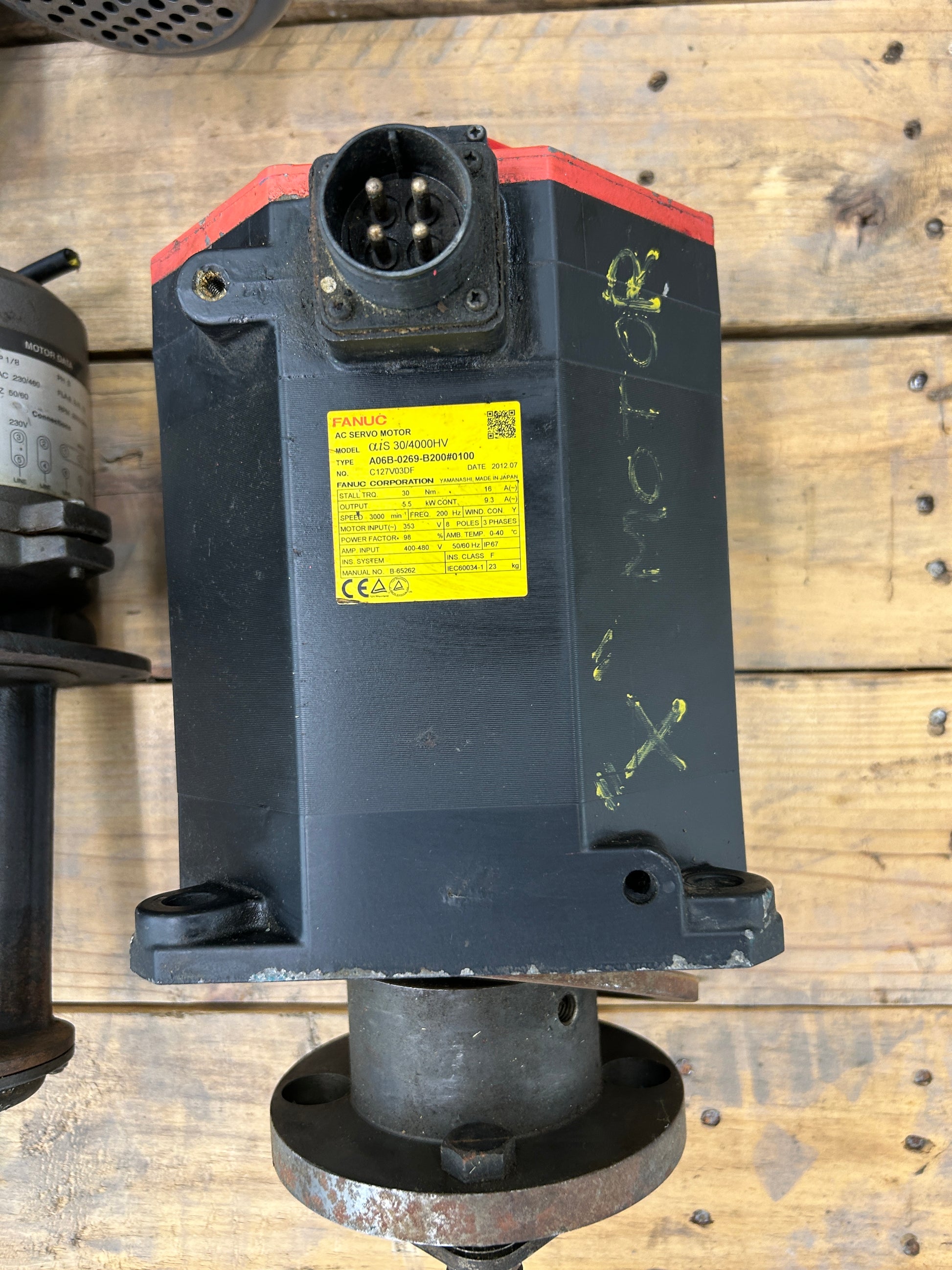

The Fanuc A06B-0269-B200#0100 is an AC servo motor from the αiS (Alpha iS) 30/4000HV series, manufactured by Fanuc Corporation in Yamanashi, Japan. The nameplate identifies model αiS 30/4000HV with serial number C127V03DF and a manufacturing date of 2012.07. This motor is widely used in CNC machining centers, lathes, and industrial automation systems requiring high torque density and precise position control.
Rated specifications from the nameplate include a stall torque of 30 Nm at 16 A, continuous output of 5.5 kW at 9.3 A, and a rated speed of 3000 min⁻¹. The motor operates at 353 V with a frequency of 200 Hz, configured for 3 phases across 8 poles in a Y winding connection. Power factor is rated at 98 percent. The amplifier input range is 400 to 480 V at 50/60 Hz. The unit carries an IP67 enclosure rating and an ambient temperature range of 0 to 40 degrees C. Insulation class is F per IEC60034 1. Manual reference is B 65262. Listed weight per the nameplate is 23 kg.

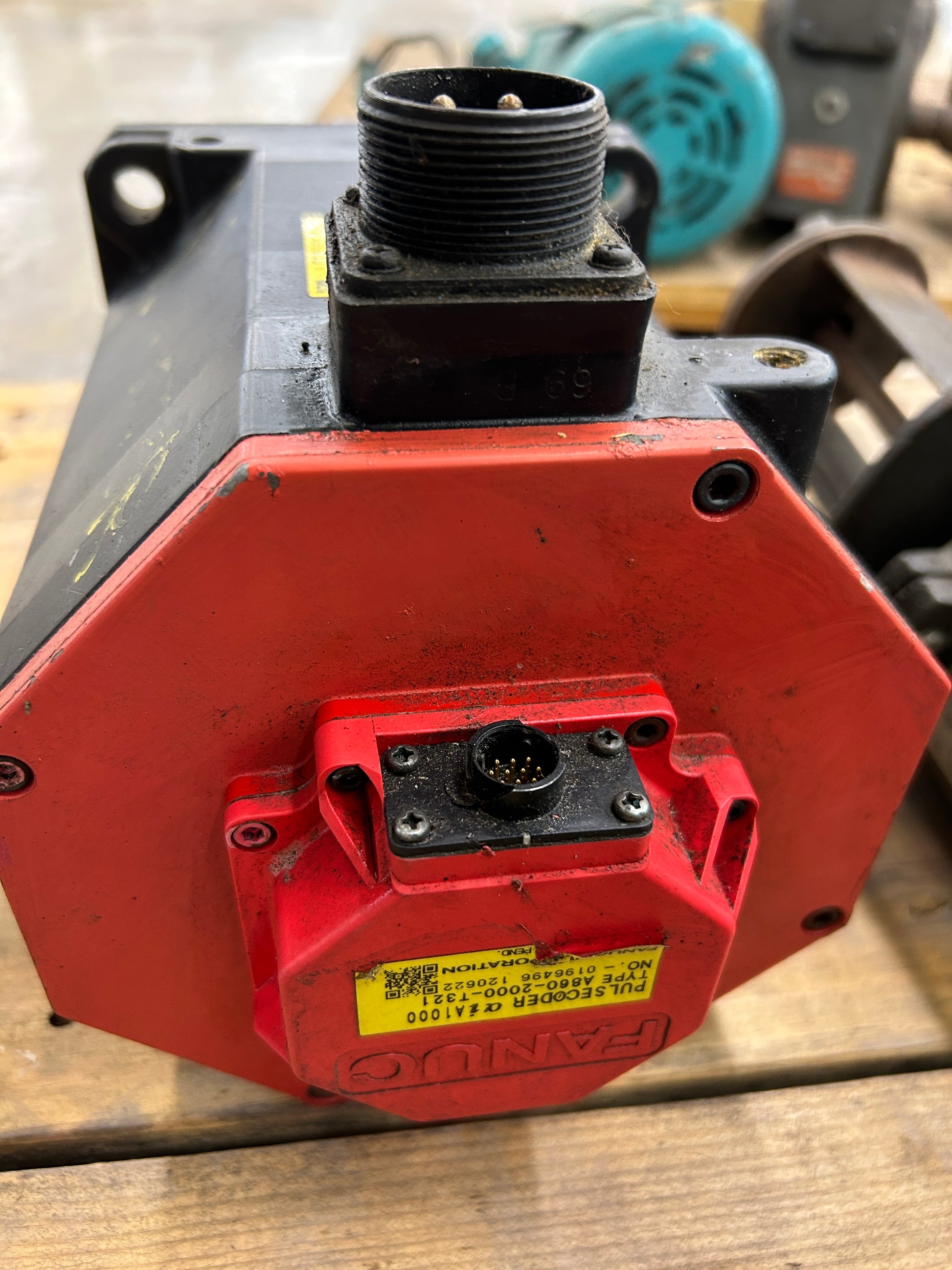

The αiS 30/4000HV is compatible with Fanuc αi series servo amplifiers and is paired with Fanuc αiA1000 serial pulse coder feedback. The motor includes CE marking and TUV Rheinland certification. Typical applications include axis drives on Fanuc controlled machine tools where 5.5 kW continuous output and 3000 RPM rated speed are required.
Stock # 0226-115
