Fanuc AC Servo Motor A06B-0269-B200#0100 - 5 kW 3000 RPM
Fanuc AC Servo Motor A06B-0269-B200#0100 - 5 kW 3000 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

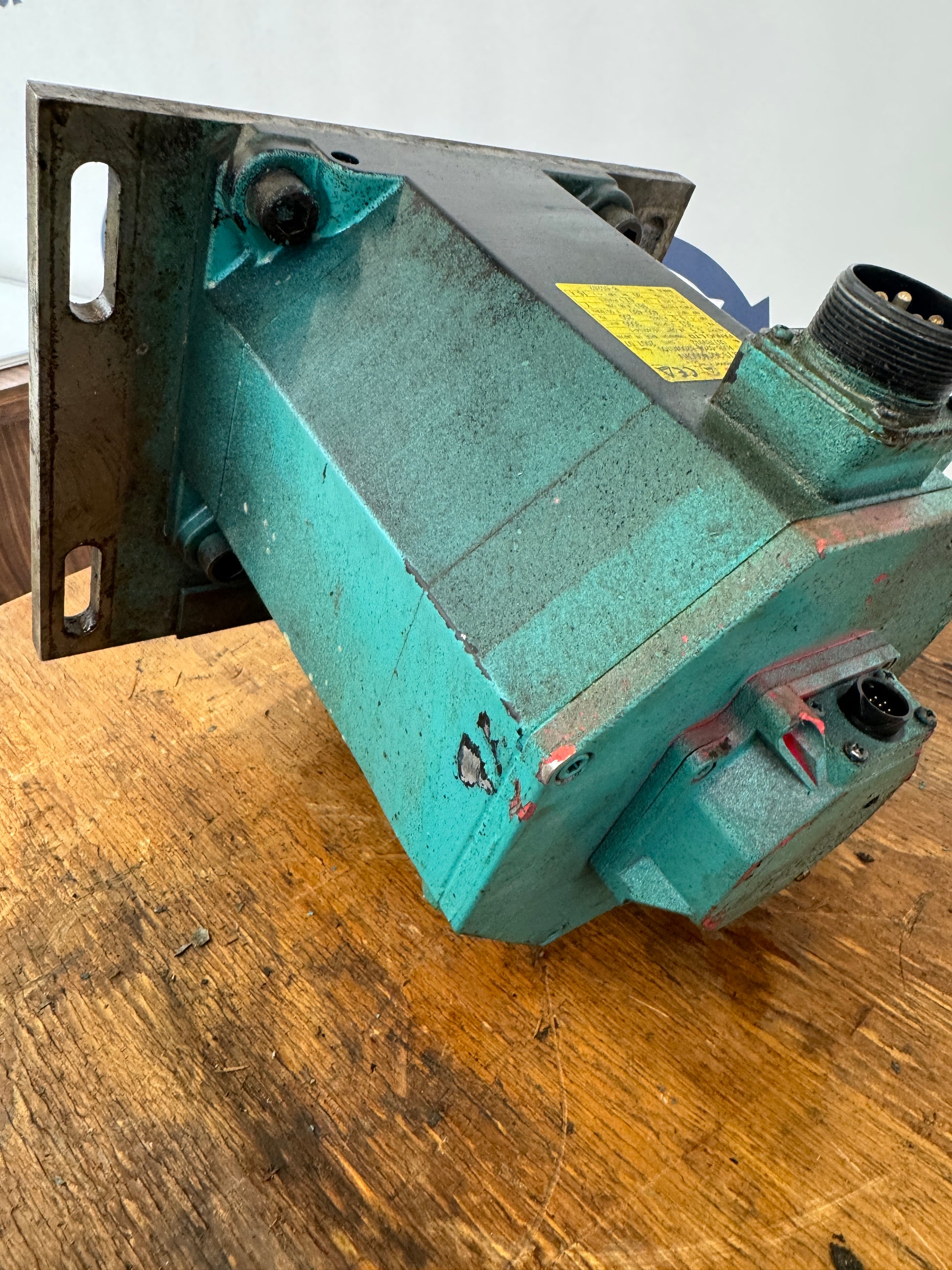

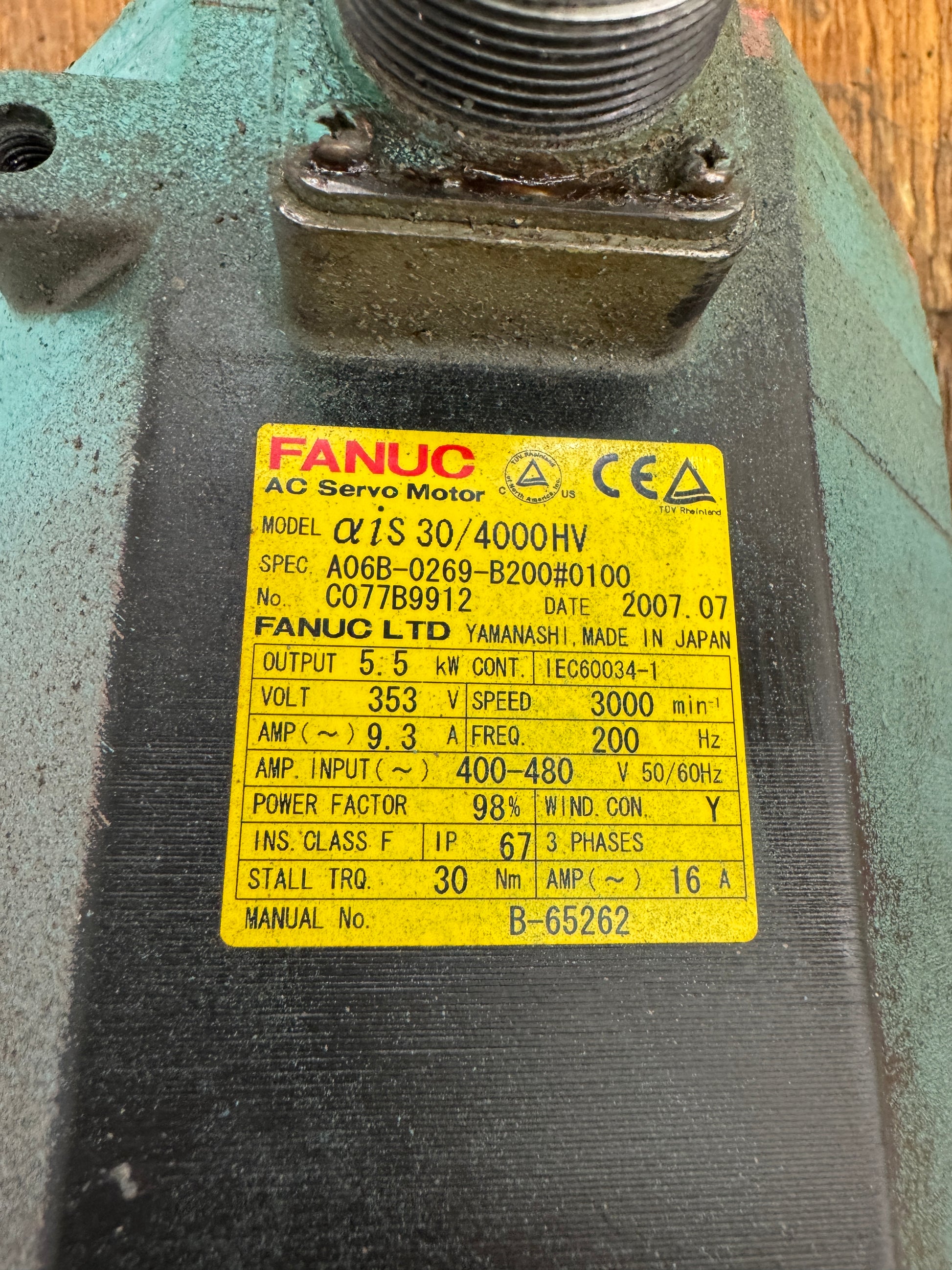

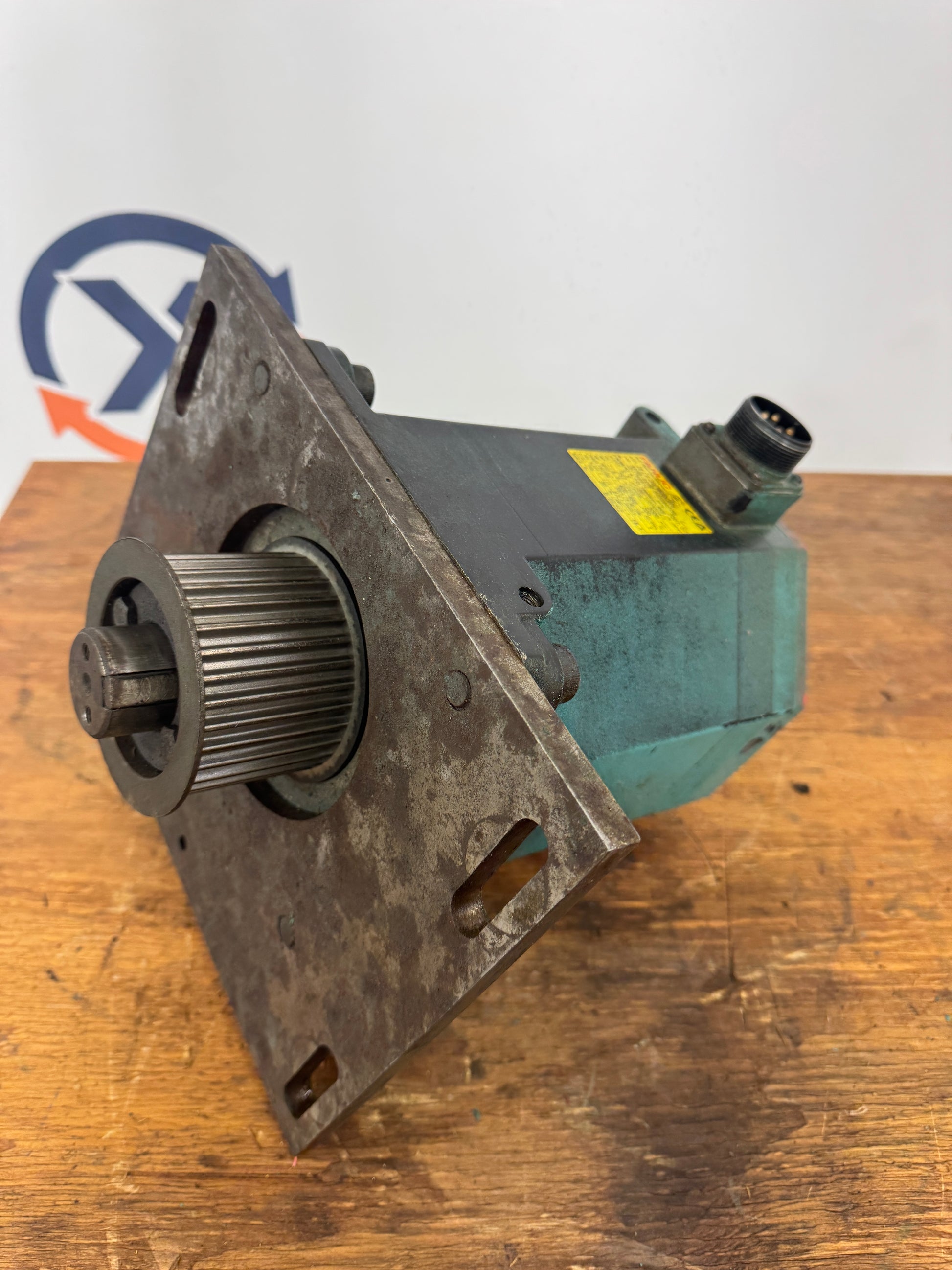

The Fanuc A06B-0269-B200#0100 is an AC servo motor from the alpha iS series, model aiS 30/4000HV, manufactured in Yamanashi, Japan. The nameplate identifies serial number C077B9912 with a date code of 2007.07 and references manual number B-65262. This high voltage servo motor is rated at 5.5 kW continuous output and operates at a rated speed of 3000 min-1. Electrical ratings include 353V output, 9.3A at 200 Hz, and an amplifier input range of 400 to 480V at 50/60 Hz, three phase, in a Y wind configuration. The motor lists a power factor of 98 percent and a stall torque of 30 Nm with a stall current of 16A. Construction carries Insulation Class F and an IP67 ingress protection rating, suitable for environments exposed to dust and water spray. Compliance markings on the nameplate include CE and TUV Rheinland. The aiS 30/4000HV is commonly used as an axis drive motor on Fanuc controlled CNC machining centers, turning centers, and other high voltage servo applications paired with Fanuc alpha i series amplifiers. Built in feedback is provided through an integrated absolute pulse coder per Fanuc alpha iS specification. The unit ships as the motor assembly shown on the nameplate, with no additional cables, connectors, or amplifier components included unless visible in the listing photos.
Stock # 0226-135
