FANUC AC Servo Motor A06B-0273-B200 - 5 kW 3000 RPM
FANUC AC Servo Motor A06B-0273-B200 - 5 kW 3000 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A06B-0273-B200
Stock #: 0226-00132

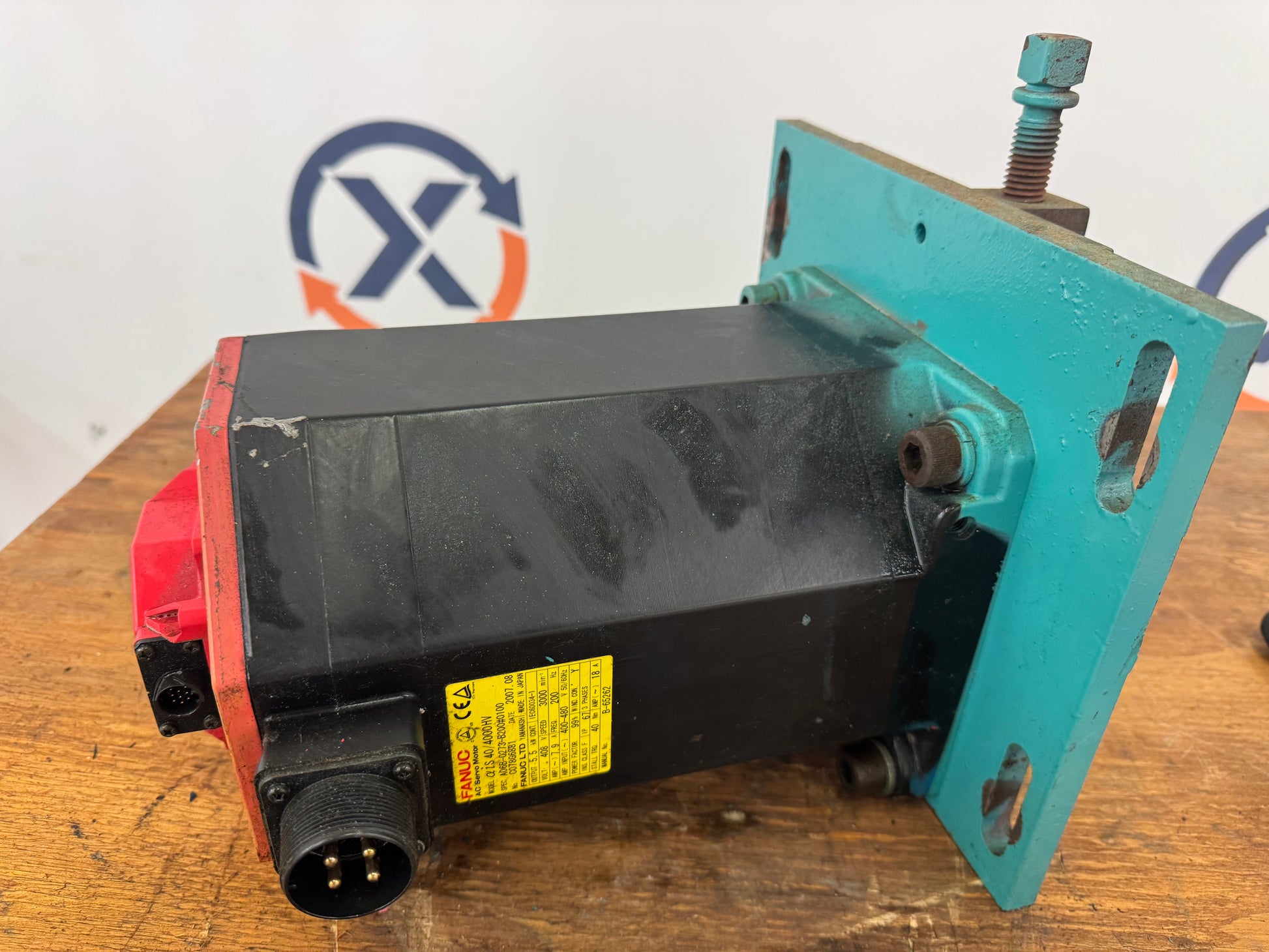

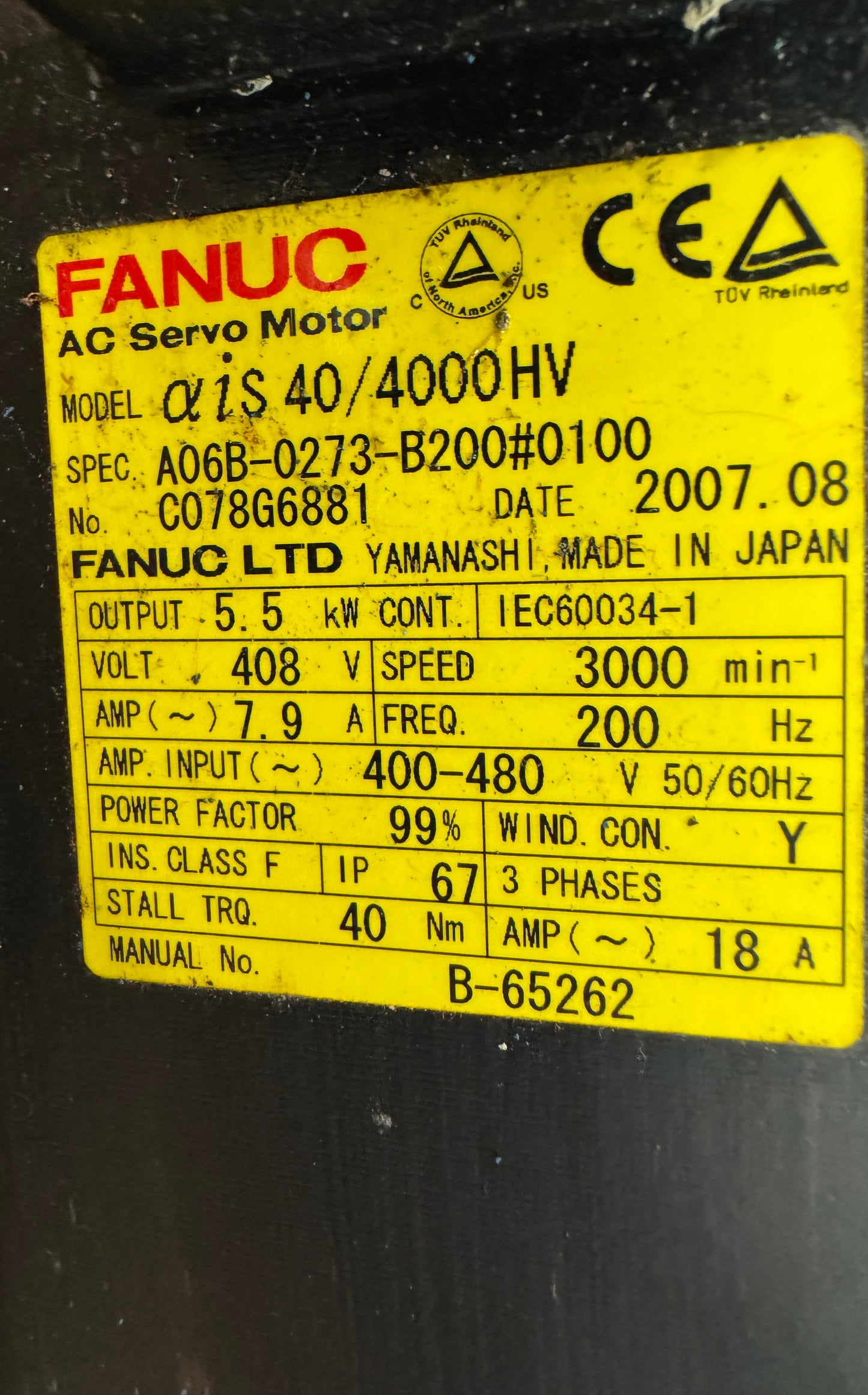

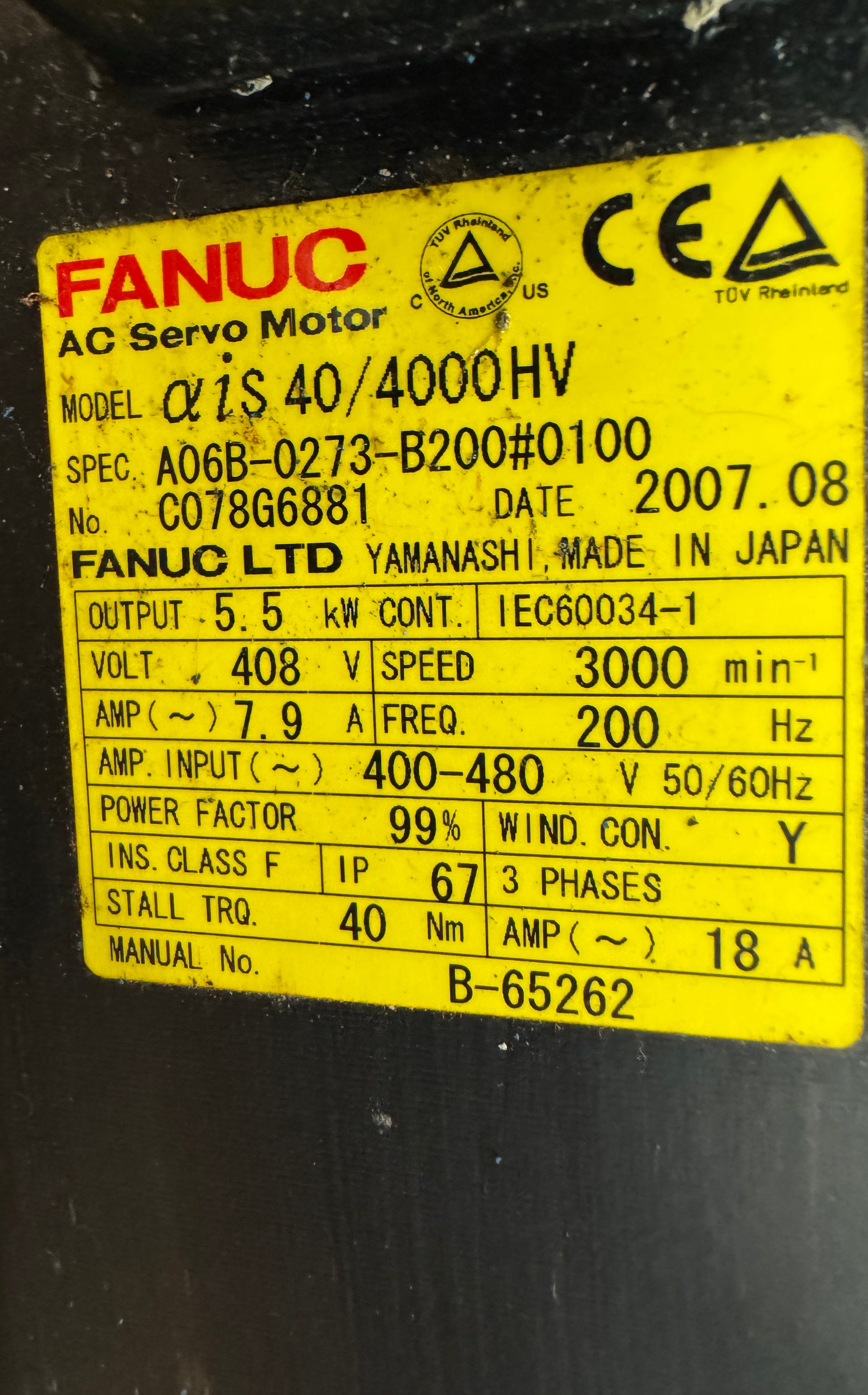

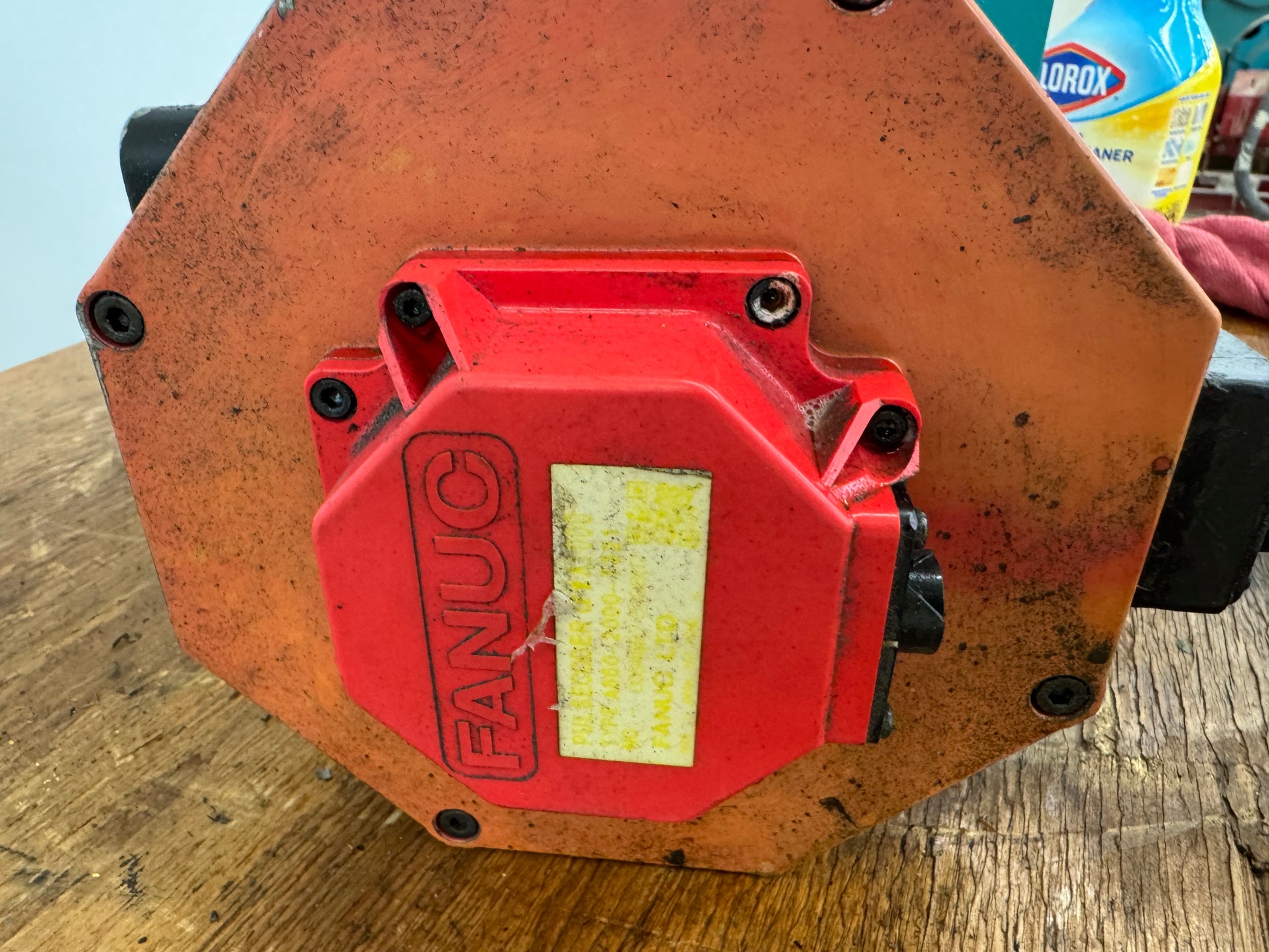

The Fanuc A06B-0273-B200 is an alpha iS series AC servo motor, model aiS 40/4000HV, manufactured by Fanuc Ltd. in Yamanashi, Japan. The nameplate identifies serial number C078G6881 and a manufacturing date of 2007.08. This high voltage three phase motor is rated at 5.5 kW continuous output per IEC60034 1, with a rated voltage of 408 V, rated current of 7.9 A, and a rated speed of 3000 min⁻¹ at 200 Hz. Required amplifier input is 400 to 480 V at 50/60 Hz, with a peak amplifier current of 18 A. Stall torque is rated at 40 Nm. The motor uses Y (star) winding connection and Class F insulation. Ingress protection is rated IP67, supporting use in environments with dust and moisture exposure. Power factor is listed at 99 percent. The aiS 40/4000HV is part of Fanuc's alpha i high voltage AC servo motor family, commonly applied on CNC machine tools, machining centers, and industrial automation equipment where high torque density and precision motion control are required. The motor integrates a serial pulsecoder for position feedback compatible with Fanuc alpha i series servo amplifiers and CNC controls in the 30i, 31i, 32i, 0i, and earlier alpha i generation systems. Manual reference number B 65262 is printed on the nameplate. Spec number A06B 0273 B200 #0100 identifies the configuration variant within the A06B 0273 product series.
Stock # 0226-132
