FANUC Servo Motor A06B-0501-B002-R - 3 HP 2000 RPM
FANUC Servo Motor A06B-0501-B002-R - 3 HP 2000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

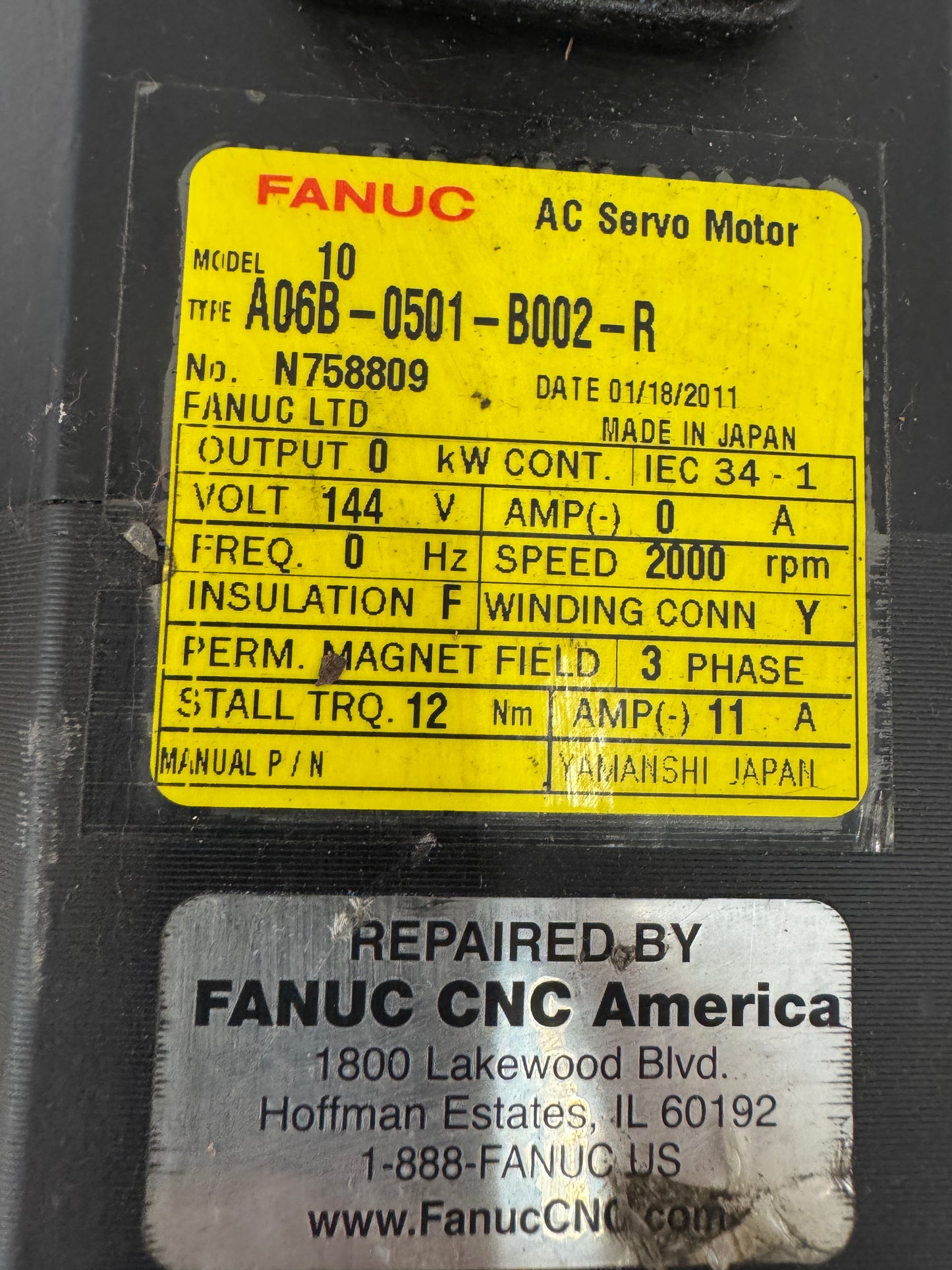

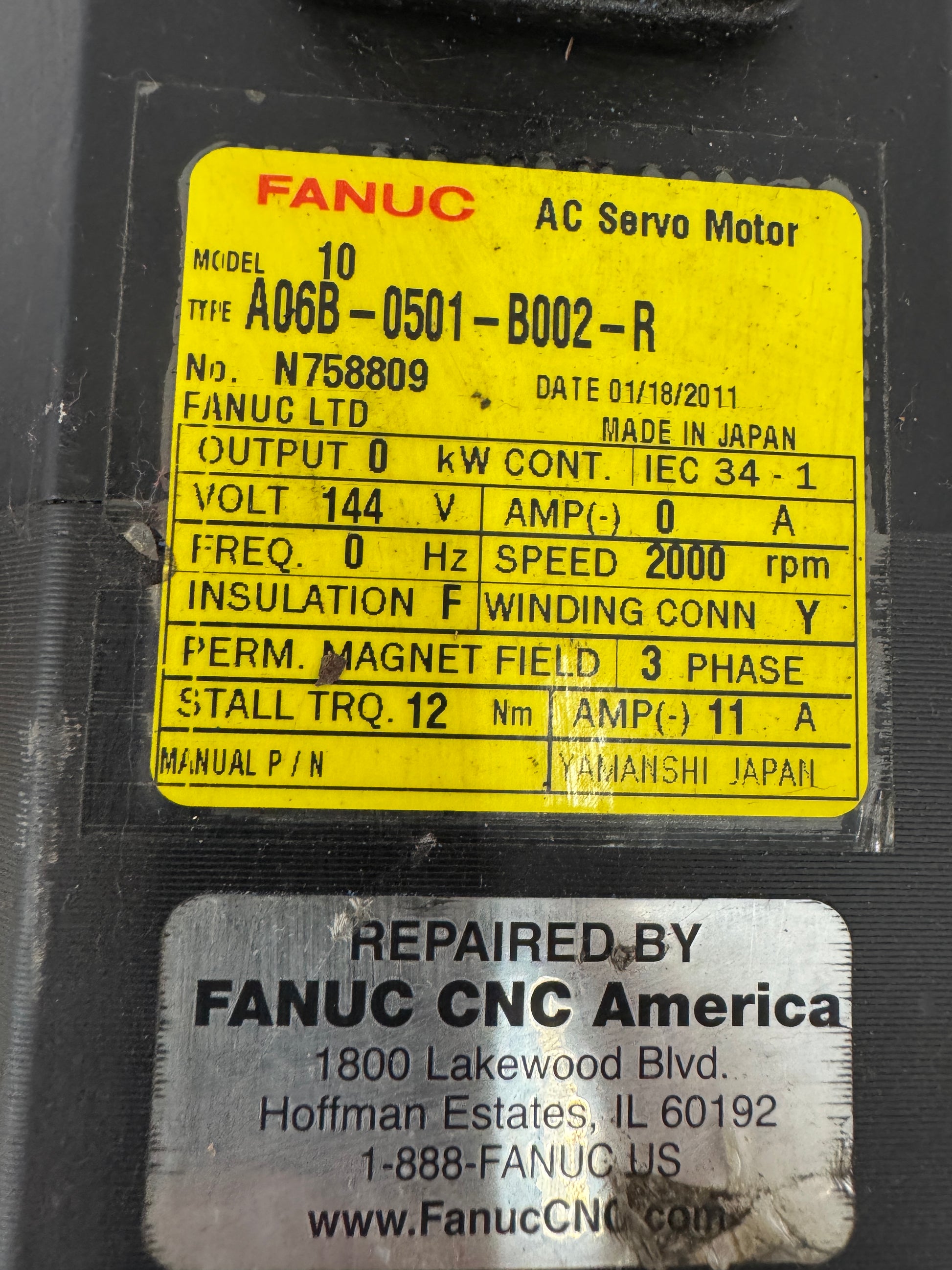

The Fanuc A06B-0501-B002-R is a Model 10 AC servo motor manufactured by Fanuc Ltd. in Yamanshi, Japan, with a nameplate date of 01/18/2011 and serial number N758809. This unit is part of the Fanuc S series servo line widely used in CNC machine tools, machining centers, lathes, and industrial automation systems for axis drive applications. Rated for 144 V operation and 3 phase input, the motor produces a stall torque of 12 Nm at 11 A and a rated speed of 2000 RPM. The construction uses a permanent magnet field with Y winding connection and Class F insulation in accordance with IEC 34 1 standards. The "R" suffix on the type designation indicates the OEM variant of the standard A06B 0501 B002 platform. Compatible with Fanuc servo amplifiers and CNC control systems that support the Model 10 motor profile, this servo is commonly specified as a feed axis motor on Fanuc equipped machines. The nameplate confirms manufacturer, type, serial number, date code, voltage, stall torque, stall current, speed, insulation class, winding configuration, phase count, and country of origin. Buyers searching for replacement Fanuc Model 10 servo motors, A06B 0501 series spares, or Fanuc CNC axis drive components will find this unit referenced by part number A06B 0501 B002 R across active US MRO and surplus markets.
Stock # 0226-133
