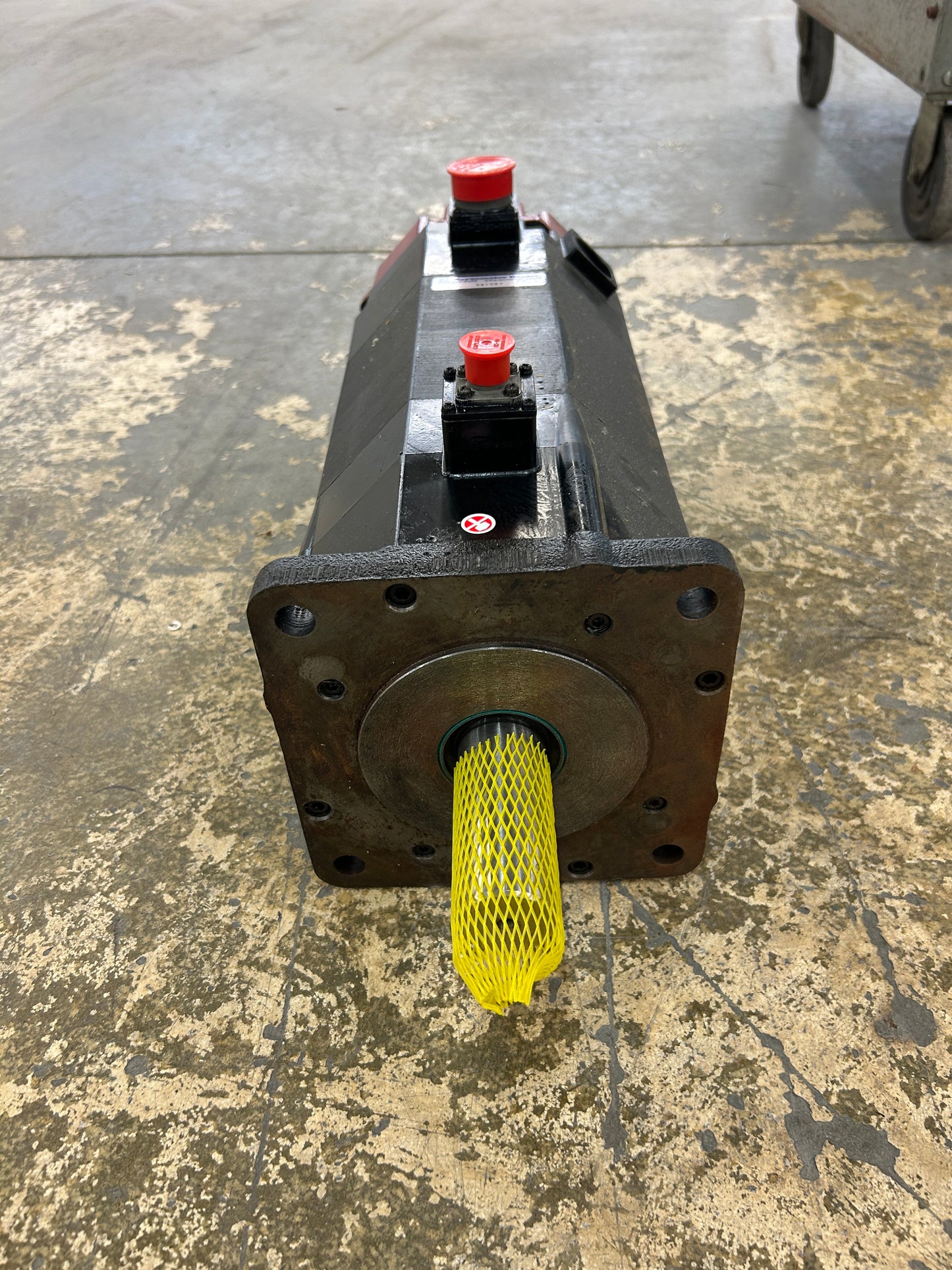

FANUC A06B-0153-B675 AC Spindle Motor A30/3000 30 kW 3000 RPM

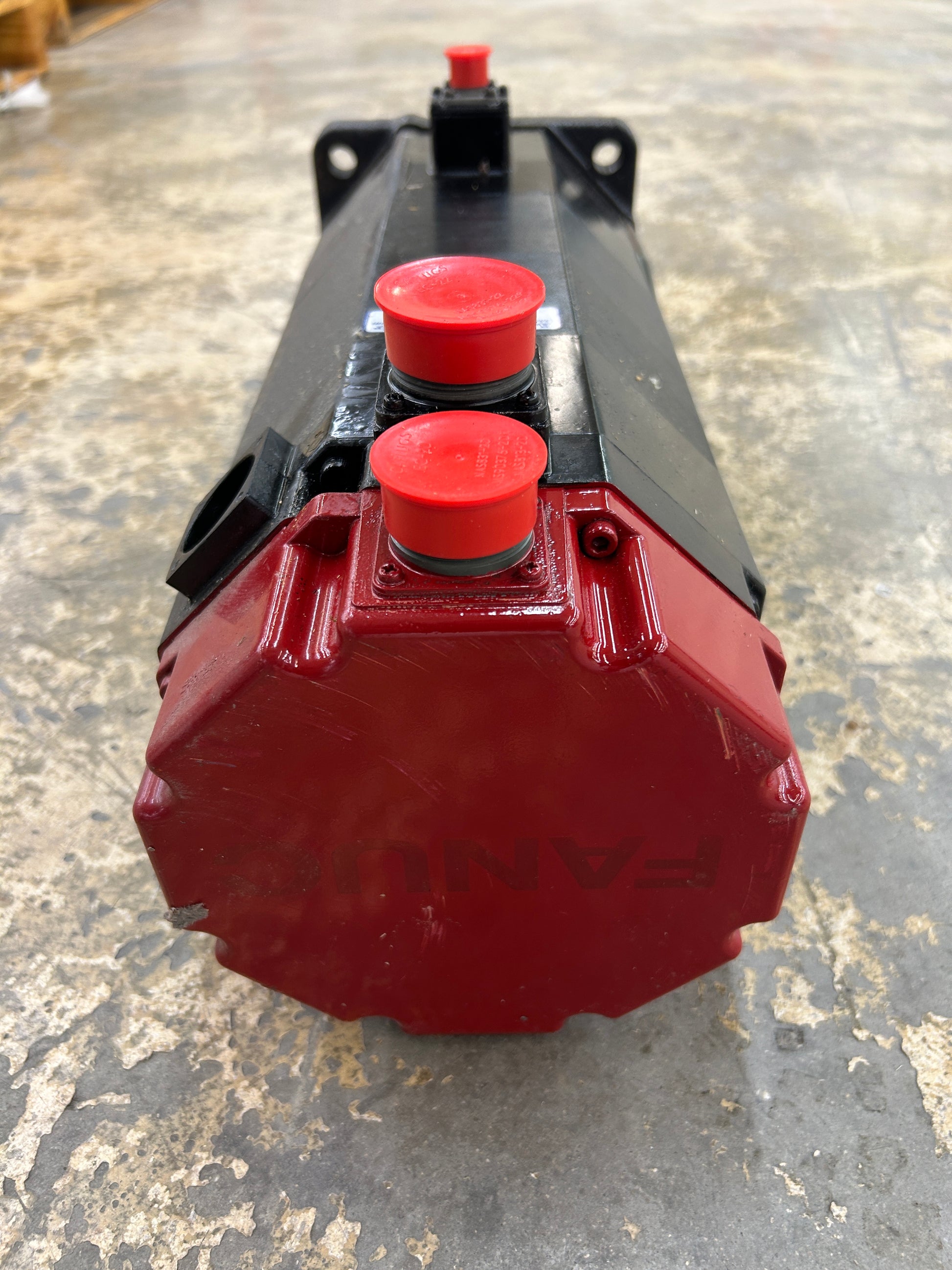

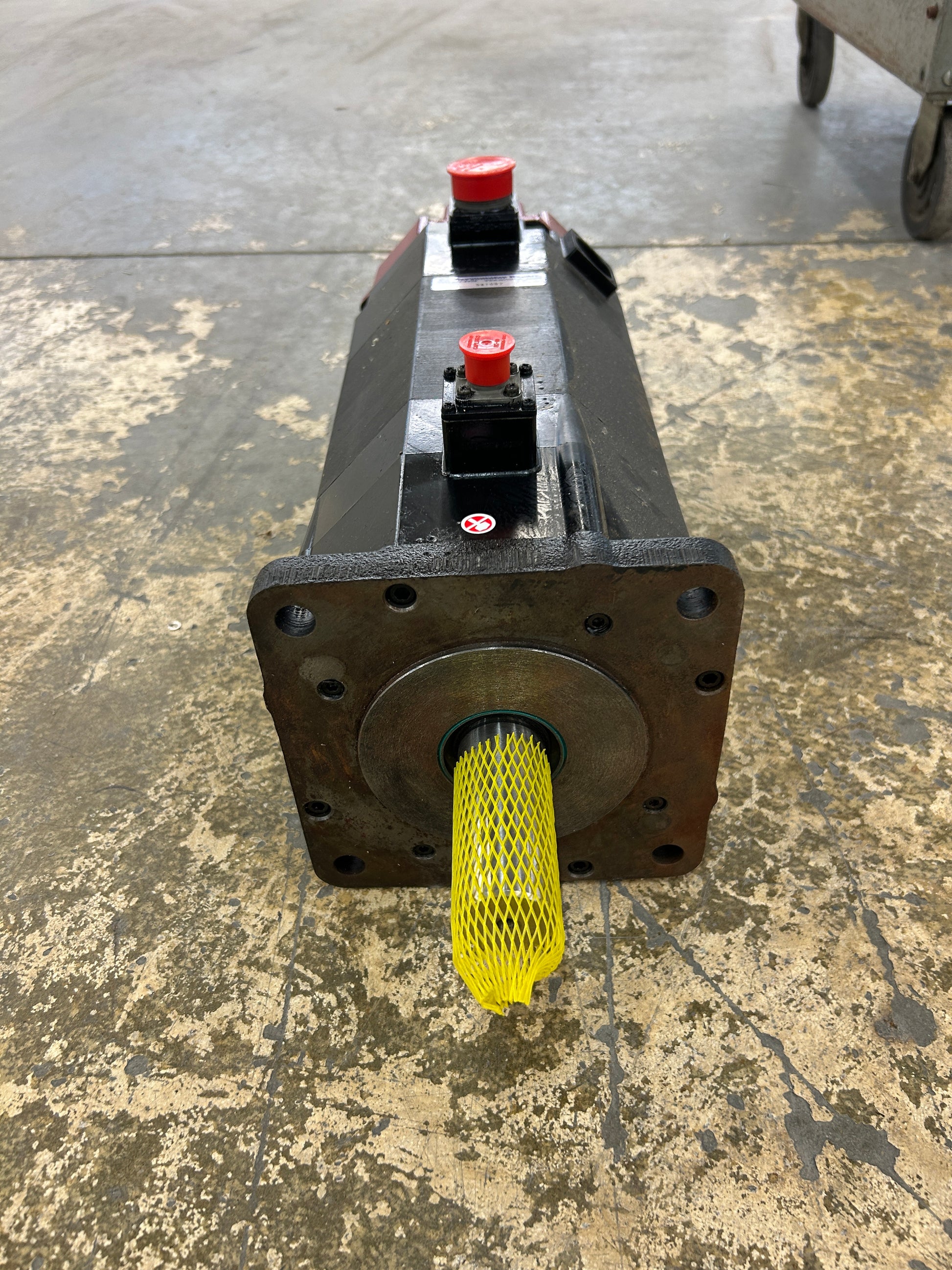

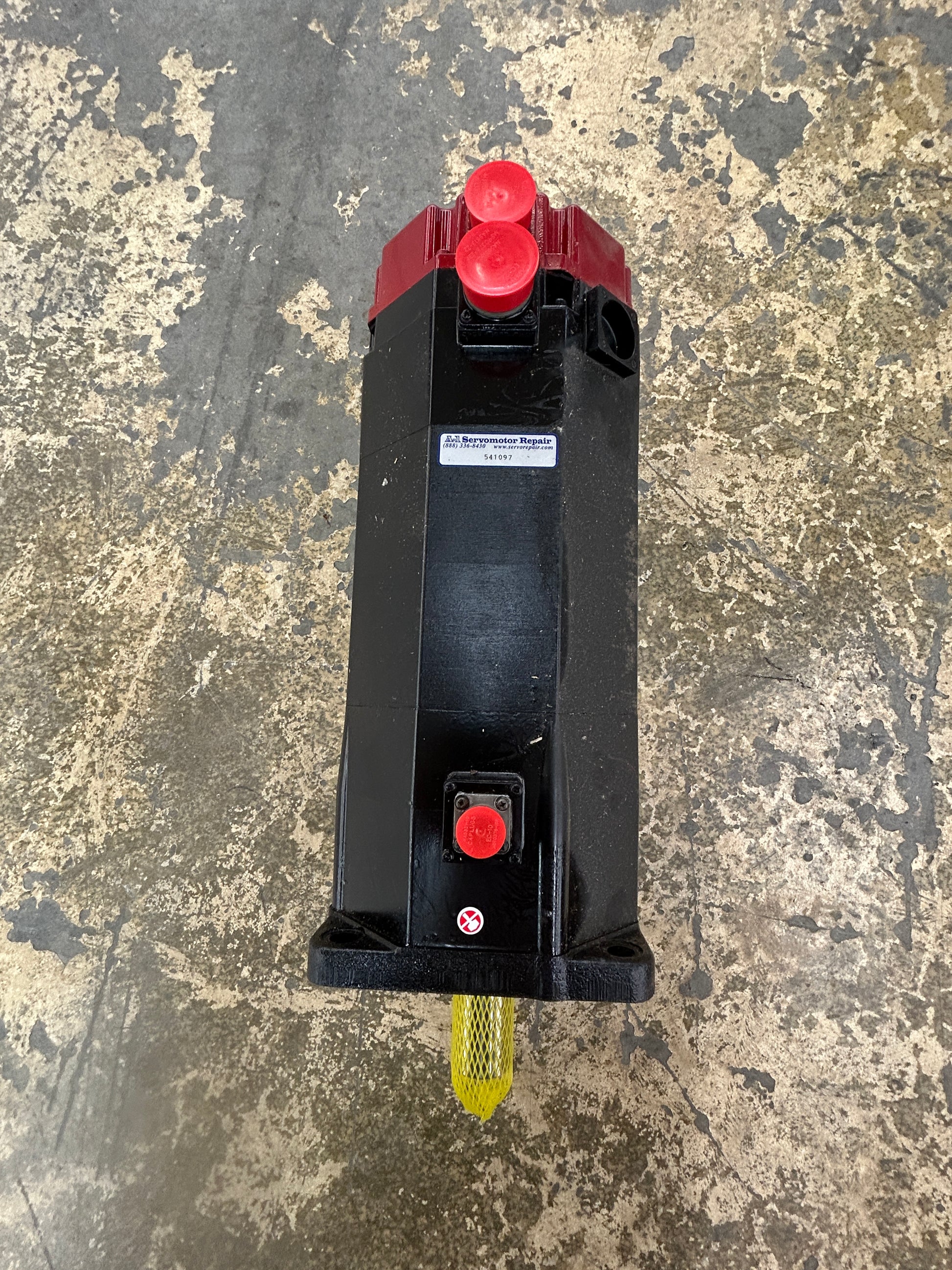

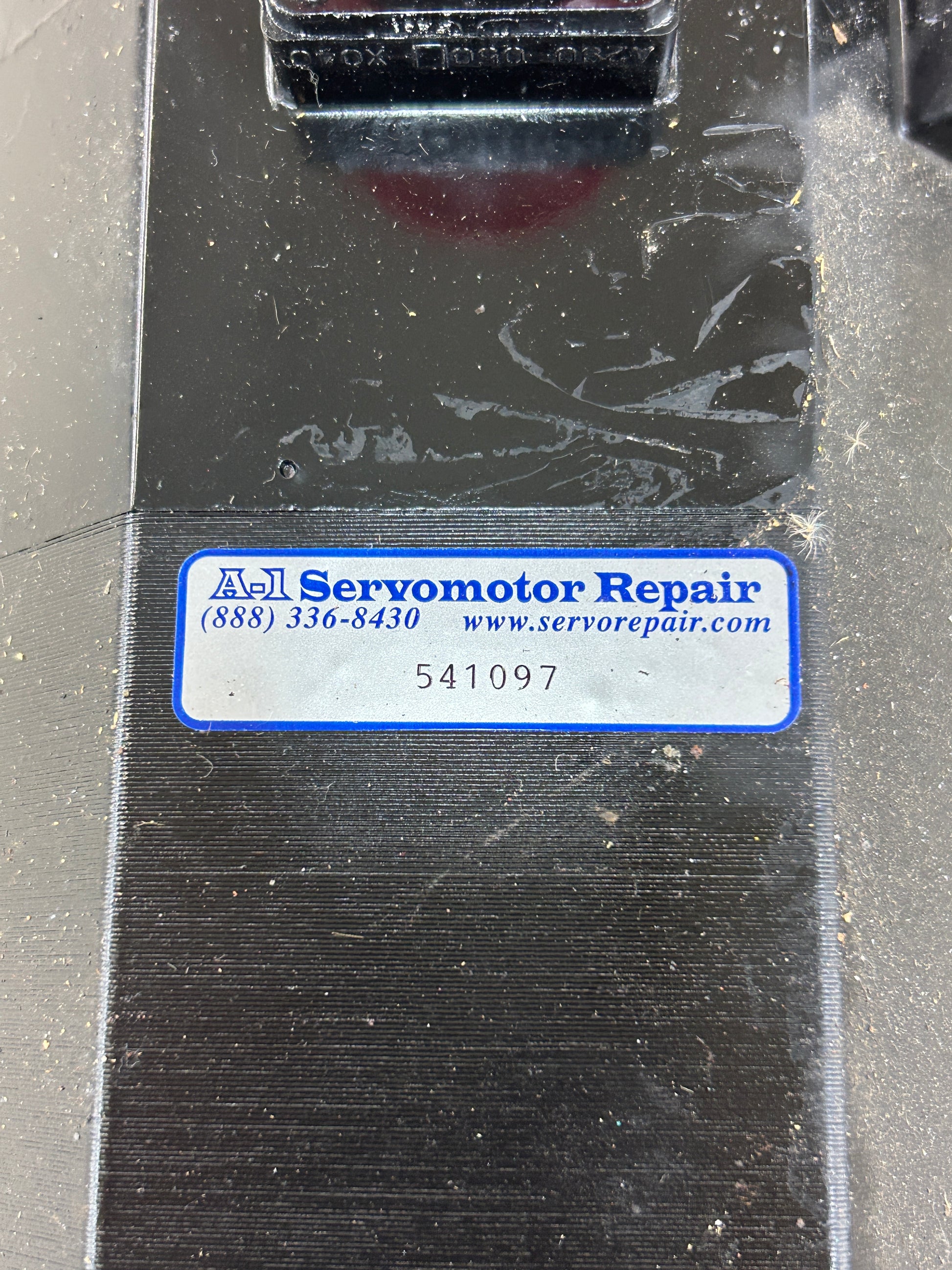

The Fanuc A06B-0860 series Alpha 30/3000 is an AC spindle motor designed for use on CNC machine tools requiring high power density and tight servo integration. Rated at approximately 30 kW continuous output, the Alpha 30 platform is built around a four pole, three phase induction design with class H insulation and is engineered to operate with Fanuc Alpha series spindle amplifier modules over the Fanuc serial spindle interface. The motor body uses a fully enclosed cast frame with a large square flange, rear mounted axial cooling fan housed under the red painted cap, and a keyed cylindrical output shaft with shaft diameter typical of the Alpha 30 family at 60 mm. Two top mounted connectors accept power input and feedback signal cable, with an additional side connector for auxiliary feedback or brake circuitry. Speed range for the Alpha 30/3000 variant covers a base point near 1150 rpm with a published maximum of 4500 rpm. The integral spindle sensor provides position and velocity feedback compatible with Fanuc serial spindle controls used in machining centers and turning centers. The motor carries an A 1 Servomotor Repair service tag with reference number 541097, indicating prior third party rebuild work was performed. The original Fanuc nameplate is not present on the item as received. Application areas include vertical machining centers, horizontal machining centers, and CNC lathes operating under Fanuc 15, 16, 18, 21, 30i, and 31i series controls.

Stock # 0226-128
