Fanuc Velocity Control Unit A06B-6047-H003 m00616

$249.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

The Fanuc A06B-6047-H003 is a DC servo velocity control unit produced by Fanuc Ltd and made in Japan. It is a legacy Fanuc servo drive designed for axis velocity control in CNC lathes, turning centers, and machining centers equipped with Fanuc Series 3, 5, and 6 control systems. Compatible machines include Mori Seiki, Takisawa, and various other CNC platforms that used Fanuc DC servo technology.

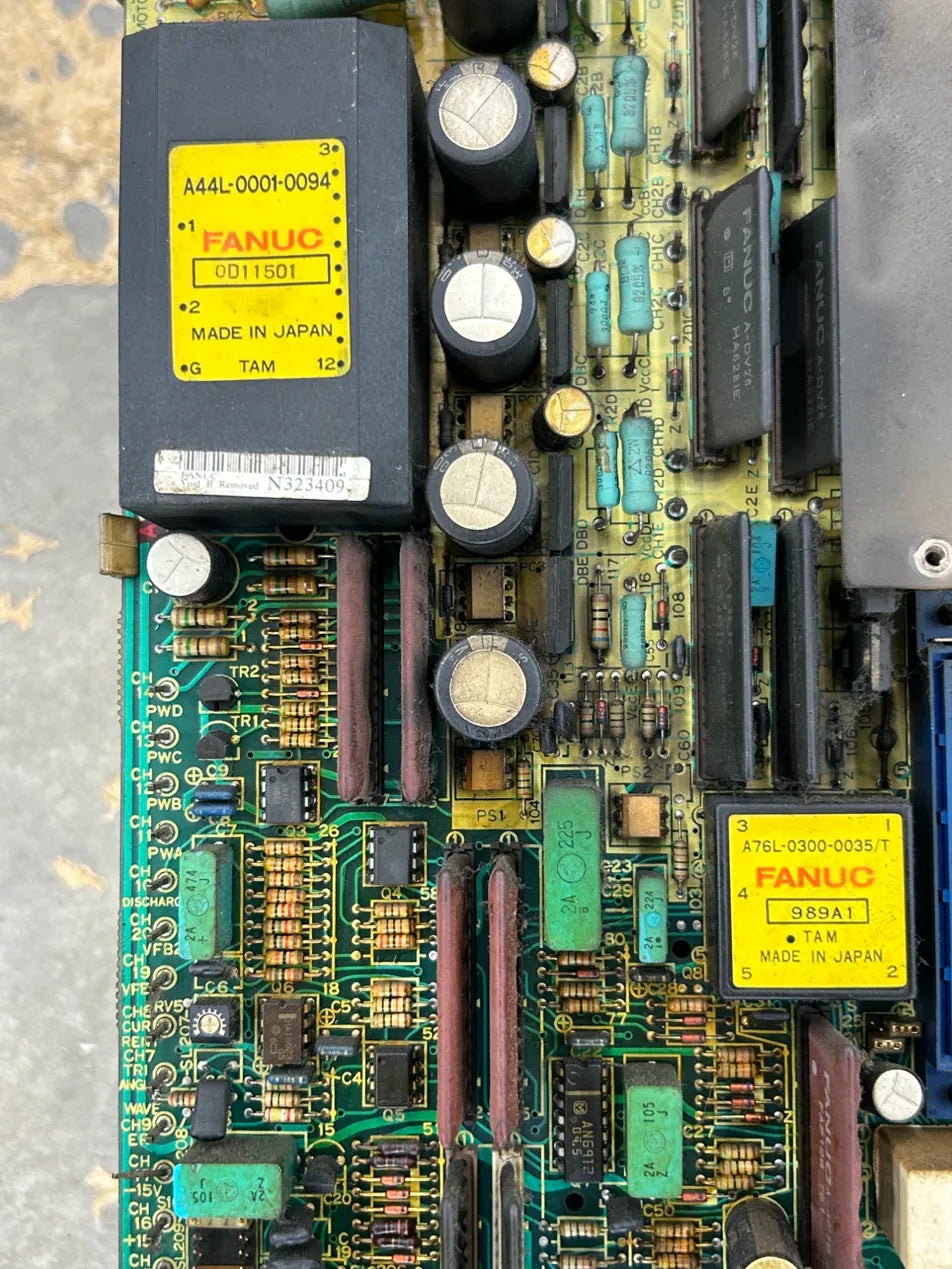

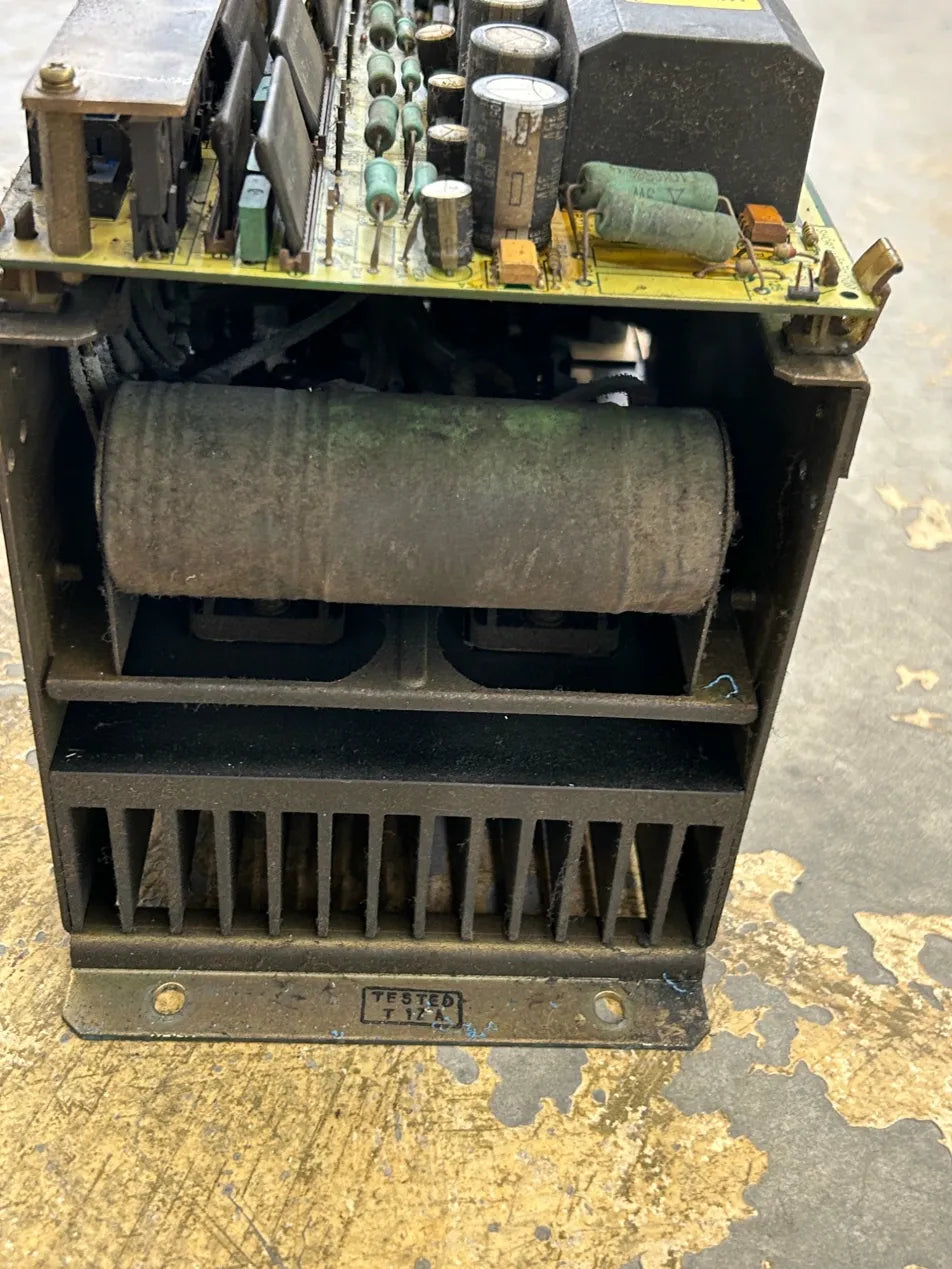

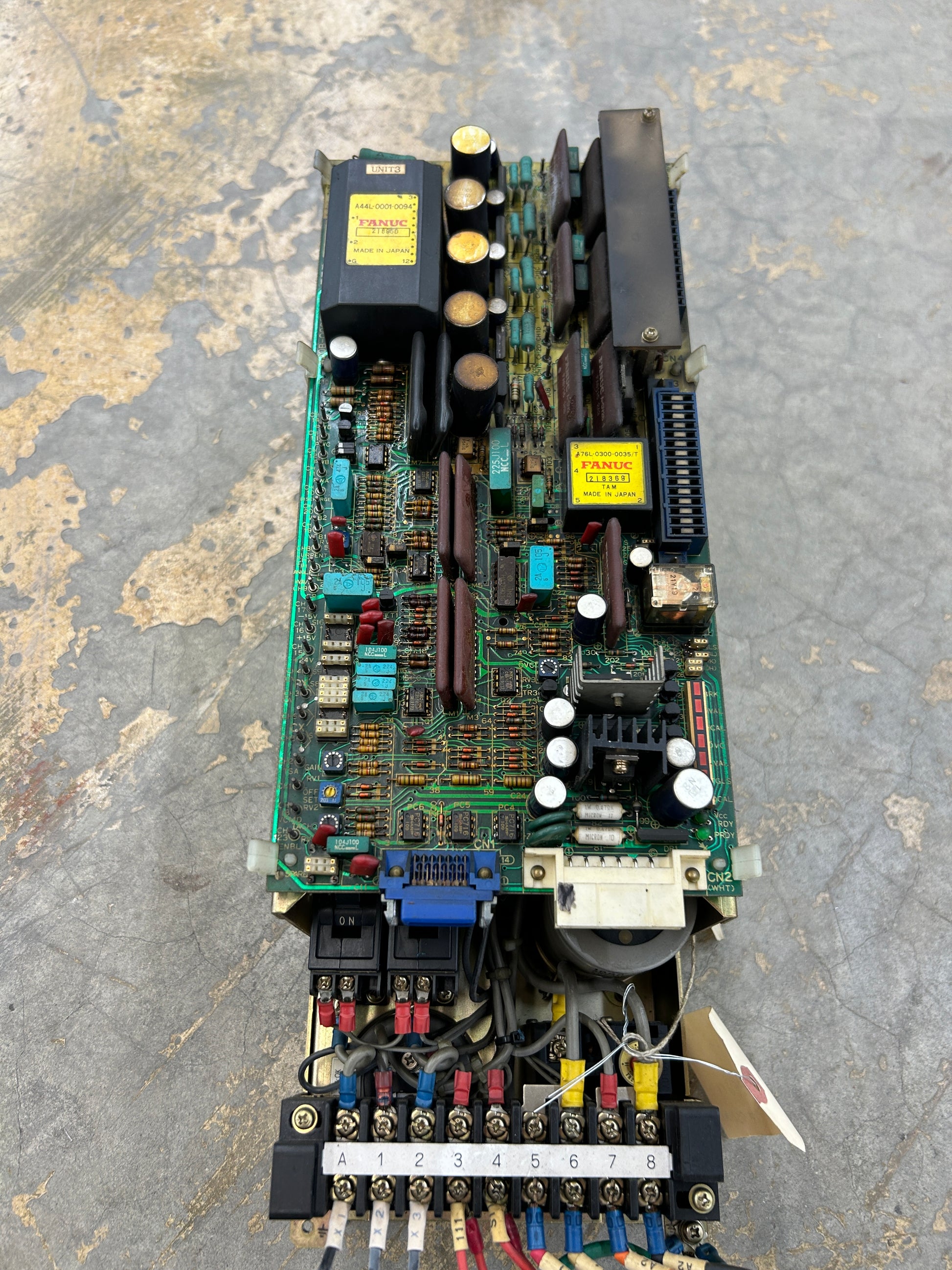

The assembly integrates a main control PCB carrying Fanuc sub-modules A44L-0001-0094 (labeled UNIT3 on this example) and A76L-0300-0035/T. The internal capacitor bank includes a unit marked A40L-0001-0129, visible on the reactor inside the chassis. The lower power section includes a single circuit breaker with an ON/OFF actuator, a large electrolytic capacitor bank, and a terminal block with positions A through 8 used for main field wiring connections. The rear of the chassis features a finned aluminum heat sink for power device cooling.

The nameplate reads: Velocity Control Unit, Type No. A06B-6047-H003, Mfg. No. P06K00007, Fanuc Ltd, Made in Japan. The bottom chassis plate is stamped H003 and carries a barcode label. The PCB silkscreen shows board designation 225J100 NCC consistent with this model. Pigtail wiring with ring terminals and spade connectors remains attached at the terminal block, indicating the unit was previously installed and wired in a machine.

Buyers should confirm compatibility with their specific Fanuc control system and machine axis configuration prior to installation.

Stock # 0226-616
