MPN: DC11XN1
Stock #: 0226-00814

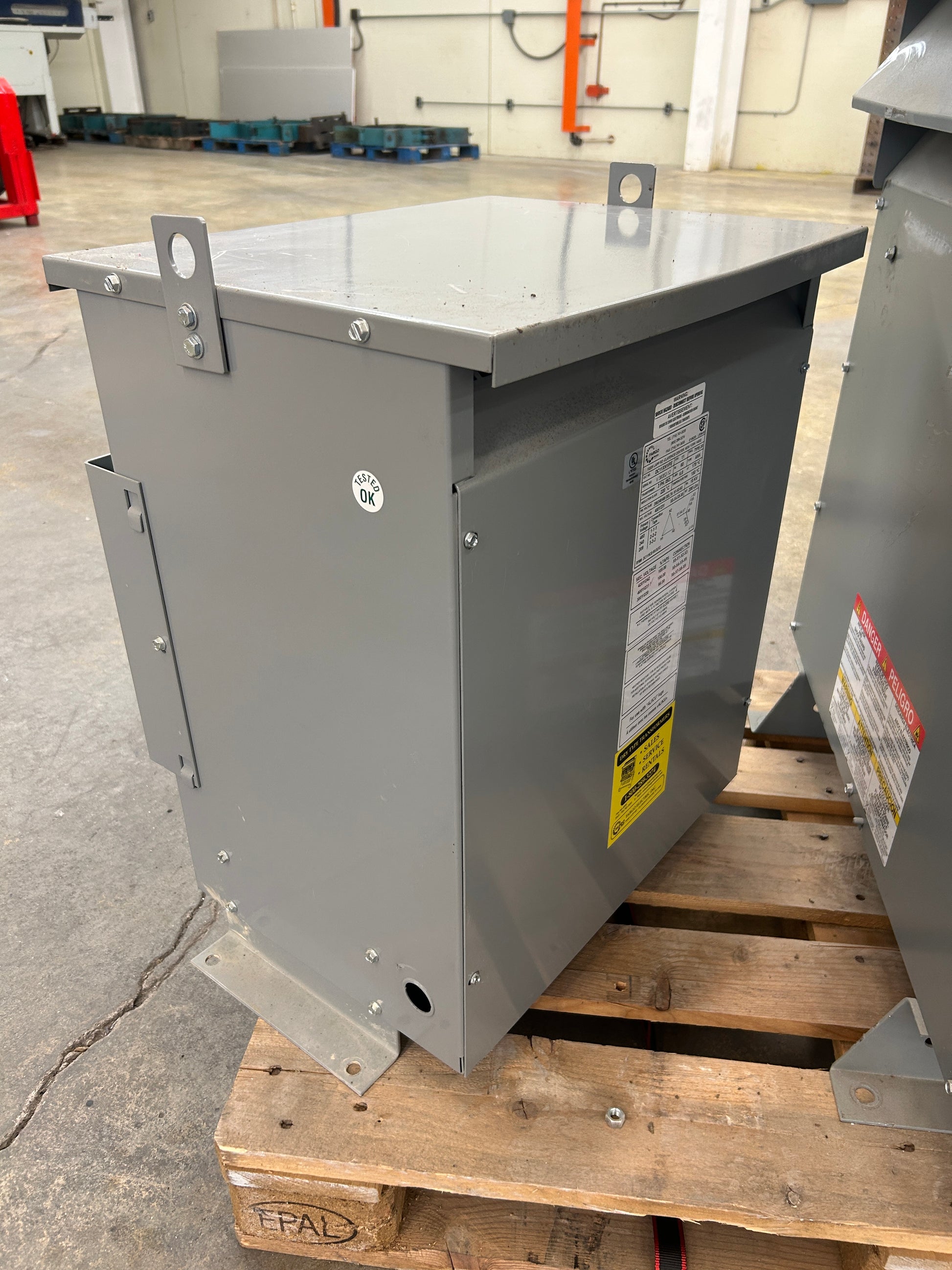

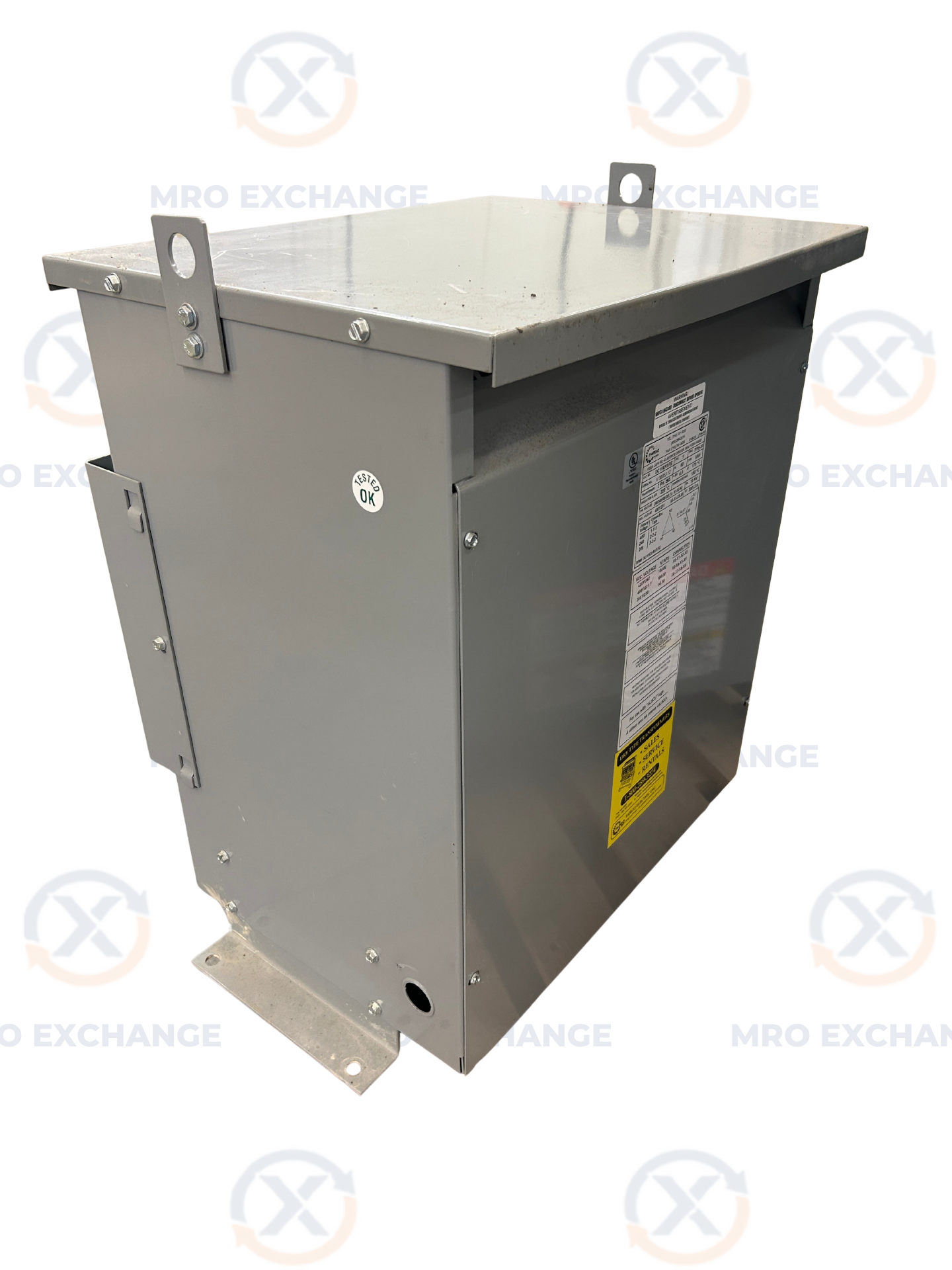

Used in CNC machining centers and industrial automation systems where European-standard drive voltage is required, the Fargo Electric DC11XN1/FE is an 11 KVA three-phase drive isolation transformer configured with a multi-tap primary accepting 208V, 240V, or 480V Delta input and a 400Y/231V secondary output. This configuration is common in facilities operating Fanuc, Siemens, or other CNC control platforms that require 400V three-phase power derived from a standard North American supply.

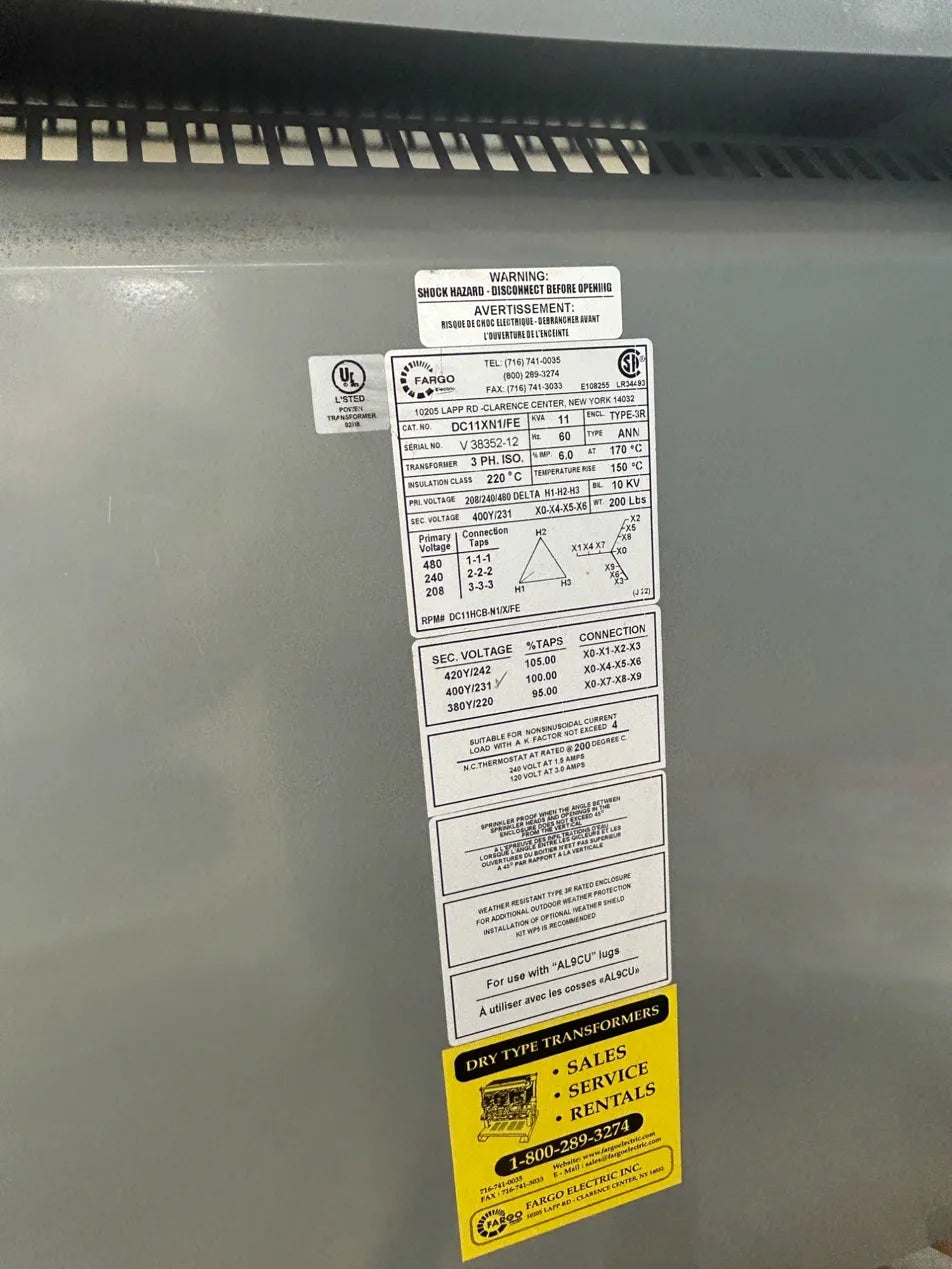

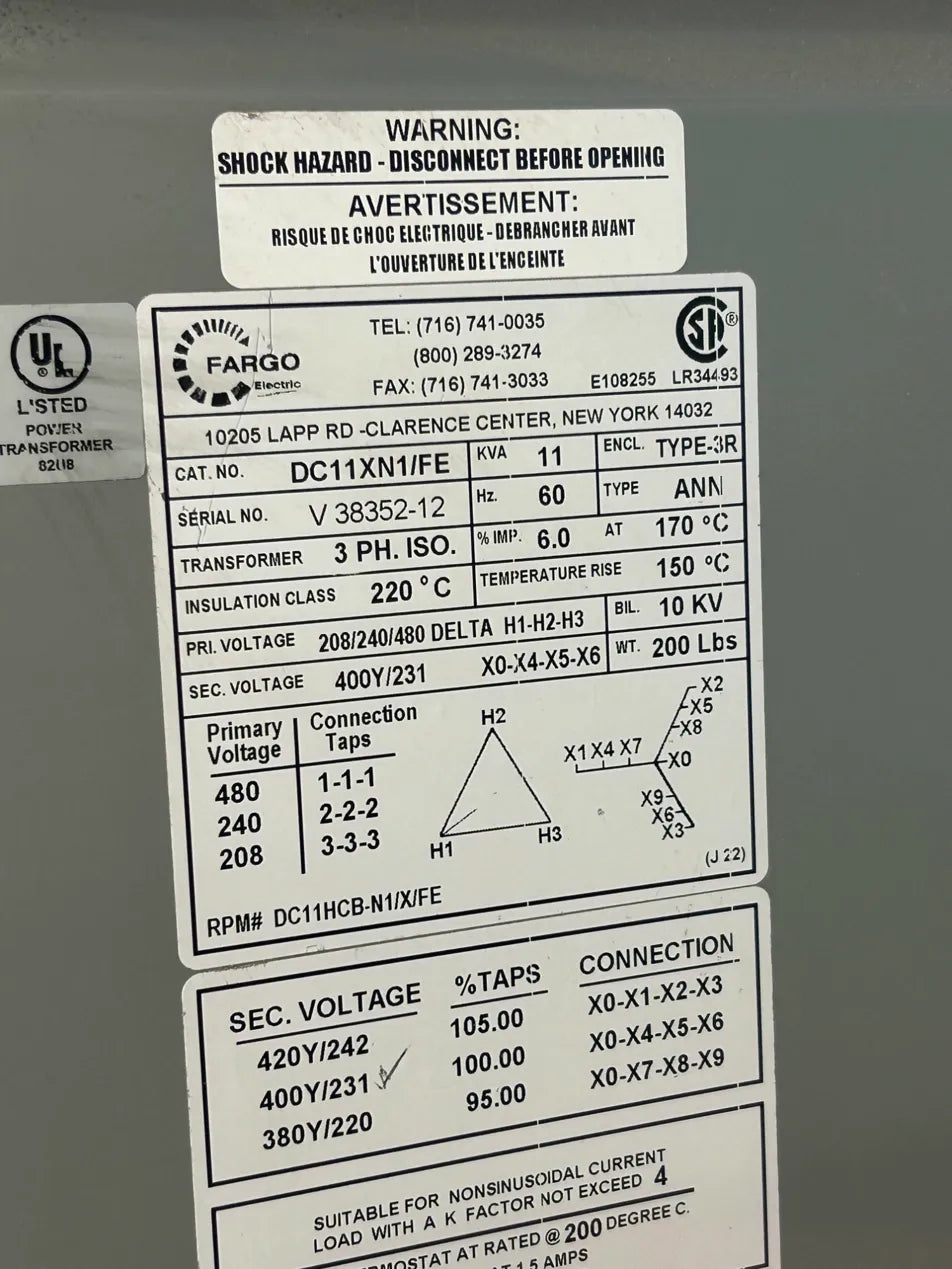

The unit carries catalog number DC11XN1/FE and reference part number DC11HCB-N1/X/FE as shown on the nameplate. It operates at 60 Hz, features a Class 220C insulation system, and carries a 150C temperature rise rating. Impedance is rated at 6.0% at 170C. The enclosure is Type 3R, suitable for outdoor or wet-location installation. BIL rating is 10 KV. The transformer is UL Listed and CSA certified, as confirmed by visible certification marks on the nameplate. Serial number V 38352-12 is visible. Nameplate weight is listed as 200 lbs. Secondary voltage taps provide adjustment at 105%, 100%, and 95% via connections X0-X1-X2-X3, X0-X4-X5-X6, and X0-X7-X8-X9 respectively. The unit is designed for K-Factor 4 nonsinusoidal current loads. A thermostat rated at 240V/1.5A and 120V/3.0A is included. Lugs are rated for AL9CU conductors.
