Festo Pressure Regulator MS9-LR-G-D6-AG-BAR-AS G1 105 PSI
Festo Pressure Regulator MS9-LR-G-D6-AG-BAR-AS G1 105 PSI
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

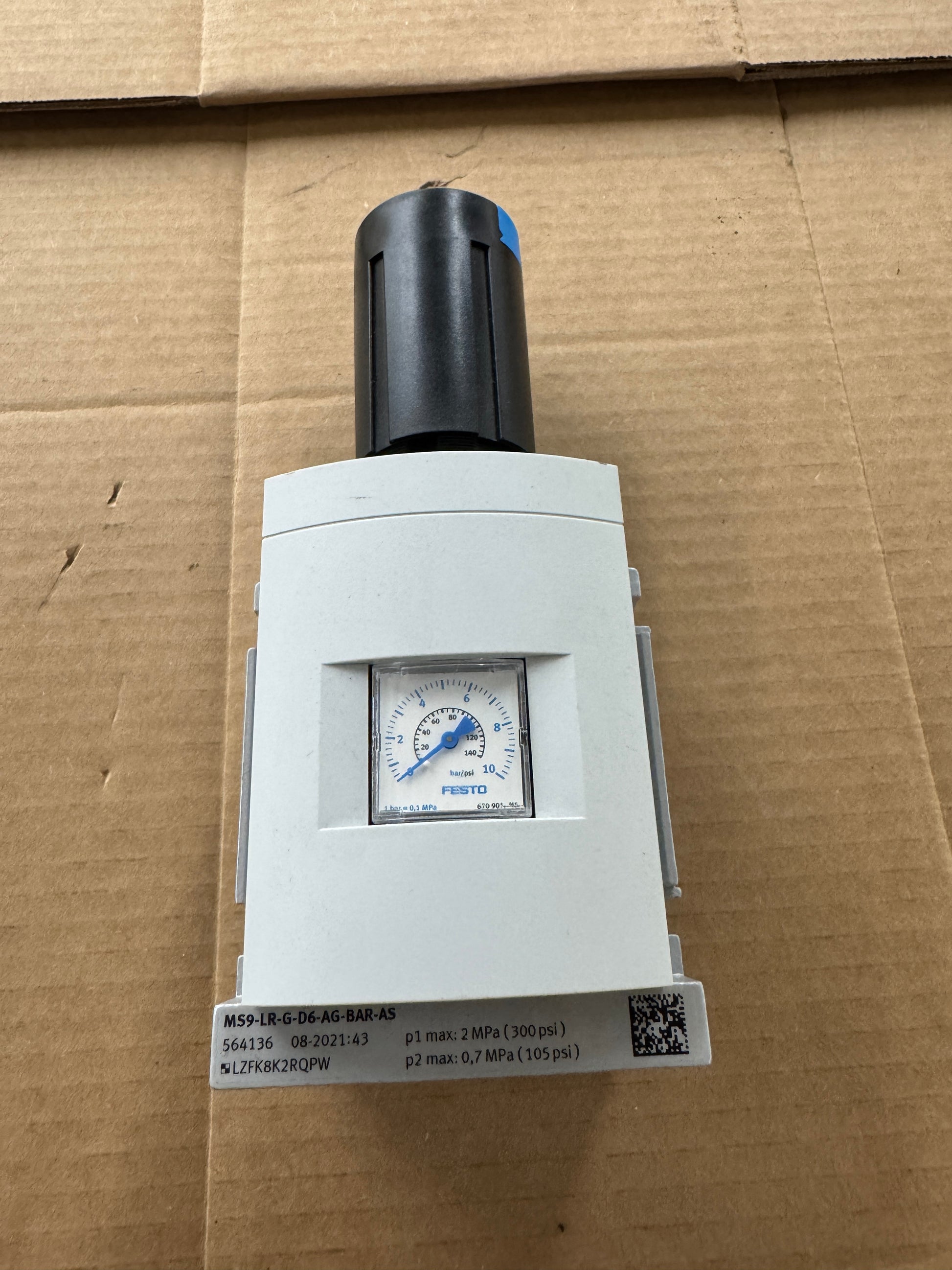

Used in industrial pneumatic systems requiring precise compressed air pressure control, the Festo MS9-LR-G-D6-AG-BAR-AS is a size 9 piloted diaphragm pressure regulator from the MS series. Part number 564136, this unit carries a p1 maximum inlet pressure of 300 PSI (2 MPa) and a p2 maximum outlet pressure of 105 PSI (0.7 MPa), both confirmed on the nameplate label. The pressure regulation range for the D6 variant is 0.3 to 7 bar (approximately 4.4 to 101.5 PSI). The unit features an integrated analog pressure gauge with bar and kPa/psi scale markings, visible through the clear window on the regulator head. The lockable rotary knob design allows for secure pressure adjustment and can be locked via accessories to prevent unauthorized changes. The G-type sub-base interface is indicated in the part number, and flow direction is left to right. The 90 mm grid size is consistent with the MS9 series platform, which supports modular assembly with compatible Festo MS9 shut-off, filter, soft-start, and branching modules. Housing is die-cast aluminum with NBR diaphragm and seals. Date code on label reads 08-2021, indicating manufacture in August 2021. The MS9-LR series is suitable for high-flow compressed air preparation applications in automation, manufacturing, and machine tool environments.
Stock # 0326-906
