FMX TD400-4005-3PH 480V Variable Frequency Drive New
FMX TD400-4005-3PH 480V Variable Frequency Drive New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

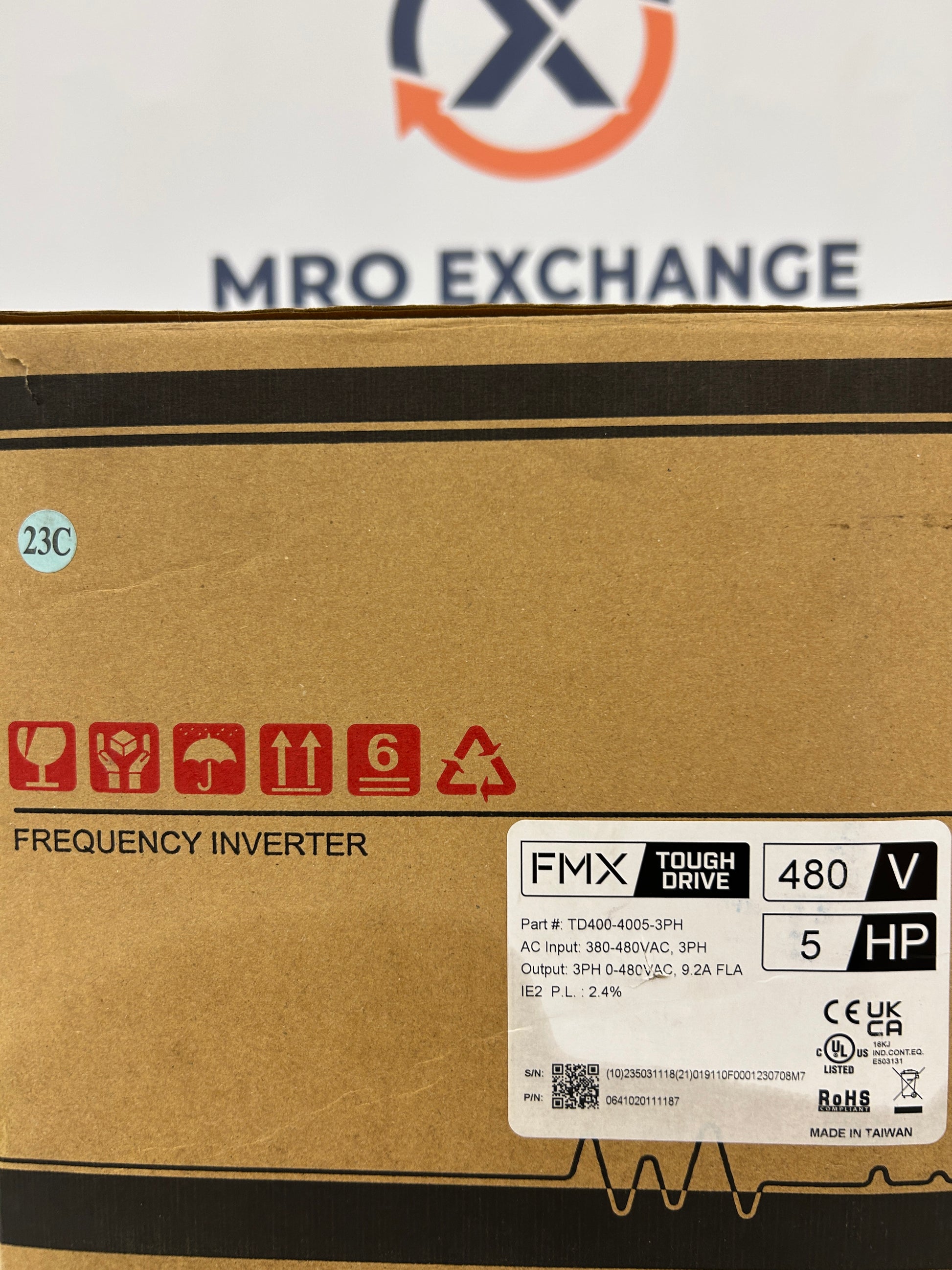

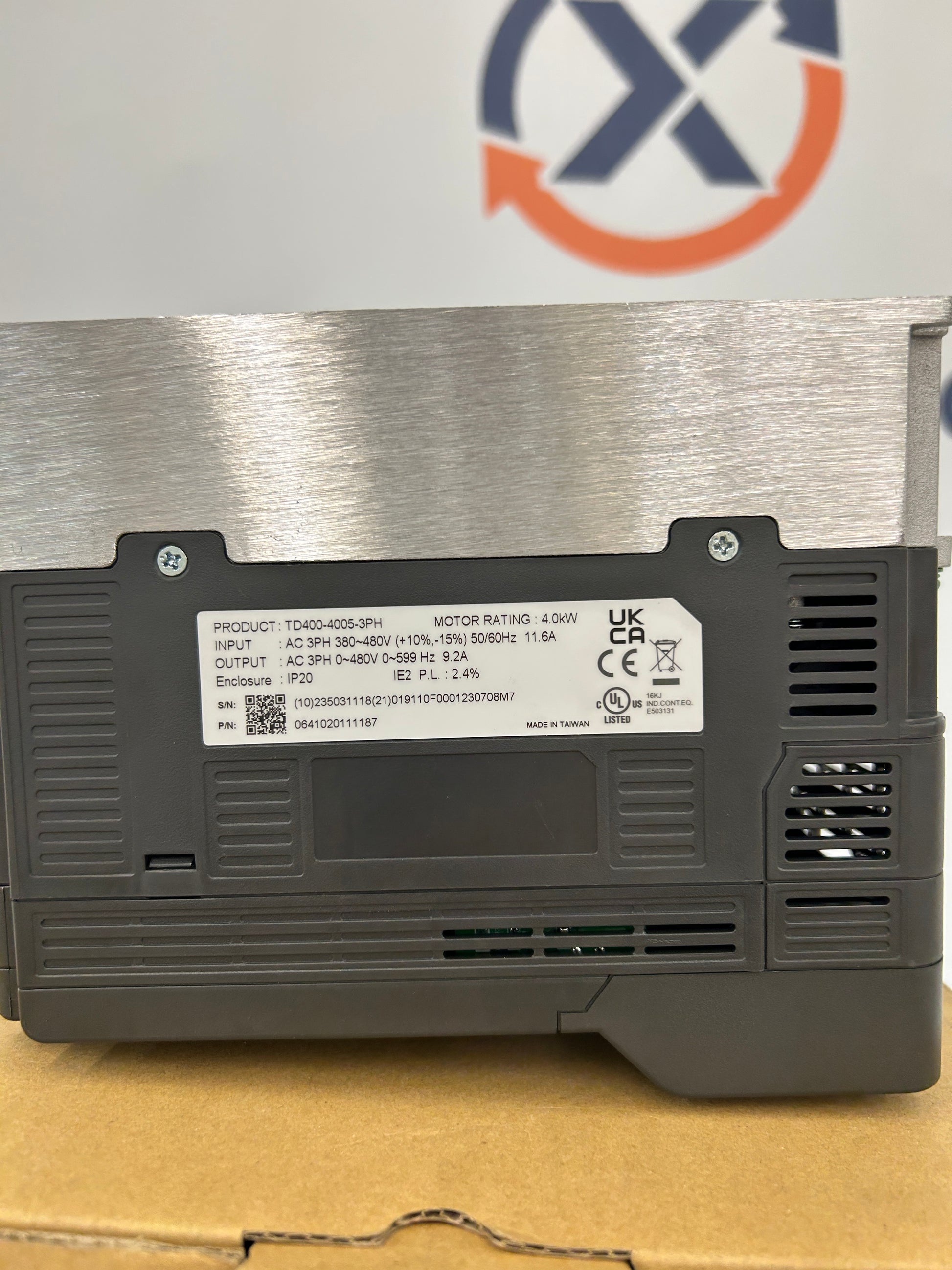

The FMX TD400-4005-3PH is a Tough Drive Series variable frequency AC drive rated at 5 HP / 4.0 kW. The unit accepts 380 to 480 VAC three phase input and provides 0 to 480 VAC three phase output at 9.2 amps full load amperage. Output frequency is adjustable from 0 to 599 Hz with 0.01 Hz accuracy. Control modes include sensorless vector, V/Hz, and PMSLV, with pulse width modulation using IGBT technology and auto tuning. The drive carries CE, UL Listed, UKCA, and RoHS markings, with industrial control equipment file number E503131. Identification on the unit includes serial number 235031118 and part number 0641020111187.

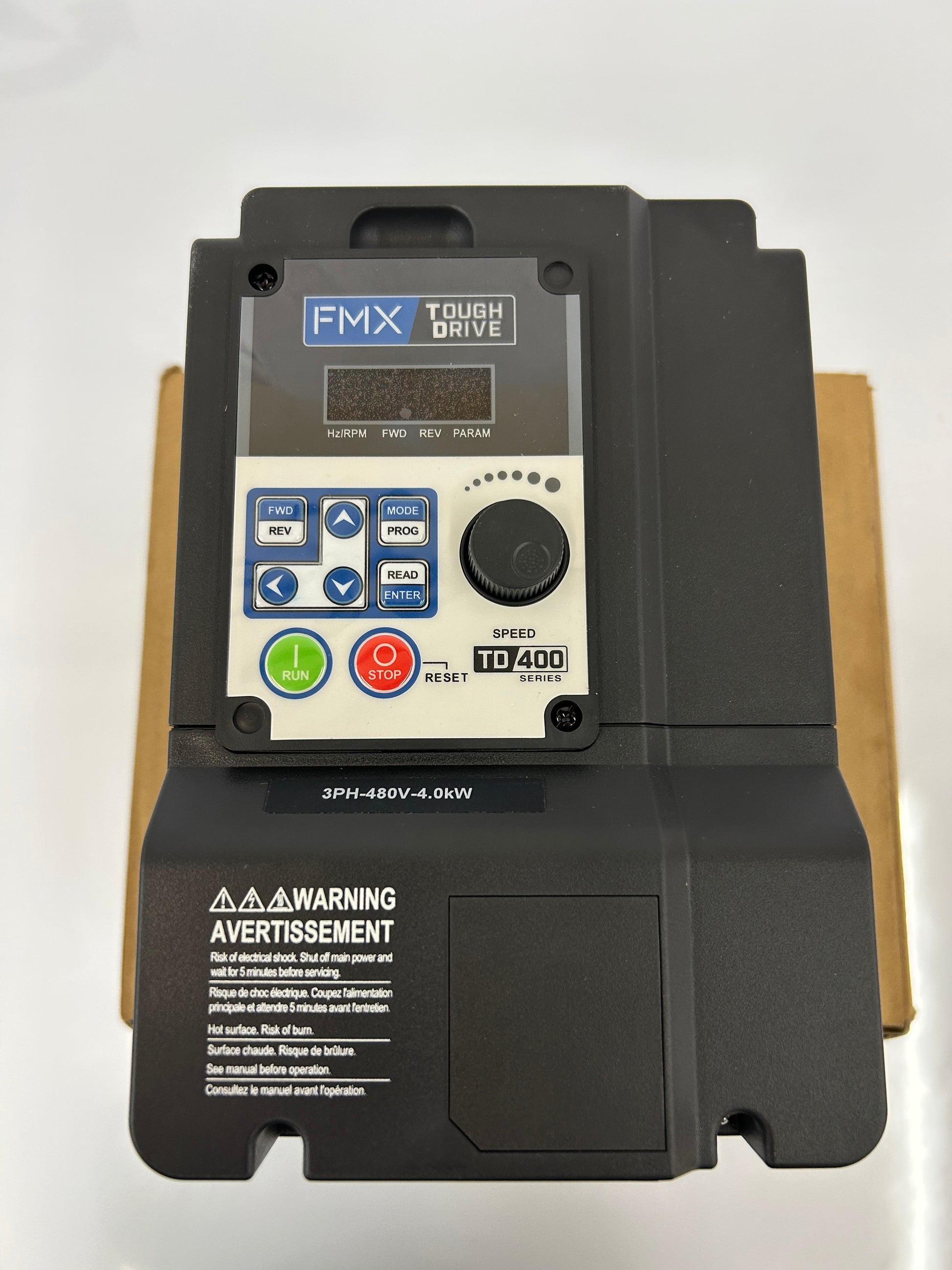

Onboard features include built in PID control, 150 percent rated current for one minute overload capacity, 200 percent instantaneous overload, two analog inputs (0 to 10 VDC and 4 to 20 mA), six PNP or NPN selectable digital inputs, one analog output (0 to 10 VDC), two multi function digital relay outputs, a built in dynamic braking transistor, electronic overload protection, stall prevention, ground fault and short circuit protection, and built in RS485 communication. The unit also supports built in PLC functionality with up to 80 rungs of ladder logic programming. A removable LED keypad is integrated into the front panel with FWD, REV, MODE, PROG, READ, ENTER, RUN, and STOP controls plus a speed potentiometer. Frame size is 2 with an IP20 enclosure rating. Manufactured in Taiwan. IE2 power loss rating 2.4 percent.
Stock # 0226-034
