Gage Assembly Company ACME Thread Ring Gage 1353AS120B 1.4970 In. Major Diameter

$189.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

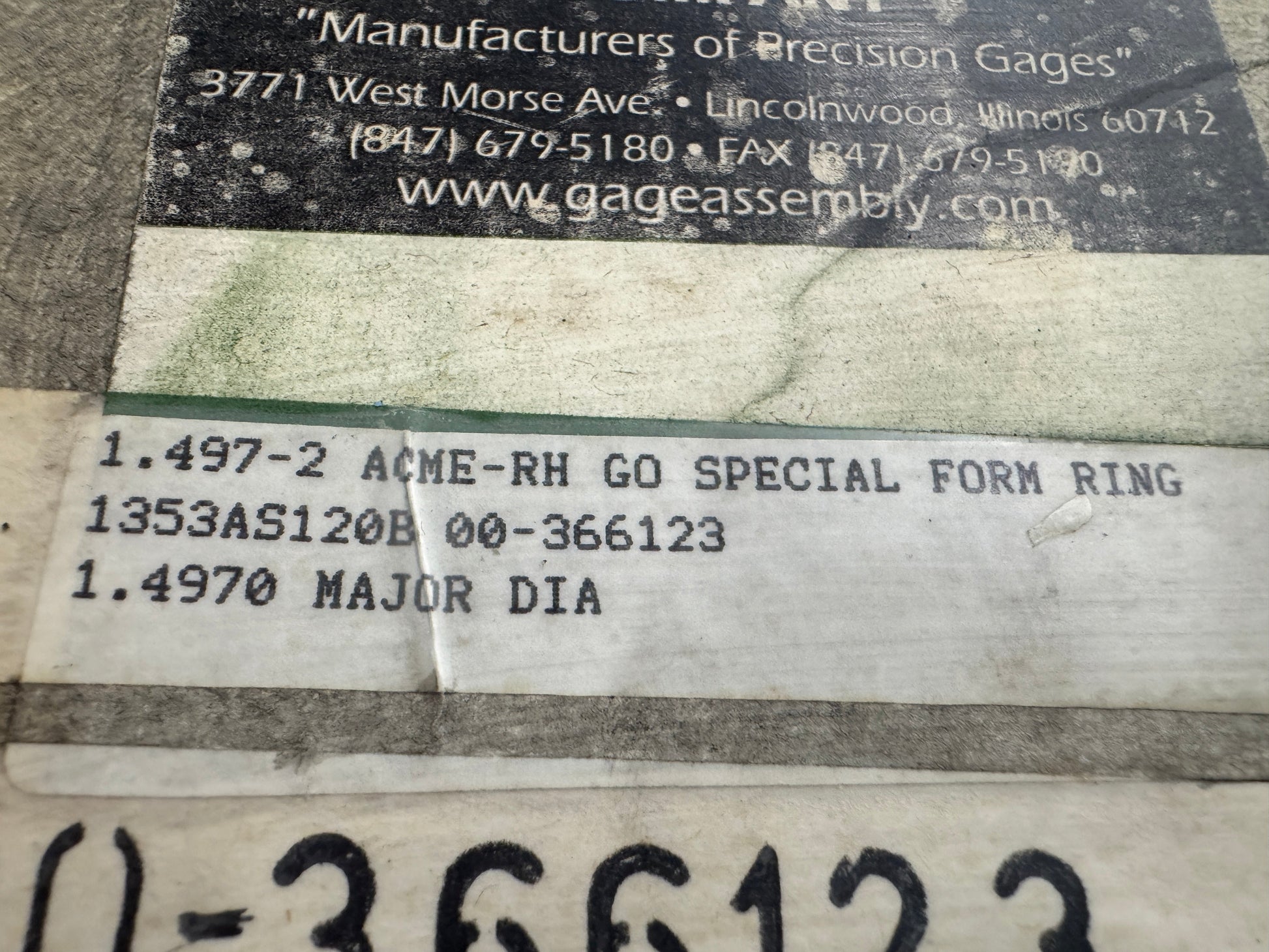

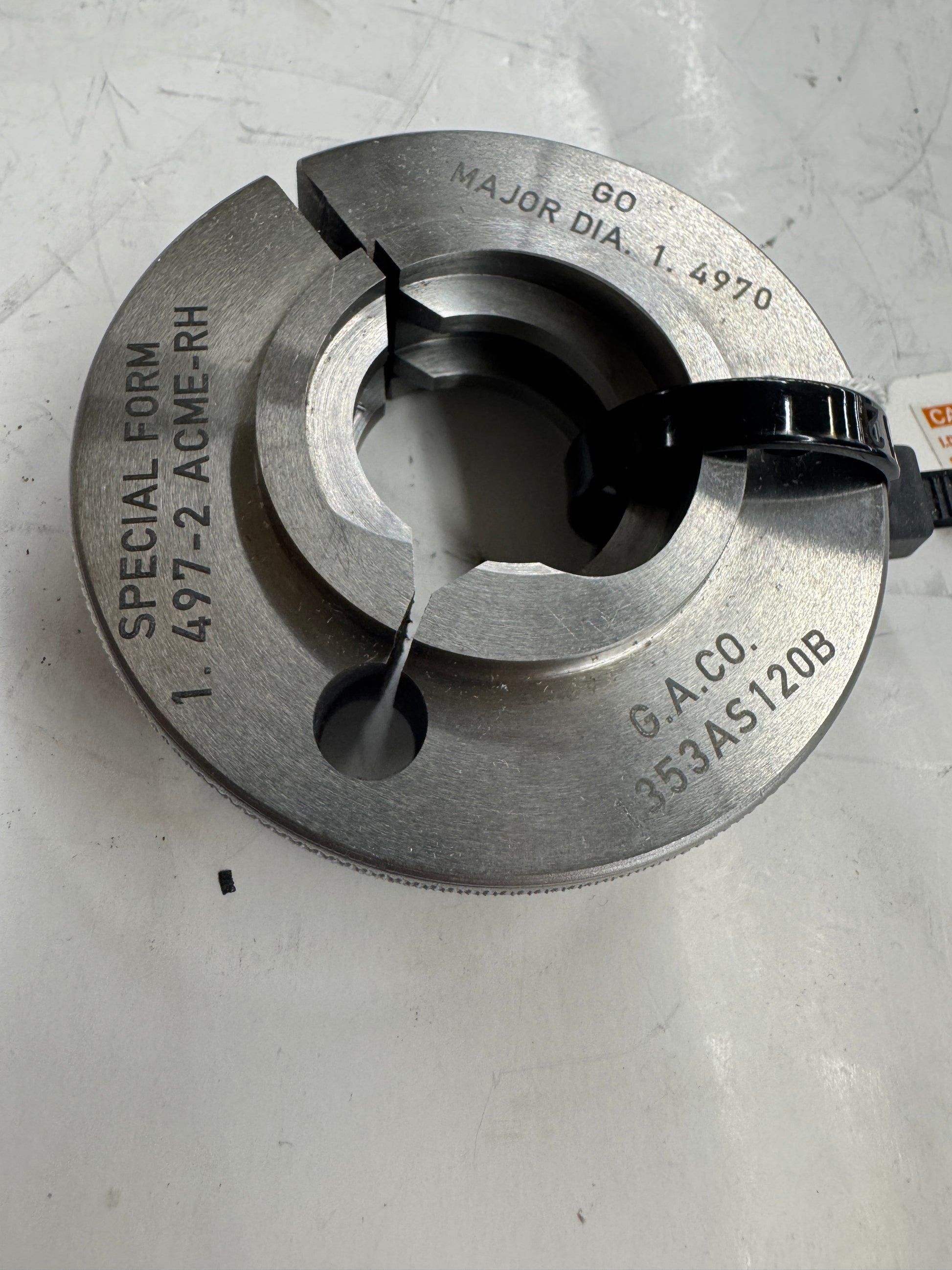

A precision thread ring gage from Gage Assembly Company of Lincolnwood, Illinois, part number 1353AS120B, stamped with serial reference 00-366123 and internal code OD13. Manufactured in the USA, this is a GO-only special form ring gage configured for 1.497-2 ACME right-hand external threads, with a major diameter of 1.4970 in. The special form designation indicates that the thread geometry is not a standard general-purpose ACME 2G, 3G, or 4G profile but rather a custom form produced to a specific engineering requirement.

Gage Assembly Company has manufactured precision fixed-limit thread gages since 1953 using oil-hardened graphitic tool steel, lapped for accuracy and heat treated for long-term dimensional stability. The body shows the typical split-ring adjustable construction used in ACME thread ring gages for maintaining pitch diameter calibration.

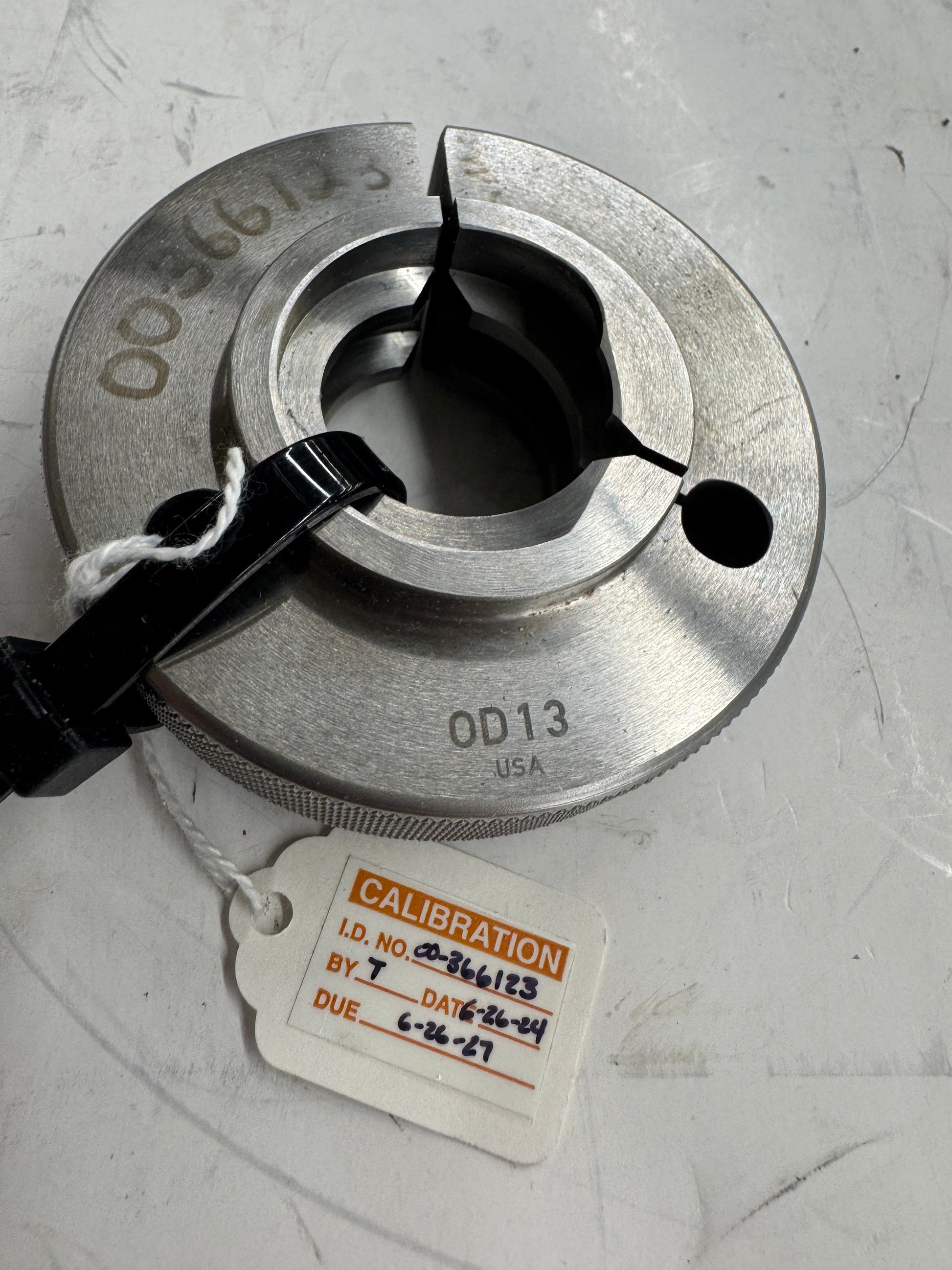

A calibration tag is attached, showing ID number 00-366123, calibrated on 6-26-24, with a recalibration due date of 6-26-27. Calibration status should be independently verified upon receipt.

This gage is used to verify that an external ACME-RH threaded component will assemble correctly with its mating part by confirming that the thread form and pitch diameter fall within the GO tolerance boundary. Applications include lead screw inspection, actuator thread verification, and production quality control in machining and manufacturing environments where 1.497-2 ACME threads are specified.

Stock # 0326-1196
