GE Fanuc Series 18i-T CNC Rotary Positioner Headstock 48 in 4-Jaw Chuck

$14,999.99 USD

Sale Sold out

✓ 30-day returns on every item — return policy

ConditionSurplus - Untested MPNSeries 18i-T Stock #0426-01376

30-day returns on every item. Photos reflect the actual item’s current condition — see our return policy and condition guide.

Shipping

This item ships by custom freight. Check out with local pickup, and we'll contact you with a custom shipping quote.

Same-Day Available
Real support team
Secure checkout

Product Specifications

Control: GE Fanuc Series 18i-T
Product Type: CNC Rotary Positioner Headstock with Control Cabinet
Faceplate Diameter: Approximately 48 in (tape measured)
Chuck Configuration: 4-jaw independent, T-slotted faceplate
Spindle: Through-bore, large circular bolt pattern on the rear of the casting
Operator Controls: Alphanumeric MDI keyboard, machine function keypad, emergency stop, CNC ON / CNC OFF, PRG EDIT keyswitch, Fanuc feedrate override dial
Hydraulic Accumulator: Parker A4N0231D1KGRG, serial 769257-003-001, 231 cu in, 3,000 PSI
Hydraulic Power Unit: Bucher Hydraulics (Grand Rapids, MI), electric motor driven, mounted to the cabinet base

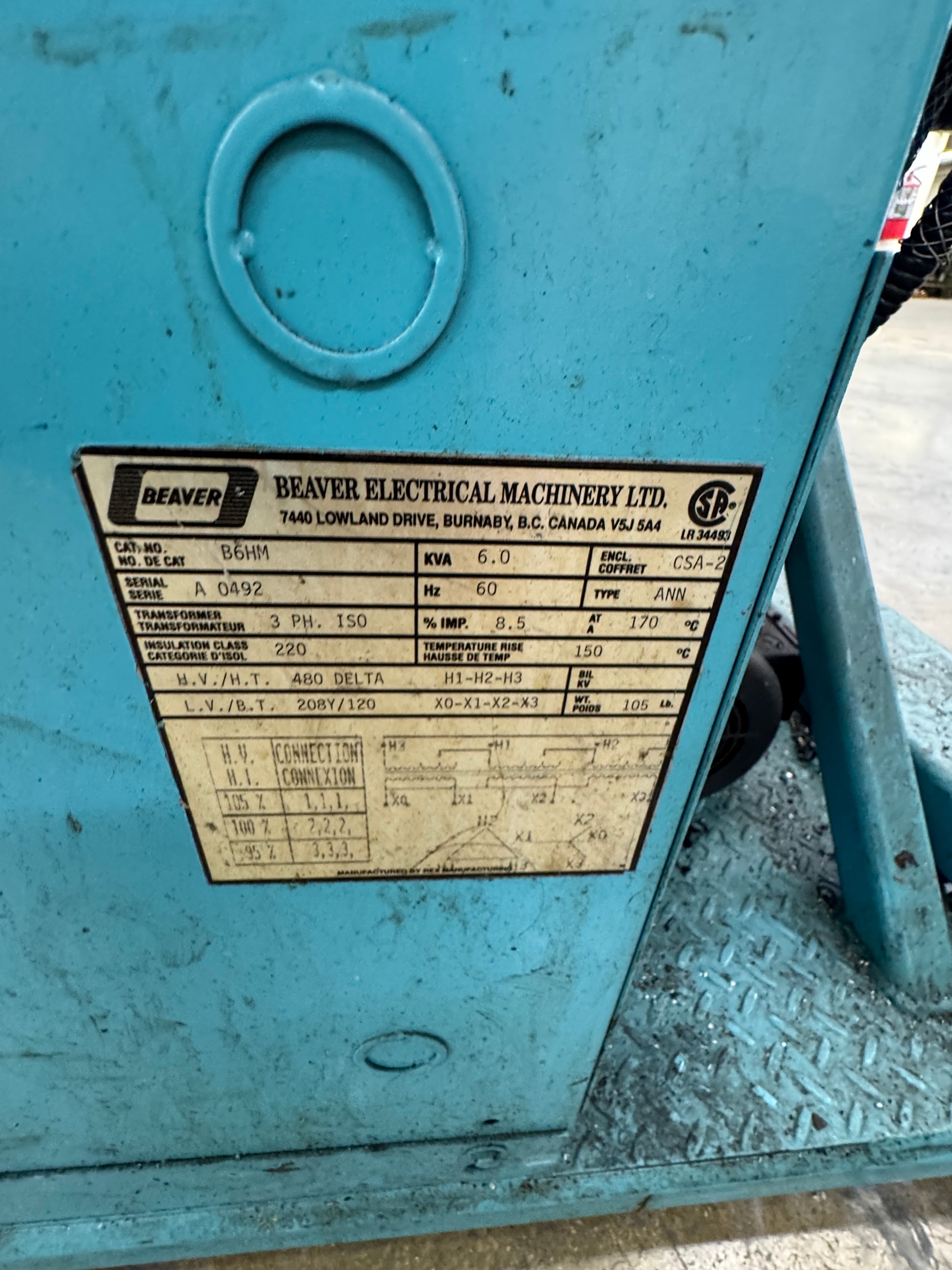

Isolation Transformer: Beaver Electrical Machinery Ltd. B6HM, serial A 0492, 6.0 kVA, 3-phase, 60 Hz
Transformer Voltage: HV 480V delta (H1-H2-H3), LV 208Y/120V (X0-X1-X2-X3), taps at 105%, 100% and 95%
Transformer Detail: Type ANN, enclosure CSA-2, 8.5% impedance, insulation class 220, 150°C temperature rise, 170°C AT, 105 lb, CSA LR34493
Machine Interface: EPIC heavy-duty rectangular connectors, connector pocket labelled URT2-1
Wiring: Anaconda Sealtite flexible conduit throughout

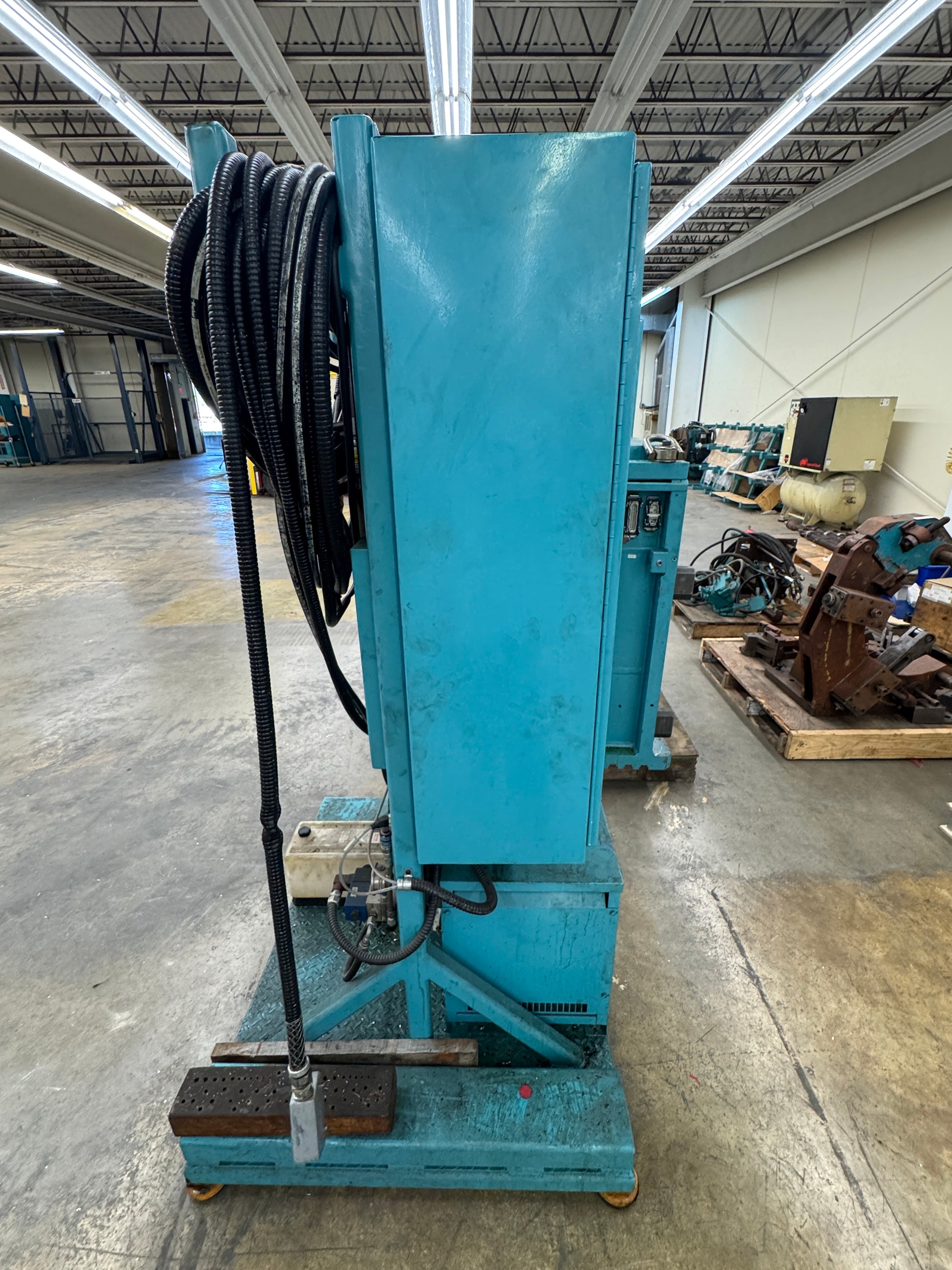

Cabinet: Freestanding steel enclosure on a wheeled base with leveling feet
Condition: Surplus - Untested

Product Description

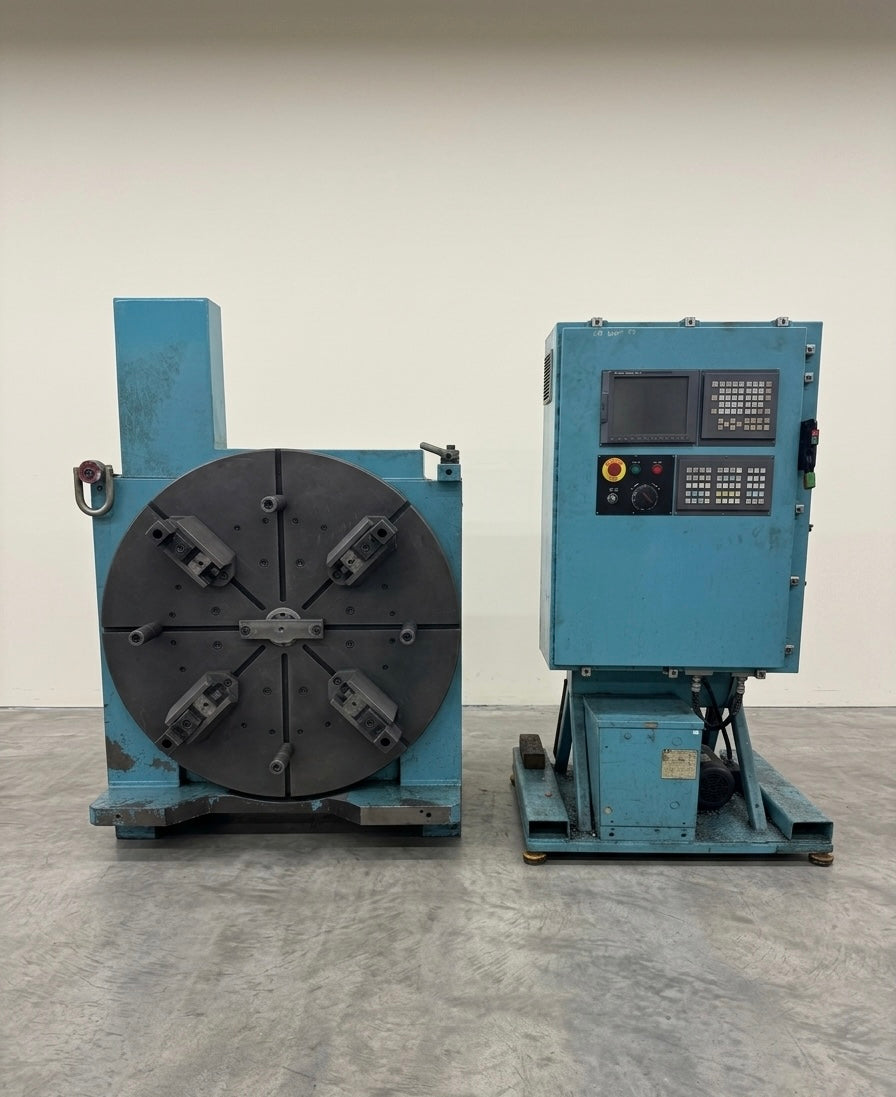

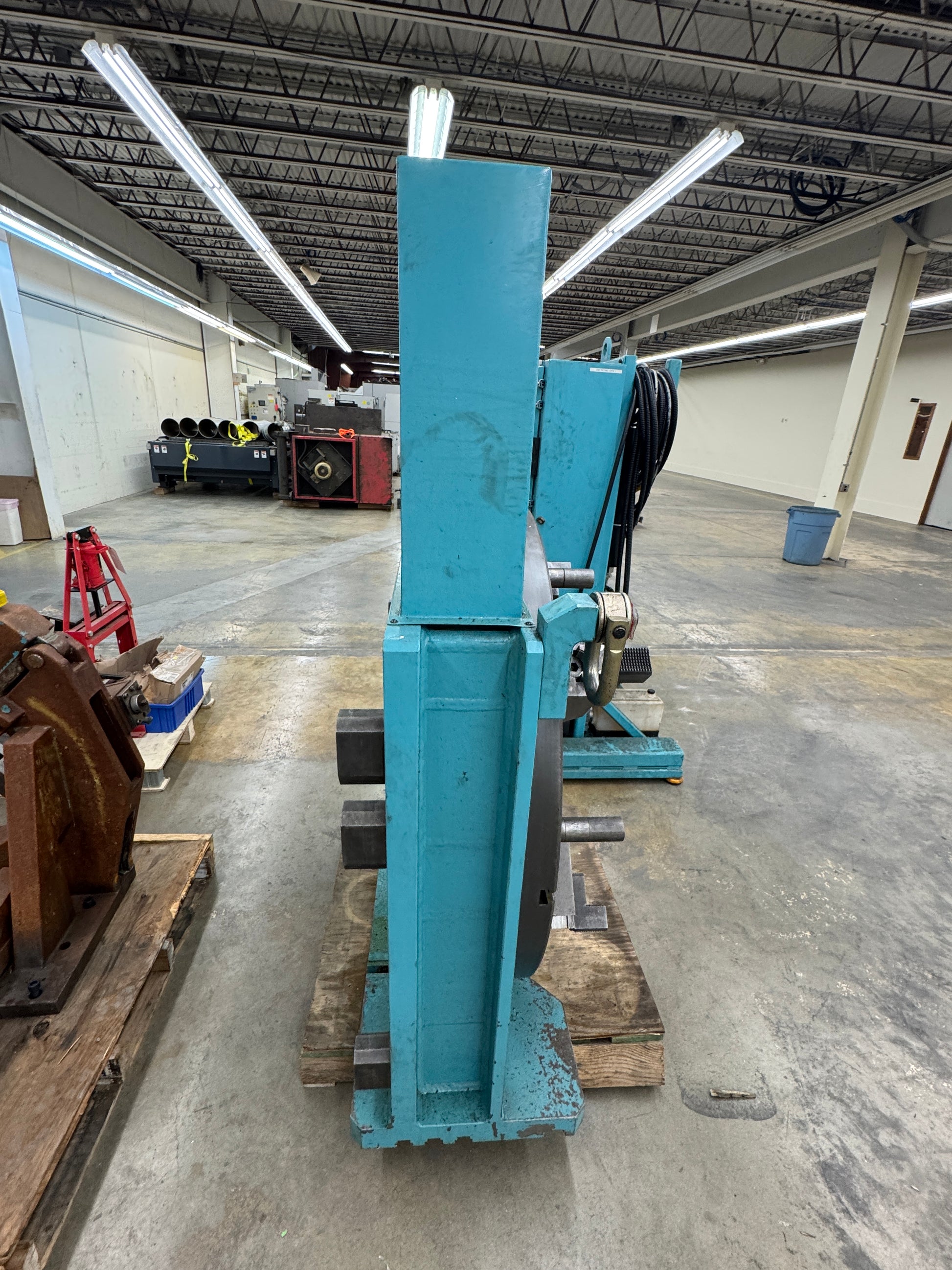

This CNC rotary positioner headstock ships as a two-piece system: the headstock itself and a separate freestanding control cabinet, connected by a bundled cable and hose harness. It suits large-part turning, positioning and heavy industrial machining where a programmable rotary axis is needed.

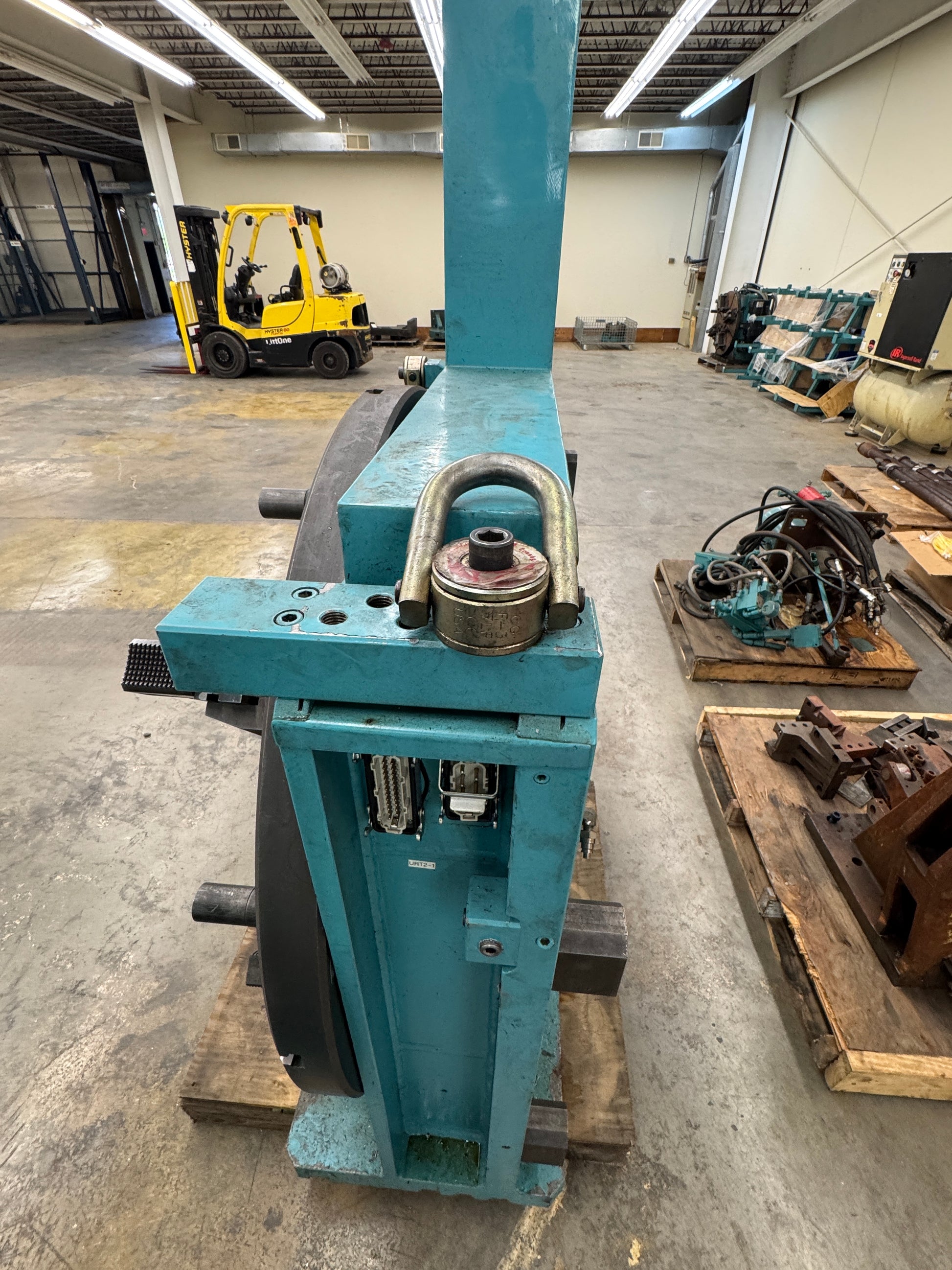

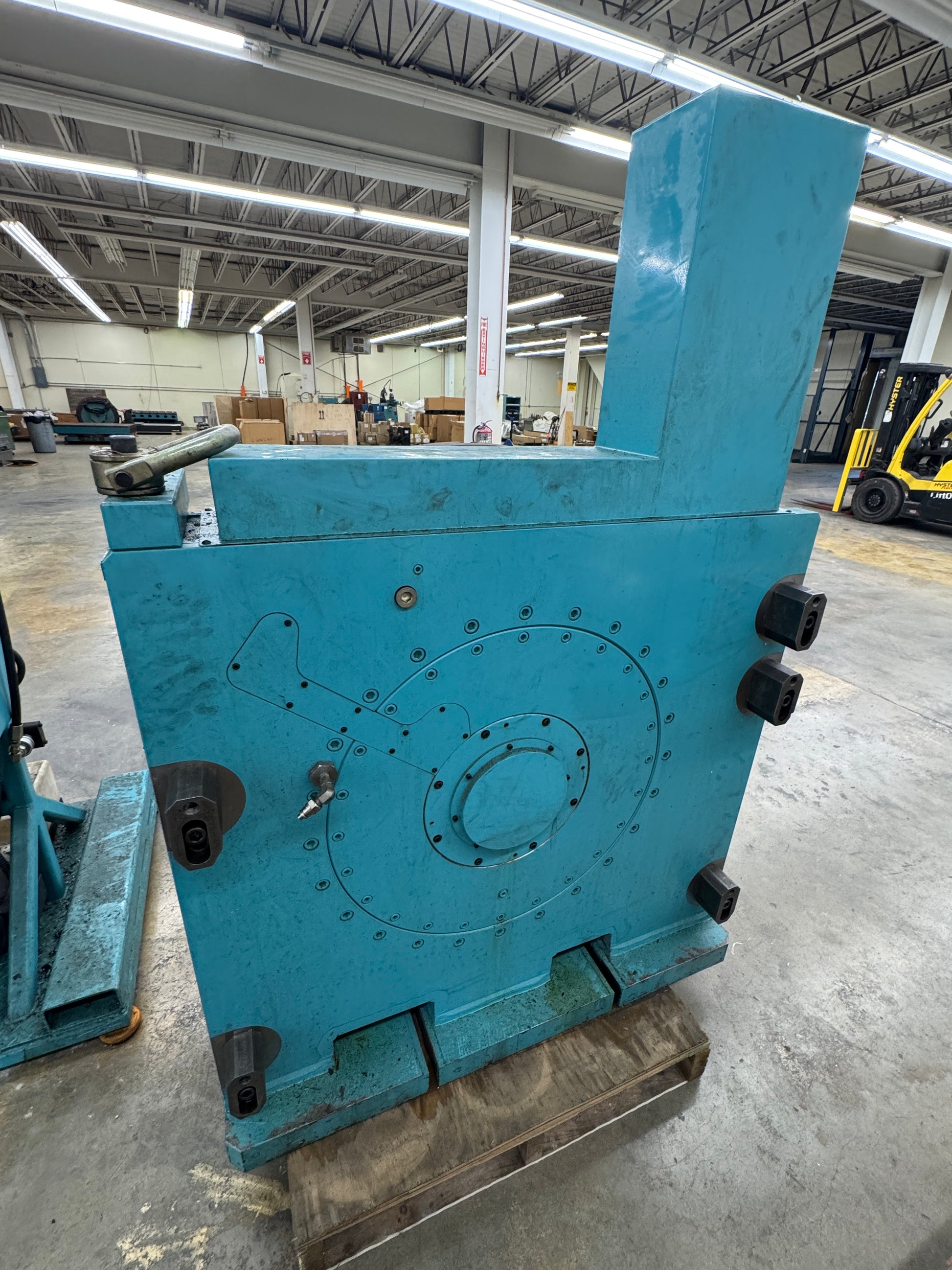

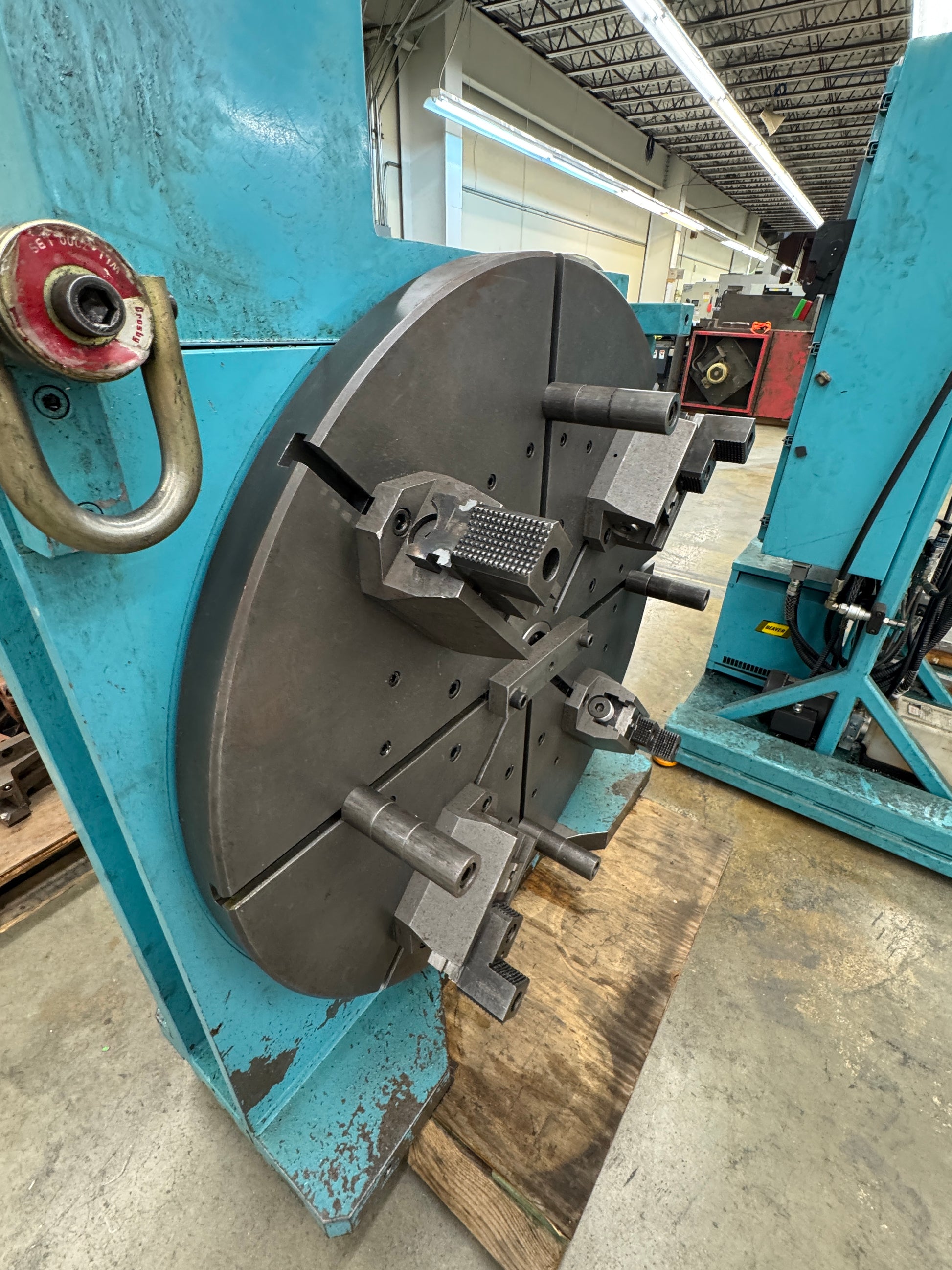

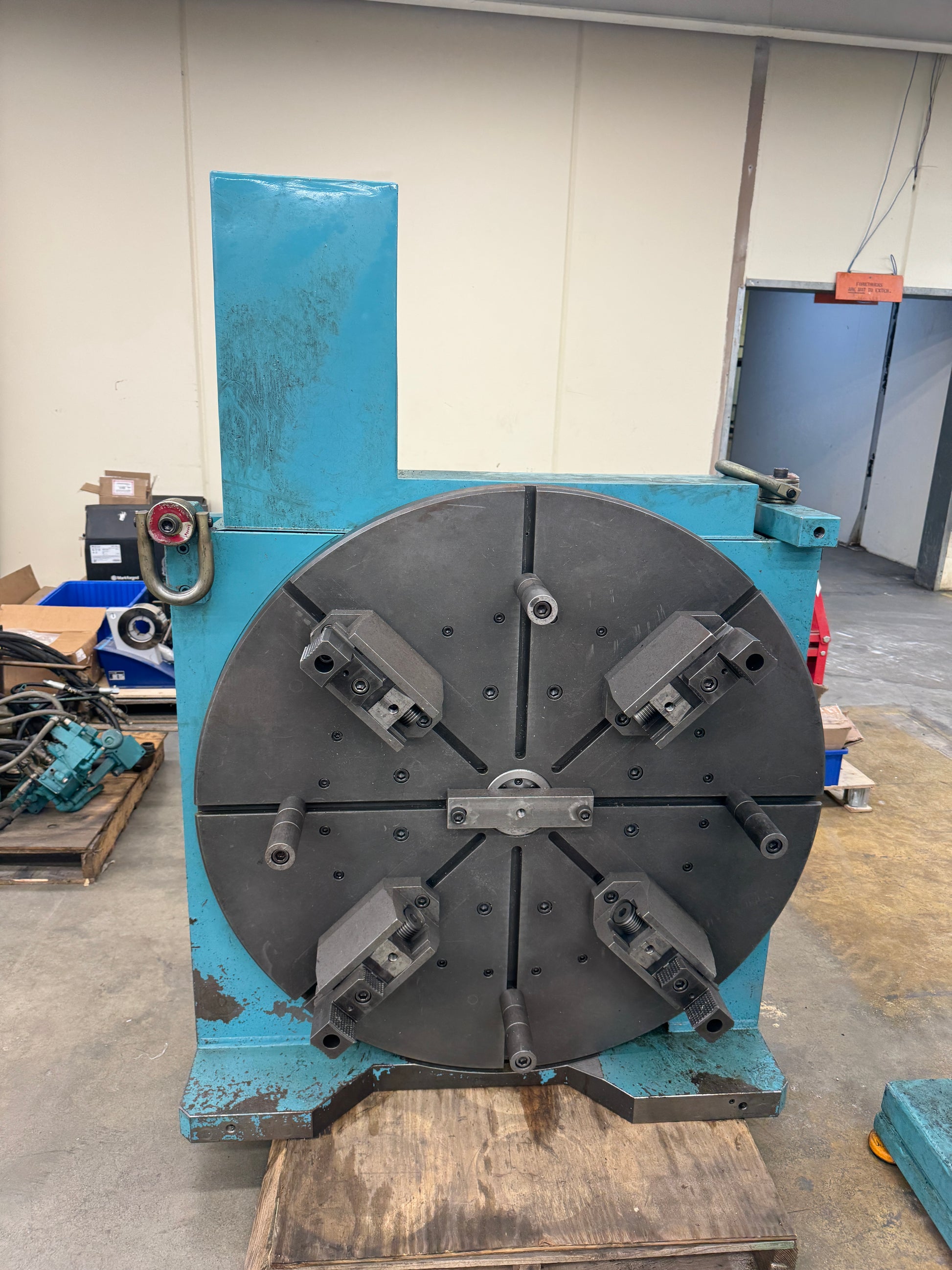

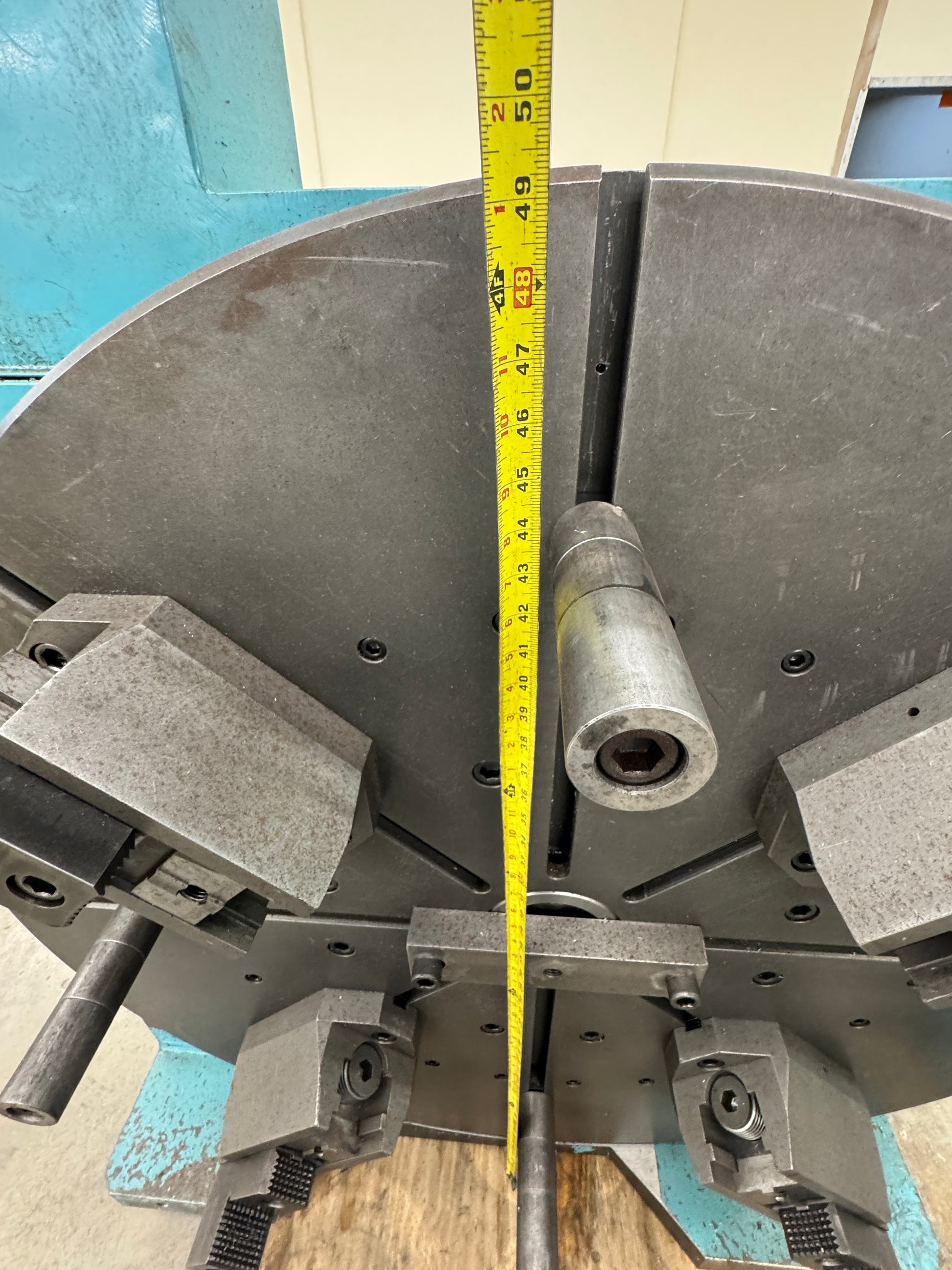

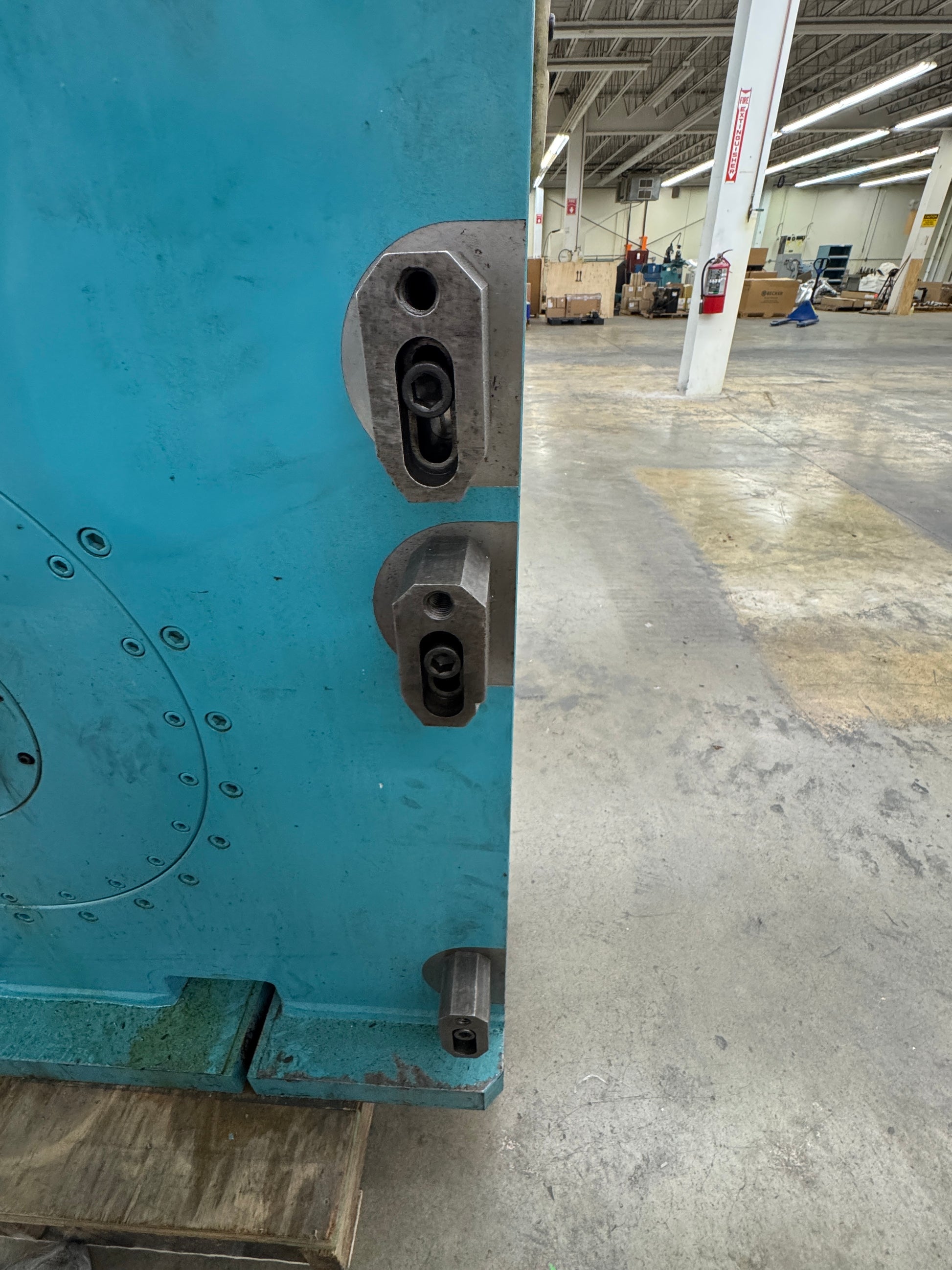

The headstock carries a T-slotted faceplate measuring approximately 48 in across by tape, in a 4-jaw independent configuration with adjustable clamp blocks. The rear of the casting shows a large circular bolt pattern consistent with a through-bore spindle mount, and the housing carries a lifting eye rated for the assembly.

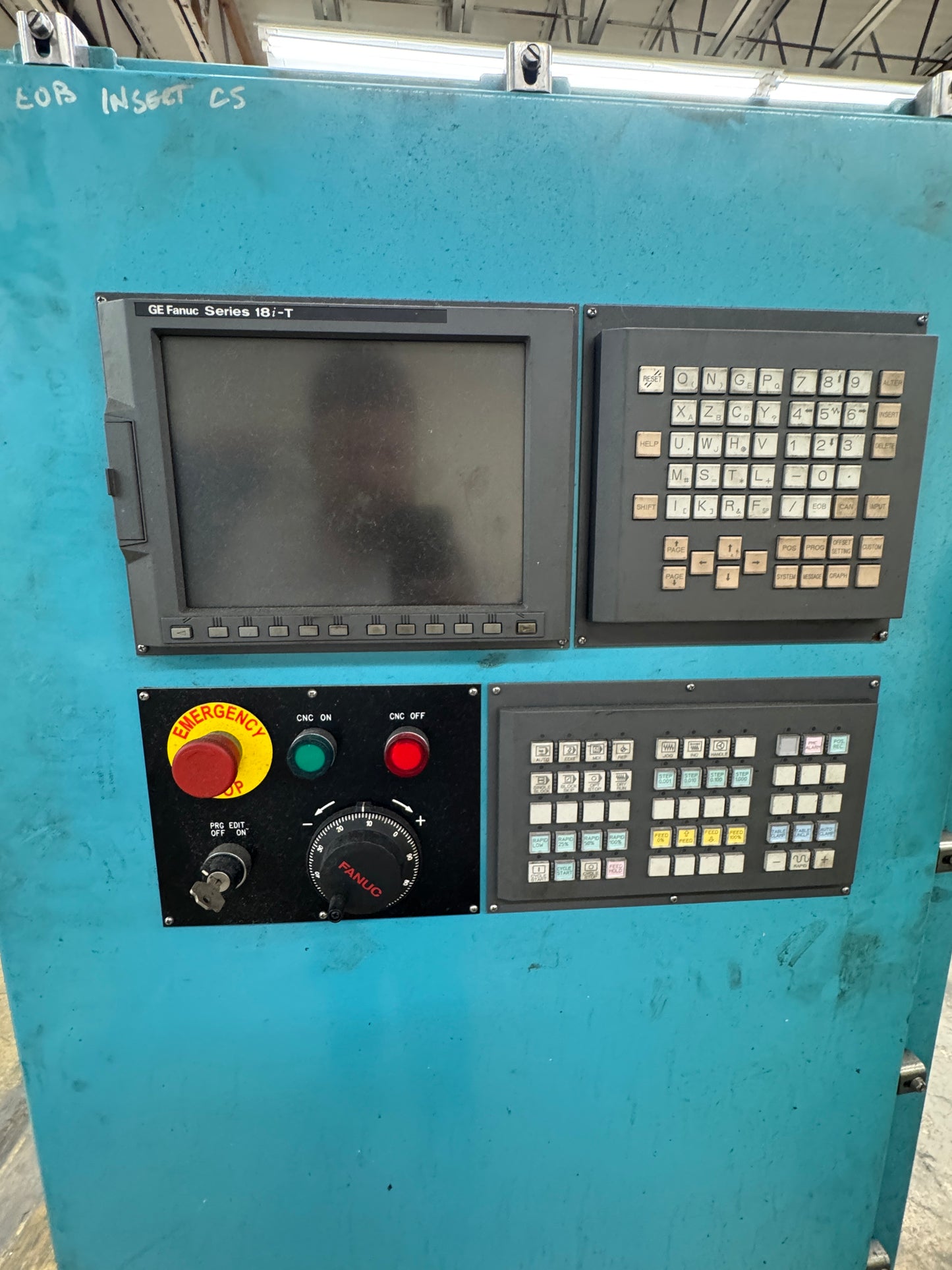

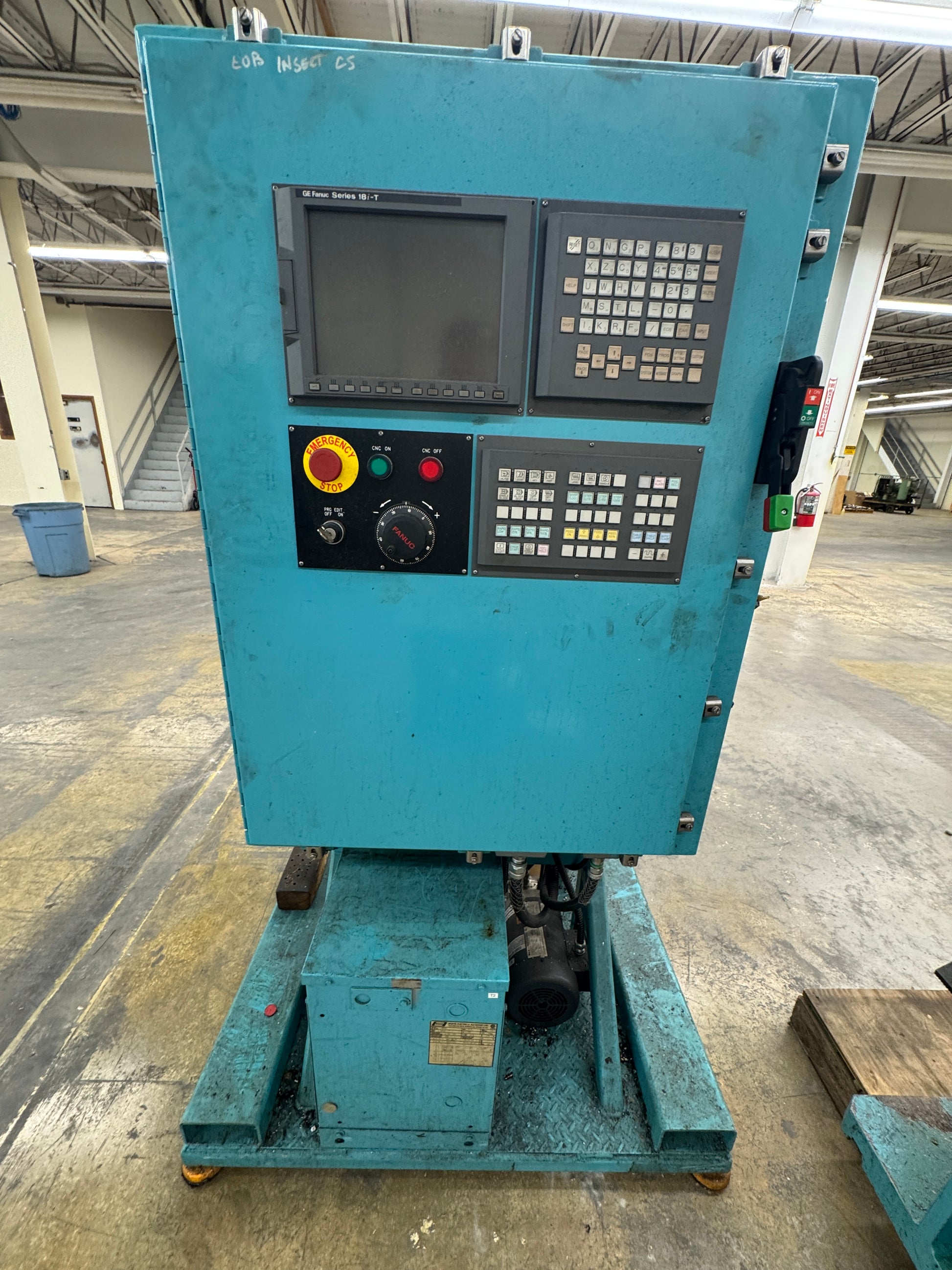

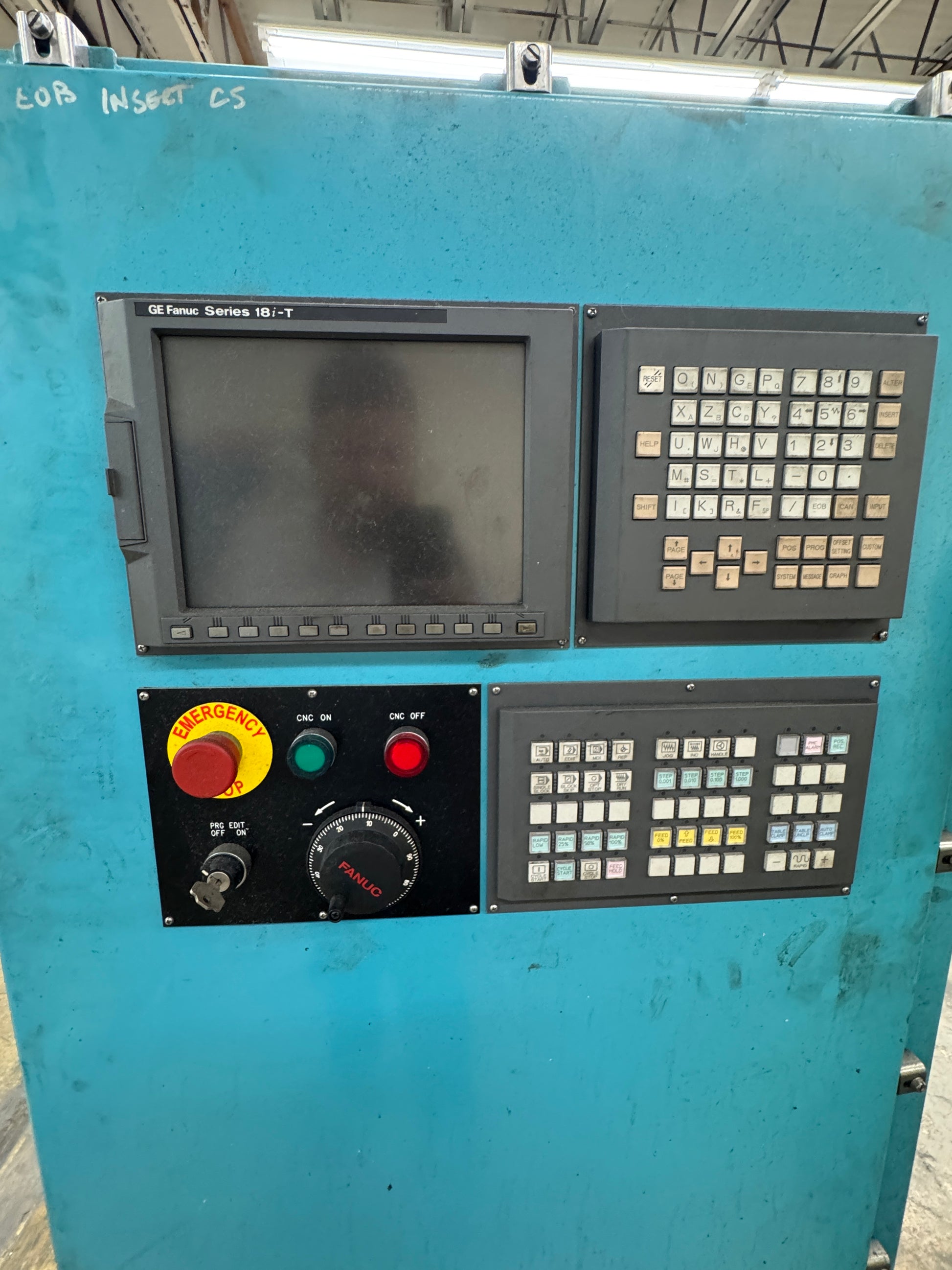

Control is by a GE Fanuc Series 18i-T with a full alphanumeric MDI keyboard, a machine function keypad, emergency stop, CNC ON and CNC OFF pushbuttons, a program edit keyswitch and a Fanuc feedrate override dial. The cabinet sits on a wheeled base with leveling feet.

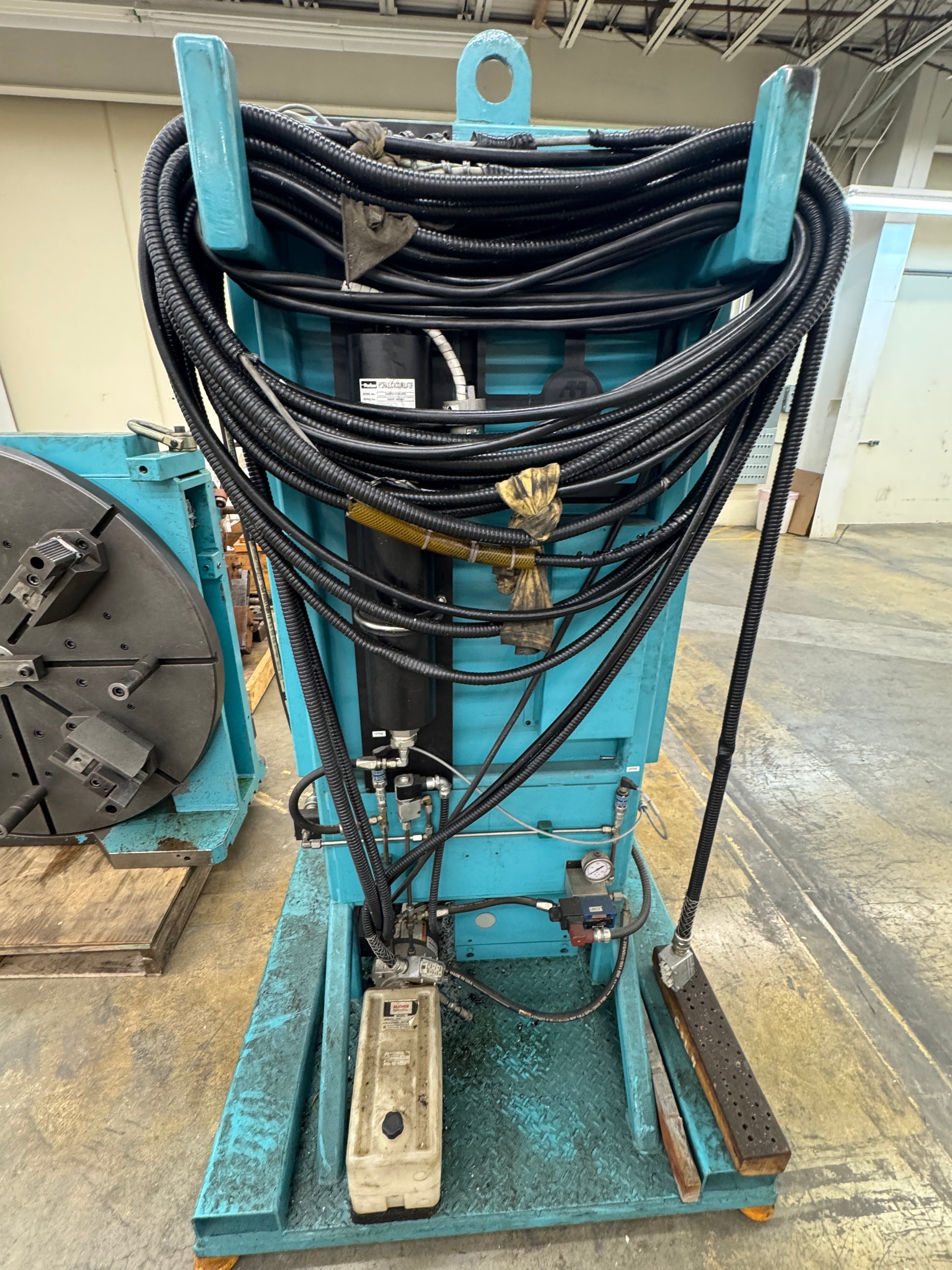

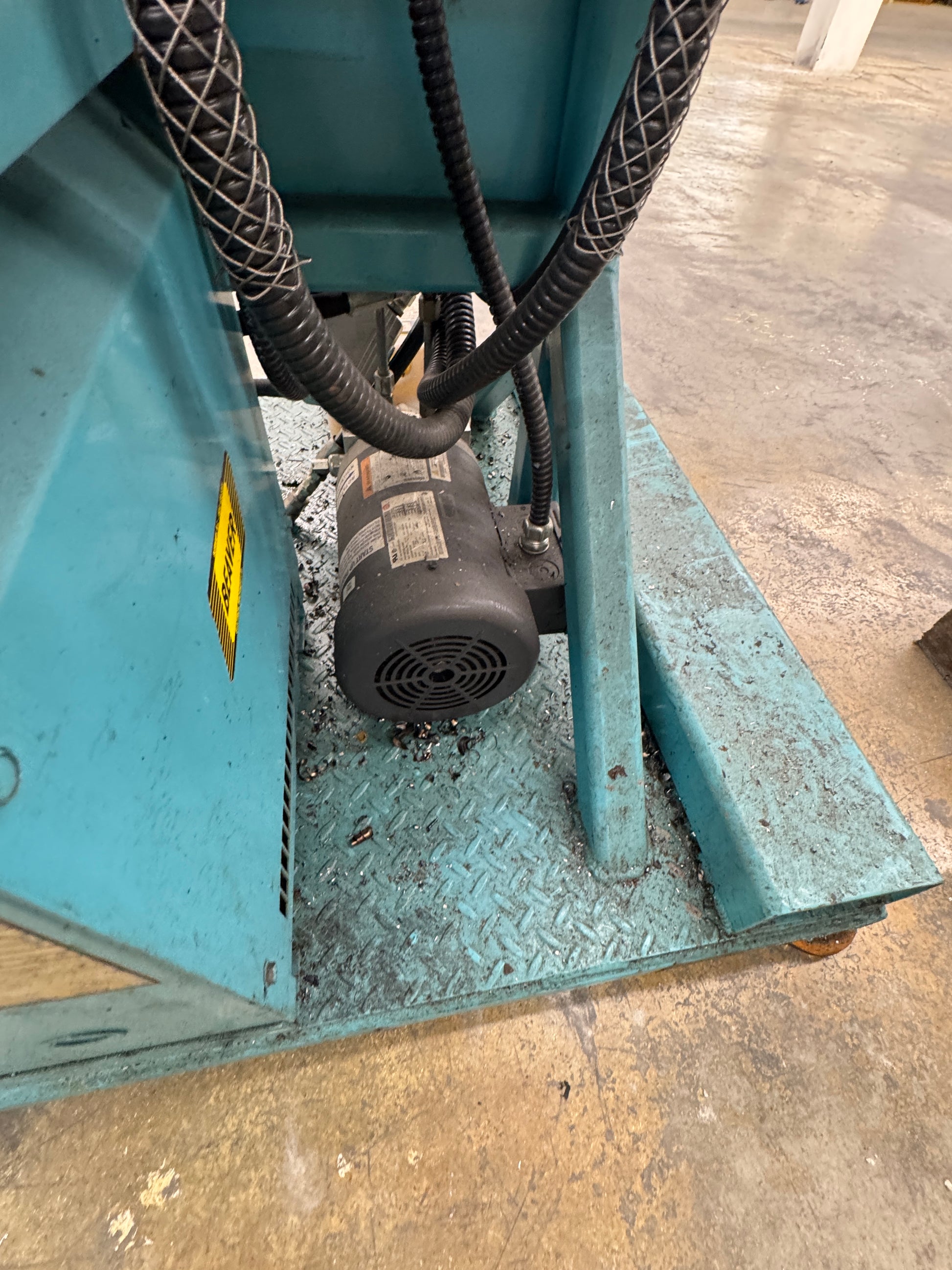

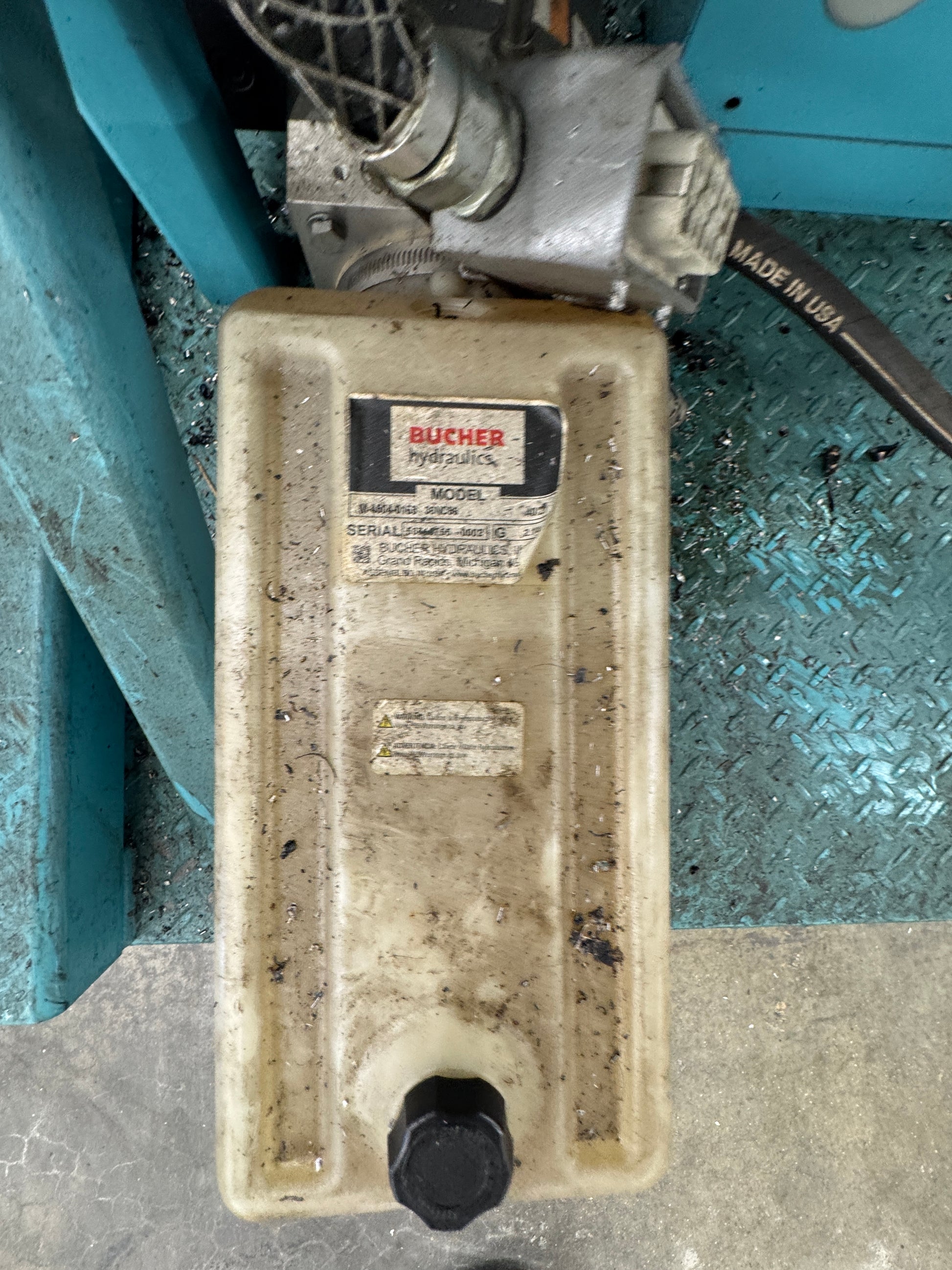

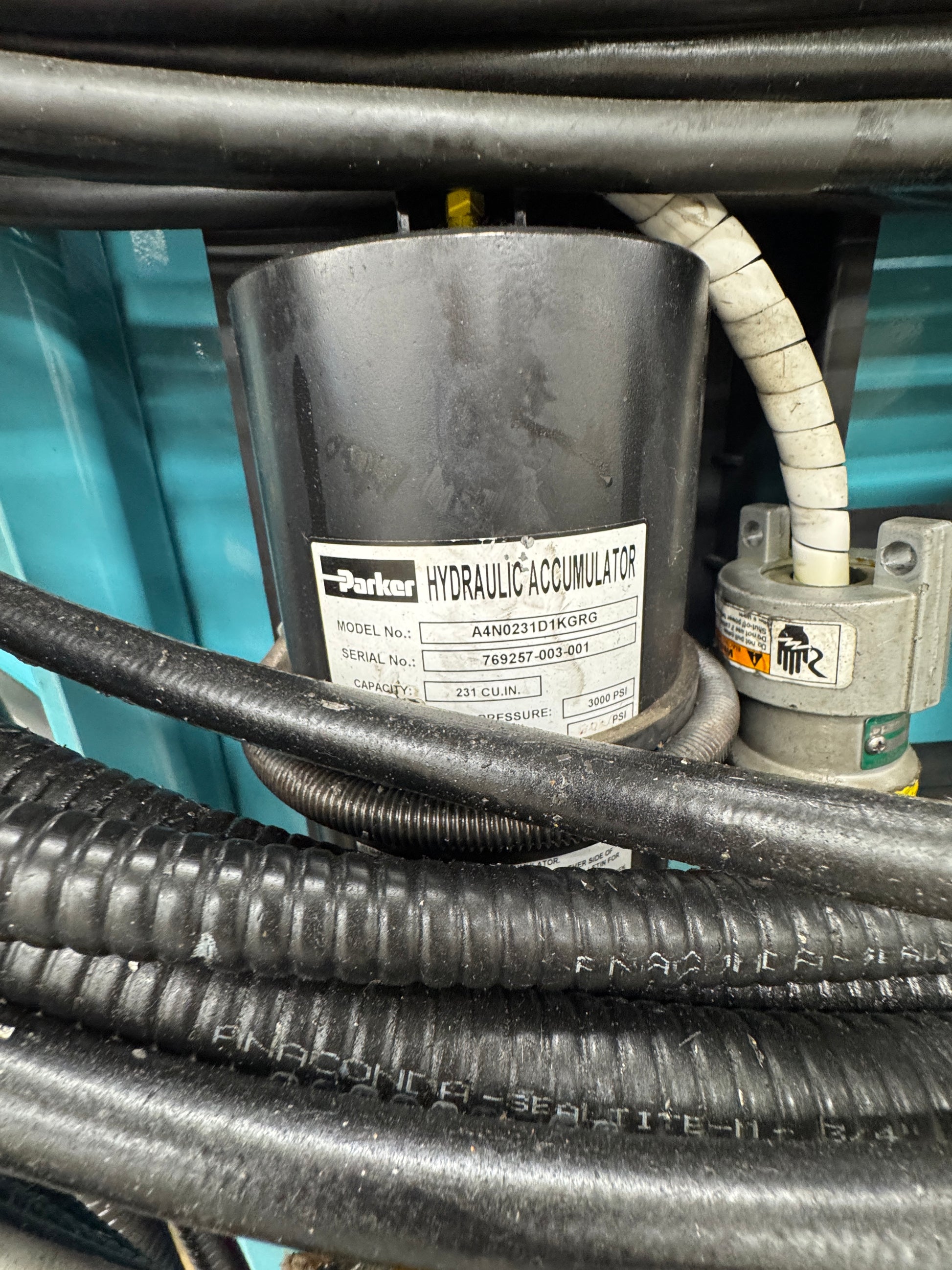

Hydraulics are supplied by a Bucher Hydraulics power unit mounted to the cabinet base and driven by an electric motor, with a Parker accumulator model A4N0231D1KGRG, serial 769257-003-001, rated 231 cubic inches at 3,000 PSI. Machine power is conditioned by a Beaver Electrical Machinery isolation transformer, catalog B6HM, serial A 0492, rated 6.0 kVA three phase at 60 Hz, 480V delta primary to 208Y/120V secondary, with 105%, 100% and 95% taps, 8.5% impedance, class 220 insulation and a 150°C rise. The transformer is CSA certified under LR34493 and weighs 105 lb.

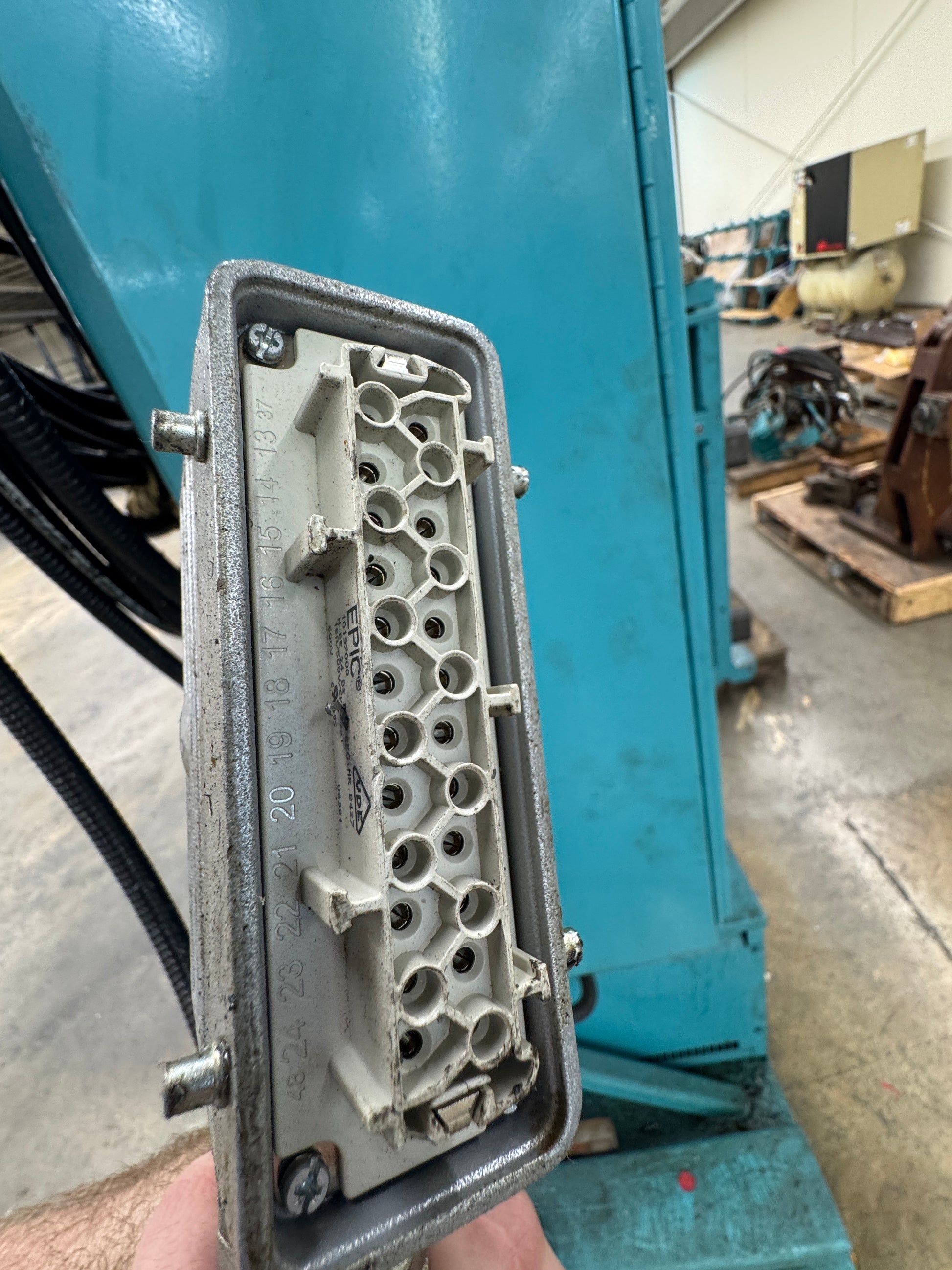

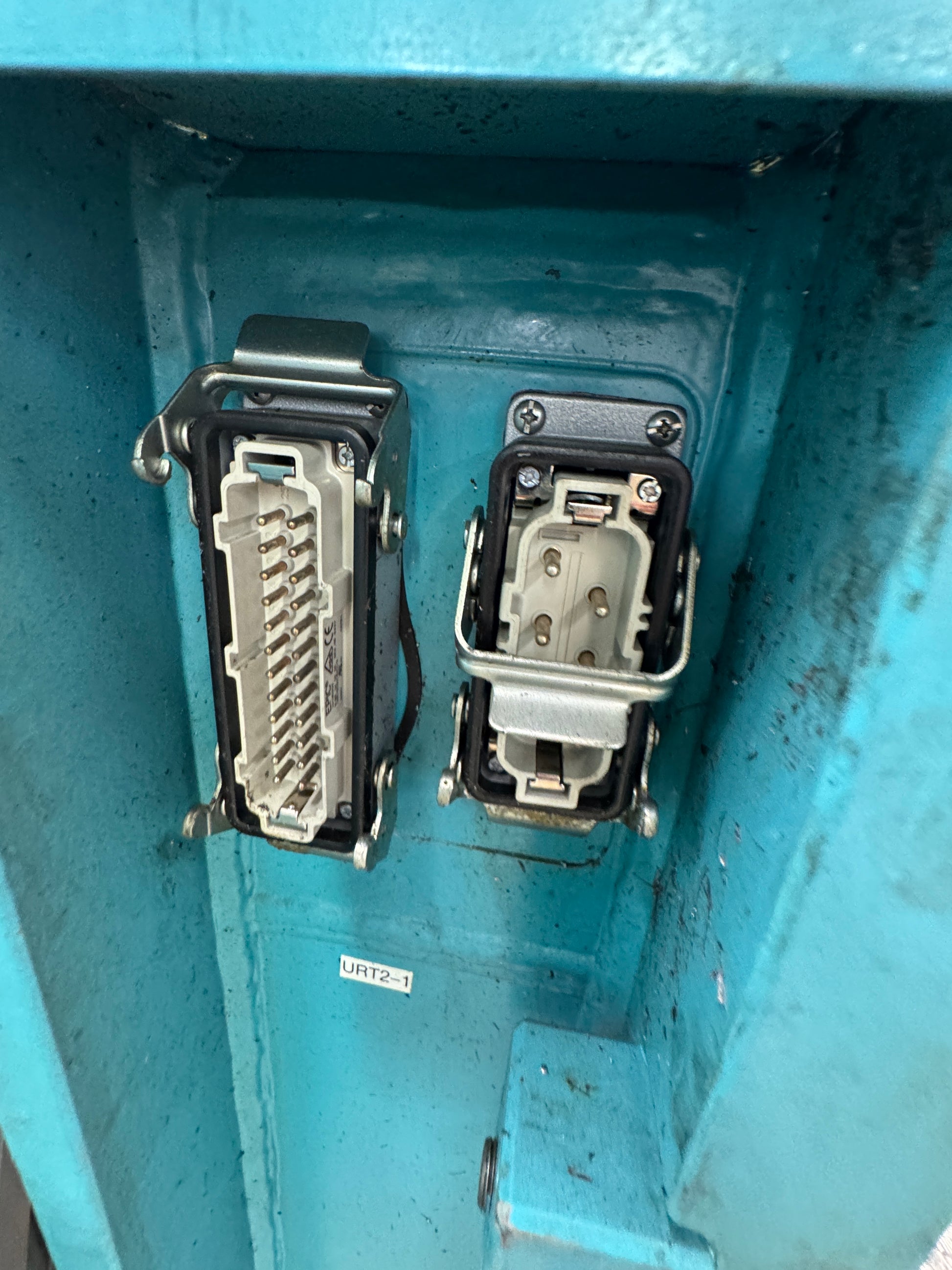

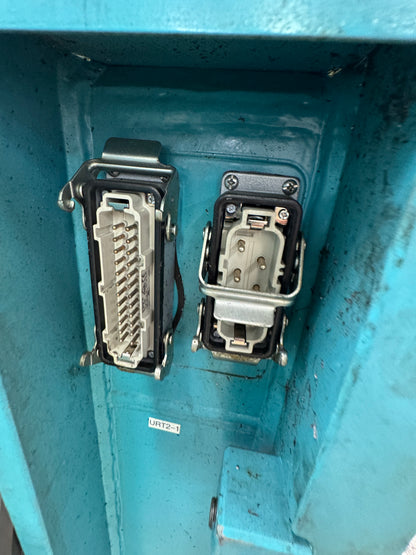

Machine interface is through EPIC heavy-duty rectangular connectors, with one connector pocket on the headstock labelled URT2-1. Wiring runs in Anaconda Sealtite flexible conduit. No machine builder nameplate is present on the assembly, so the original OEM and the spindle bore dimension are not identified.

Sold as surplus, untested. Buyers should confirm the faceplate dimensions, the spindle bore, the control configuration and the required supply voltage against their application before ordering.

Stock # 0426-01376
