Giddings & Lewis 32 AC Output Board Fused 501-04561-00 / 502-03567-00 m00807

$799.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

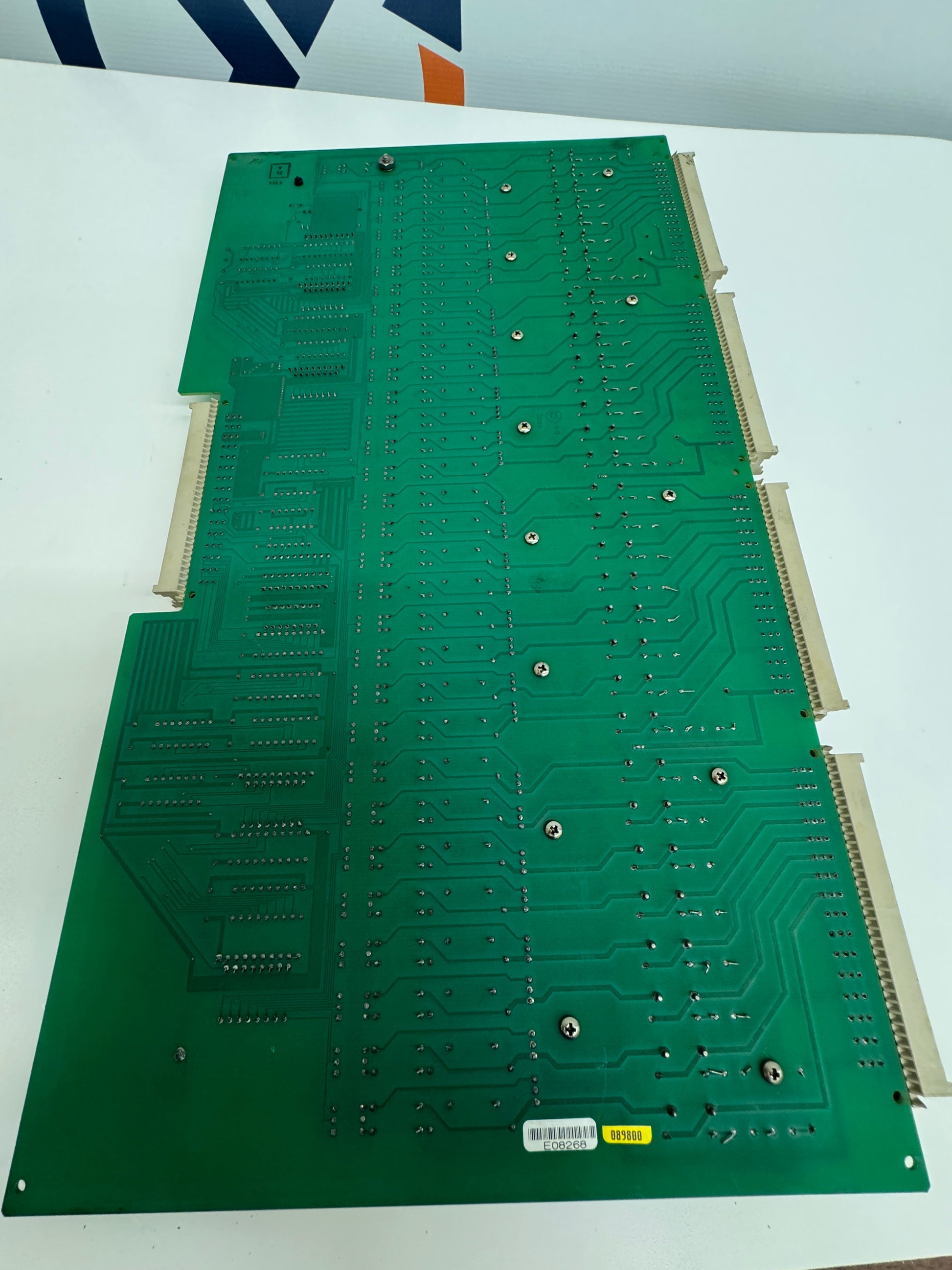

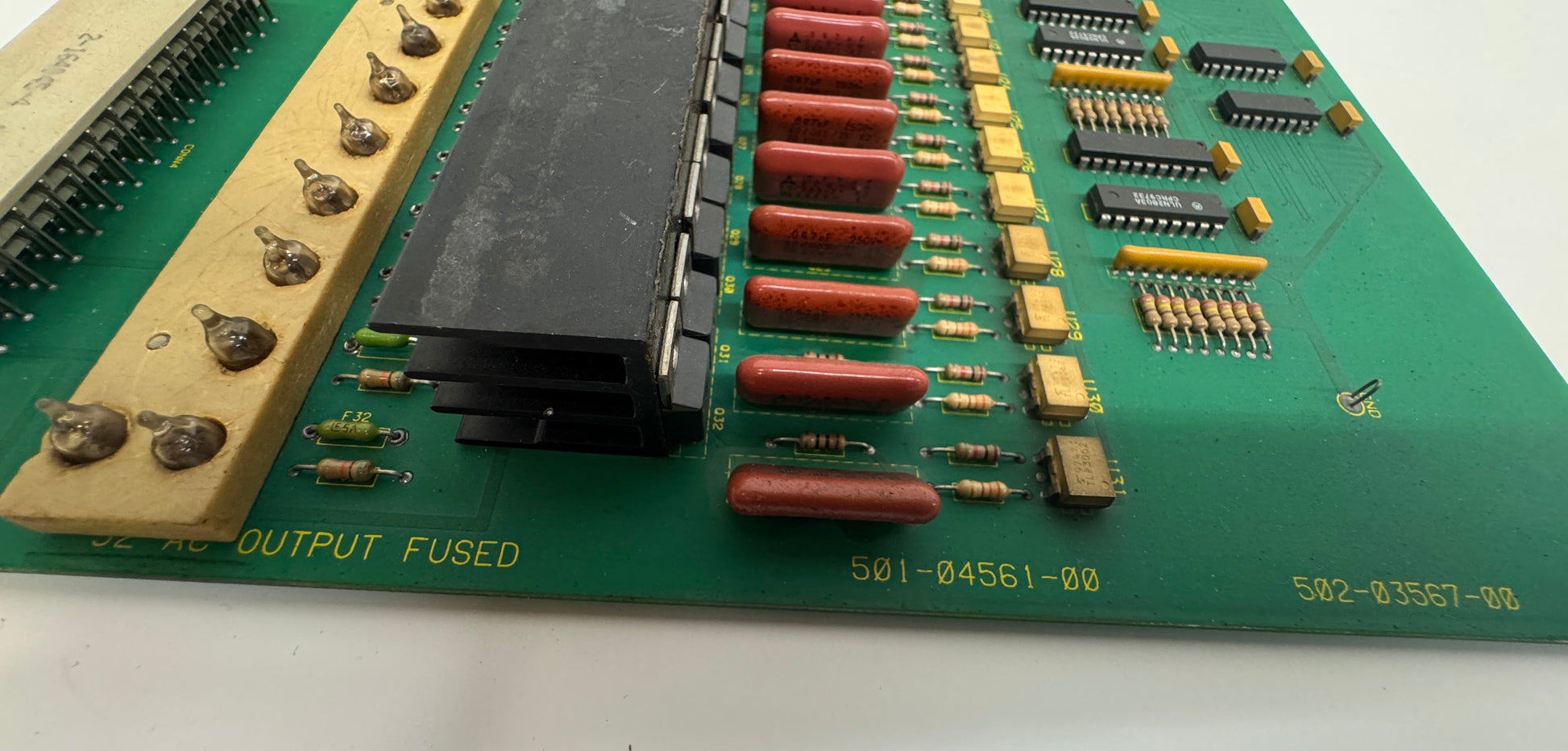

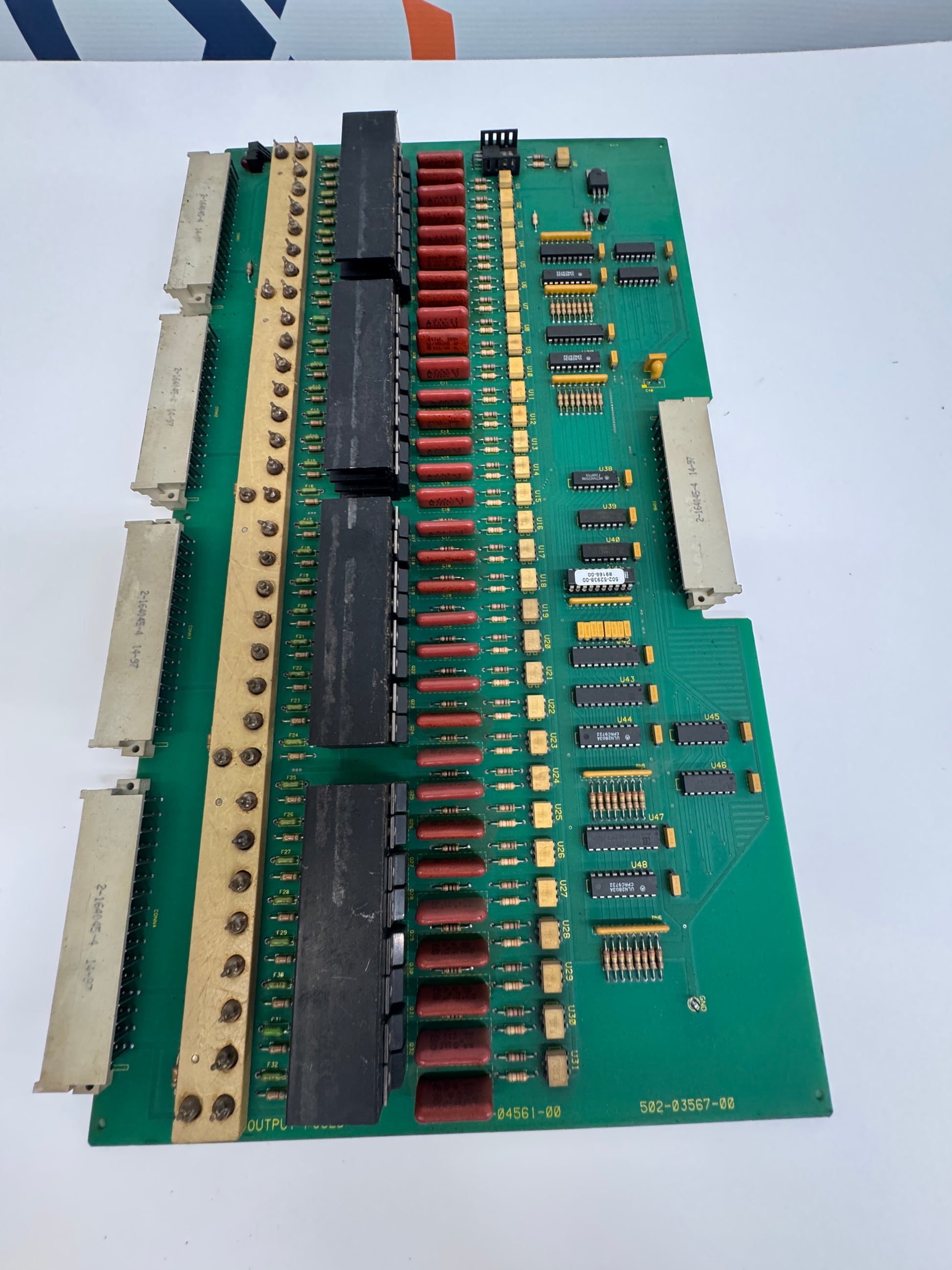

Used in Giddings & Lewis PLC-based CNC control systems, this 32-point AC output board carries part number 501-04561-00 and assembly reference 502-03567-00 as silkscreened on the board. The board is labeled "32 AC OUTPUT FUSED" and features fused output circuits across all 32 channels, providing individual circuit protection for downstream AC loads. It connects via dual card-edge connectors along both sides of the board, consistent with backplane-style integration in G&L control rack assemblies. The board is populated with a mix of large power ICs, resistor arrays, tantalum capacitors, and logic ICs across its full length, indicating a hybrid analog and digital output design. A secondary barcode label on the solder side reads E08268 with reference number 089800. Giddings & Lewis manufactured PLC and CNC control equipment widely used in horizontal boring mills, machining centers, and transfer line equipment throughout North American manufacturing. The 501-04561-00 is a recognized spare and replacement part number in the G&L surplus market. The board is sold as a single unit in the condition visible in the photos.

Stock # 0326-807
