Giddings & Lewis 32 AC Output Board Fused 501-04561-00 / 502-03567-00
Giddings & Lewis 32 AC Output Board Fused 501-04561-00 / 502-03567-00
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

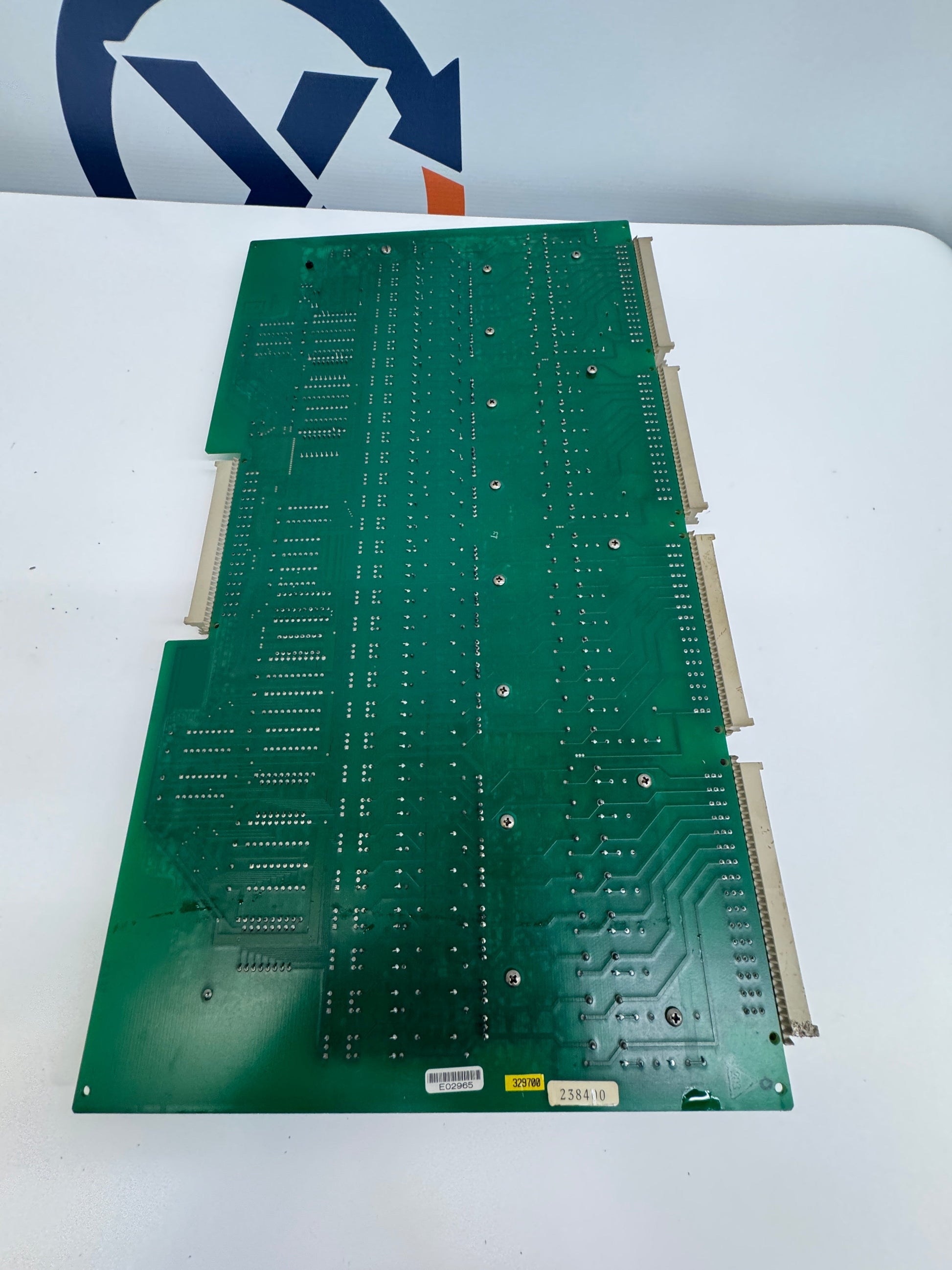

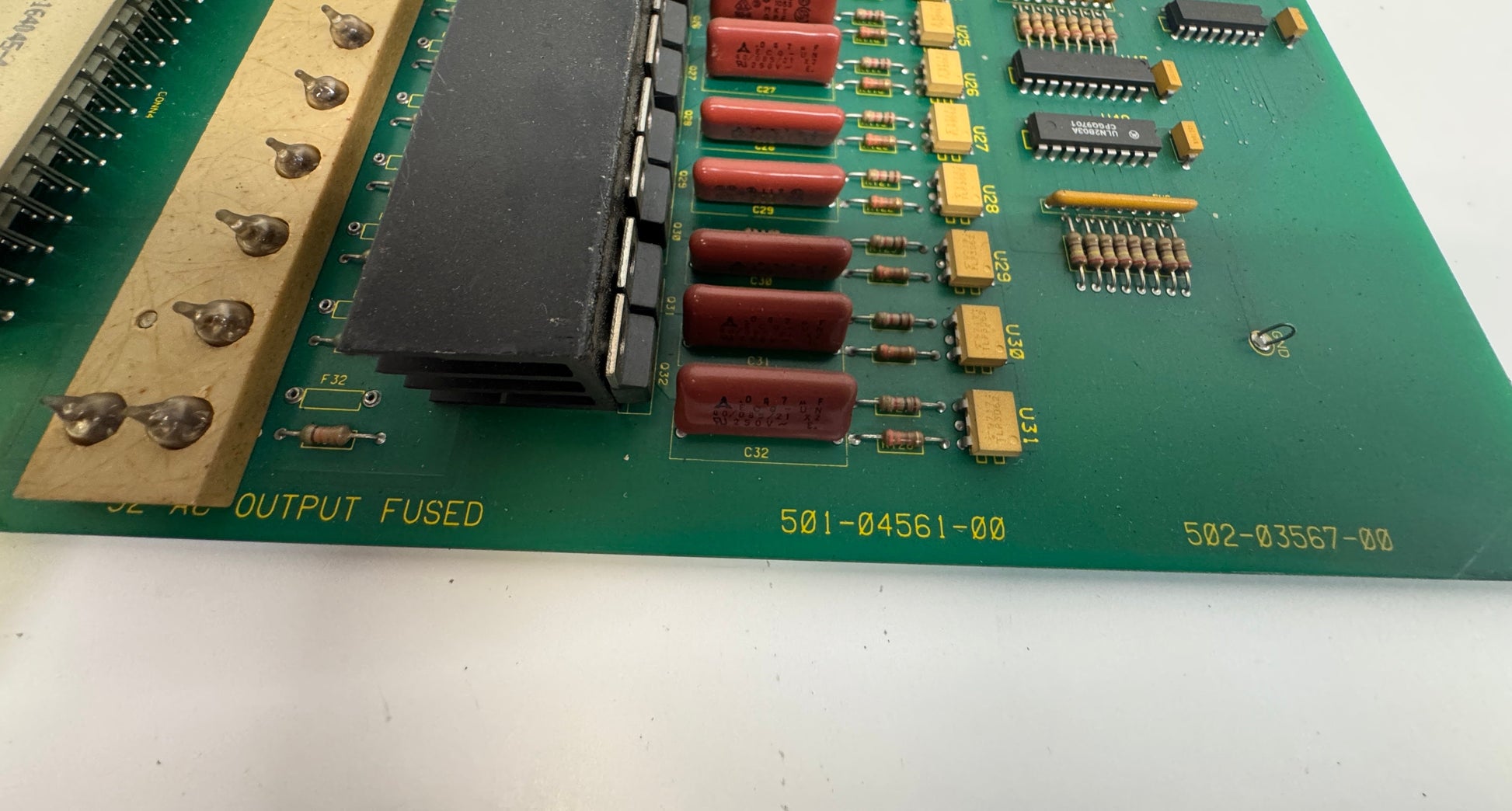

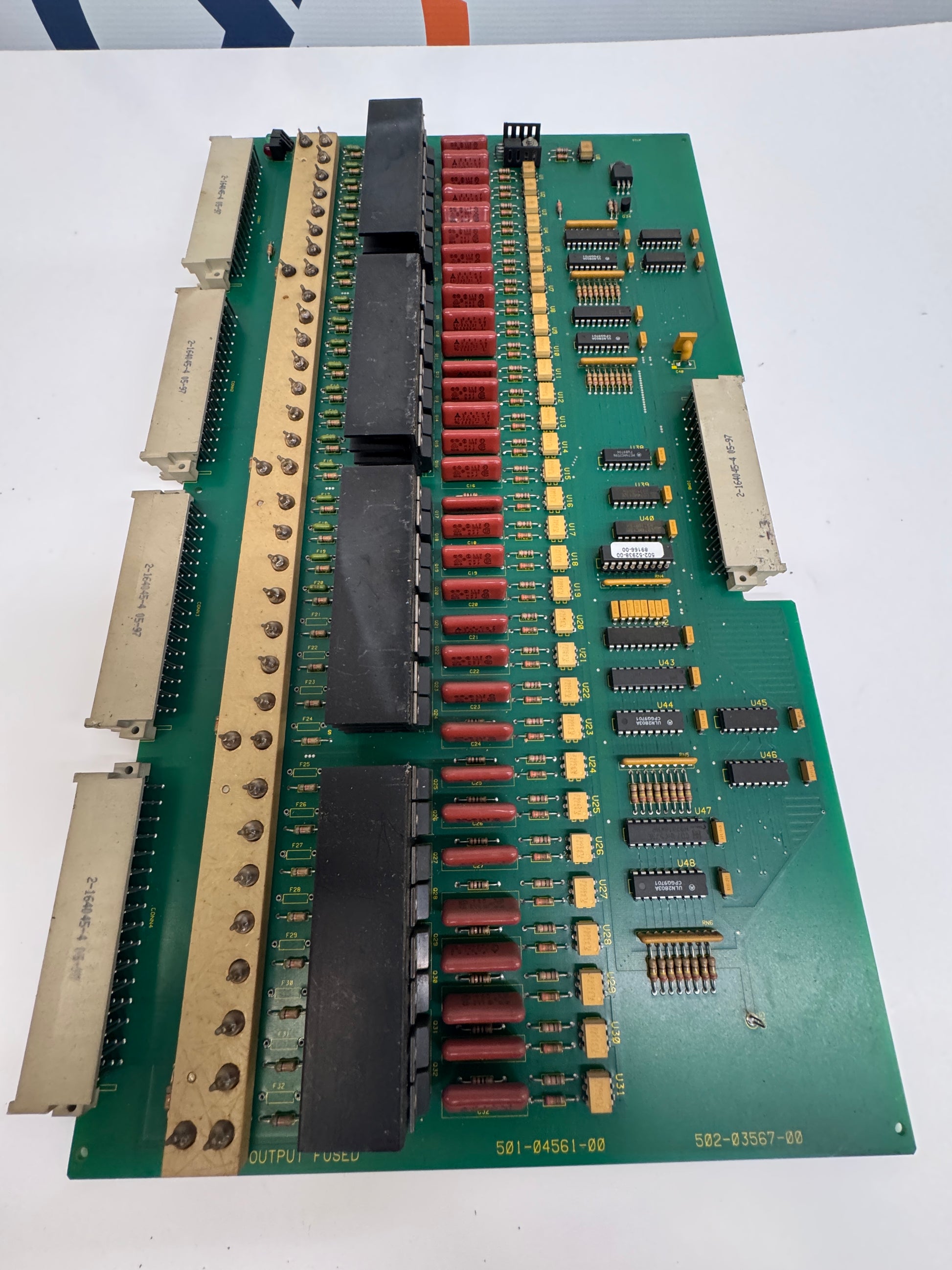

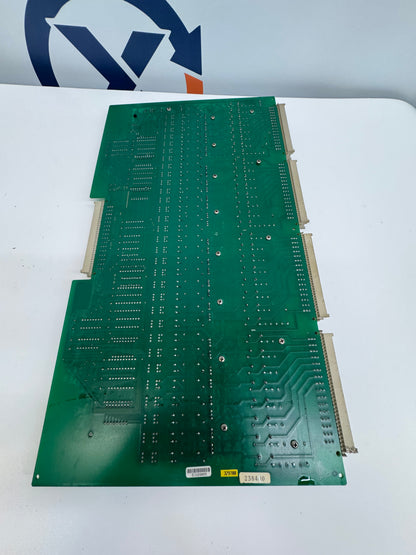

Used in Giddings & Lewis 8000 series CNC control systems, the 501-04561-00 is a 32-point AC fused output board carrying the secondary catalog number 502-03567-00. The board is also compatible with equivalent 572-03567-00 catalog designations used in G&L 8000 and 8000B control platforms. The assembly features 32 individually fused AC output channels arranged in a dense through-hole layout across a full-length green PCB. Multiple edge connectors along the right side allow direct backplane integration within the G&L control rack. Visible component population includes discrete capacitors, resistors, and logic ICs consistent with relay-driven output switching applications. The PCB silkscreen designation "32 AC OUTPUT FUSED" is printed in yellow along the lower edge, confirming the board function. Internal PCB identifier E02965 and additional markings 329700 and 238410 are present on the solder side. This board is a direct replacement component for G&L 8000 CNC systems requiring AC output expansion or substitution. Compatible equivalent part numbers include 572-03567-00 per published G&L catalog equivalency.
Stock # 0326-808
