Giddings & Lewis Encoder SBX Board 502-03671-50
Giddings & Lewis Encoder SBX Board 502-03671-50
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

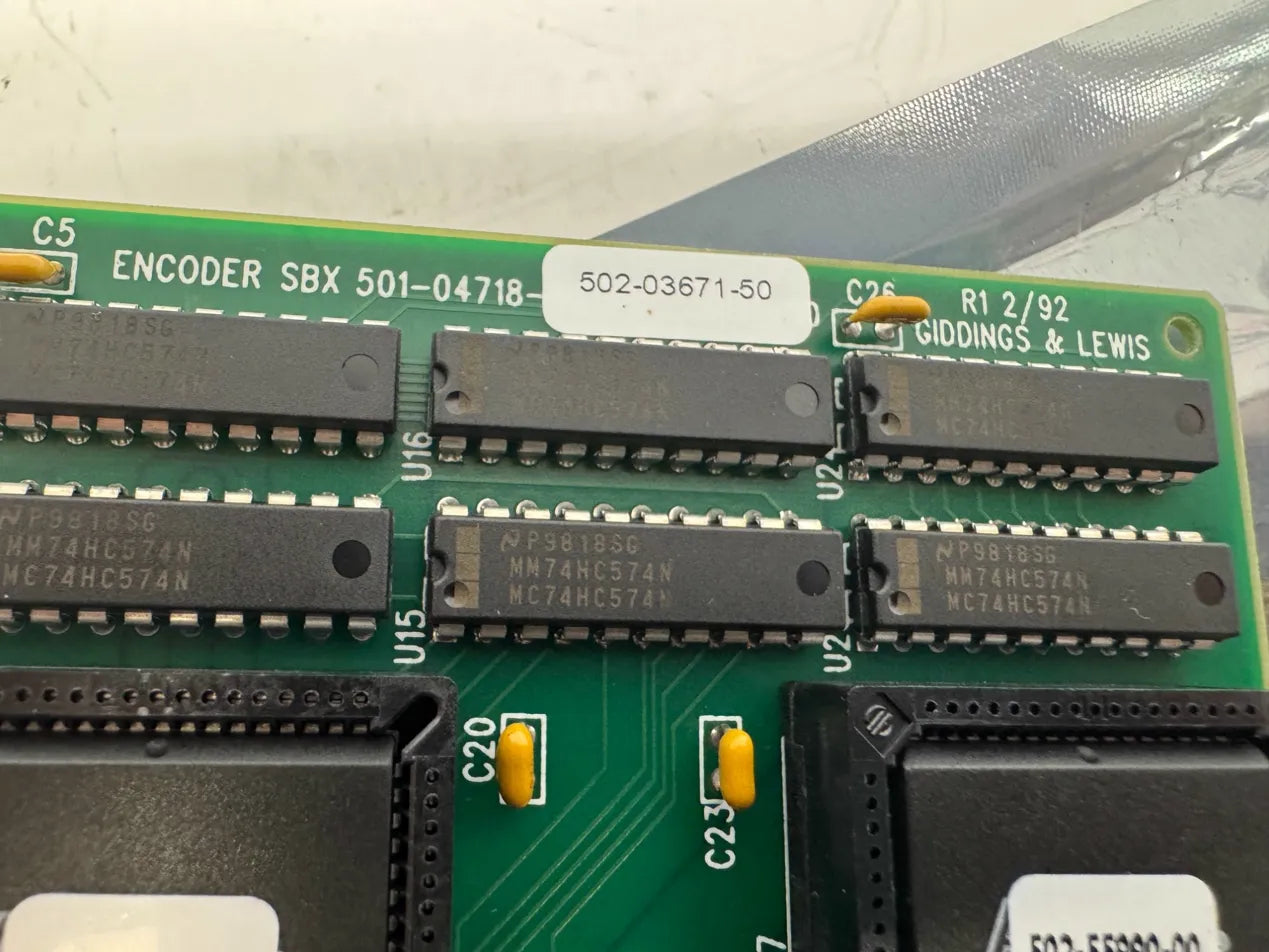

Used in Giddings & Lewis PiC90 and PiC900 Programmable Industrial Computer systems, the Encoder SBX Board with part number 502-03671-50 is a feedback interface circuit board designed to process encoder input signals within CNC and industrial automation control architectures. The board also carries the internal assembly reference 501-04718-00 and revision marking R1 2/92 as silkscreened directly on the PCB.

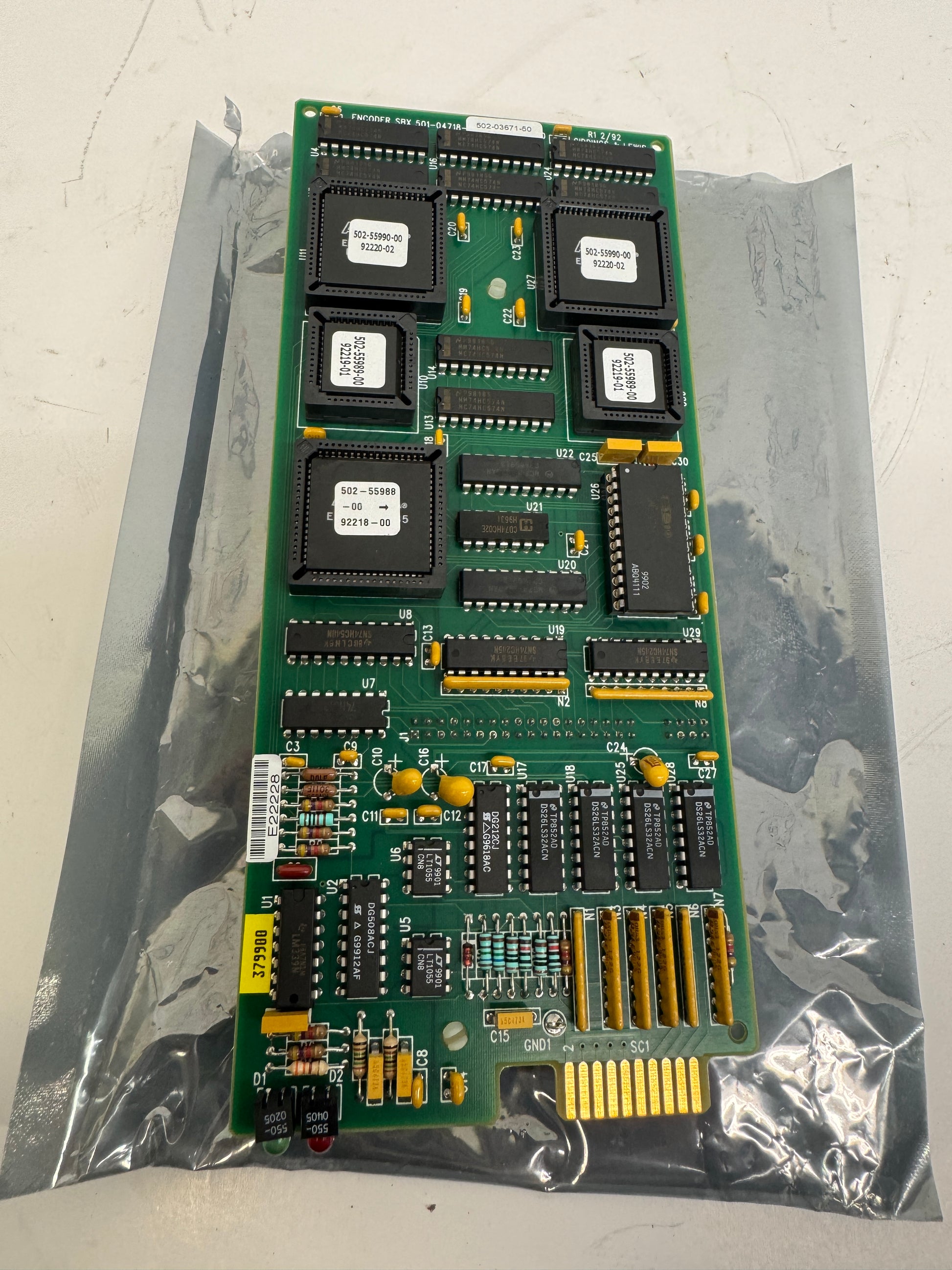

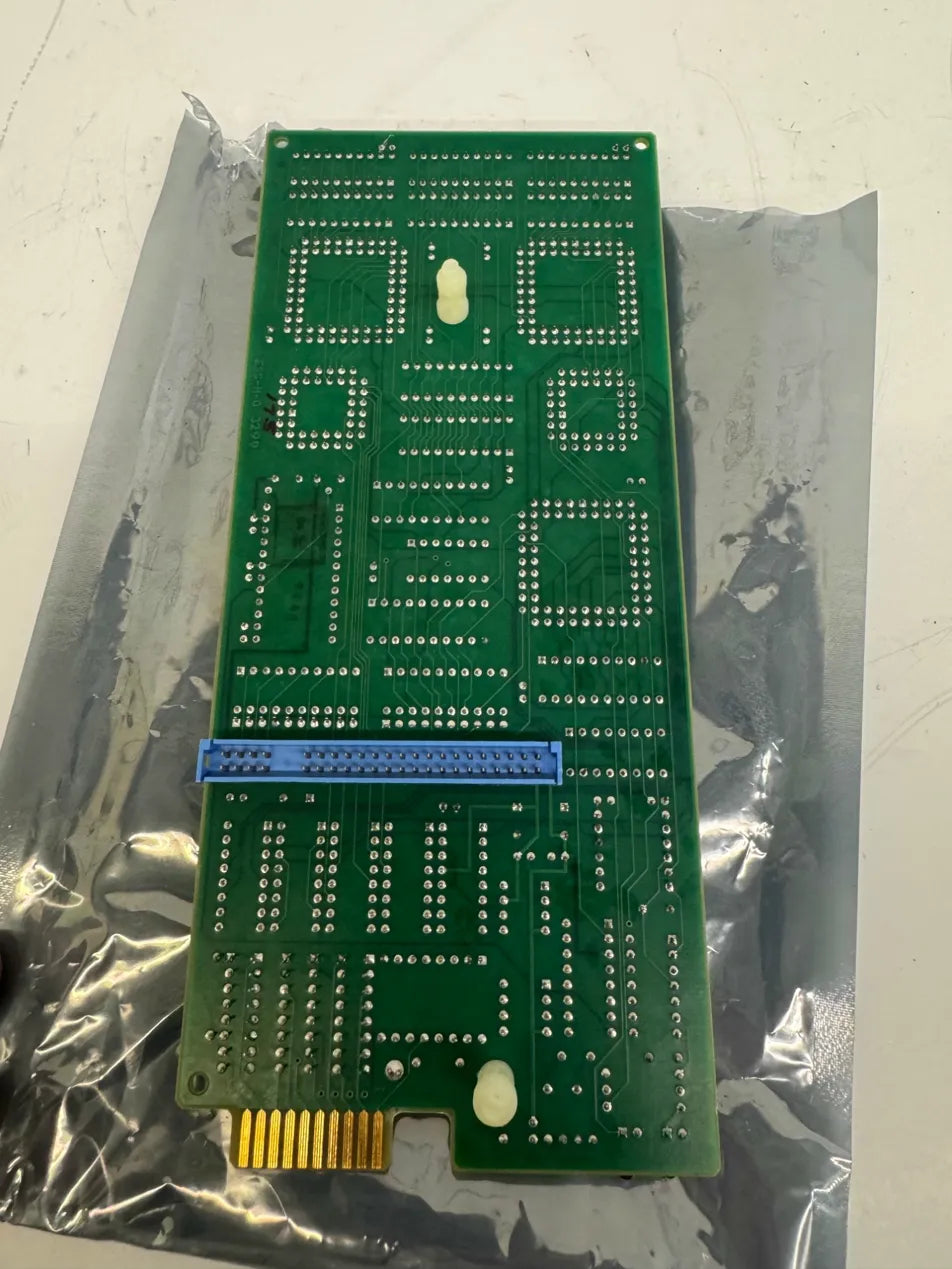

The assembly is a full-length multi-layer PCB populated with logic ICs including MM74HC574N and MC74HC574N devices, multiple large PLCC packages with internal sub-assembly labels, and a blue ribbon connector separating two functional sections of the board. A gold-edge card connector is visible at one end, consistent with rack-mount SBX-format modules used across the PiC90 and PiC900 control platforms.

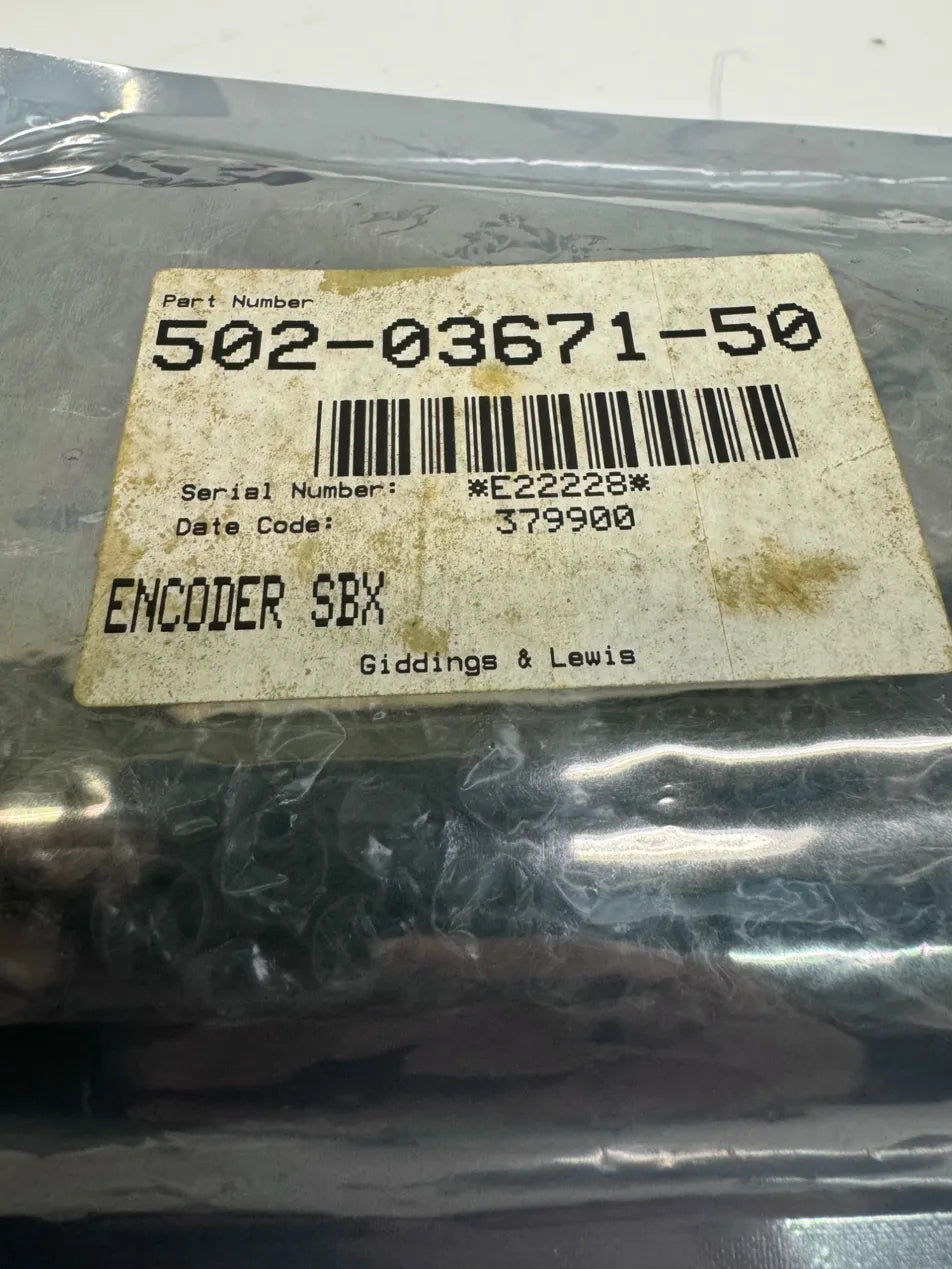

The item is stored in an anti-static bag with the original Giddings & Lewis label intact, showing part number 502-03671-50, serial number E22228, and date code 379900. Giddings & Lewis, later acquired by Fives Group through Kollmorgen, produced the PiC family of modular machine controls for use in machining centers, transfer lines, and general industrial automation. This encoder board type supports closed-loop position feedback functions within those systems. Compatible with PiC90 and PiC900 rack configurations.
Stock # 0226-714
