Goulds Pumps-Weg Centrifugal Pump with Motor 3x8-13, T02036XT3E256T
Goulds Pumps-Weg Centrifugal Pump with Motor 3x8-13, T02036XT3E256T
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
Used in industrial fluid transfer, water supply, and process pumping applications, this complete motor-pump assembly pairs a Goulds Pumps centrifugal pump with a WEG W21X explosion-proof inverter-duty motor. The Goulds pump carries size designation 3x8-13, indicating a 3-inch discharge, 8-inch suction, and 13-inch maximum impeller diameter. Nameplate-confirmed performance data includes a flow rate of 150 GPM, head of 200 feet, and a standard impeller diameter of 7.500 inches. Maximum impeller diameter is 8.350 inches. Serial number N769H4911 is stamped on the pump nameplate. Reference code A09355AR1 appears on the nameplate.

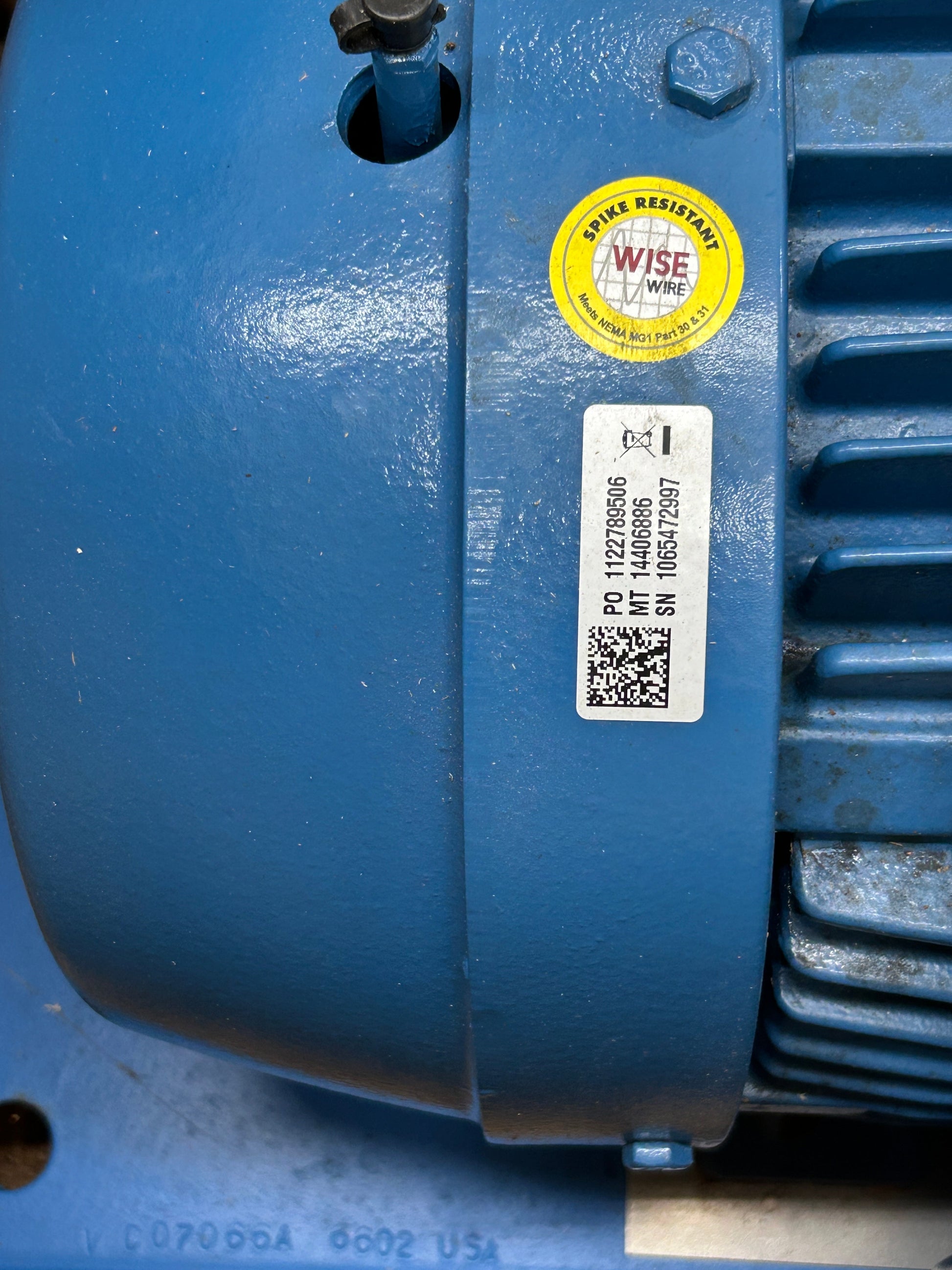

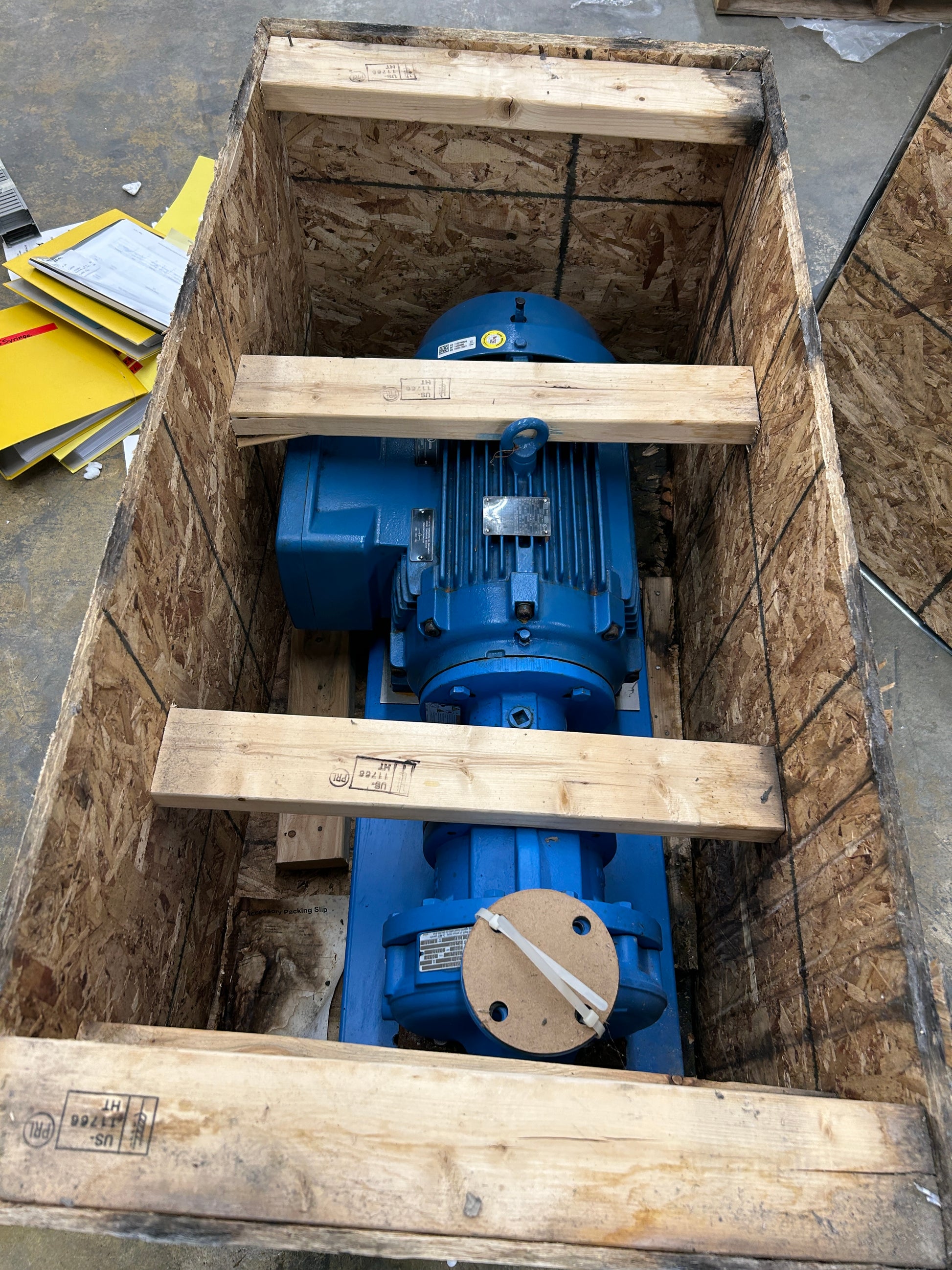

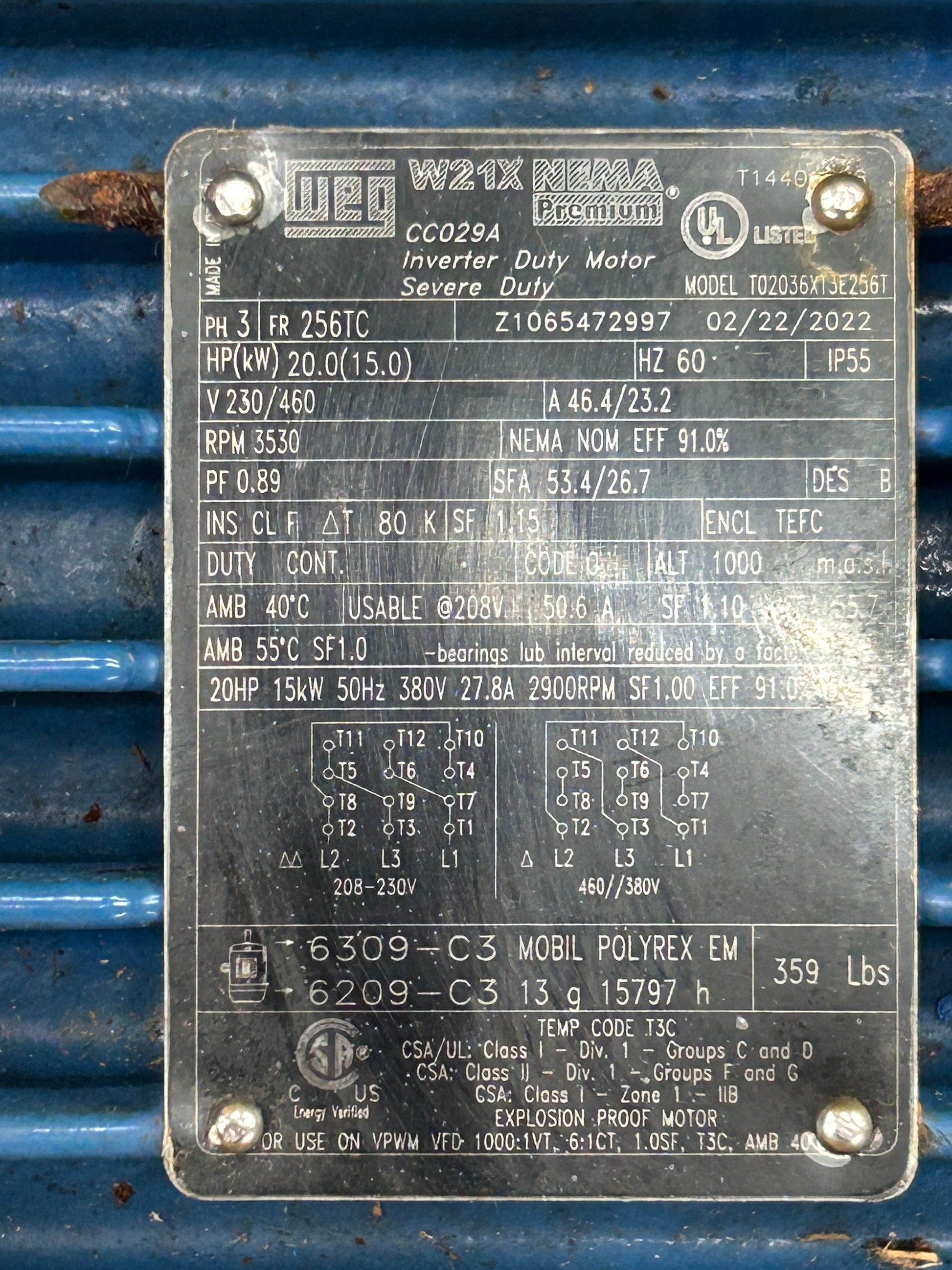

The WEG motor is model T02036XT3E256T, rated 20 HP (15 kW), 3-phase, 230/460 V, 60 Hz, 3530 RPM, 256TC frame, TEFC (IP55) enclosure, Class F insulation, 1.15 service factor. It is certified to NEMA MG1 Parts 30 and 31 for inverter and spike-resistant duty (WISE WIRE). CSA/UL explosion-proof rating: Class I, Division 1, Groups C and D; Class II, Division 1, Groups F and G. Motor date code is 02/22/2022. Serial number Z1065472997 is visible on the motor label. The assembly was received in the original wood shipping crate. Pump series not confirmed from visible nameplate.
Stock # 0326-1148
