Graymills Corp. Centrifugal Pump C4T34NC2F 1/4 HP 3-Phase 60/50 Hz
Graymills Corp. Centrifugal Pump C4T34NC2F 1/4 HP 3-Phase 60/50 Hz
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

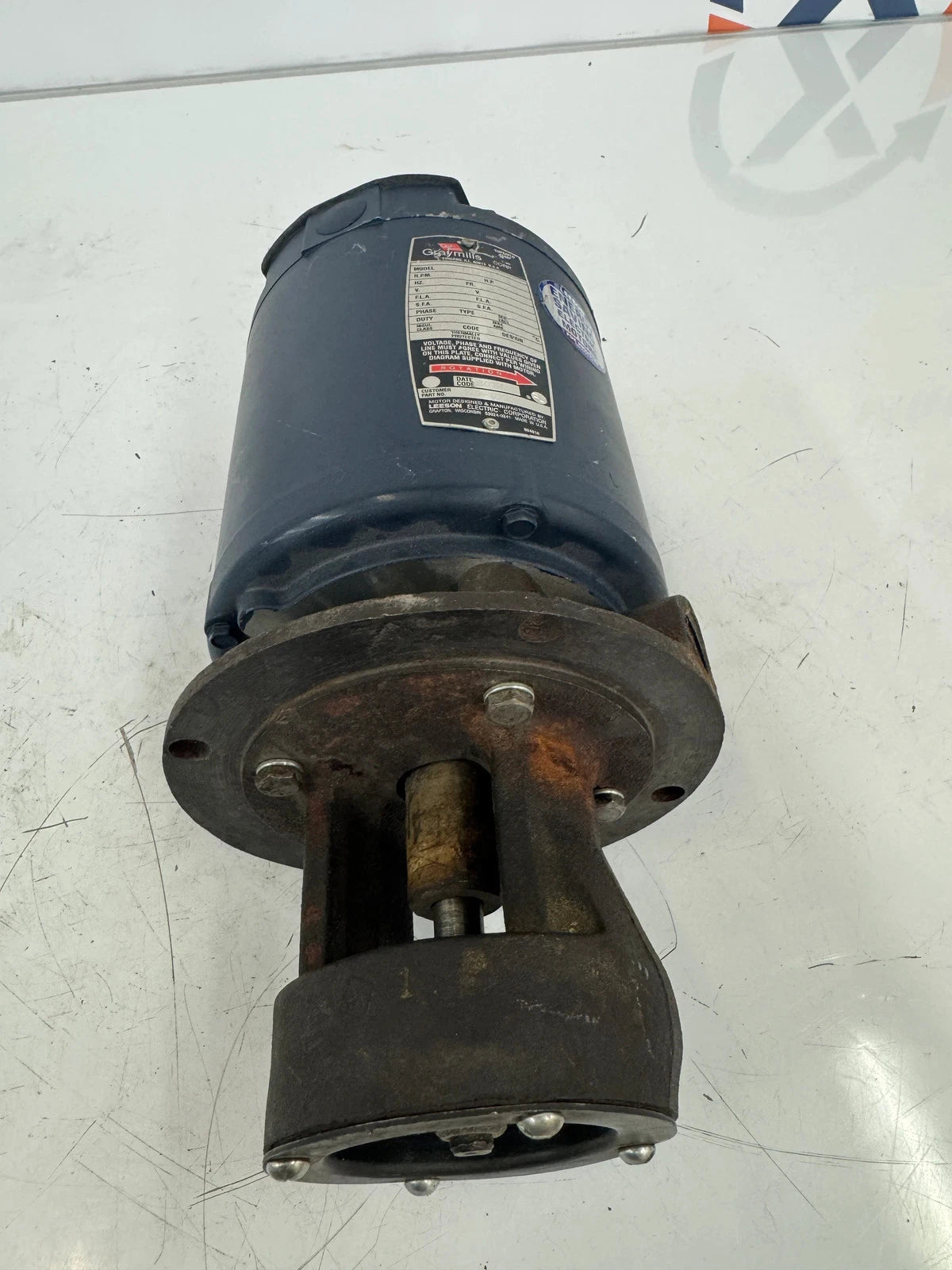

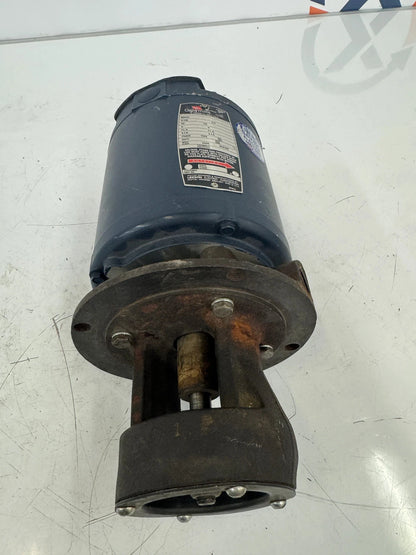

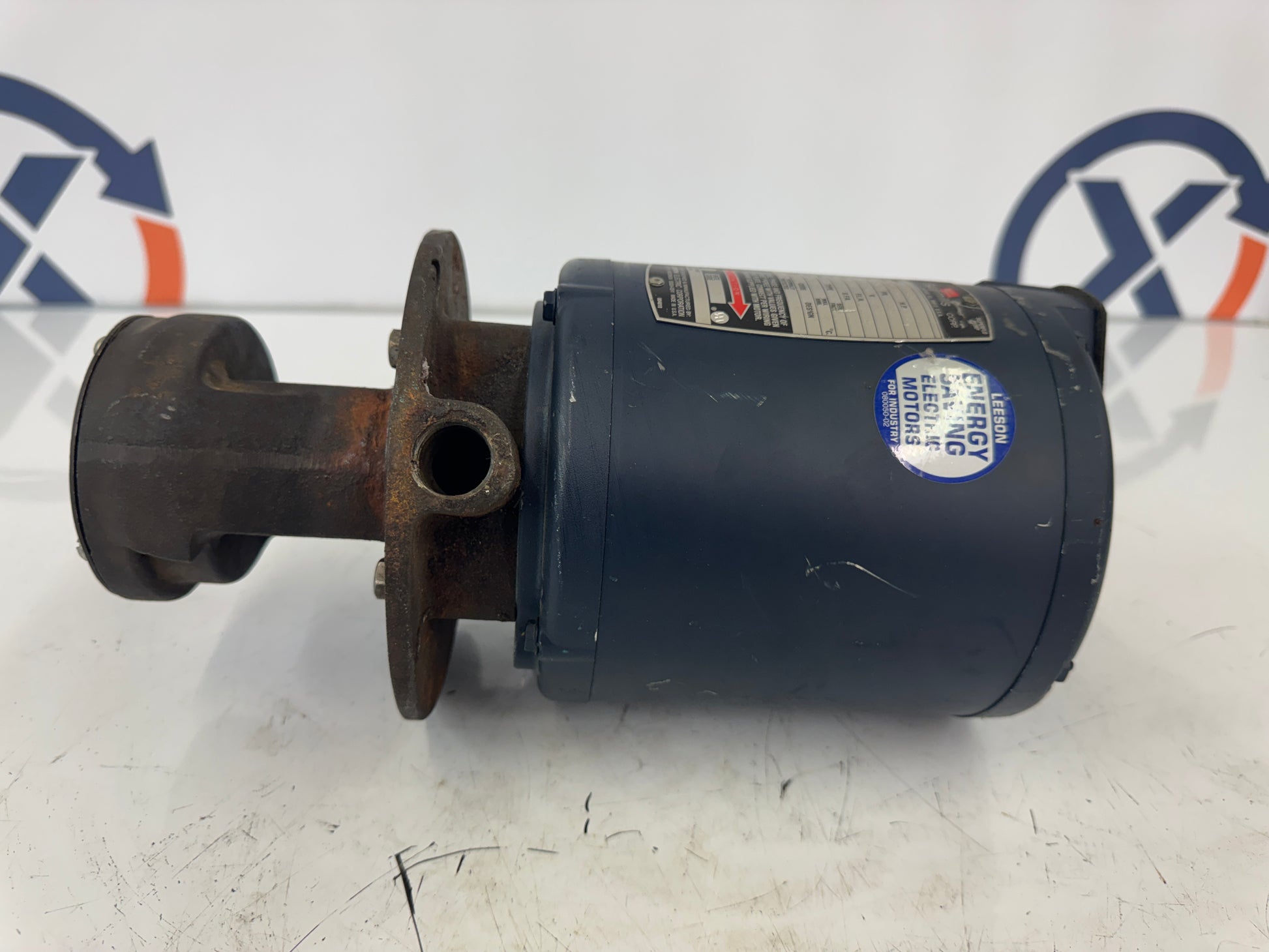

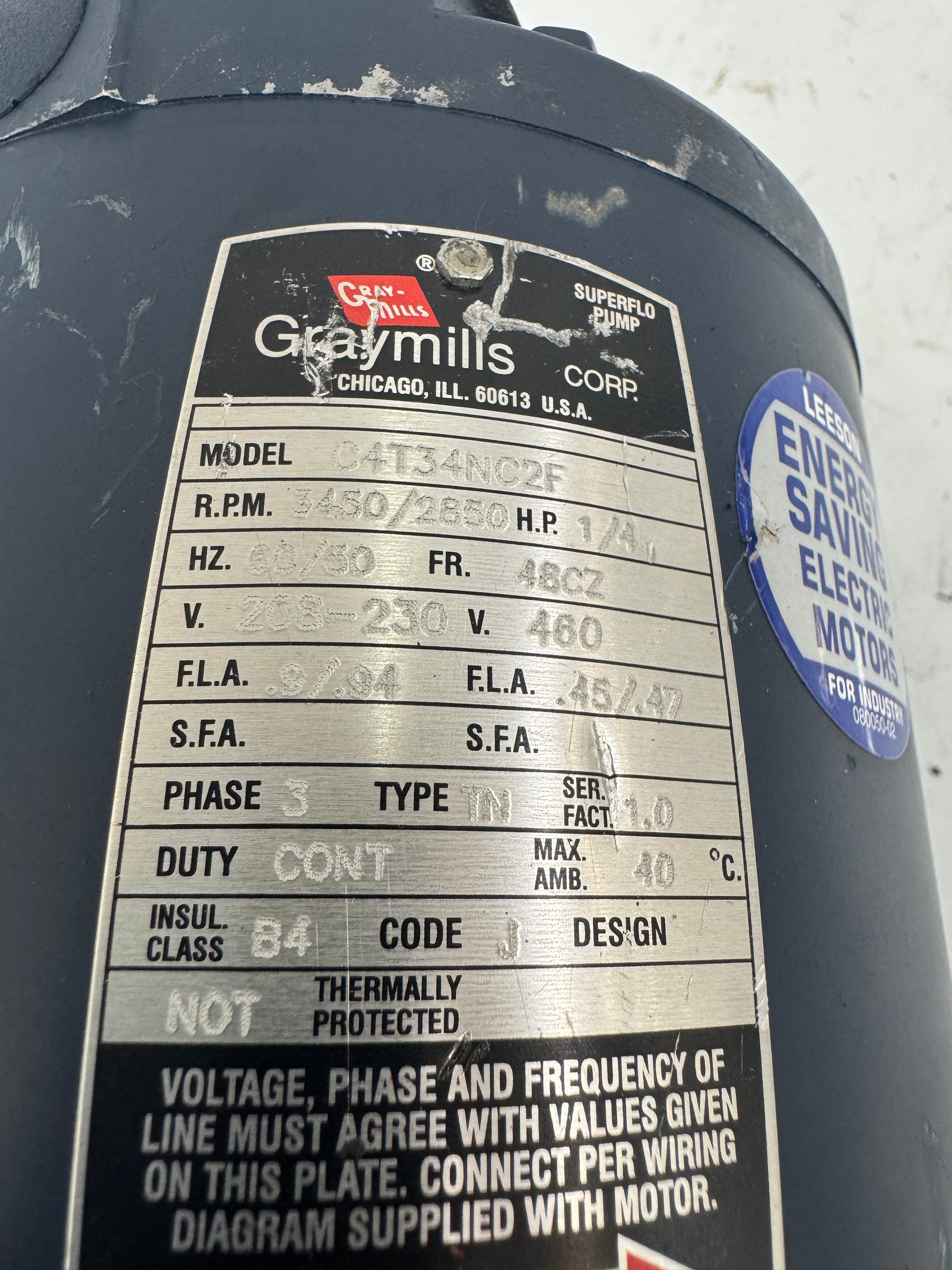

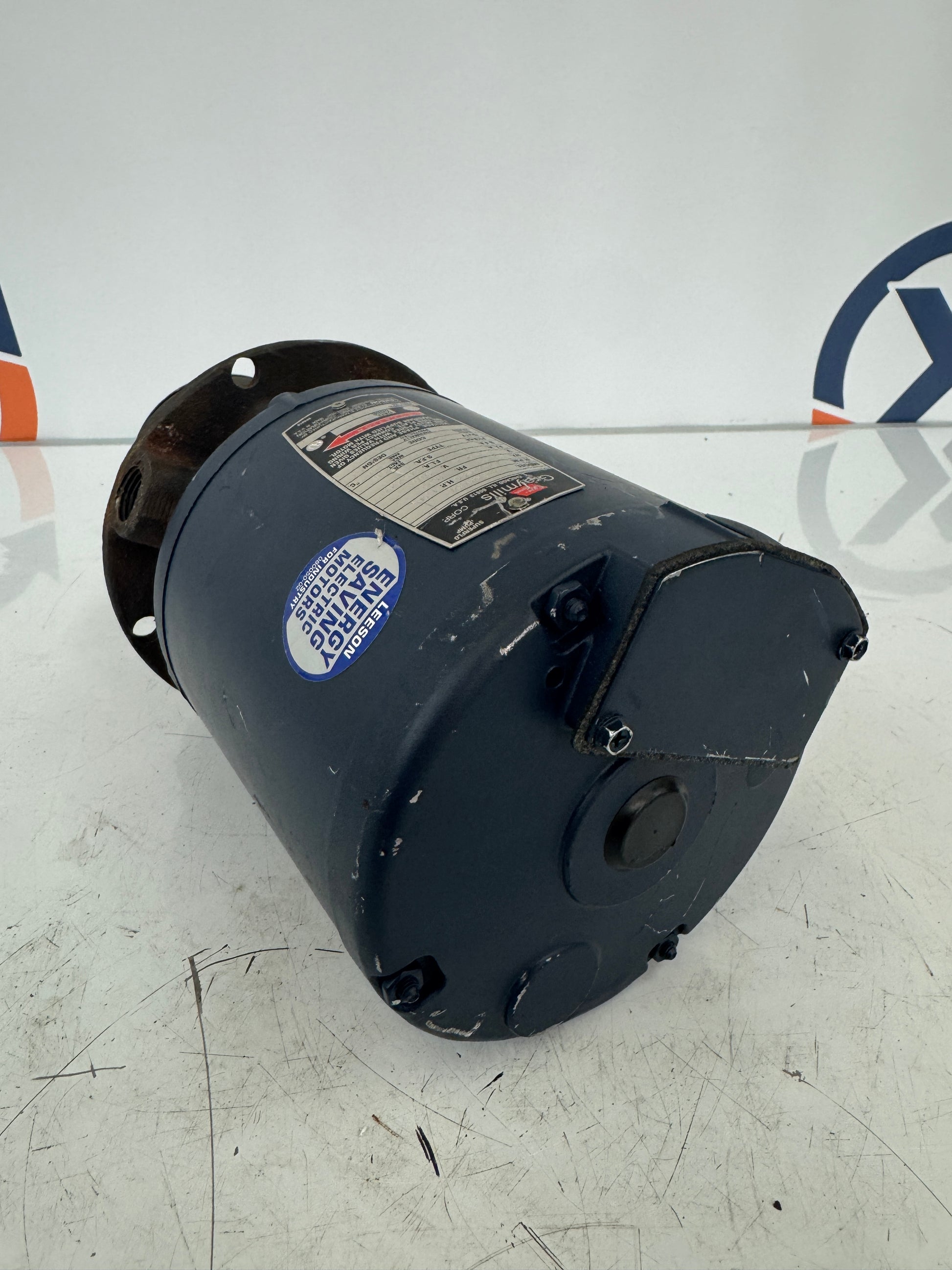

This listing is for a used Graymills Corp. Superflo centrifugal pump, model C4T34NC2F, manufactured in Chicago, Illinois. Per the nameplate, the unit is rated at 1/4 HP, 3-phase, 3450/2850 RPM, 60/50 Hz, with voltage ratings of 208 to 230 V and 460 V. Full load amps are 0.37/0.34 A at 208 to 230 V and 0.45/0.47 A at 460 V. The NEMA frame is 48CZ, insulation class B4, service factor 1.0, duty continuous, maximum ambient temperature 40 degrees C, design code J. The unit is not thermally protected per the nameplate. The motor body carries a Leeson Energy Saving Motors sticker, indicating the motor component is a Leeson-manufactured unit. The pump features a cast iron pump head with a flanged mounting plate and an enclosed impeller assembly. The unit shows heavy surface rust on the pump head and flange consistent with prior machine tool coolant sump use. The motor body is in comparatively better condition. This pump is well suited for coolant circulation in surface grinders, lathes, milling machines, and other machine tool applications. No testing or performance claims are made. All specifications are sourced directly from the visible nameplate label.
Stock # 0226-371
