Leybold Rotary Vane Vacuum Pump SV 120 BIFC 10 mbar Max Abs. Operating Pressure
Leybold Rotary Vane Vacuum Pump SV 120 BIFC 10 mbar Max Abs. Operating Pressure
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN:
Stock #: 0626-01536
Product Specifications
- Manufacturer: Leybold
- Brand / Product Line: SOGEVAC
- Model: SV 120 BIFC
- Product Type: Single-Stage Oil-Sealed Rotary Vane Vacuum Pump

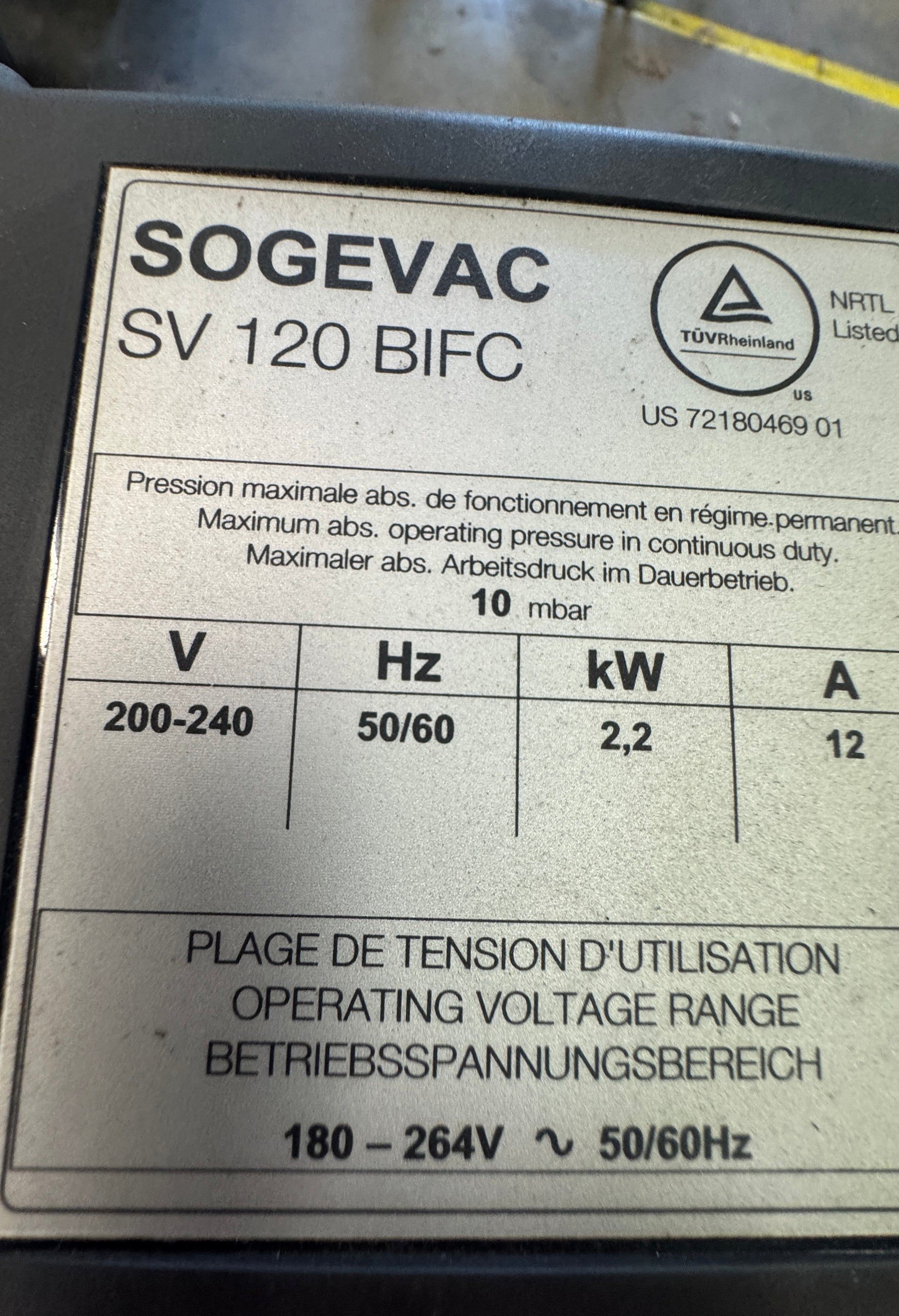

- Voltage: 200-240 V (Operating Voltage Range: 180-264 V)
- Frequency: 50/60 Hz
- Power: 2.2 kW
- Current: 12 A
- Max Abs. Operating Pressure (Continuous Duty): 10 mbar

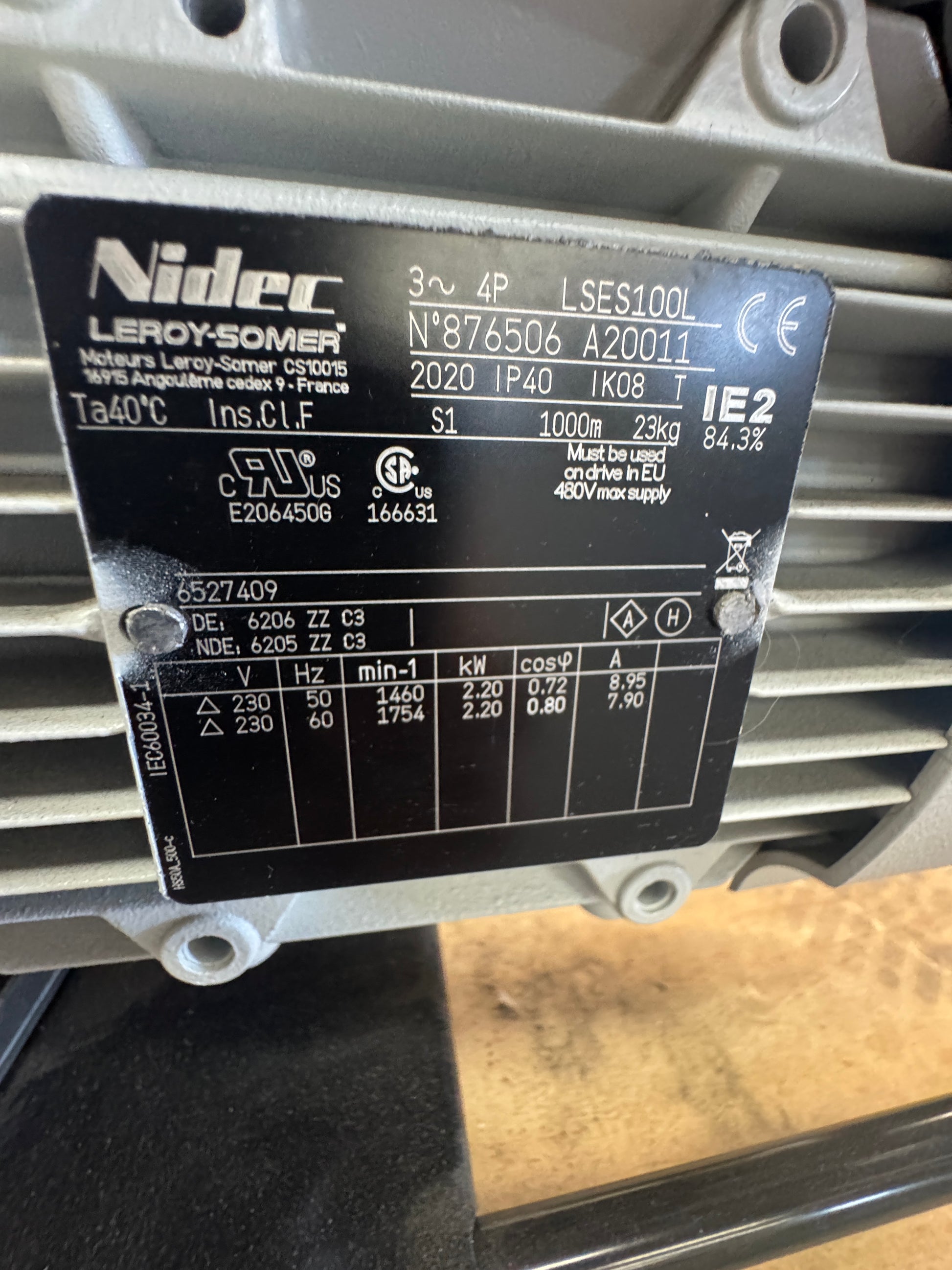

- Drive Motor Manufacturer: Nidec Leroy-Somer
- Motor Frame: LSES100L
- Motor Serial Number: N 876506 A20011
- Motor Year of Manufacture: 2020
- Motor Enclosure: IP40
- Motor Impact Rating: IK08
- Motor Insulation Class: F (Ta 40 C)
- Motor Efficiency Class: IE2 (84.3%)
- Motor Poles: 4P
- Motor Phase: 3-phase
- Motor Speed (50 Hz): 1460 min-1
- Motor Speed (60 Hz): 1754 min-1
- Motor Voltage (Delta): 230 V
- Motor Bearings (DE): 6206 ZZ C3
- Motor Bearings (NDE): 6205 ZZ C3
- Motor Part Number: 6527409

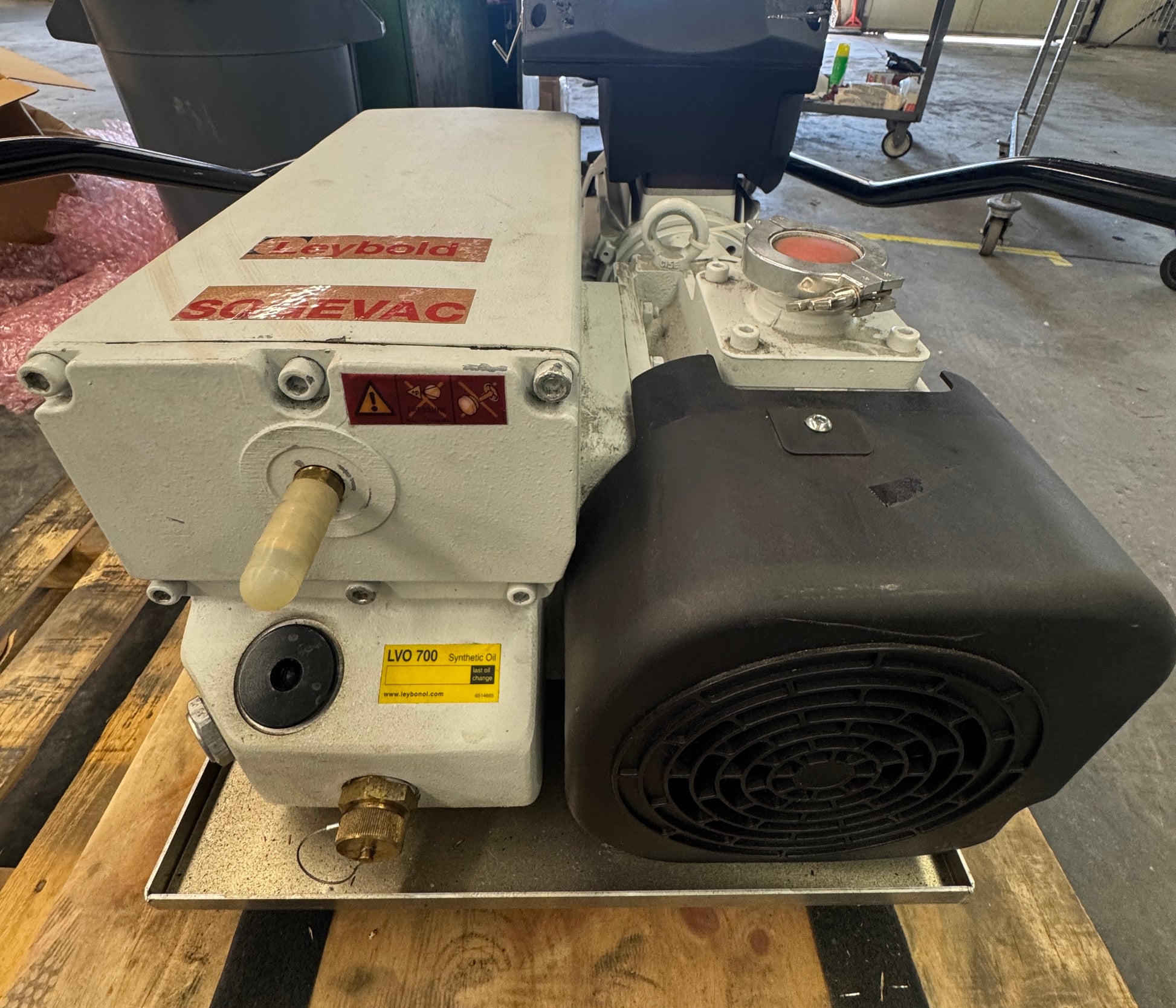

- Pump Lubricant: LVO 700 Synthetic Oil
- Certifications: TUV Rheinland NRTL Listed (US 72180469 01)
- Condition: Used / Surplus
Product Description

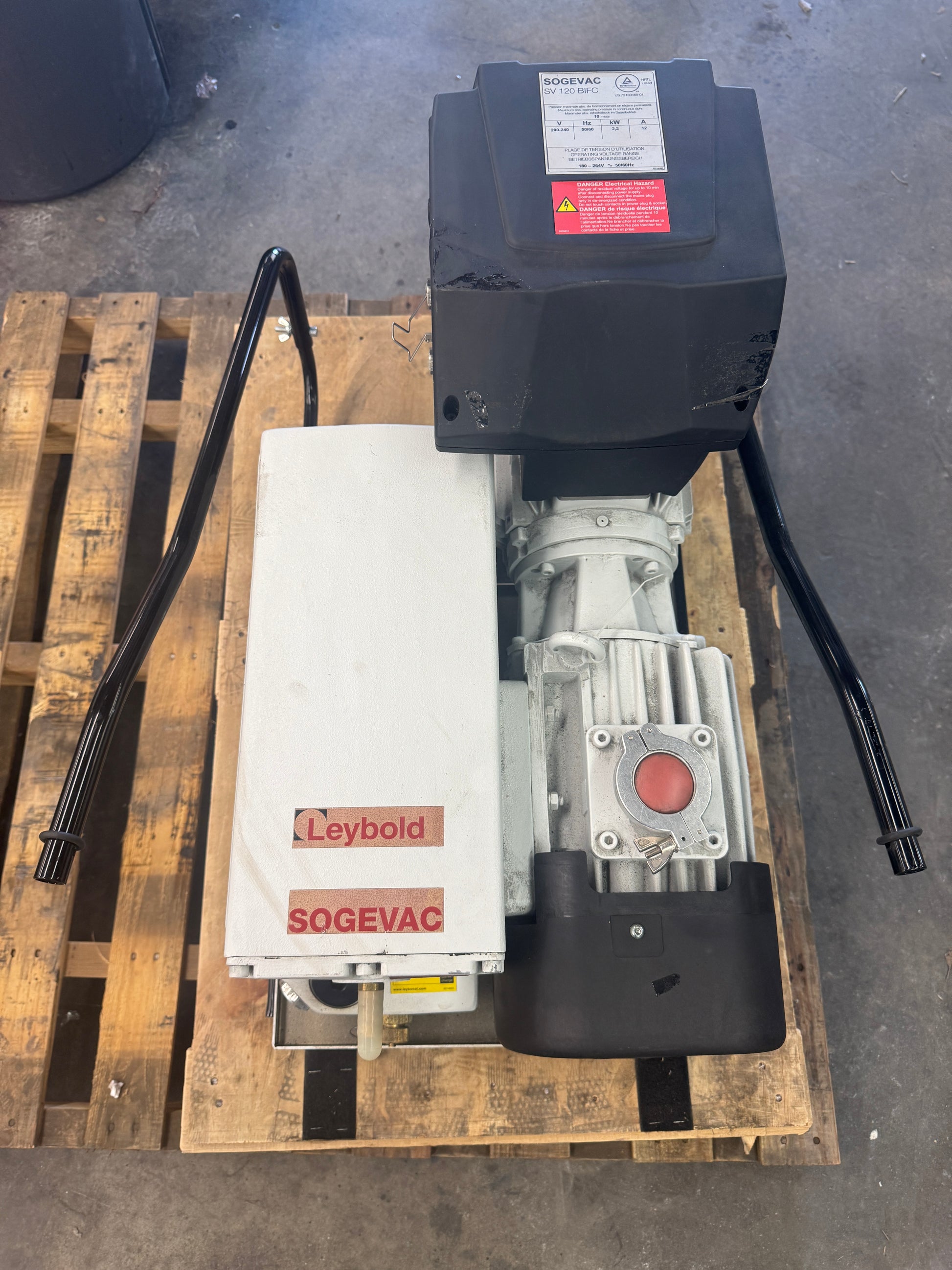

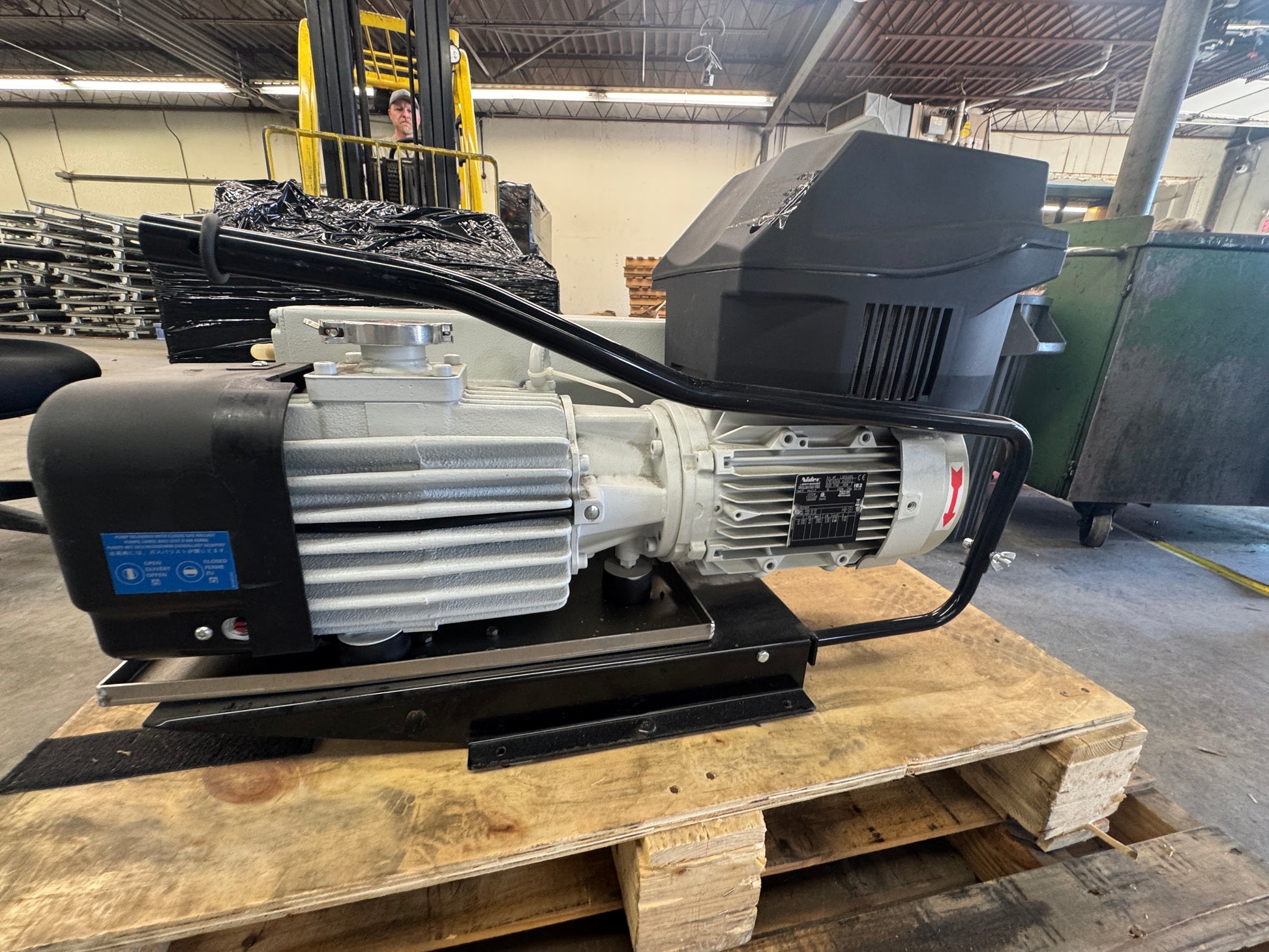

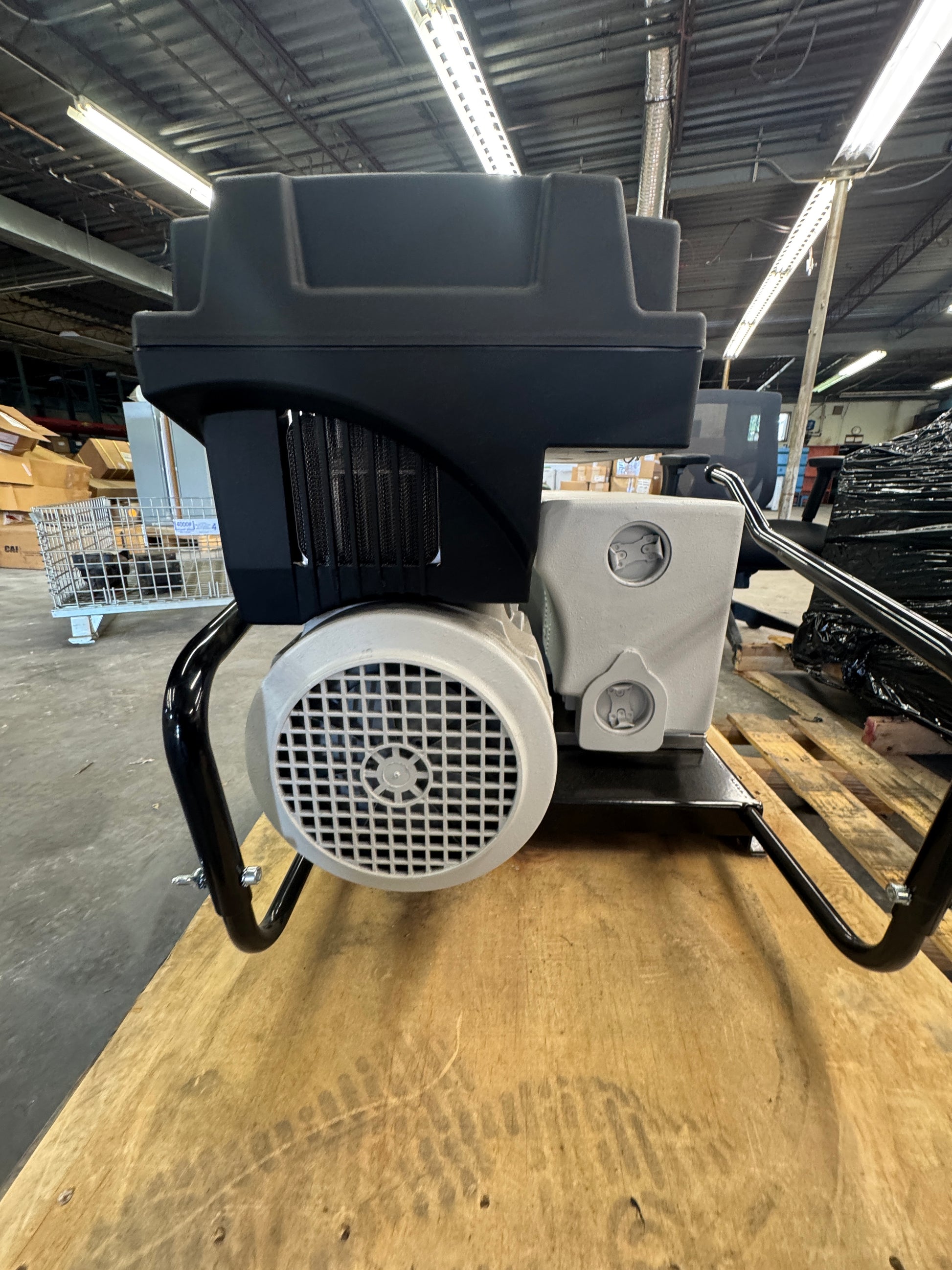

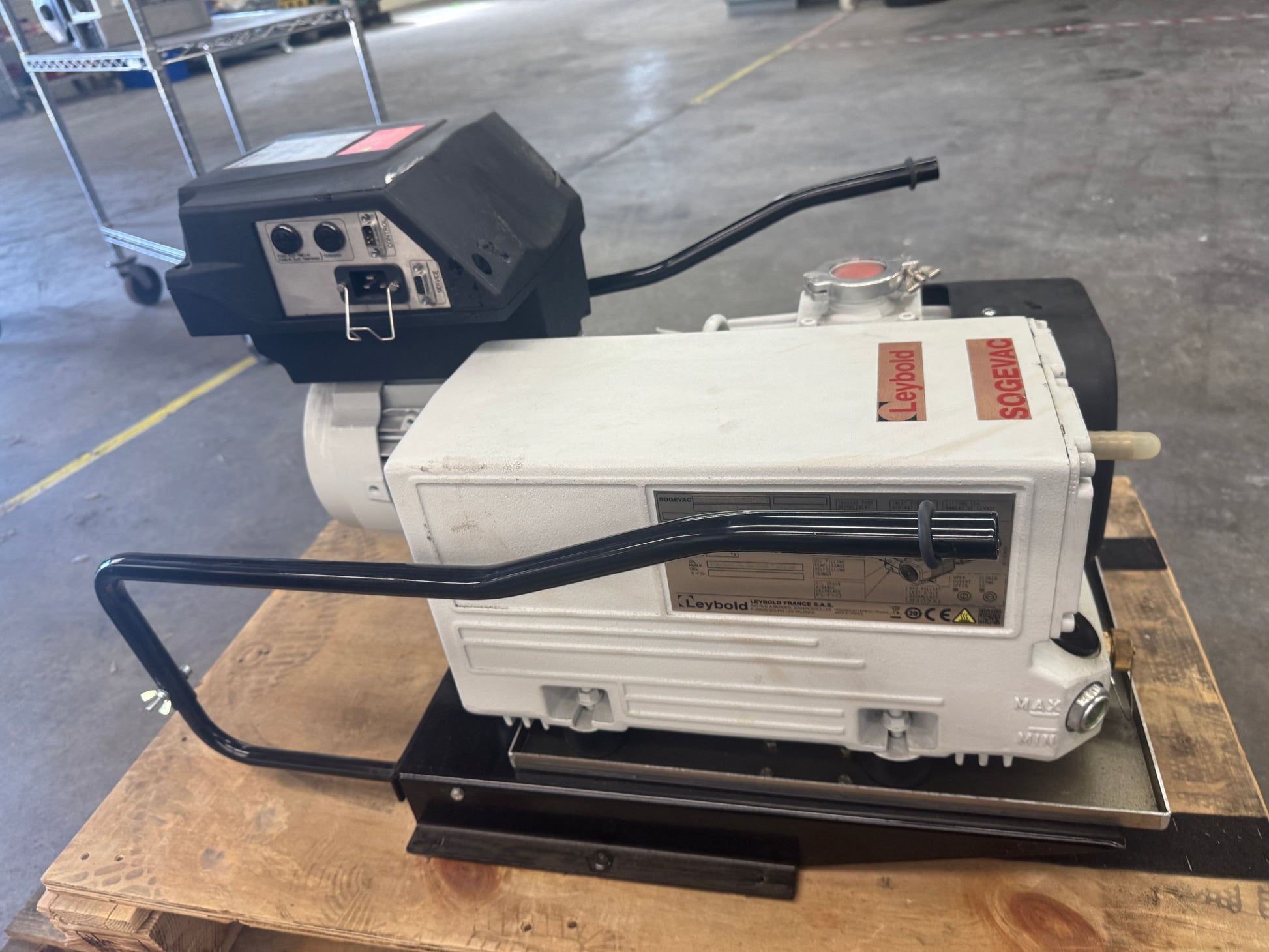

The Leybold SOGEVAC SV 120 BIFC is a single-stage oil-sealed rotary vane vacuum pump rated for operation at 200-240 V, 50/60 Hz, drawing 12 A at 2.2 kW. The nameplate confirms a maximum absolute operating pressure in continuous duty of 10 mbar and an operating voltage range of 180-264 V. The unit carries TUV Rheinland NRTL listing (US 72180469 01). The integrated drive motor is a Nidec Leroy-Somer LSES100L, a 3-phase, 4-pole unit manufactured in 2020, serial number N 876506 A20011, rated IP40, IK08, Insulation Class F, and IE2 efficiency at 84.3%. Motor speed is 1460 min-1 at 50 Hz and 1754 min-1 at 60 Hz running in delta configuration at 230 V. Motor bearings are identified as 6206 ZZ C3 (drive end) and 6205 ZZ C3 (non-drive end). A LVO 700 synthetic oil label is affixed to the pump body. The BIFC designation identifies this variant as equipped with a built-in frequency converter. This unit is listed as used surplus and is offered untested. Buyers matching the SV 120 BIFC for replacement or process system integration should verify electrical compatibility, particularly the 200-240 V single-phase frequency-converter input, against their site supply requirements.
