Grove Gear Worm Gear Reducer GR-HMQ-813-10-H1-D80CZ-10
Grove Gear Worm Gear Reducer GR-HMQ-813-10-H1-D80CZ-10
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

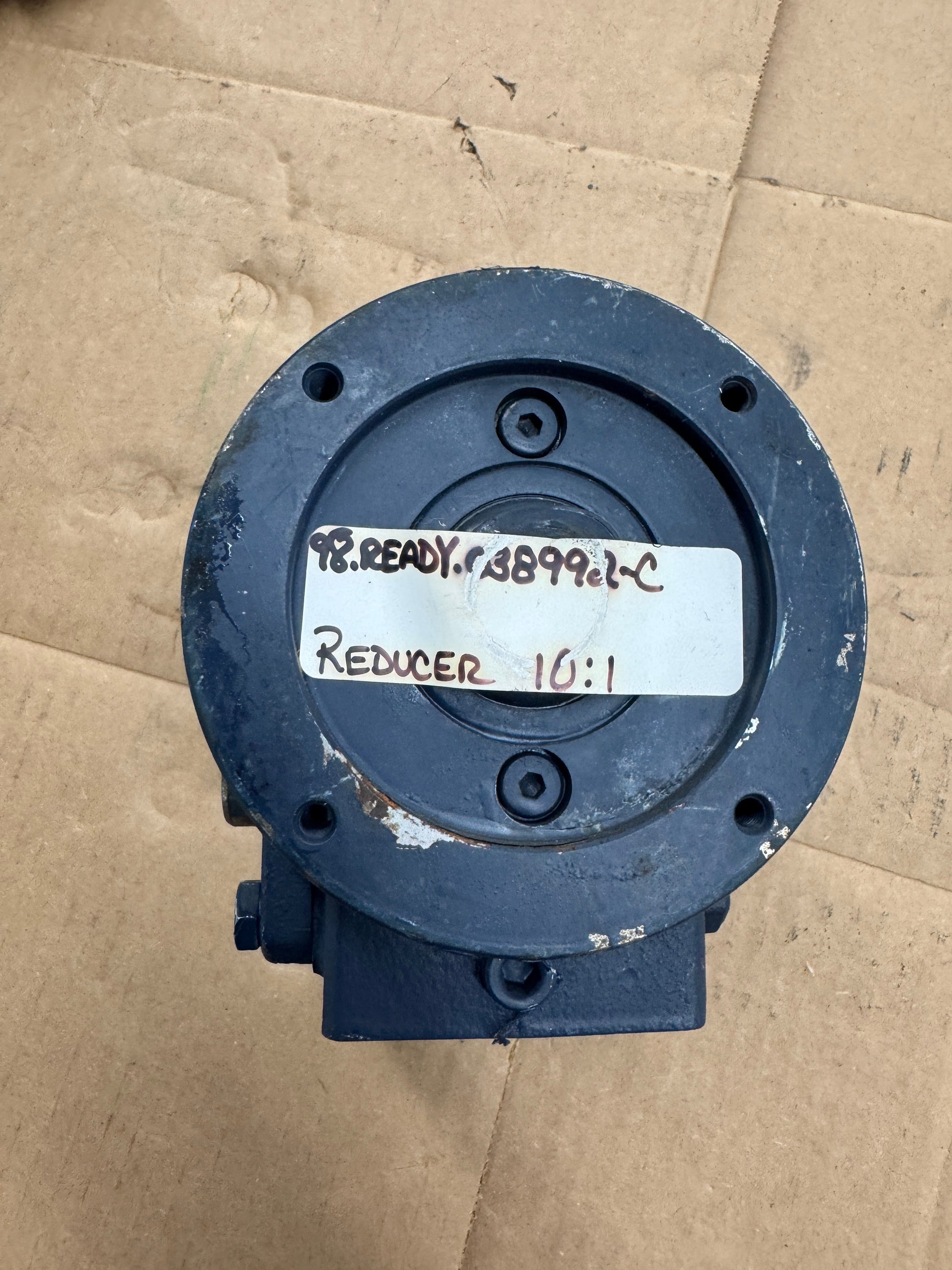

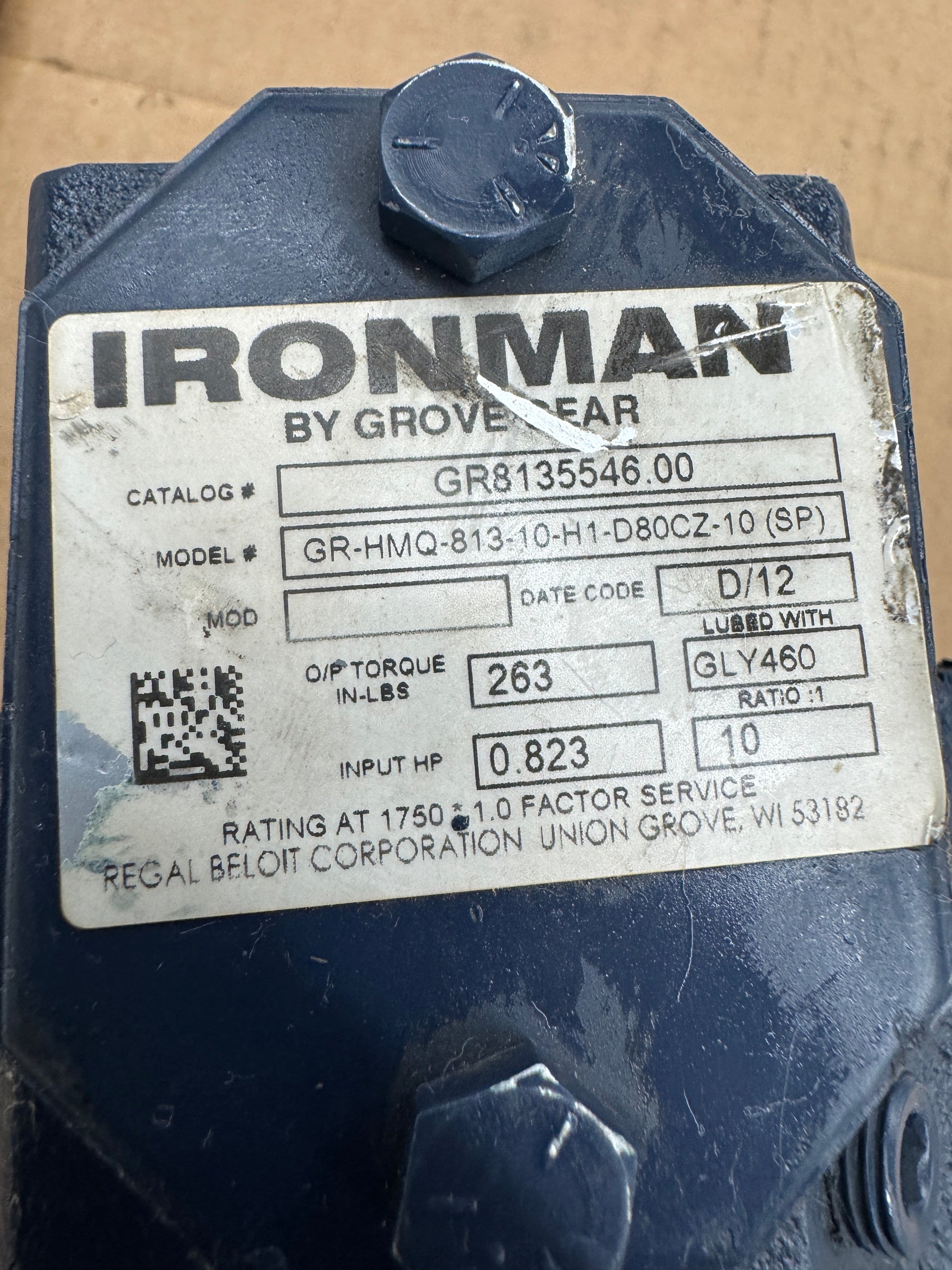

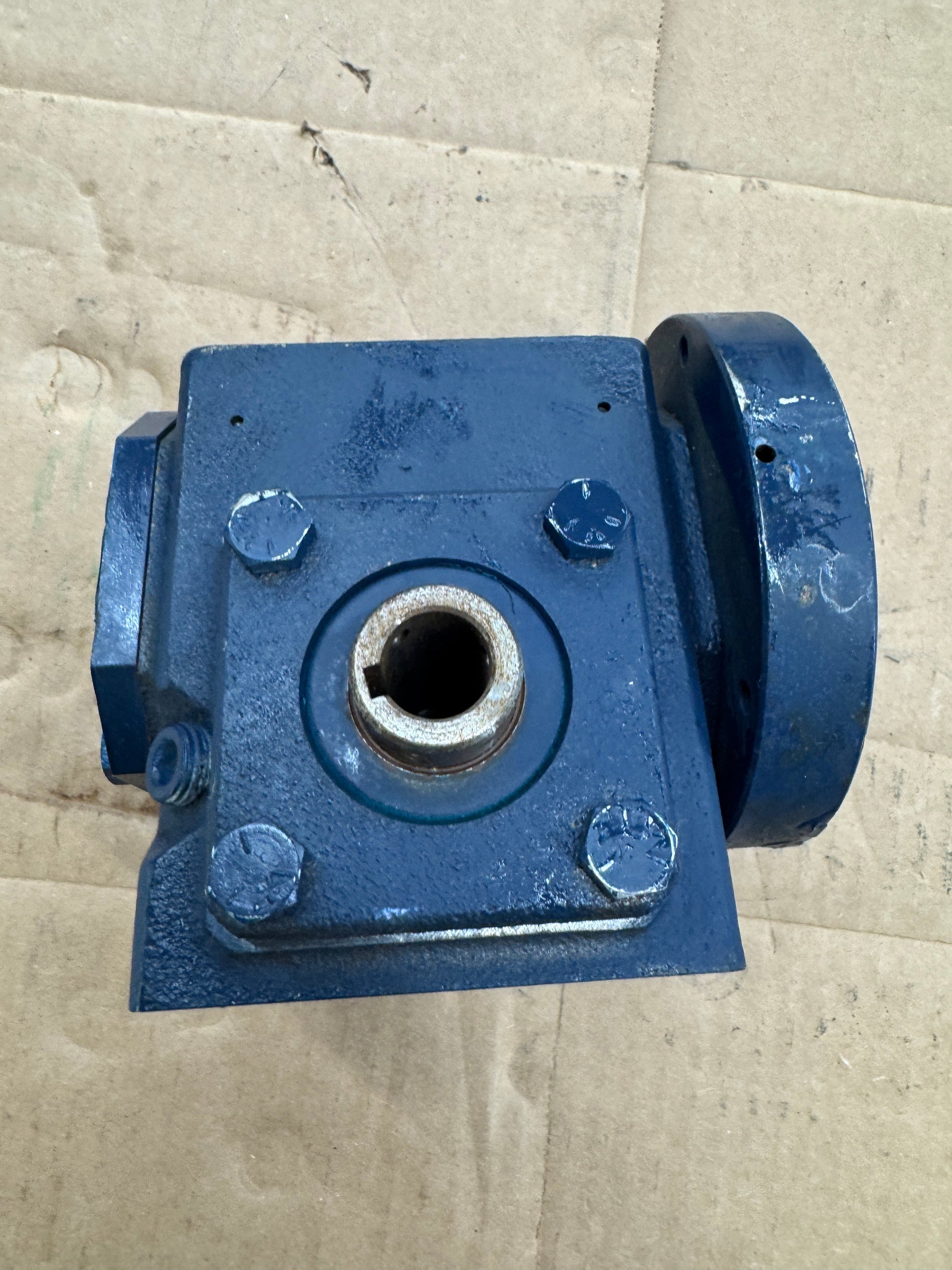

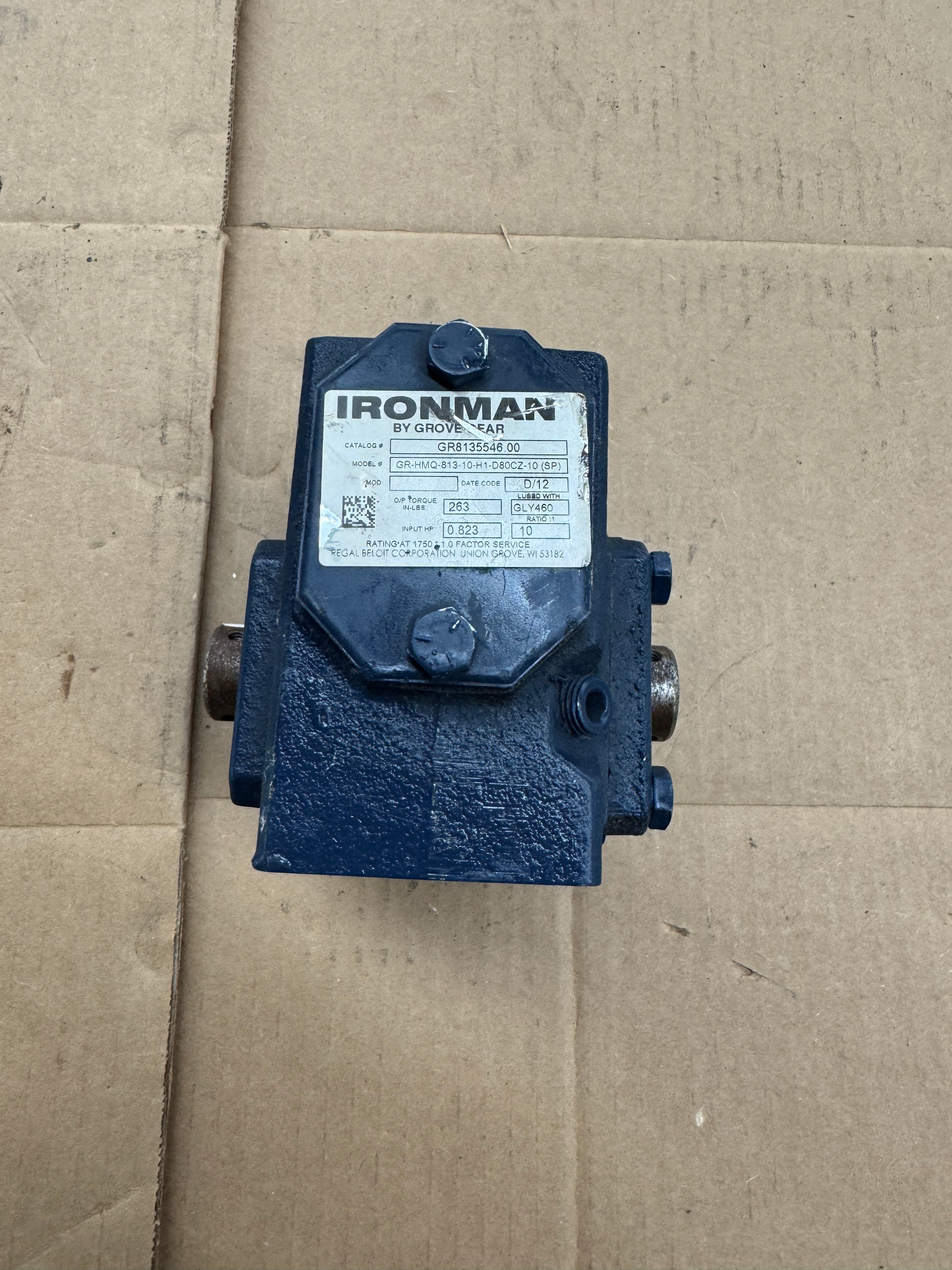

Used Grove Gear IRONMAN GR-HMQ-813-10-H1-D80CZ-10 (SP) worm gear reducer, catalog number GR8135546.00, manufactured by Regal Beloit Corporation in Union Grove, WI 53182. This right angle, single-reduction cast iron unit features a 10:1 gear ratio with a C-face quill input and hollow bore output shaft. Output torque is rated at 263 in-lbs with a maximum input of 0.823 HP at 1750 RPM with a 1.0 service factor. The unit is equipped with a D80CZ metric flange input configuration, a custom factory option denoted by the SP designation. Lubricated at the factory with Mobil Glygoyle GLY460 PAG synthetic lubricant. Date code D/12. Grove Gear IRONMAN 800 Series reducers feature one-piece cast iron housings CNC machined for precise component alignment, tapered roller bearings on the output shaft, oversized high-speed bearings for frequent reversing and start/stop duty, and FKM double lip seals. Mounting dimensions are interchangeable with Baldor 900 series, Boston Gear, Browning Raider, Falk, Morse Invader, and other industry standard reducers. Suitable for conveyors, material handling equipment, textile machinery, packaging machinery, and similar applications requiring high torque at reduced output speed.
Stock # 0326-865
