Grove Gear Worm Gear Reducer SP1 HMQ213
Grove Gear Worm Gear Reducer SP1 HMQ213
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

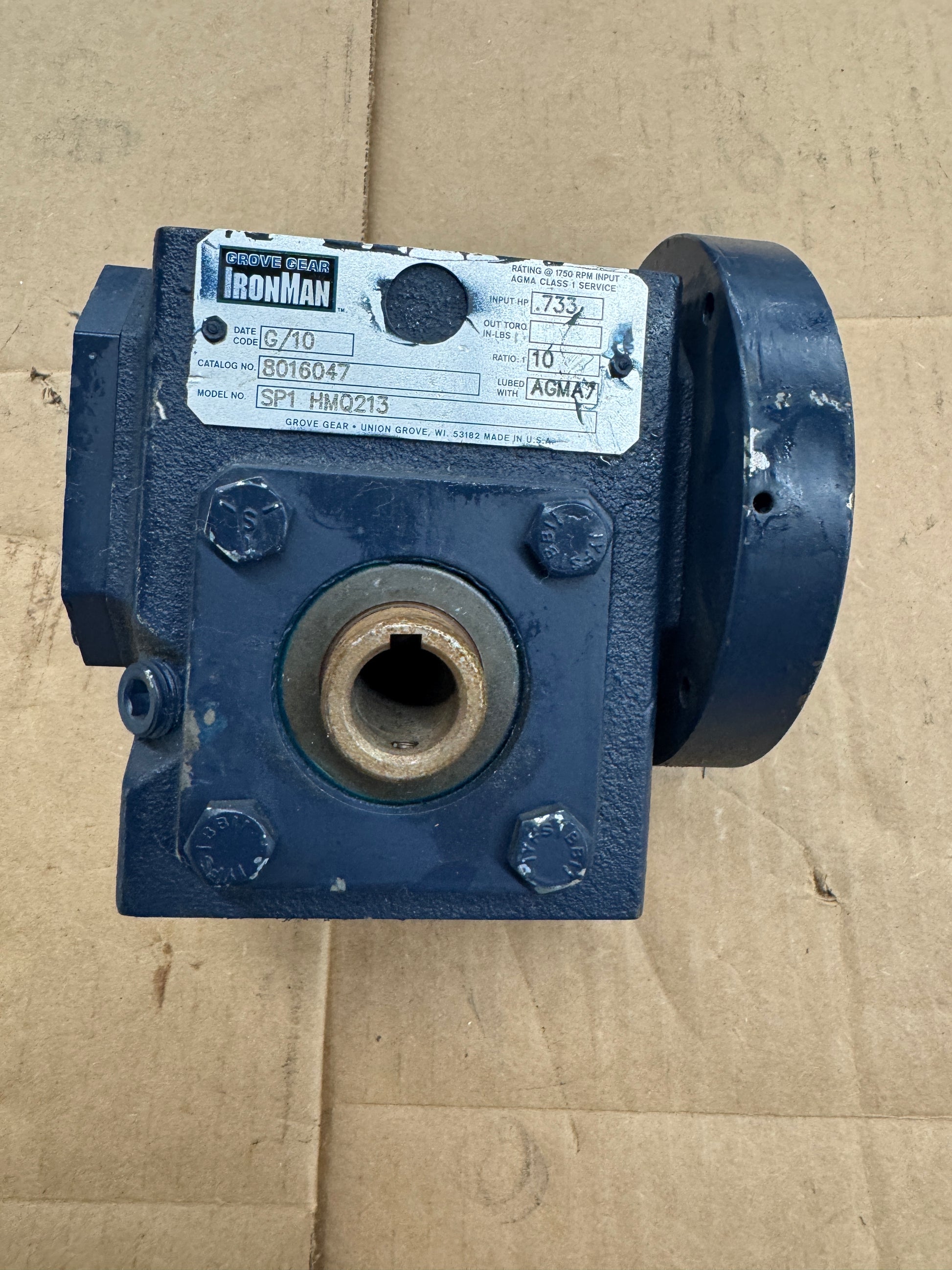

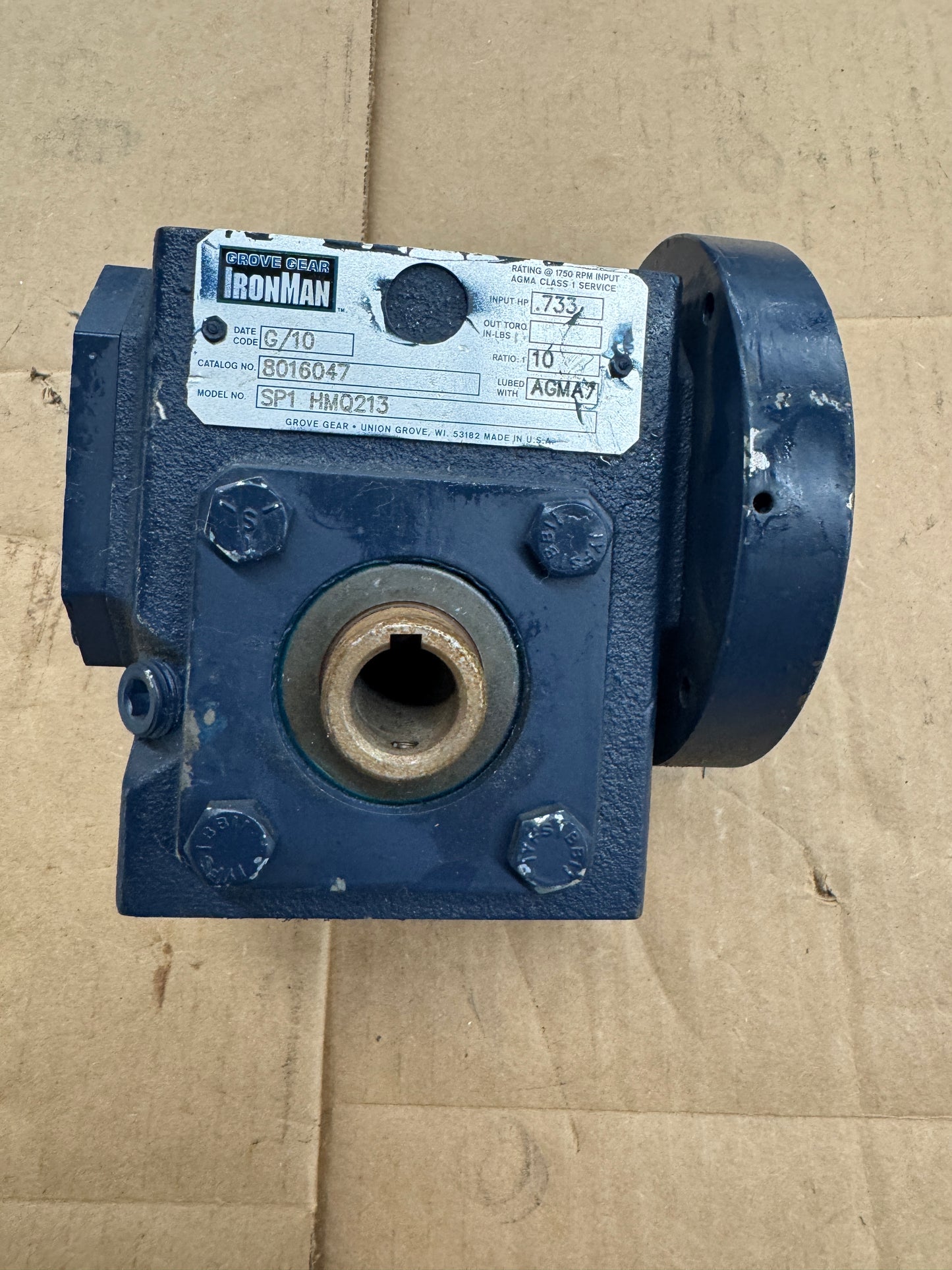

Used in conveyor systems, packaging lines, and general industrial drive applications, the Grove Gear IronMan SP1 HMQ213 is a right angle single reduction worm gear reducer with a 10:1 ratio, rated at 0.733 input HP at 1750 RPM input speed under AGMA Class 1 service conditions. The catalog number is 8016047. The HMQ designation indicates a hollow bore output with motorized C-face quill input, suitable for direct motor mounting. The unit is lubricated with AGMA 7 gear oil per the nameplate specification. Manufactured in Union Grove, Wisconsin, USA, this IronMan series reducer features a cast iron housing construction consistent with the Grove Gear 800 series platform, which is known for its one-piece housing, bronze worm gear, and tapered roller output shaft bearings. The date code G/10 is visible on the nameplate. Grove Gear IronMan reducers are a premium domestic product line and are widely used as direct replacements for industry-standard worm reducers across a broad range of right angle drive applications.
Stock # 0326-864
