Grundfos Immersible Multistage Coolant Pump MTR10-3/3 A-WB-A-HUUV 2 In. NPT 363 PSI Max
Grundfos Immersible Multistage Coolant Pump MTR10-3/3 A-WB-A-HUUV 2 In. NPT 363 PSI Max
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

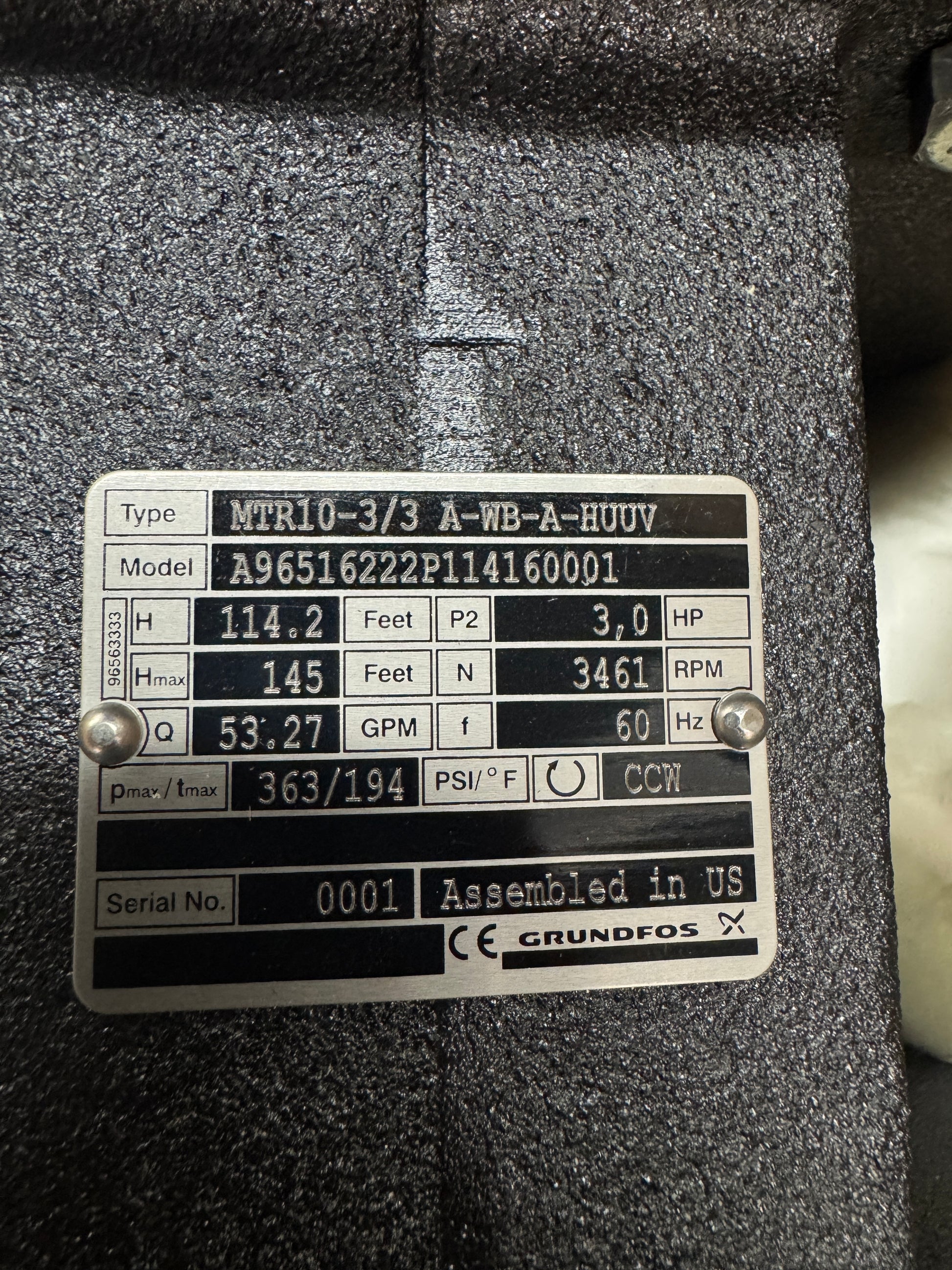

The Grundfos MTR10-3/3 A-WB-A-HUUV is a vertical immersible multistage centrifugal coolant pump rated at 3.0 HP with a nameplate speed of 3,461 RPM at 60 Hz. It carries model number A96516222P114160001 and serial number 0001, and is assembled in the United States. The pump delivers a rated flow of 53.27 GPM at a head of 114.2 feet, with a maximum head of 145 feet. Maximum allowable pressure is 363 PSI and maximum fluid temperature is 194 degrees Fahrenheit. Rotation is CCW as noted on the nameplate.
The MTR10 series is designed for tank-top mounting with the pump stack submerged in the pumped liquid, making it well suited for machine tool coolant systems, cutting oil circulation, and similar industrial fluid transfer applications. The cast iron pump head and base are paired with stainless steel wetted components. The HUUV shaft seal code indicates a Viton mechanical seal assembly. The WB connection code reflects the standard NEMA flange and NPT piping interface used in North American machine tool installations.

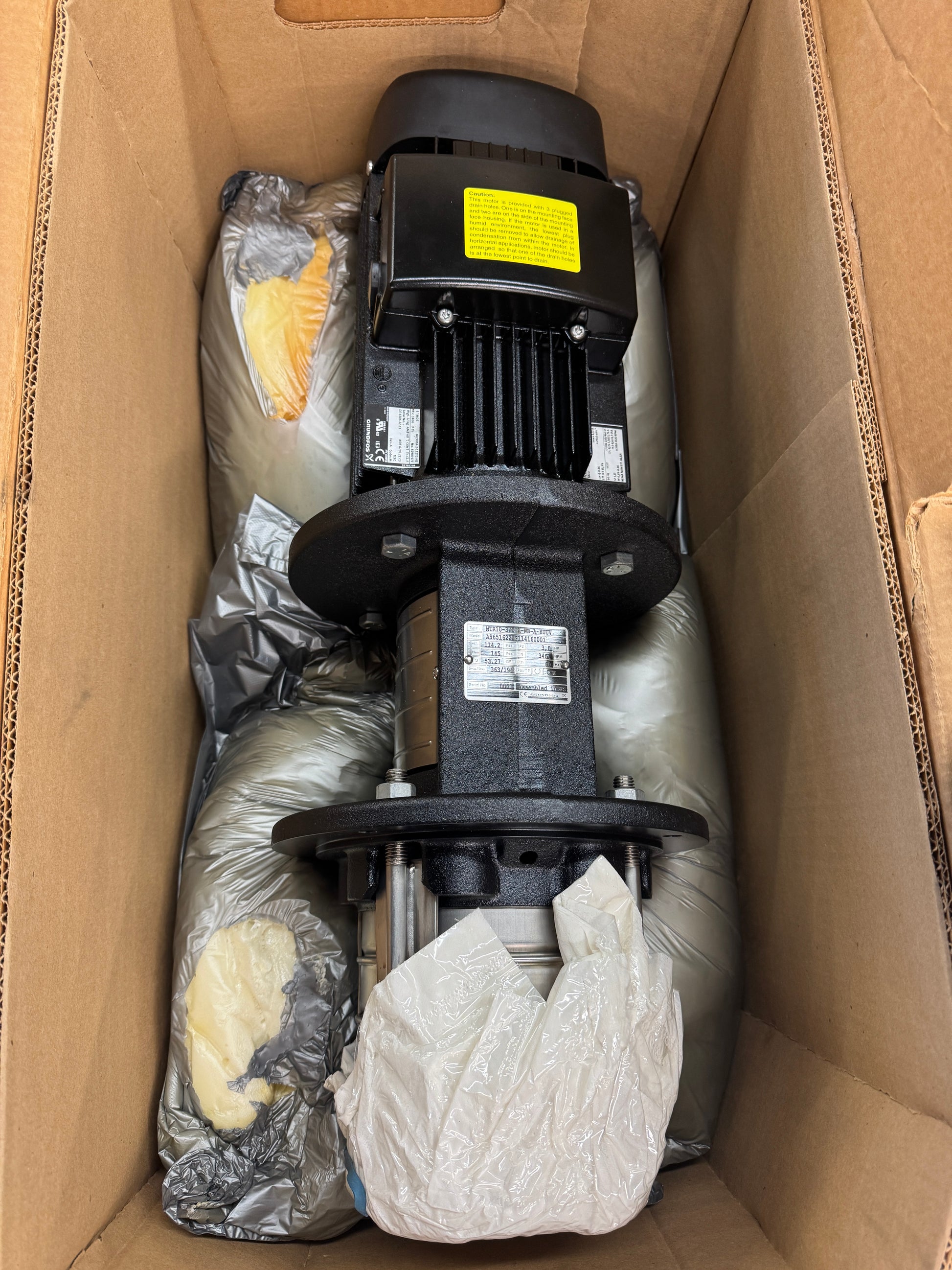

This unit is presented in its original manufacturer packaging. The MTR10-3/3 A-WB-A-HUUV variant is a discontinued Grundfos model, making surplus availability increasingly limited for facilities requiring direct replacement.
Stock # 0426-02128
