HARTING Heavy Duty Connector Wiring Harness Cable Assembly

$189.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN:
Stock #: 0226-00782

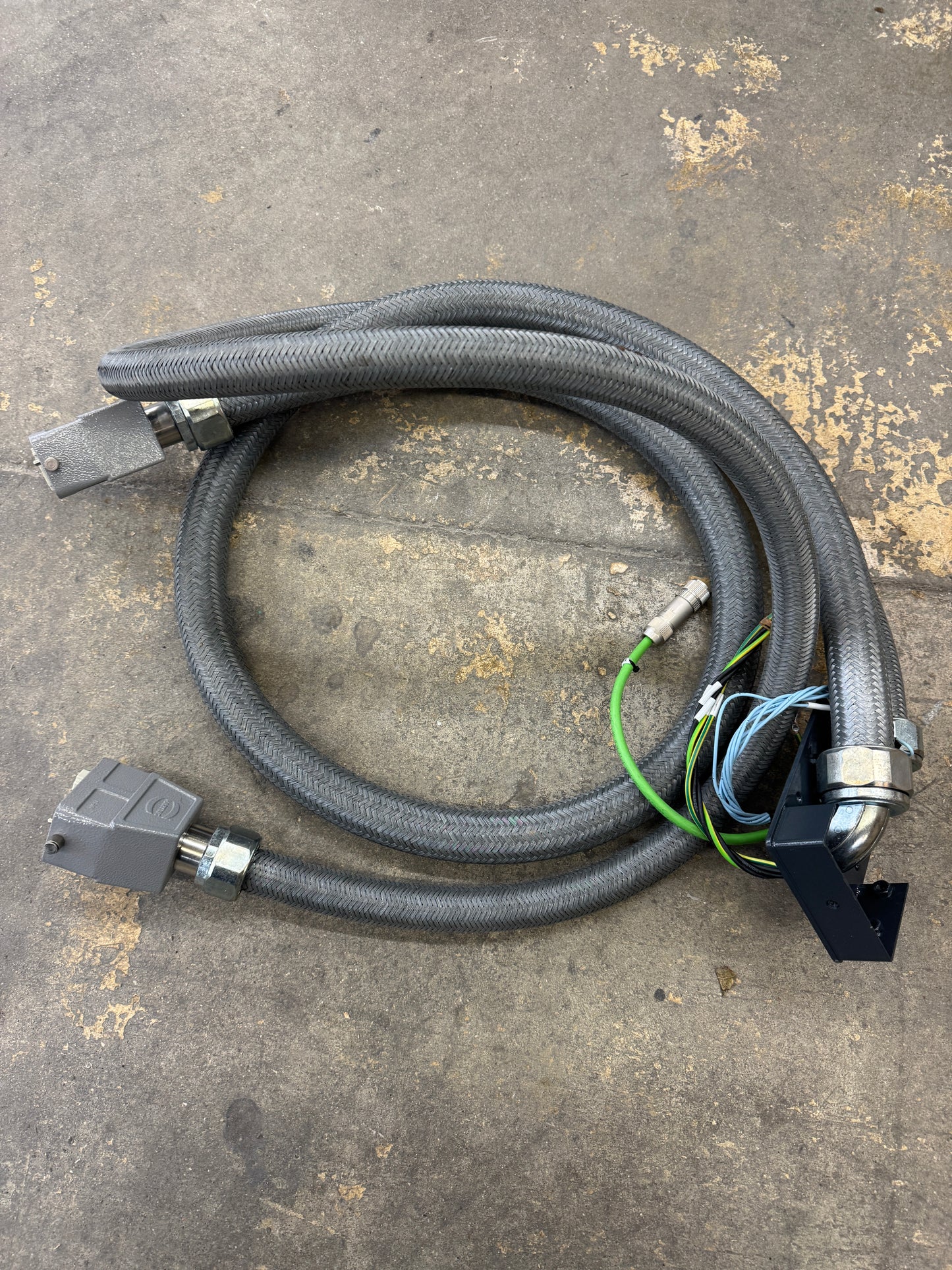

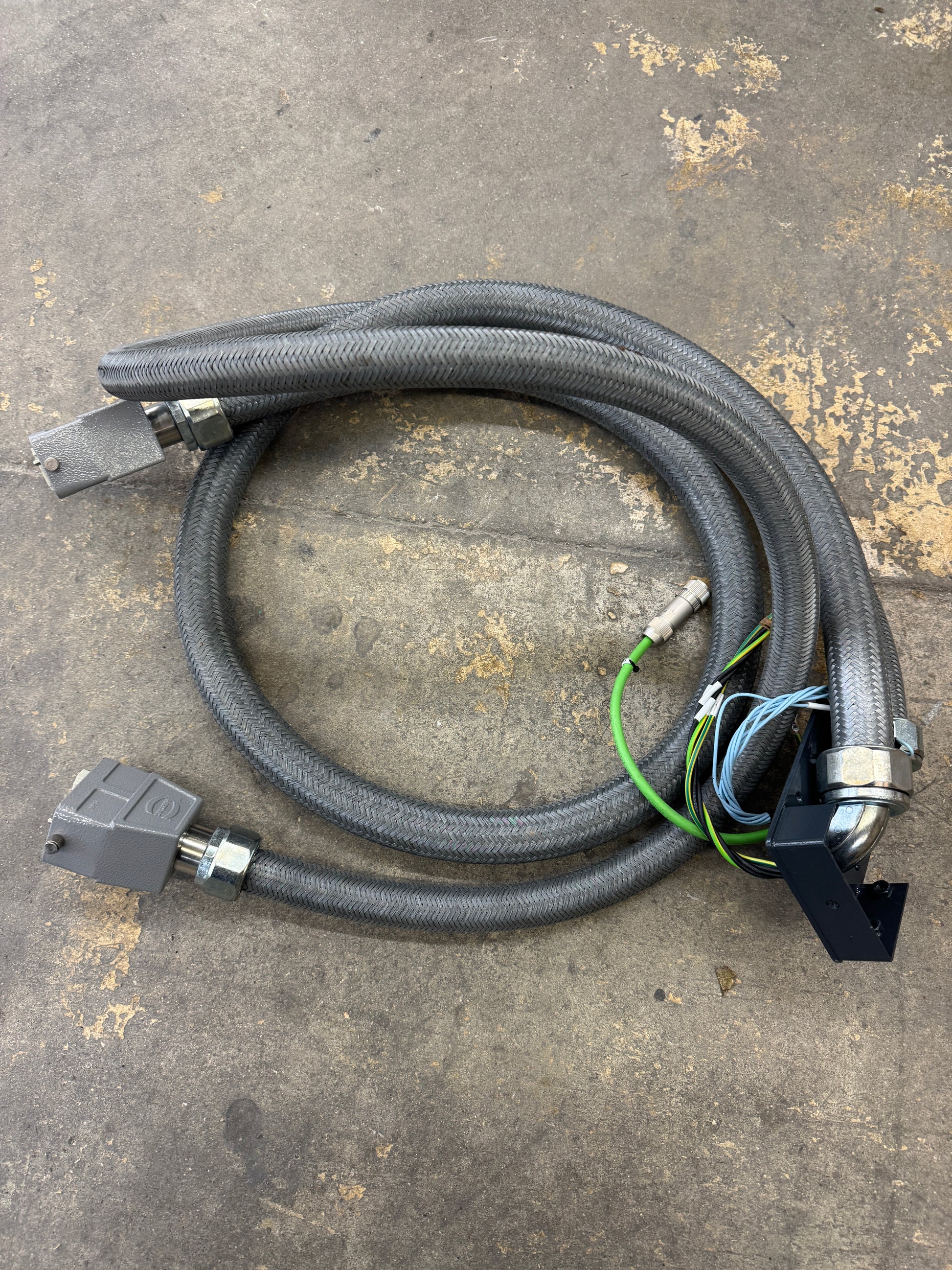

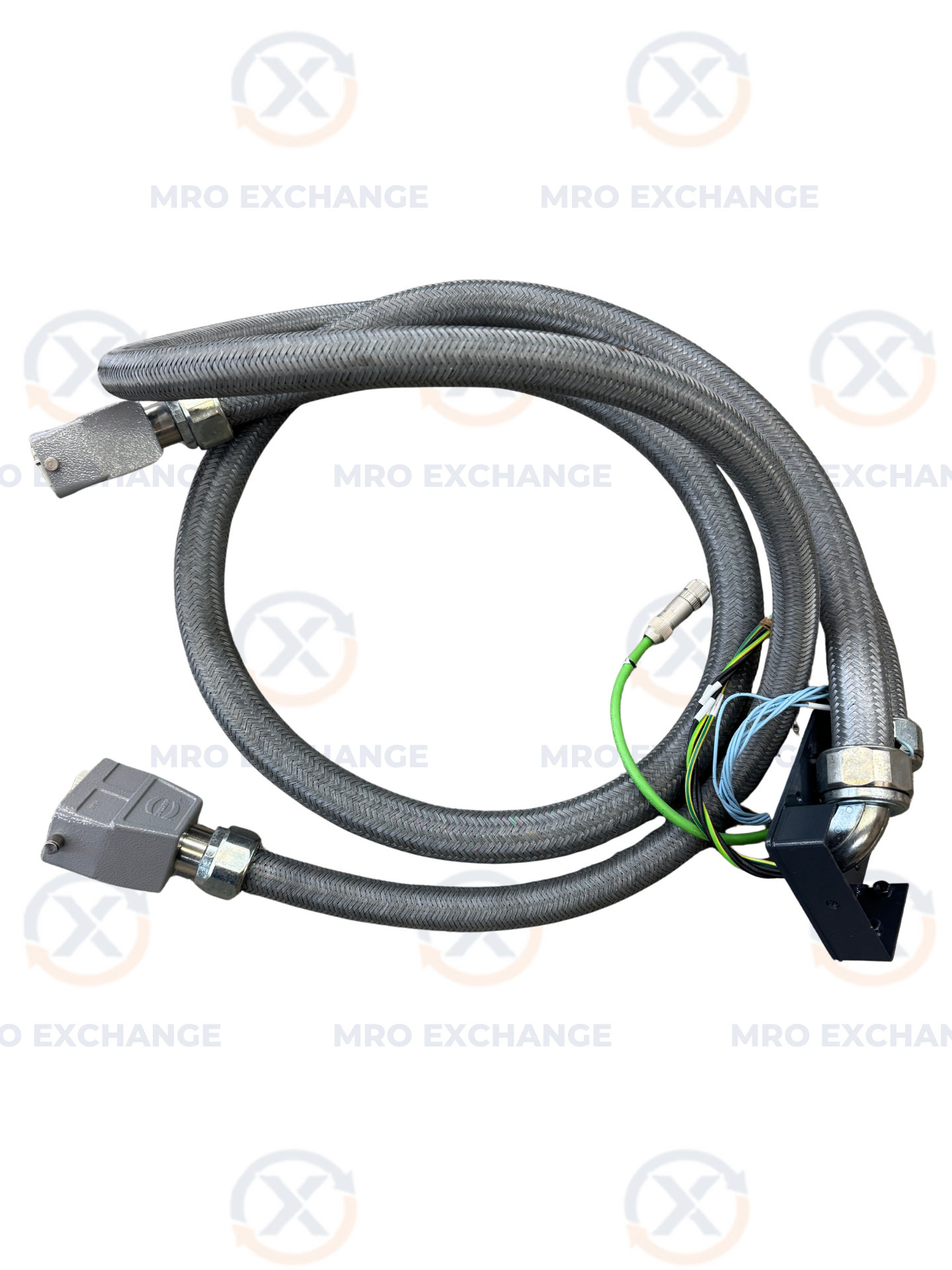

Used in industrial machine tool and automation applications, this HARTING Han series heavy duty connector wiring harness assembly features two Han B series die-cast metal housings, each populated with Han-Modular multi-module inserts. The inserts visible in the photos include a 6-pole power module with numbered contacts (positions 1 through 6), a signal module with gold contacts, and a single coax or PE contact module, providing combined power and signal transmission within one robust rectangular connector interface. The braided metallic conduit runs approximately 8 to 10 feet in overall length and exits through liquid-tight metallic conduit fittings at a steel panel mount bracket at one end. Additional multi-conductor cables including a green PROFINET or feedback cable with M12 connector terminate at the same bracket. The assembly appears to have been built for use in a CNC machine tool or automated manufacturing system requiring a disconnectable interface for simultaneous power and signal routing. HARTING Han connectors are rated for IP65 protection when mated and are a recognized standard interface for machine modularity and field maintenance. No OEM assembly part number was visible on the photos. Housing style is consistent with the HARTING Han B series with Han-Modular insert frames.

Stock # 0226-782
