Helukabel Hook-Up Wire 29157 2.5 mm2, 328 Ft
Helukabel Hook-Up Wire 29157 2.5 mm2, 328 Ft
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 29157
Stock #: 0326-01055

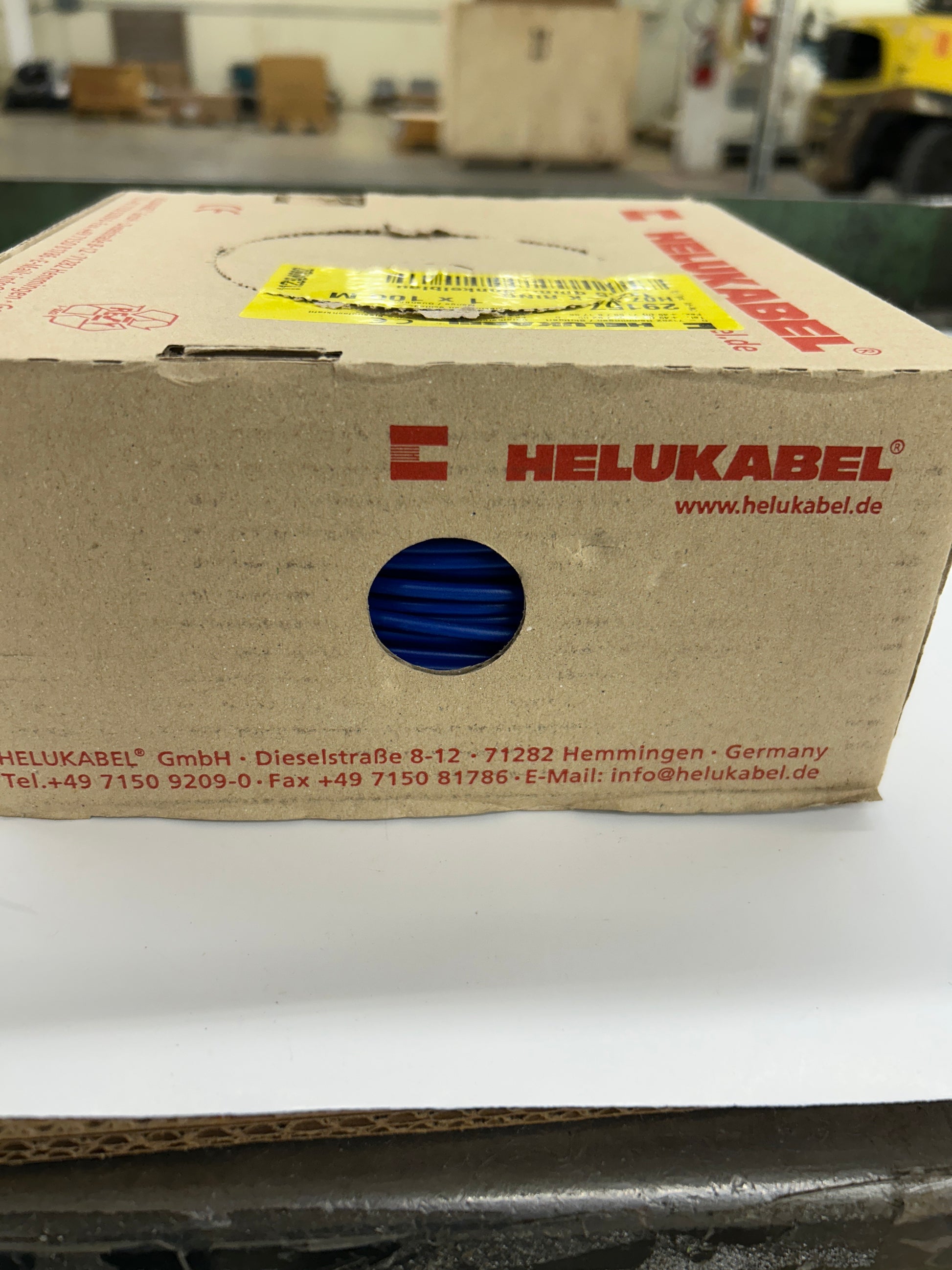

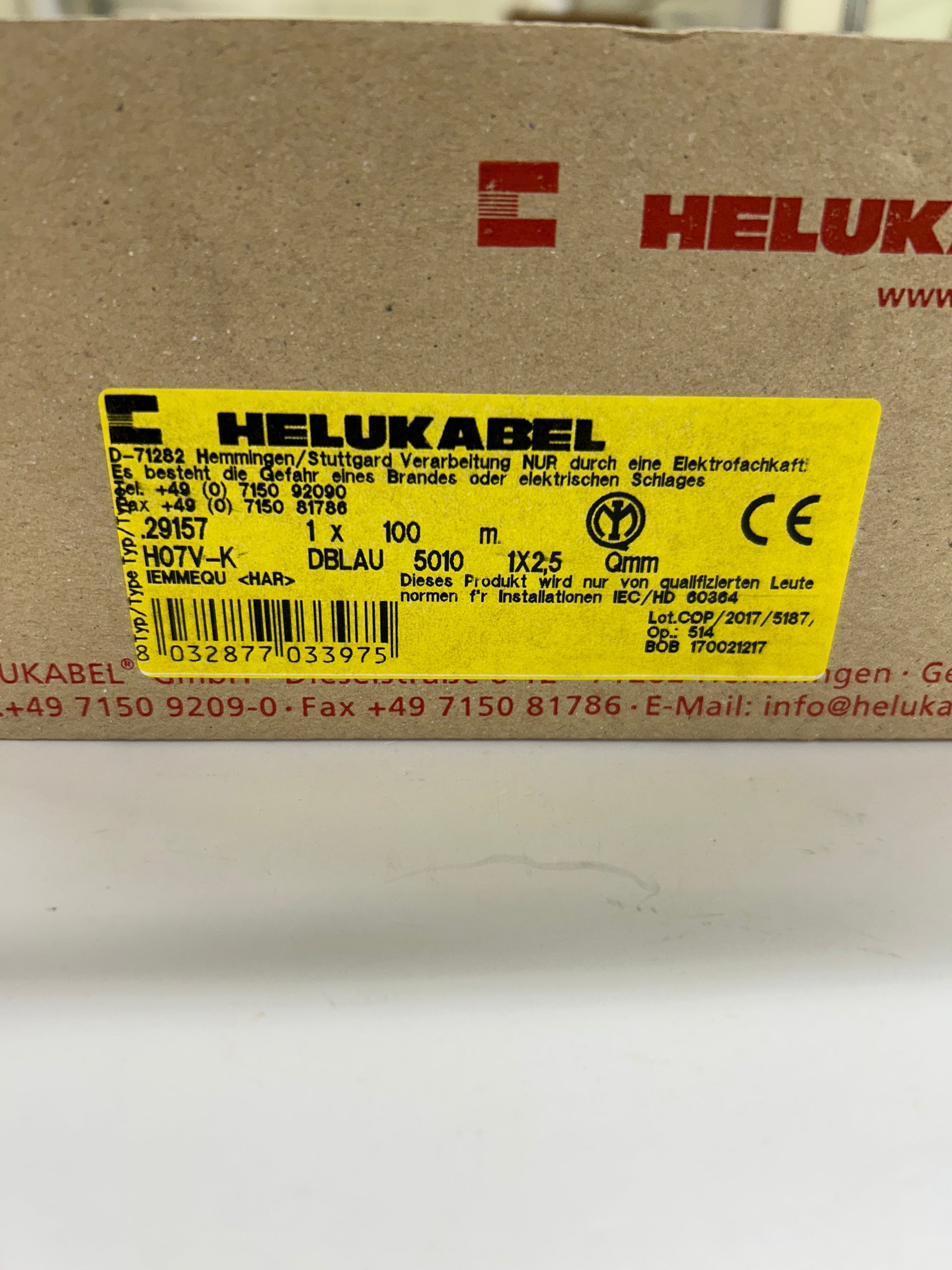

Used in industrial control cabinets, switchgear wiring, and machine-internal circuits, the Helukabel H07V-K is a PVC-insulated single-core flexible wire rated at 450/750V. Part number 29157 identifies this as the dark blue, 1 x 2.5 mm2 configuration, packaged as a 100-meter (328 ft) coil in the original Helukabel cardboard dispensing box. The conductor is bare copper, finely stranded to IEC 60228 Class 5 and DIN VDE 0295 Class 5 for maximum flexibility in confined wiring runs. Insulation is PVC compound type TI1 per DIN EN 50363-3, flame-retardant per IEC 60332-1-2. The wire carries CE and HAR (IEMMEQU) markings, confirming compliance with harmonized European installation standards, including IEC/HD 60364. Lot code COP/2017/5187, Op. 514, date code BOB 17021217 are confirmed visible on the label. Conductor cross-section of 2.5 mm2 (approximately 14 AWG) makes this wire well-suited for branch circuit wiring, lighting feeds, and power distribution within enclosures. The dark blue insulation color is the standard neutral conductor designation under IEC wiring color conventions. Outer diameter is approximately 3.4 to 4.1 mm per published Helukabel specification for this series.
Stock # 0326-1055
