Helukabel Single Conductor Wire 29205 1x10 mm², 100 M Coil, Dark Blue
Helukabel Single Conductor Wire 29205 1x10 mm², 100 M Coil, Dark Blue
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 29205
Stock #: 0326-01050

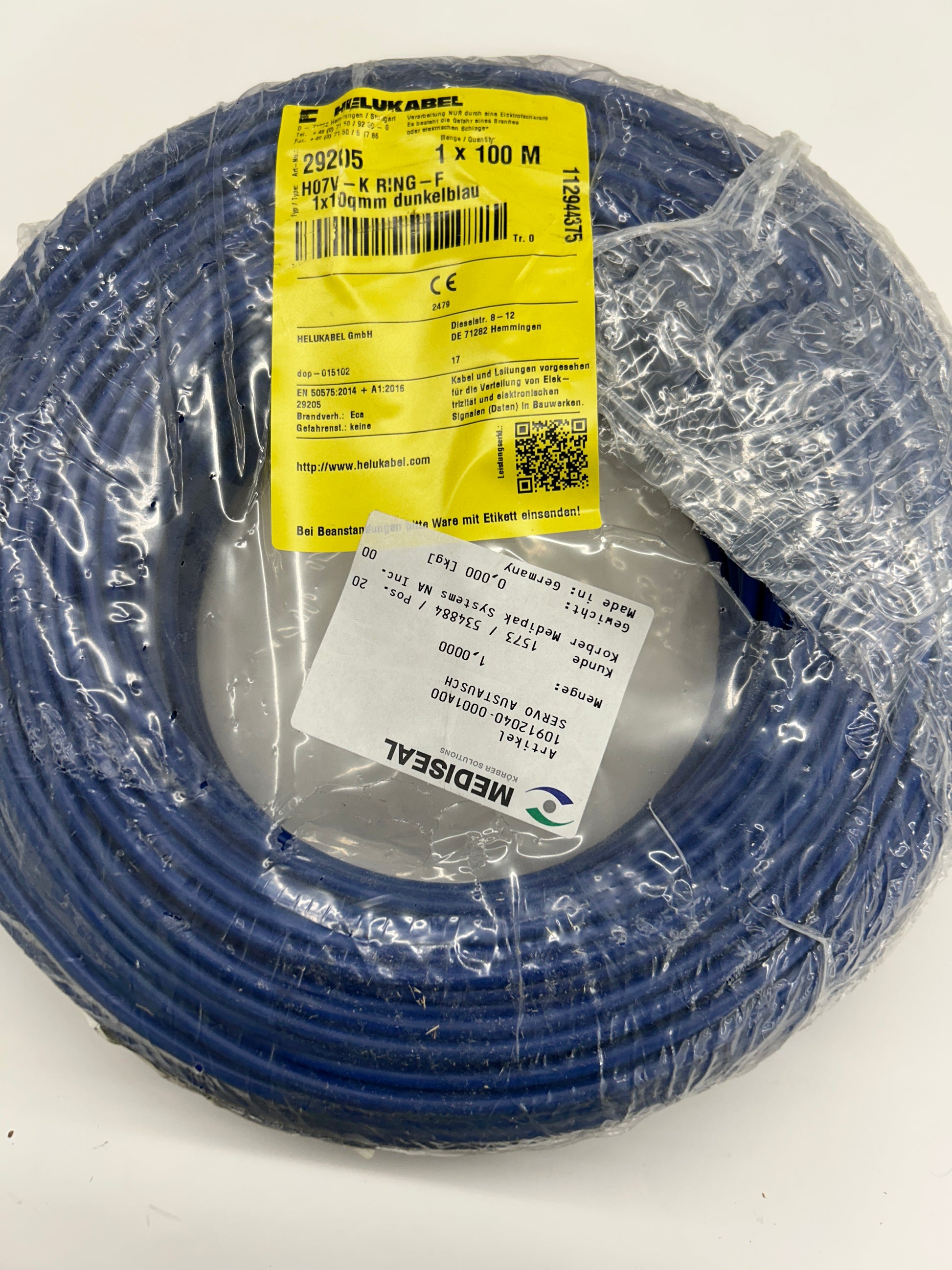

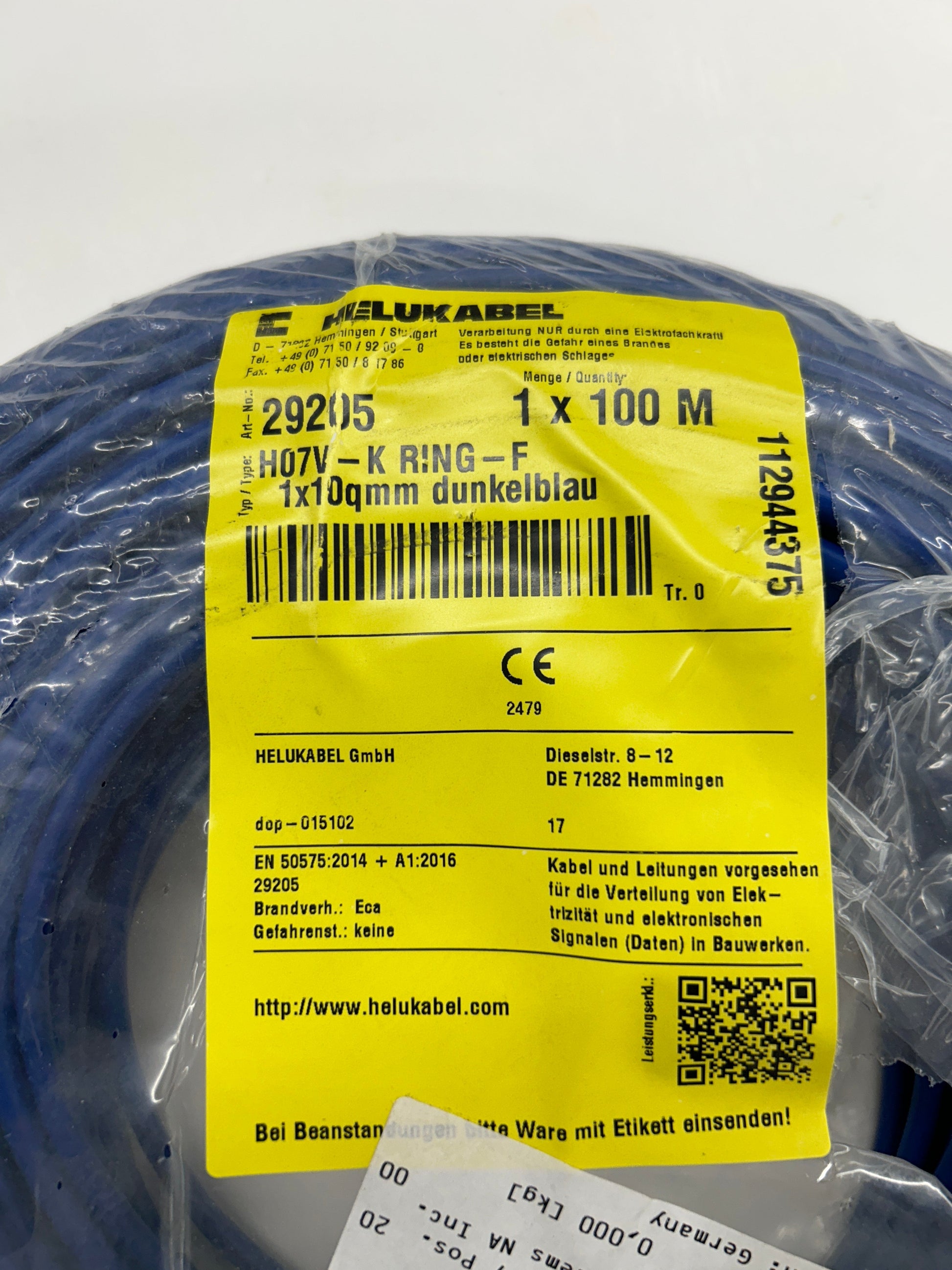

Helukabel part number 29205 is a H07V-K type single conductor wire wound in a 100-meter ring coil, finished in dark blue (dunkelblau) PVC insulation. The conductor is 10 mm² cross-section, constructed of bare finely stranded copper per DIN VDE 0295 Class 5 and IEC 60228 Class 5. Insulation is PVC per DIN VDE 0207-363-3 and DIN EN 50363-3 compound type TI1. The cable is rated at 450/750V AC and carries CE marking with declaration of performance dop-015102. It conforms to EN 50575:2014 plus A1:2016 with fire classification Eca. Materials are confirmed cadmium-free, silicone-free, and free from substances that impair lacquer wetting. Intended for protected fixed installation in electrical conduits, on or under plaster, and in enclosed systems including lighting circuits, switching gear, and control panels. Not rated for direct installation in cable ladders or cable trays except as a potential equalization conductor. Manufactured by Helukabel GmbH, Hemmingen, Germany. Coil serial number 11294437.5. The H07V-K designation aligns with IEC/HD 60364 installation standards and NF C 15-100. This coil is sealed in original factory plastic wrap.
Stock # 0326-1050
