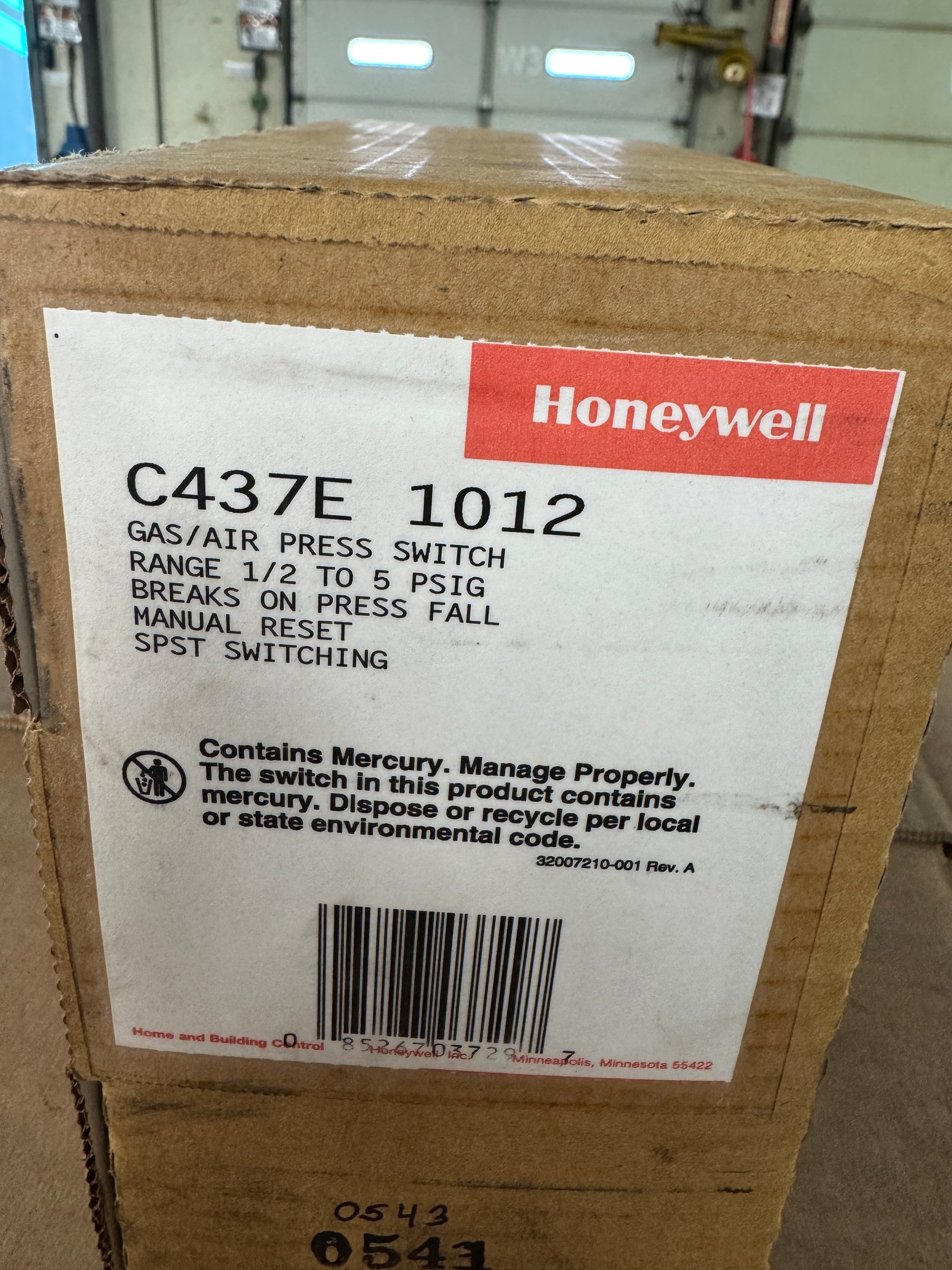

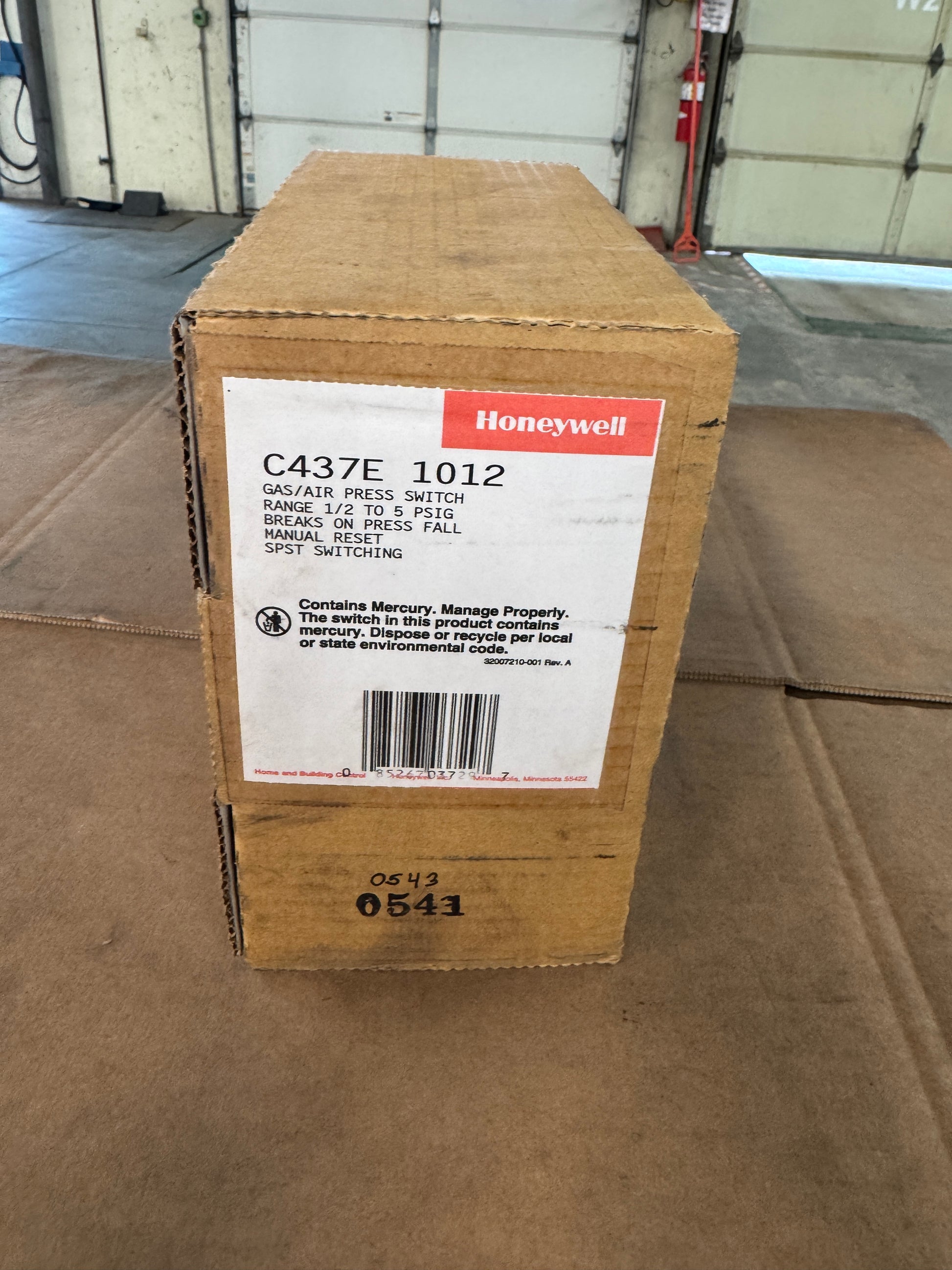

Honeywell Gas/Air Pressure Switch C437E1012 120/240 Vac

$419.00 USD

Sale Sold out

ConditionFactory Sealed MPNC437E1012 Stock #0526-02493

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 10.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

The Honeywell C437E1012 is a gas and air pressure limit switch designed for pressure or differential pressure supervision in industrial burner and combustion control systems. Part number C437E1012 features a single-pole single-throw mercury switch that opens the circuit on pressure fall, providing a break-on-fall safety function with manual reset lockout. The adjustable pressure range spans 1/2 to 5 PSIG (5 to 35 kPa, or 500 to 3500 mm of water column), with a differential of approximately 1/4 PSI at midscale. The switch action is additive differential, consistent with C437E series behavior. Piping connections include a 1/2 in. NPT female main or high-pressure port and a 1/8 in. NPT female vent or low-pressure port. Maximum sustained operating pressure is 15.0 PSI (103.4 kPa). Contact ratings include 8.0 AFL at 120 Vac and 5.1 AFL at 240 Vac. The enclosed setting resists tampering and dust ingress, while the clear glass cover allows visual observation of the interior mechanism and switch position. The Buna-N fiber-reinforced diaphragm provides added strength for demanding applications. Approvals include UL Listed (File No. MP2168), CSA Certified (File No. LR1620), and Factory Mutual Approved. This unit is supplied in its original Honeywell manufacturer packaging and is noted as discontinued by Honeywell. Replacement parts and mounting bracket accessories were available under Honeywell accessory part numbers as documented in published product literature.

Stock # 0526-02493
