Indexable Face Mill | CAT50 | Orientation: Axial | Coolant Through

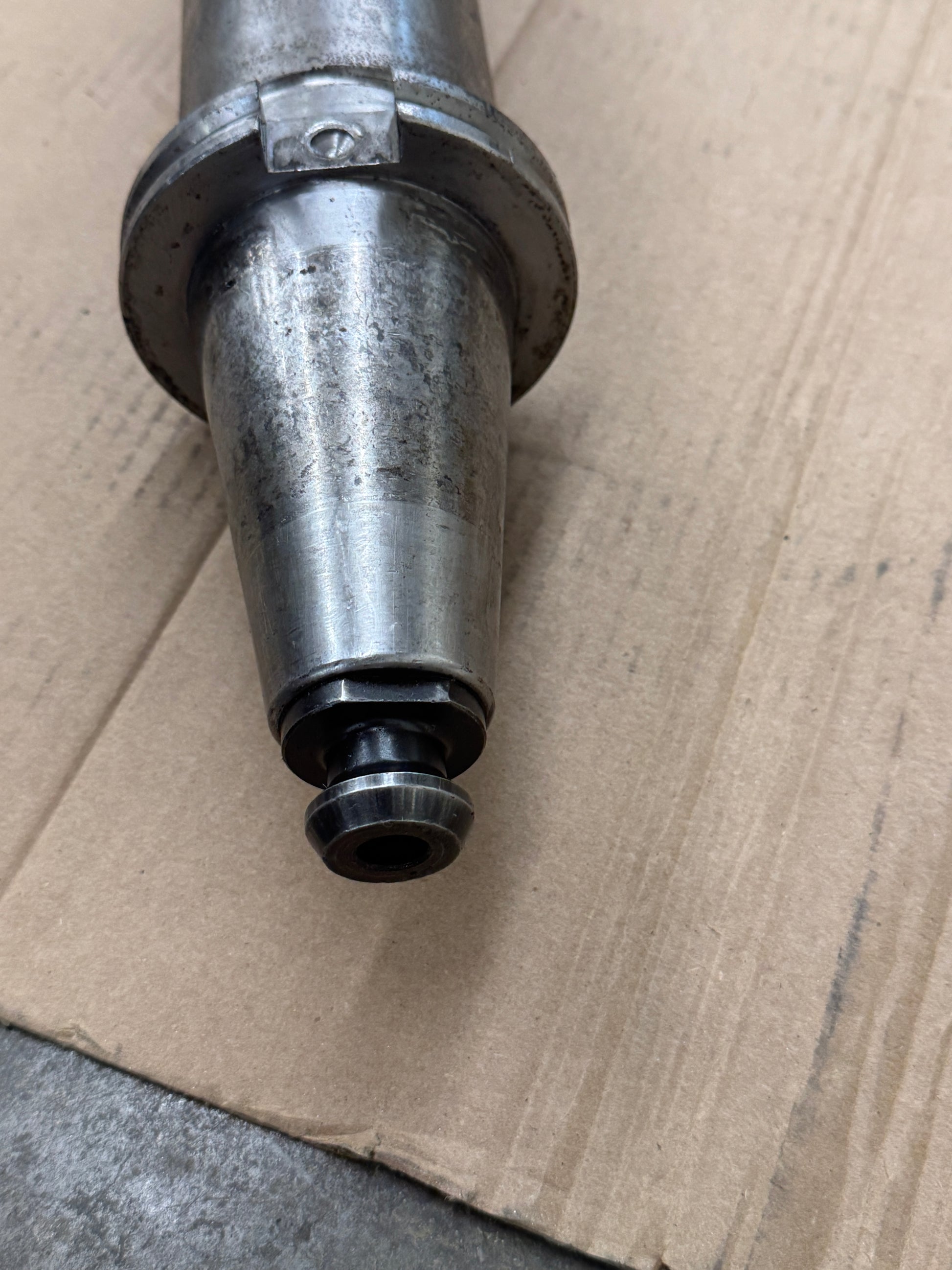

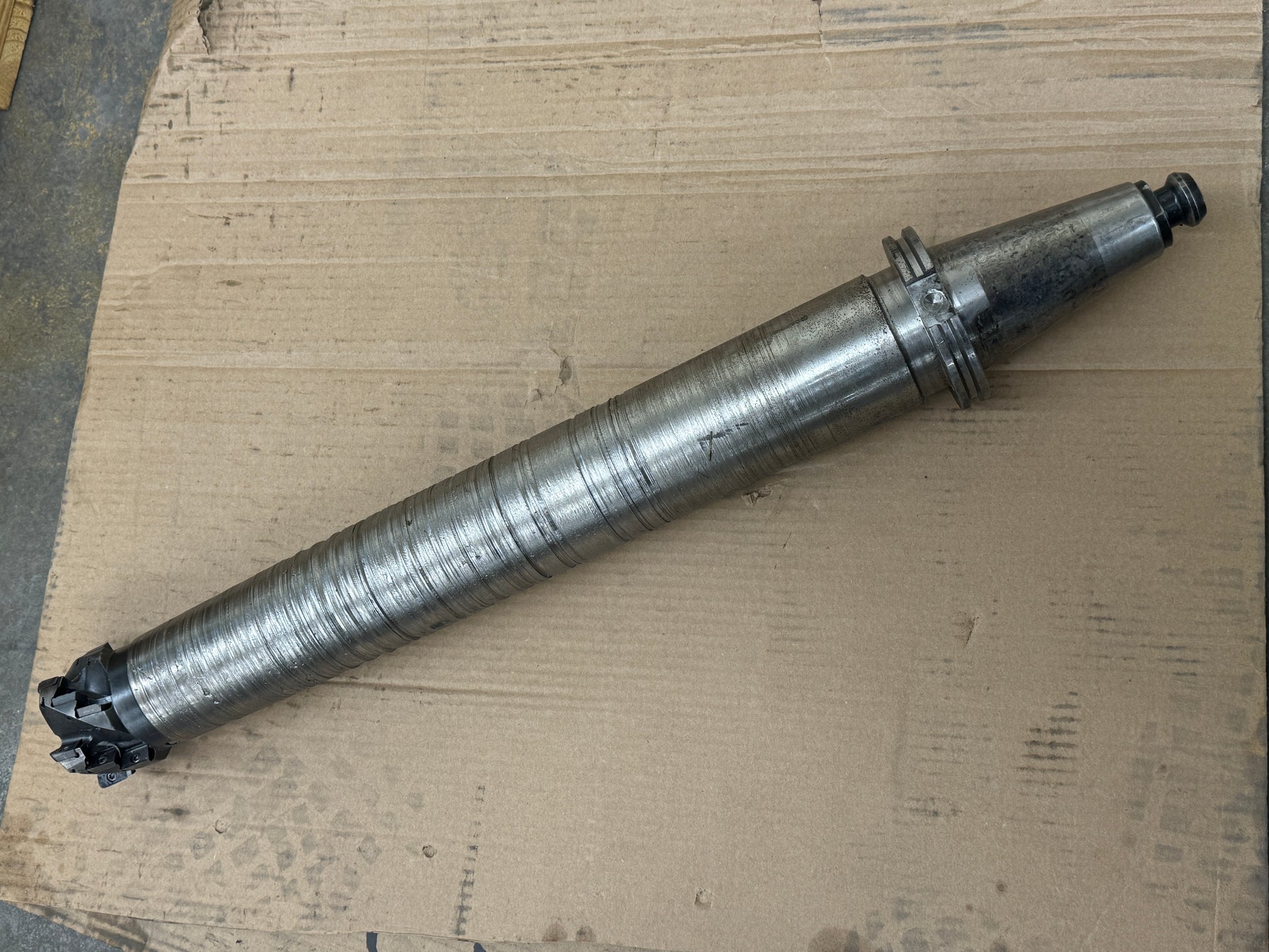

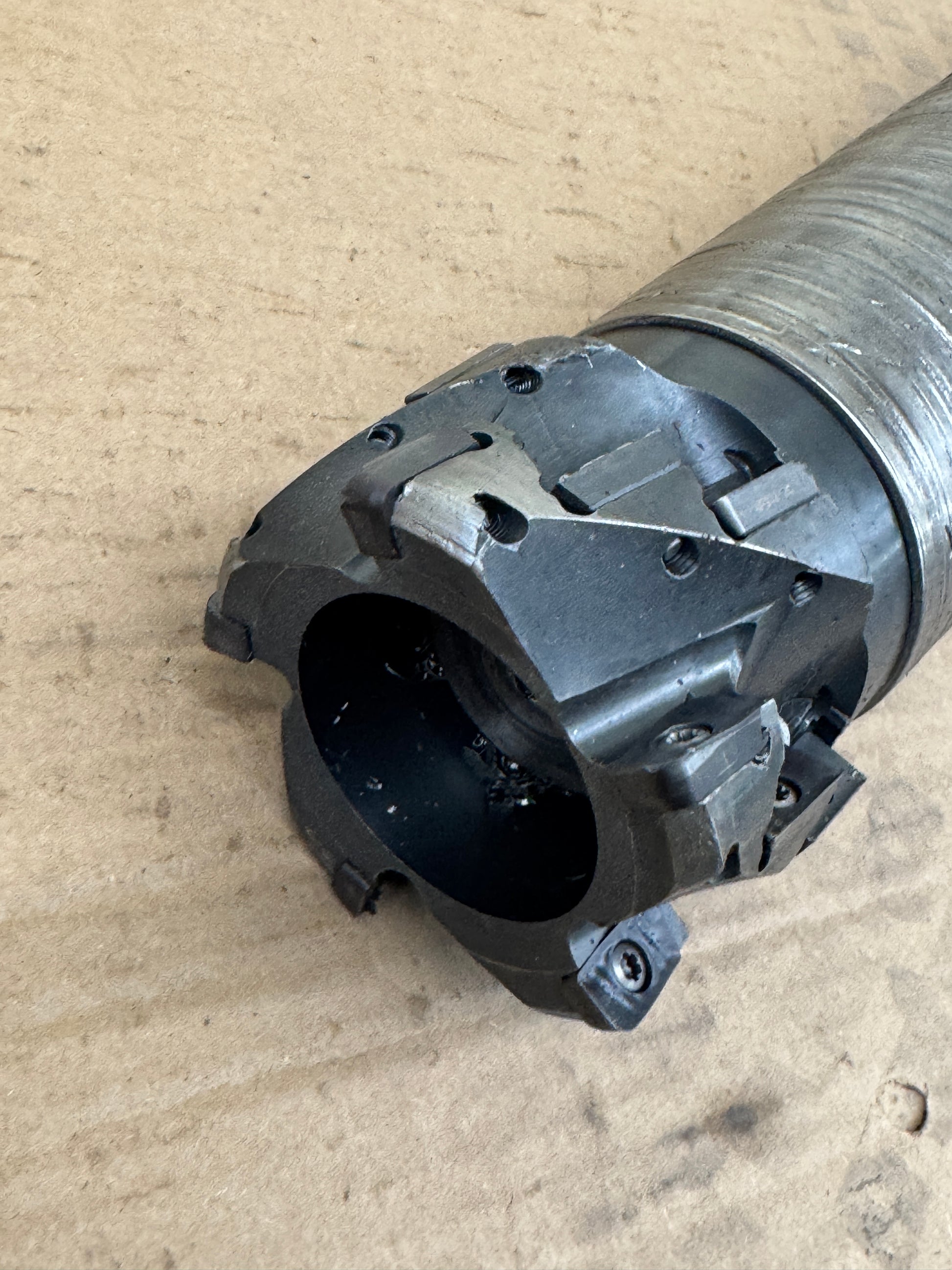

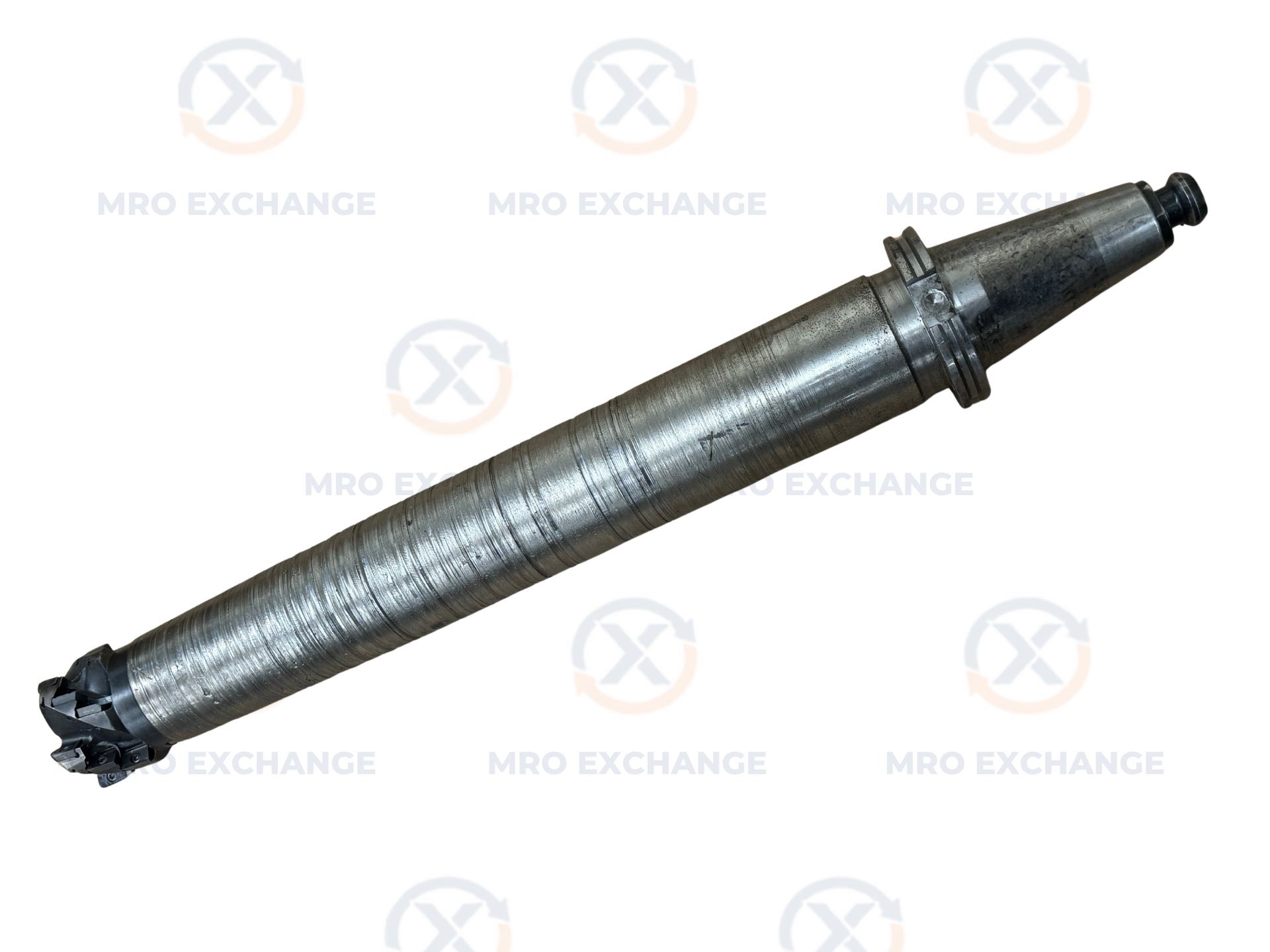

Used CAT50 long-reach indexable face mill assembly with an integral extended-reach steel arbor body. The CAT50 taper interface is confirmed from visible photos, as is the through-coolant pull stud at the taper end. The face mill head features multiple carbide insert pockets in a 90-degree lead angle configuration, accepting standard APKT-style indexable inserts. The overall assembly length is substantial, consistent with deep-reach applications on horizontal machining centers or large vertical machining centers where extended projection is required. The integral steel arbor body displays spiral ribbing along its length, characteristic of vibration-dampening or reinforced construction used in high-overhang milling applications. All carbide inserts are present and visible in the photos. The assembly is offered as a complete unit with taper, extension body, and face mill head together. No manufacturer markings, brand name, model number, or part number are visible on any surface of the item. Buyer is responsible for confirming compatibility with their machine spindle prior to purchase. Cutter diameter is estimated from photographs but not nameplate-confirmed; manual measurement recommended before ordering replacement inserts.

Stock # 0426-01353
