John S. Barnes Corporation (Leeson Electric Corporation) AC Motor C6134FZ2A - 1 HP 3450 RPM
John S. Barnes Corporation (Leeson Electric Corporation) AC Motor C6134FZ2A - 1 HP 3450 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

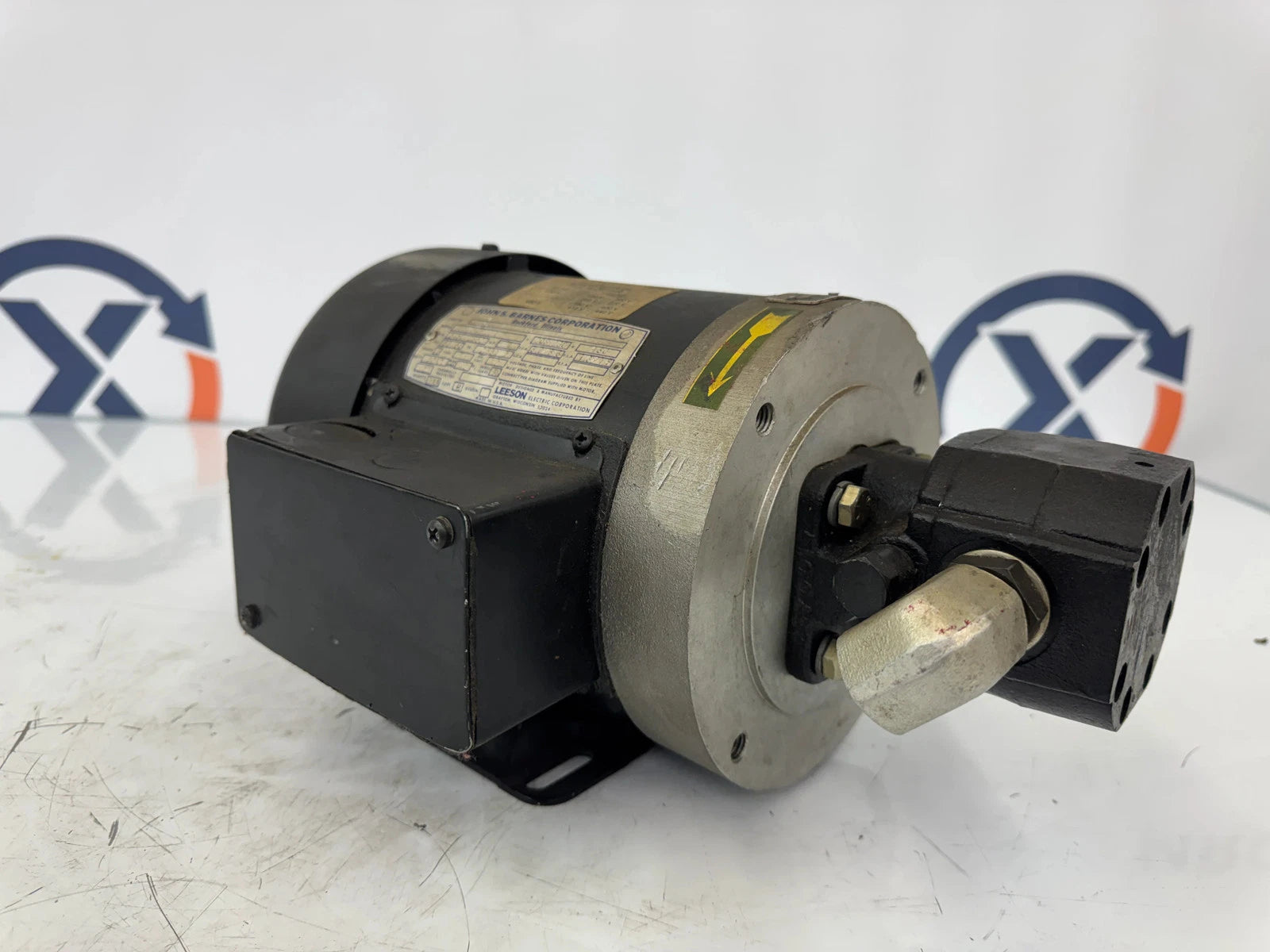

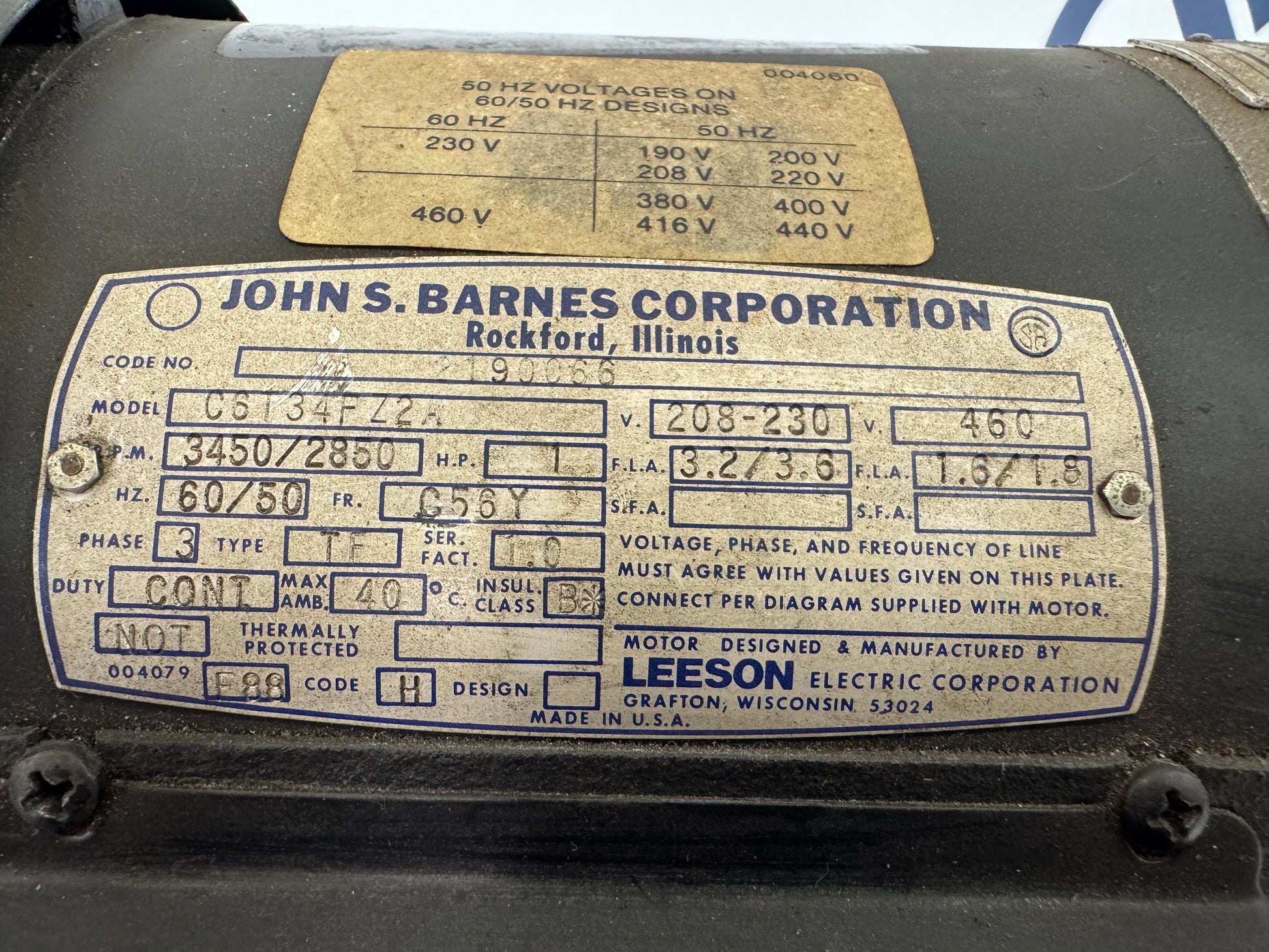

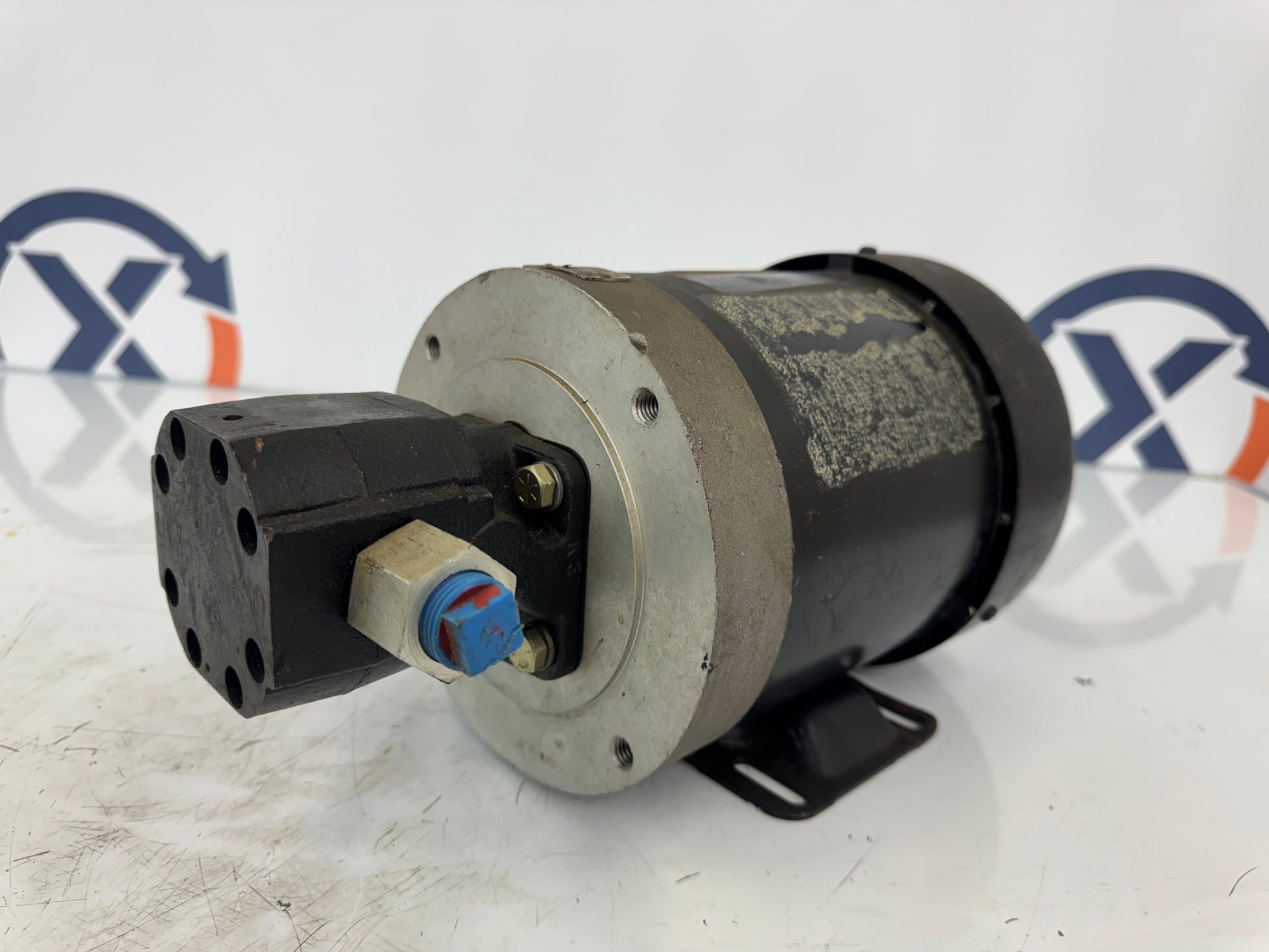

This unit is a John S. Barnes Corporation AC motor assembly, model C6134FZ2A, designed and manufactured by Leeson Electric Corporation, Grafton, Wisconsin, USA. The nameplate indicates 1 HP output with dual frequency ratings of 60/50 Hz and corresponding speeds of 3450/2850 RPM. Voltage ratings include 208–230 V and 460 V, three phase. Full load amperage is listed as 3.2/3.6 A at 208–230 V and 1.6/1.8 A at 460 V. The motor frame is C56Y with continuous duty rating and 40°C maximum ambient. Insulation class is B and design code H. The nameplate specifies thermally not protected. The assembly includes a mounted pump section directly coupled to the motor shaft. Voltage, phase, and frequency must match the values shown on the nameplate. Made in the USA.
Stock # 0226-399
