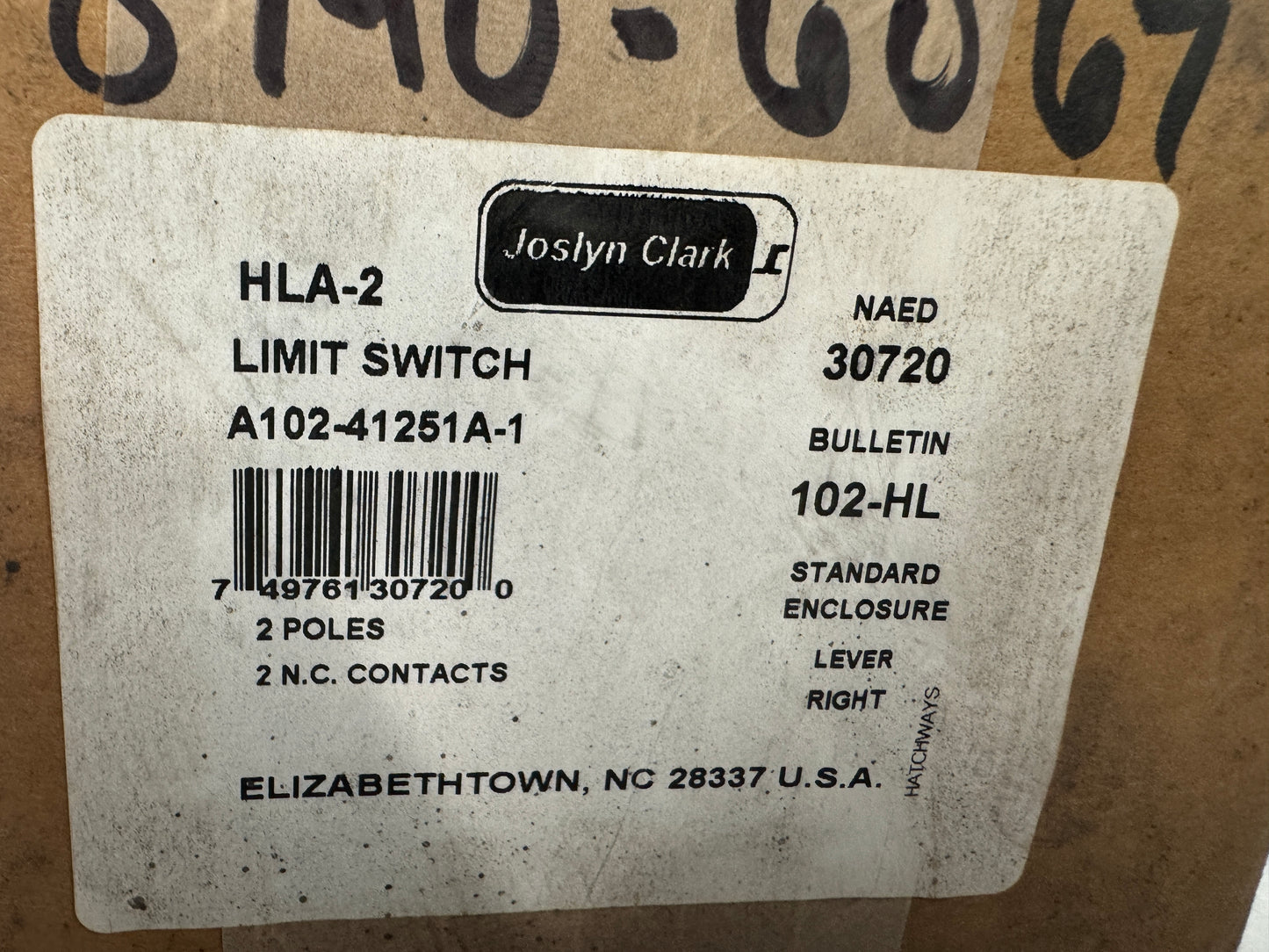

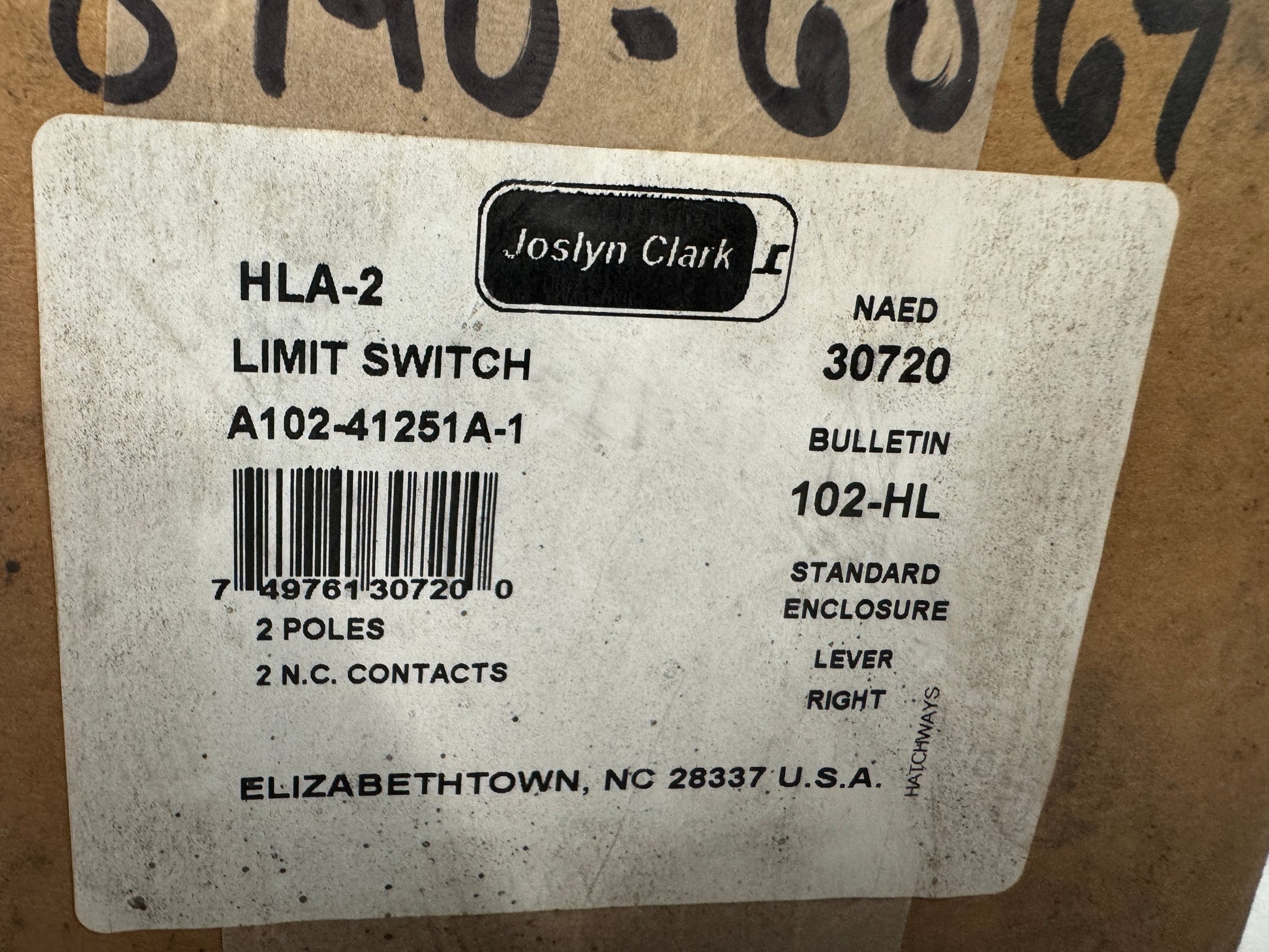

Joslyn Clark Limit Switch HLA-2 / A102-41251A-1 600V

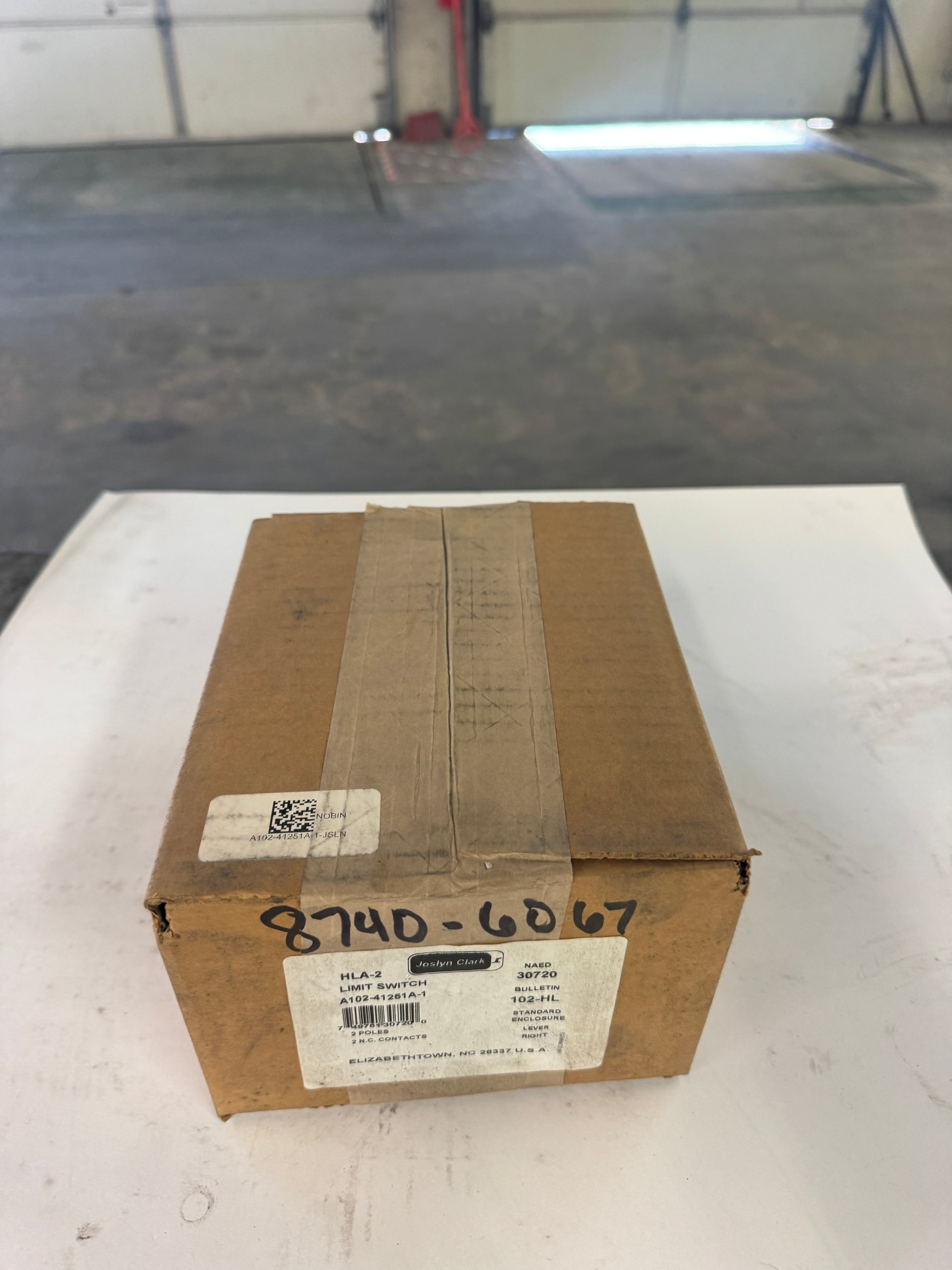

The Joslyn Clark HLA-2 is a heavy duty industrial limit switch with part number A102-41251A-1 and NAED 30720, packaged in original factory box. This unit is configured with a standard enclosure, right hand lever orientation, 2 poles, and 2 normally closed contacts, and is part of the Joslyn Clark HL Series of pilot circuit limit switches manufactured in Elizabethtown, NC. Bulletin reference is 102-HL. Each contact is field convertible between normally open and normally closed configurations without disassembly, and the operating arm can be reversed to the opposite side by reversing the shaft. The HL Series features removable silver to silver contacts, oil impregnated bearings, and tapped conduit holes. These switches are designed as pilot circuit devices for heavy duty applications used to limit travel or initiate functions at predetermined positions on cranes, hoists, mill duty machinery, material handling equipment, and overhead lifting systems. Common applications include steel mills, foundries, automated production lines, and overhead crane travel limiting. The HLA-2 model includes a standard lever and roller actuator assembly and is rated for pilot duty service. Buyers seeking obsolete or hard to find Joslyn Clark crane and hoist control components, mill duty limit switches, or replacement pilot devices for legacy industrial control systems will find this an OEM correct fit for original Joslyn Clark HLA-2 installations.

Stock # 0526-02273
