Mazak TRD-NA360PW5M 10.8 to 26.4 VDC Absolute Rotary Encoder
Mazak TRD-NA360PW5M 10.8 to 26.4 VDC Absolute Rotary Encoder
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

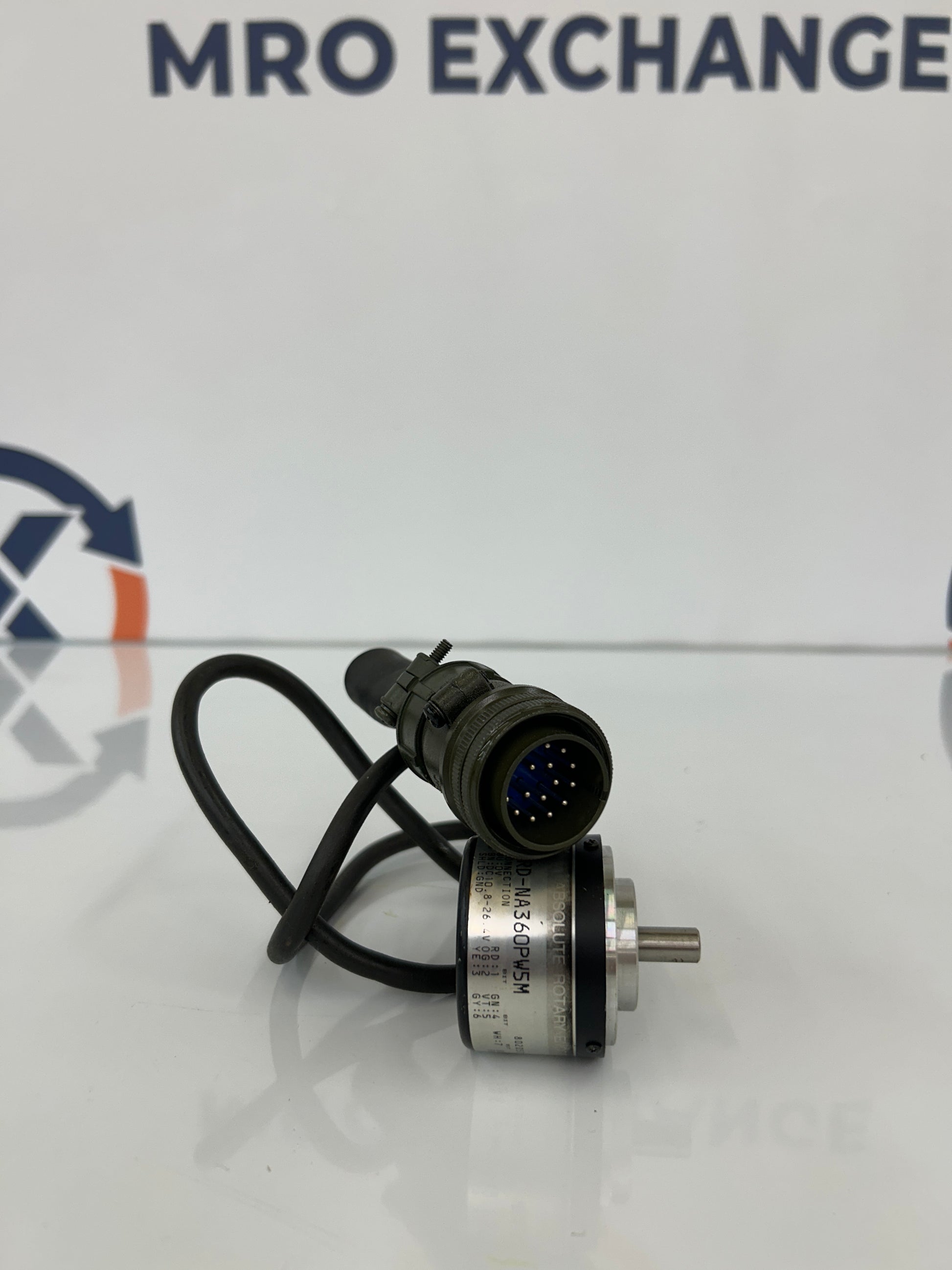

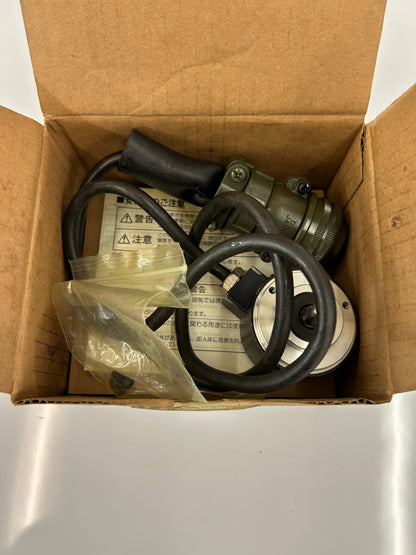

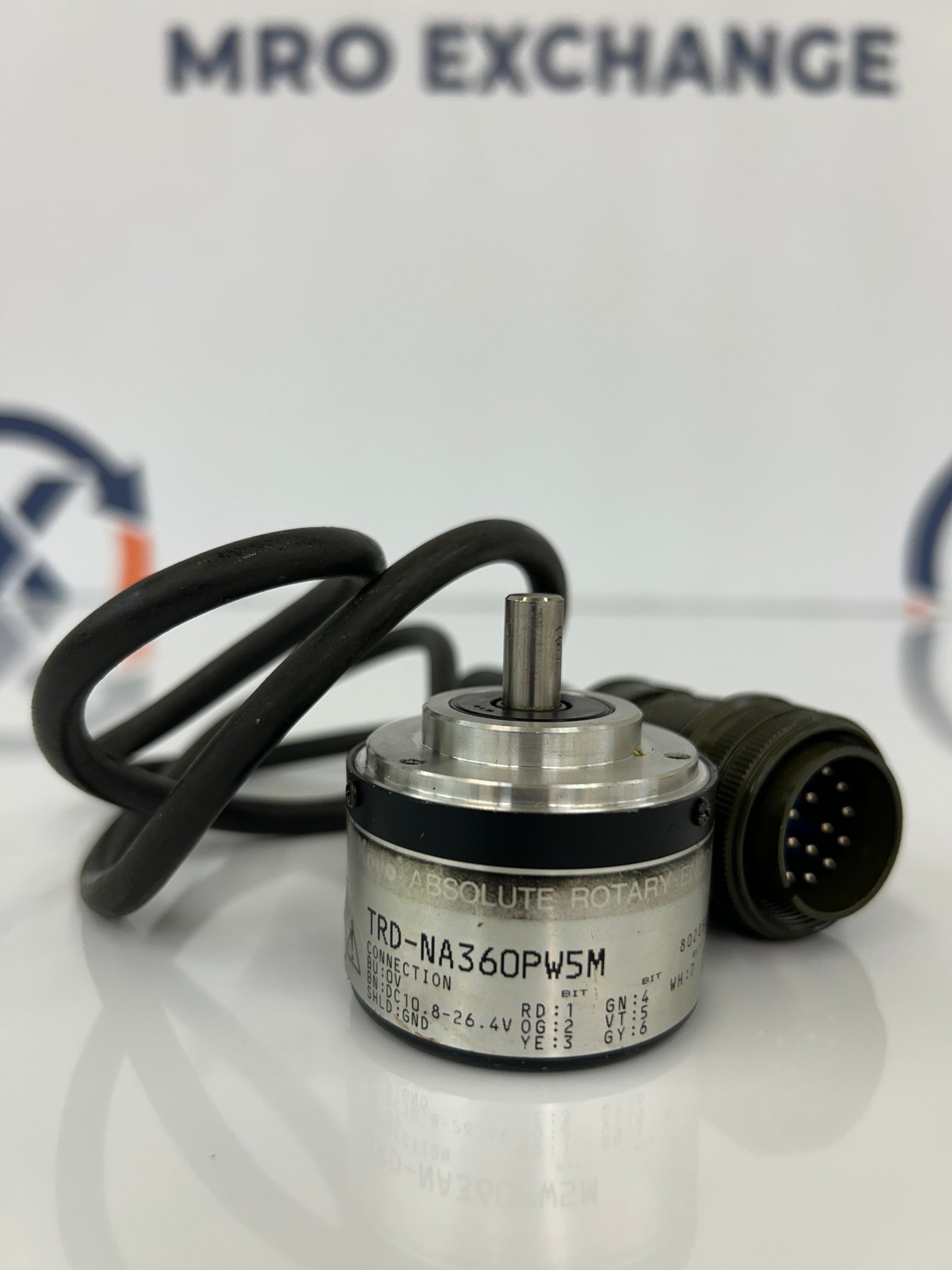

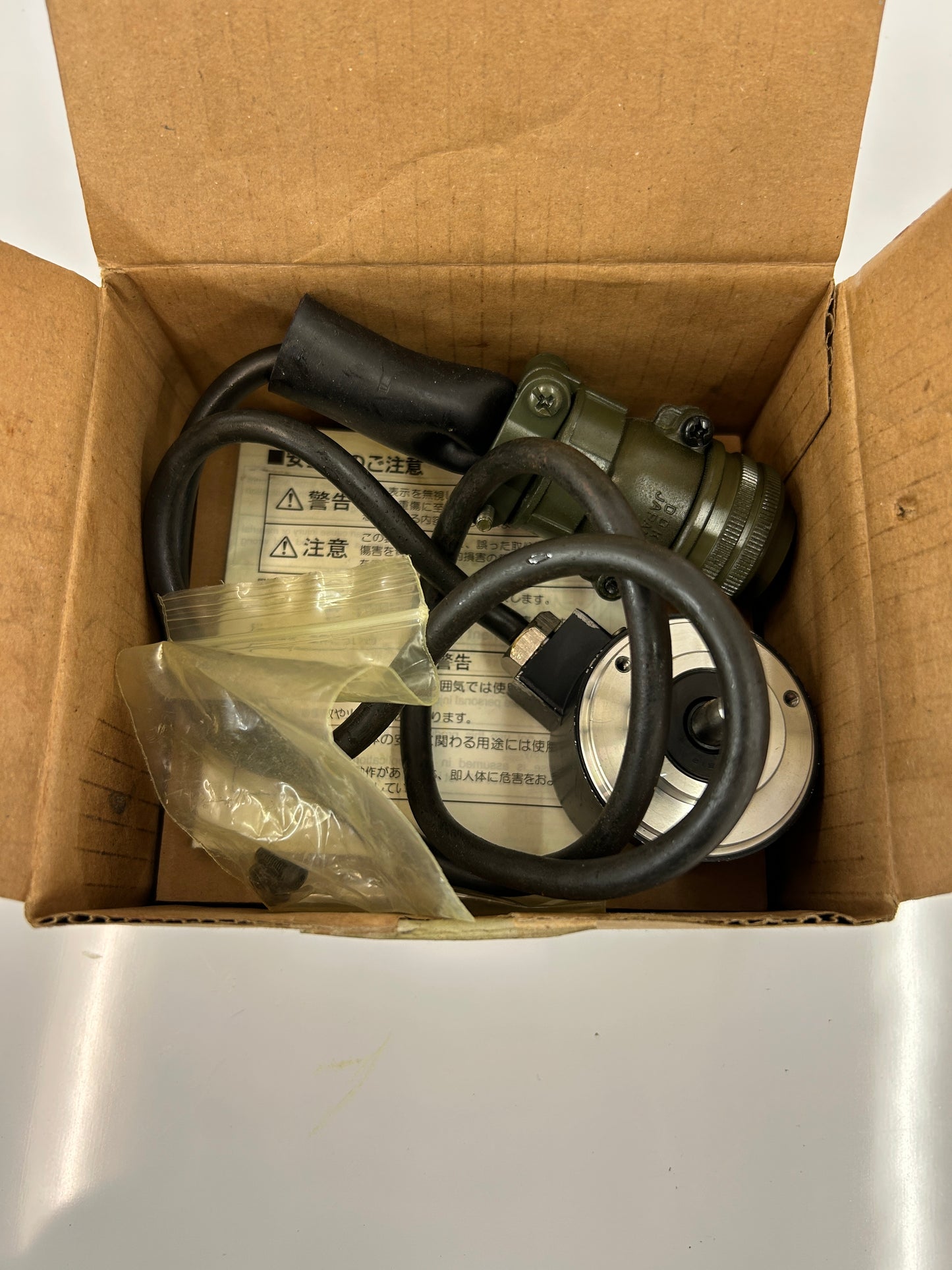

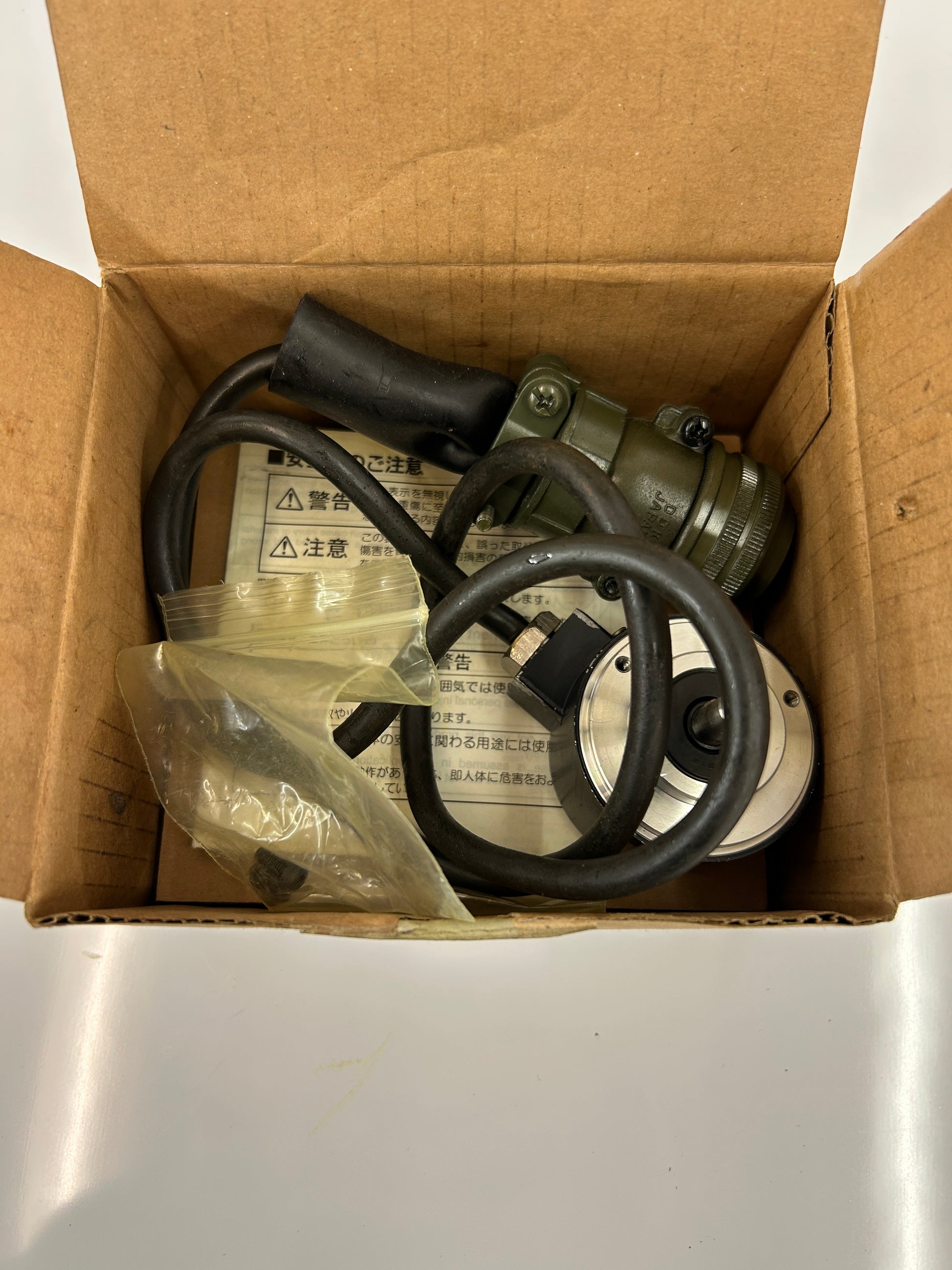

The Koyo TRD-NA360PW5M is an absolute rotary encoder manufactured by Koyo Electronics (Jtekt) and supplied as a Mazak OEM service component under part number R51ZZ001160. The nameplate identifies the unit as an absolute rotary encoder with a 10.8 to 26.4 VDC operating range, gray code parallel output, and a multi pin military style connector terminating a flexible cable. Connection wiring is documented directly on the housing label with BU as 0V, BN as DC 10.8 to 26.4V, SHLD as GND, and bit assignments RD bit 1, OG bit 2, YE bit 3, GN bit 4, VT bit 5, GY bit 6, and WH bit 7. The TRD NA series from Koyo is widely deployed in CNC machine tools for spindle orientation, rotary axis position feedback, and tool changer indexing, and this specific configuration is referenced in Mazak service documentation as part number R51ZZ001160 with part description ROTARY ENCODER TRD NA360PW5M and Mazak internal code TA01. The original Mazak shipping carton and labeling are present, including Mazak customer PO number 74157, location 35.04, and quantity 2 markings on the box label. The unit carries CE marking. A serial number is visible on the housing. The cable terminates in a multi pin circular connector suitable for direct connection to Mazak control feedback receptacles. Applications include CNC lathes, machining centers, and any rotary positioning system requiring absolute position feedback over a 360 count per revolution resolution range. Buyers should verify compatibility with their specific machine model and control generation before installation.
Stock # 0226-035
