Kübler BNA Magnetic Level Indicator 2 to 250 Volt

$599.00 USD

Sale Sold out

ConditionSurplus - Untested MPNBNA Stock #Stock # 0626-01816

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 45.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Product Specifications

Manufacturer: Kübler
MPN / Model: BNA
Product Type: Magnetic Bypass Level Indicator
Nominal Diameter (DN): 15
Nominal Pressure (PN): 16 Bar
Material Number: 1.4571
Center to Center Distance (ME): 1320 mm
Float Type: ZVSS250
Maximum Pressure: 16 Bar
Maximum Temperature: 100 C
Specific Gravity: 850 kg per cubic meter
Indicator Type: MRA
Magnetic Switch Type: BGU
Serial Number: 9611845
Tag Number: 939.8960

Product Description

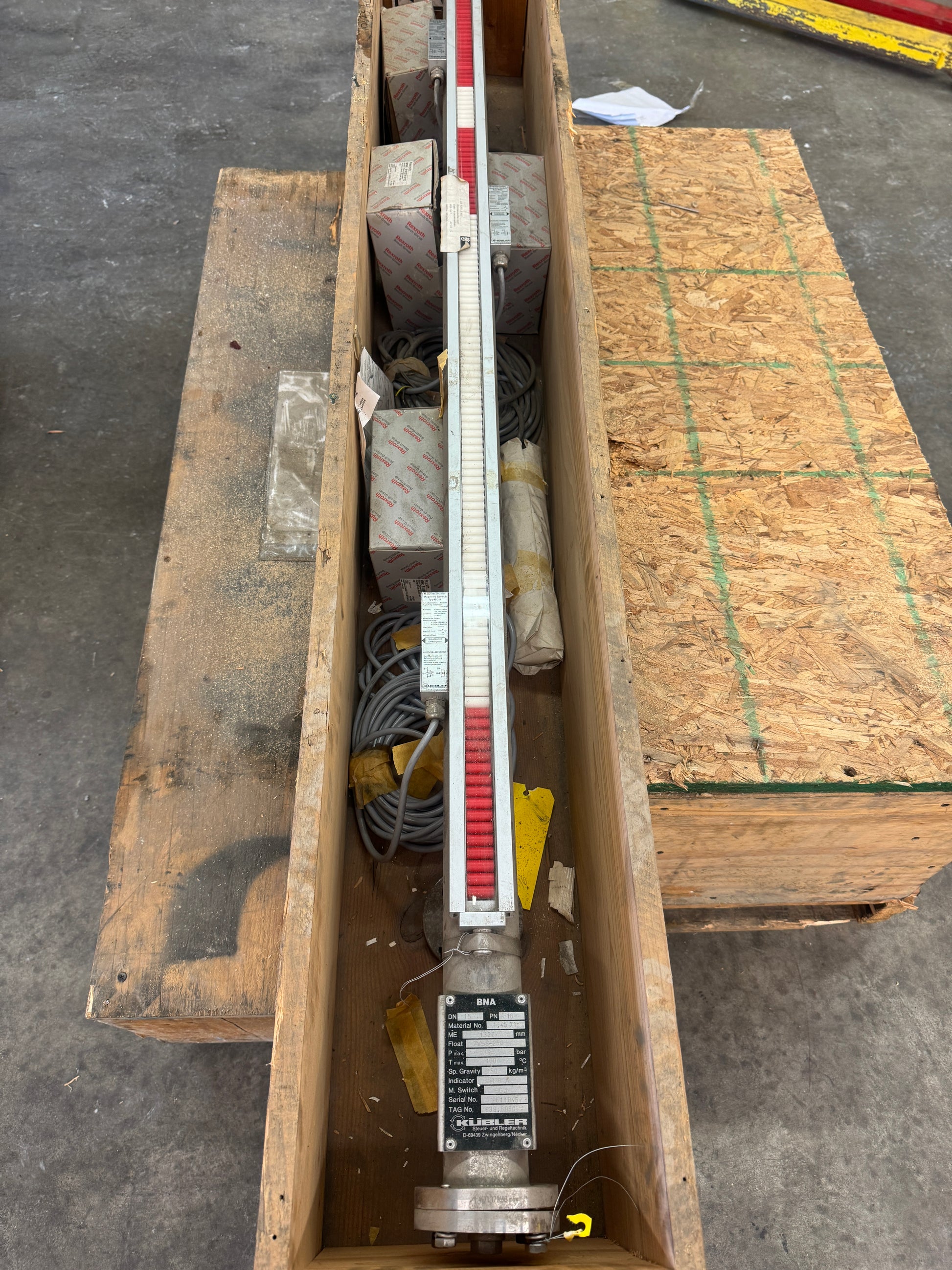

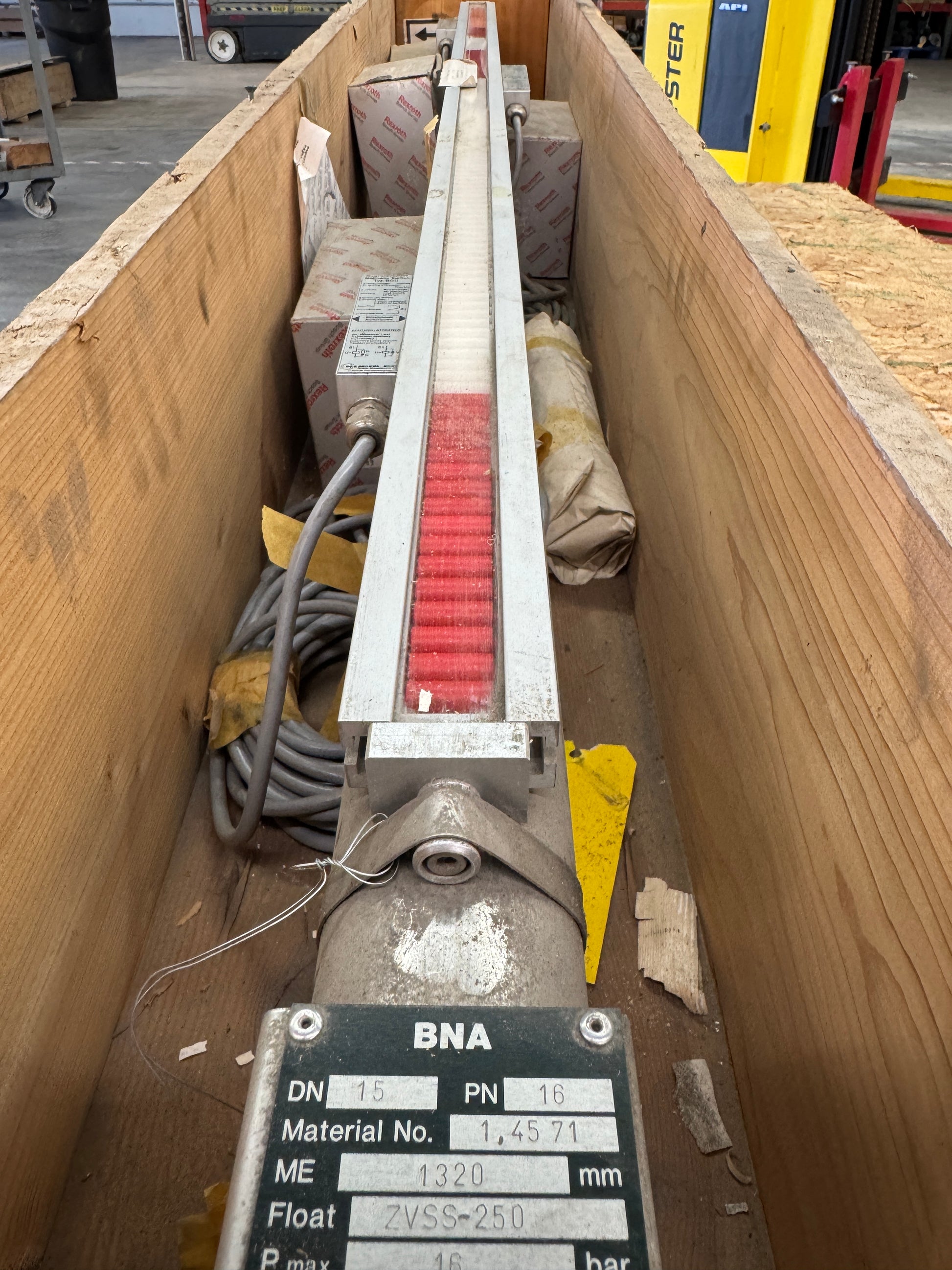

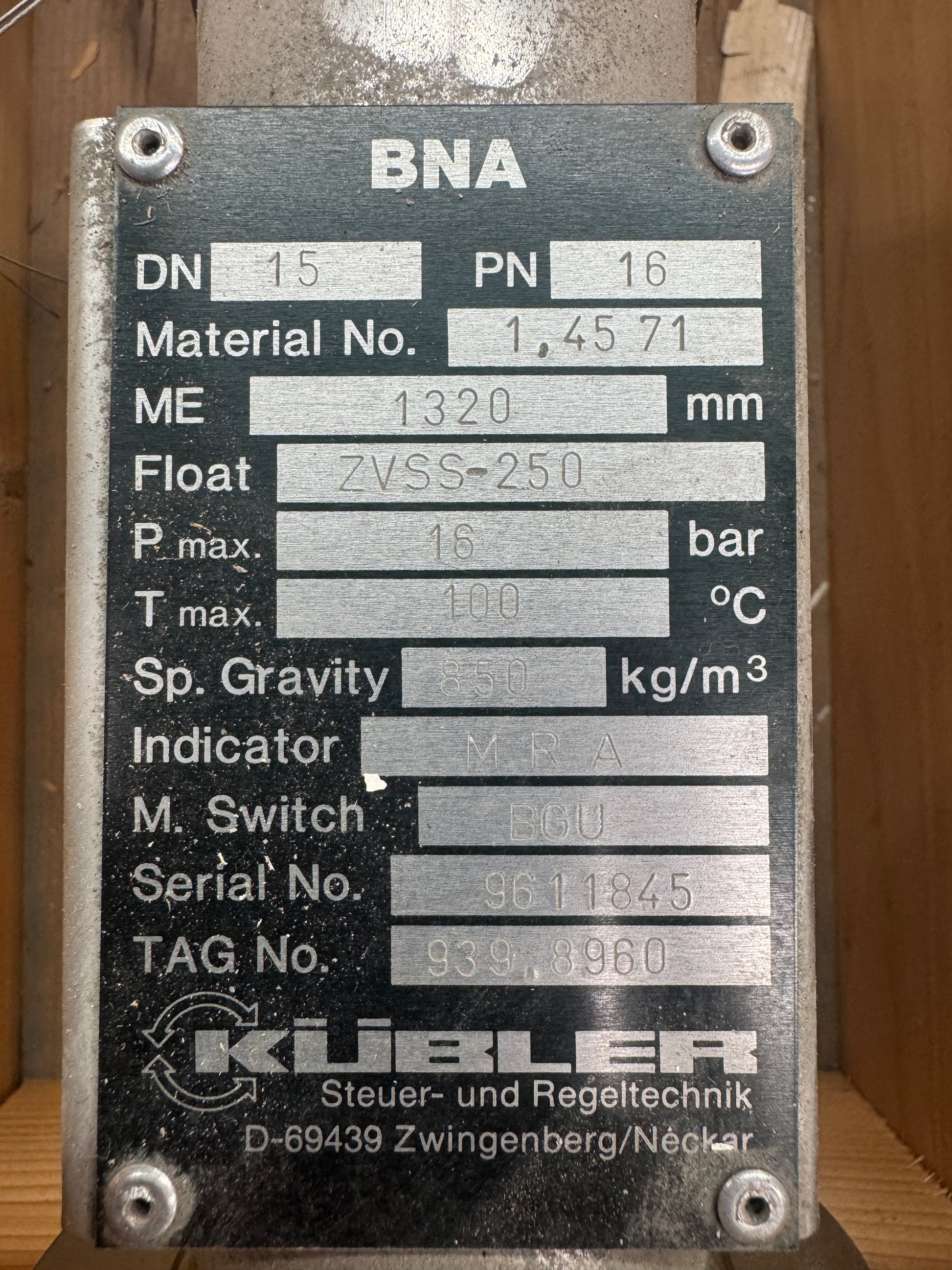

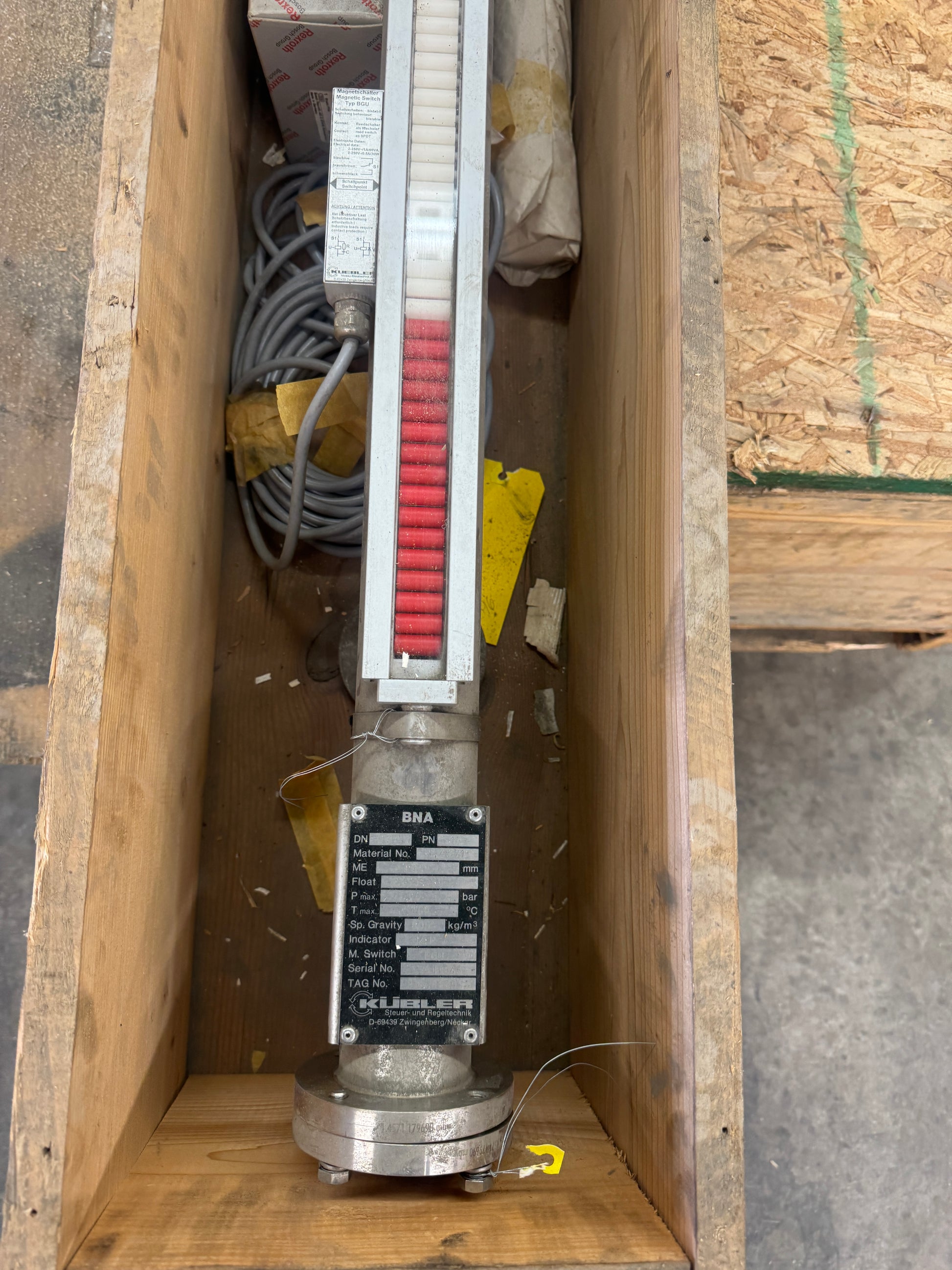

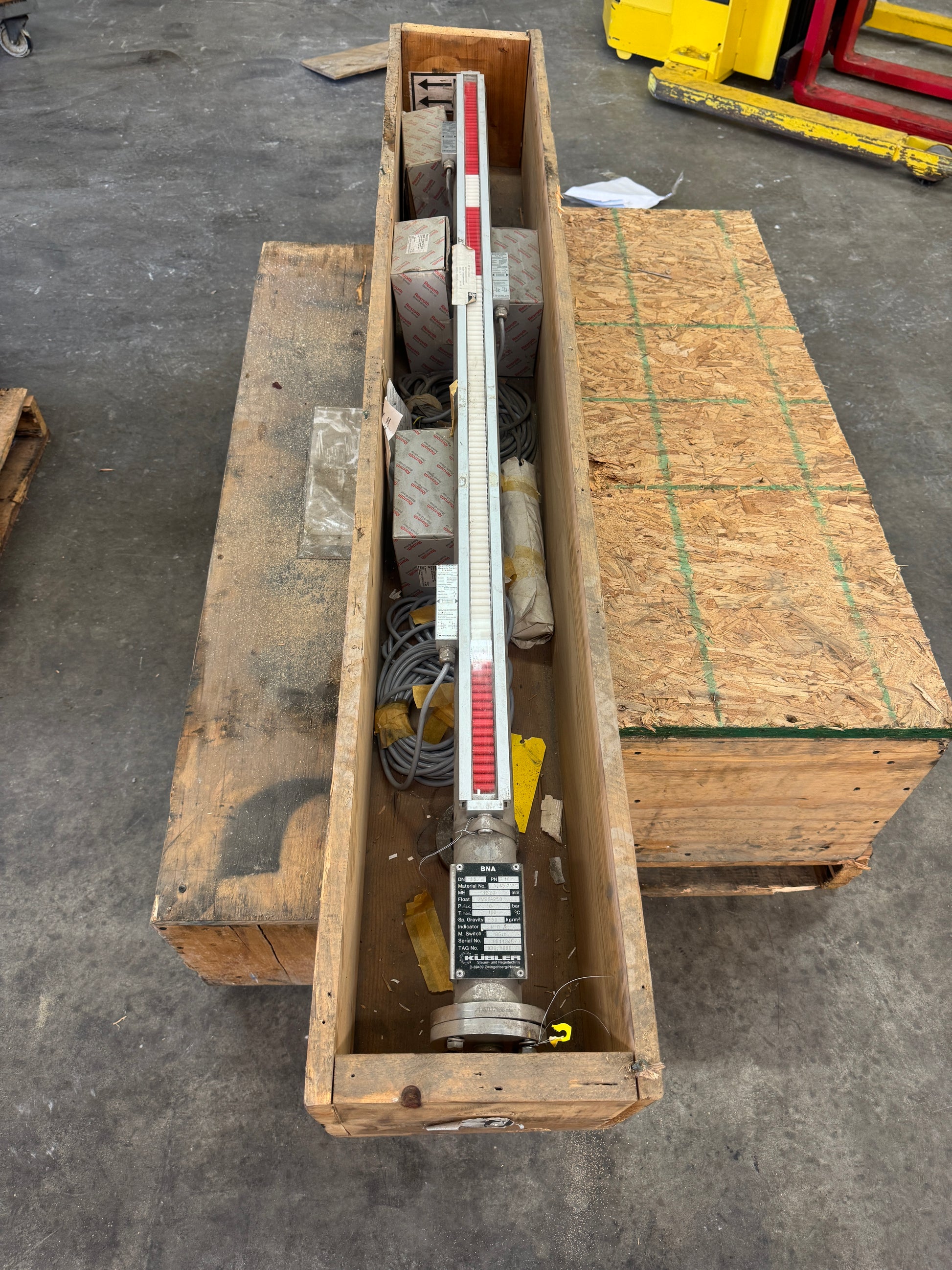

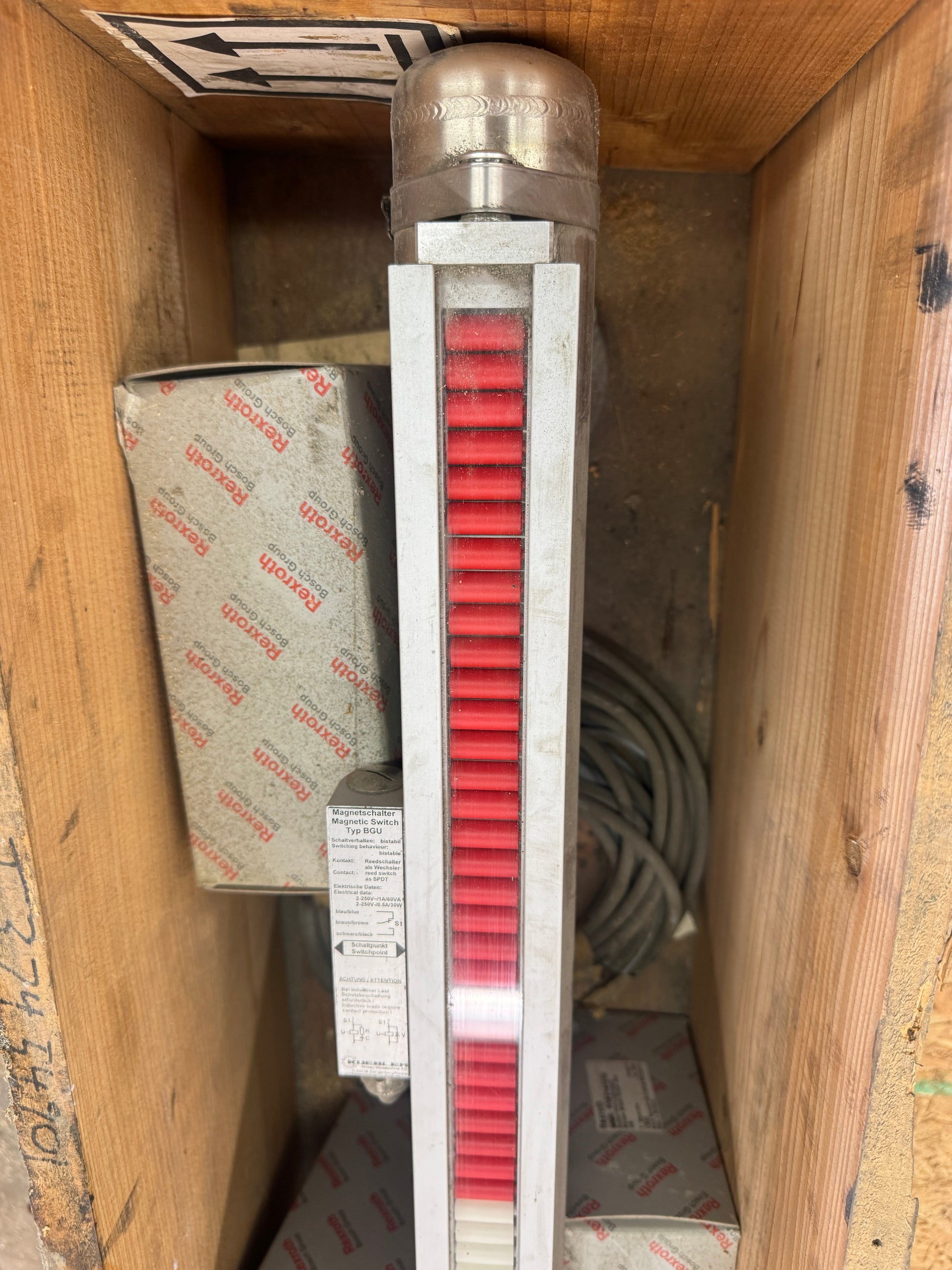

This Kübler BNA magnetic bypass level indicator uses a float mounted magnet to move a two color roller display along the outside of a stainless steel bypass chamber, giving a continuous visual reading of liquid level without external power. The nameplate lists a DN15 PN16 process connection, material number 1.4571 stainless chamber, a center to center distance of 1320 mm, and a ZVSS250 float rated to a maximum of 16 Bar and 100 C with a minimum specific gravity of 850 kg per cubic meter. A type BGU magnetic reed switch is fitted to the unit, rated 2 to 250 Volt, for remote level signaling. The unit is identified by serial number 9611845 and tag number 939.8960. This listing is condition Surplus Untested. Buyers matching an existing Kübler or KSR Kuebler BNA installation should confirm the DN, PN, float type, and center to center distance against their own equipment before ordering.
