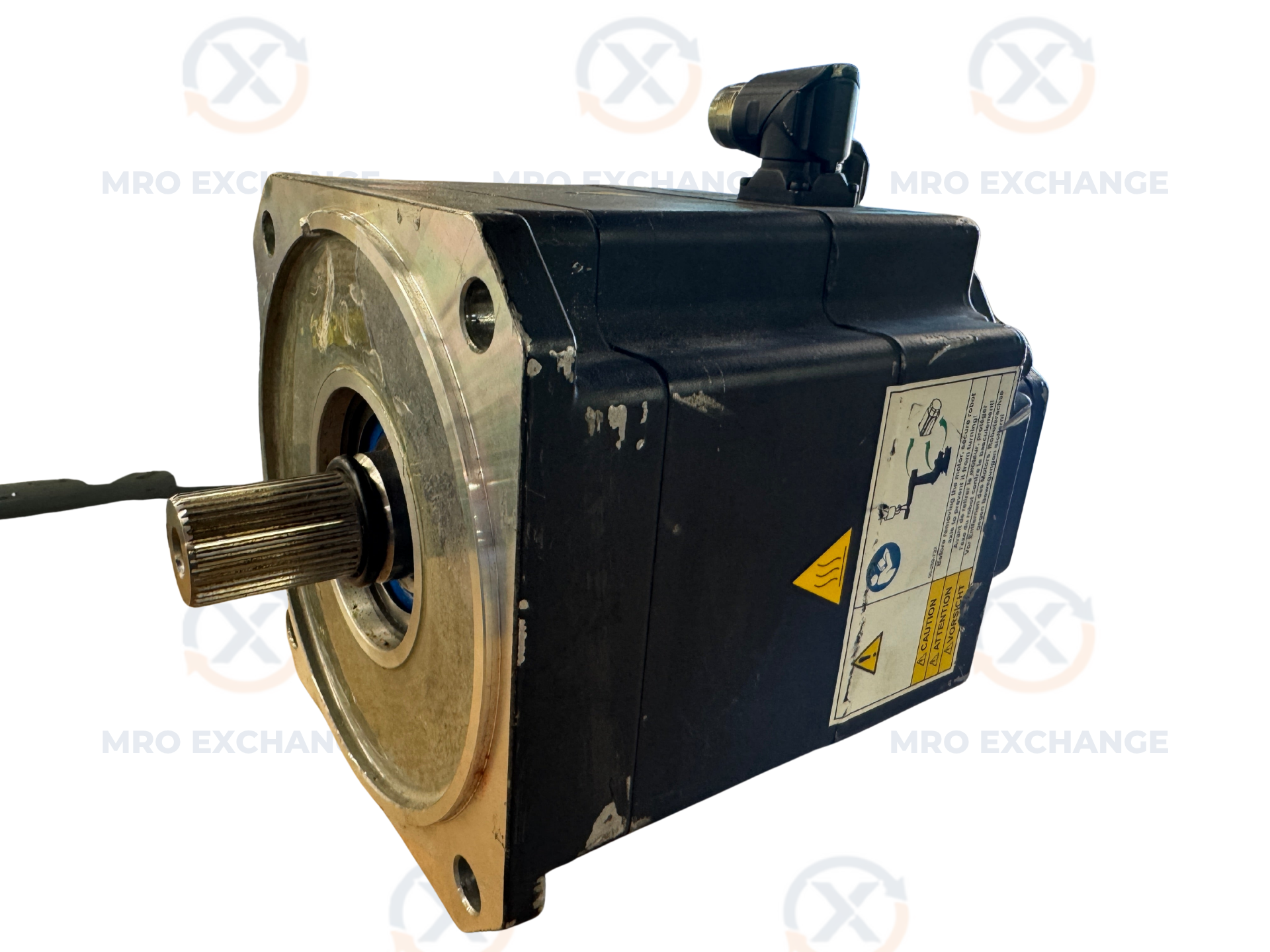

KUKA 1FK7101-5AY71-1SY3-Z Servo Motor 5 kW 3000 RPM

$3,499.00 USD

Sale Sold out

ConditionSurplus - Untested MPN1FK7101-5AY71-1SY3-Z Stock #0626-01524

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 55.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Product Specifications

Manufacturer: KUKA (KUKA Roboter GmbH, Augsburg, Germany)
MPN / Model: 1FK7101-5AY71-1SY3-Z
Series: S77
Product Type: Servo Motor (SIMOTICS 3, 3-Phase Synchronous)
Power: 4.9 kW
Current: 9.5 A
Voltage (Ui str): 201 V
Speed (nN/max): 3000 / 5000 min⁻¹ (RPM)
Enclosure Rating: IP 65
Insulation Class: Th.Cl. 155 (F)
Temperature Sensor: KTY84
Revision: REV.-Nr.: 01
Art. Nr. (KUKA Internal): 00001/9161
Serial Number: YF FN651 6368 99 001
Certification: CE, EAC, UL (cULus), EN 60034
Country of Origin: Made in Germany
Shaft: Splined output shaft

Product Description

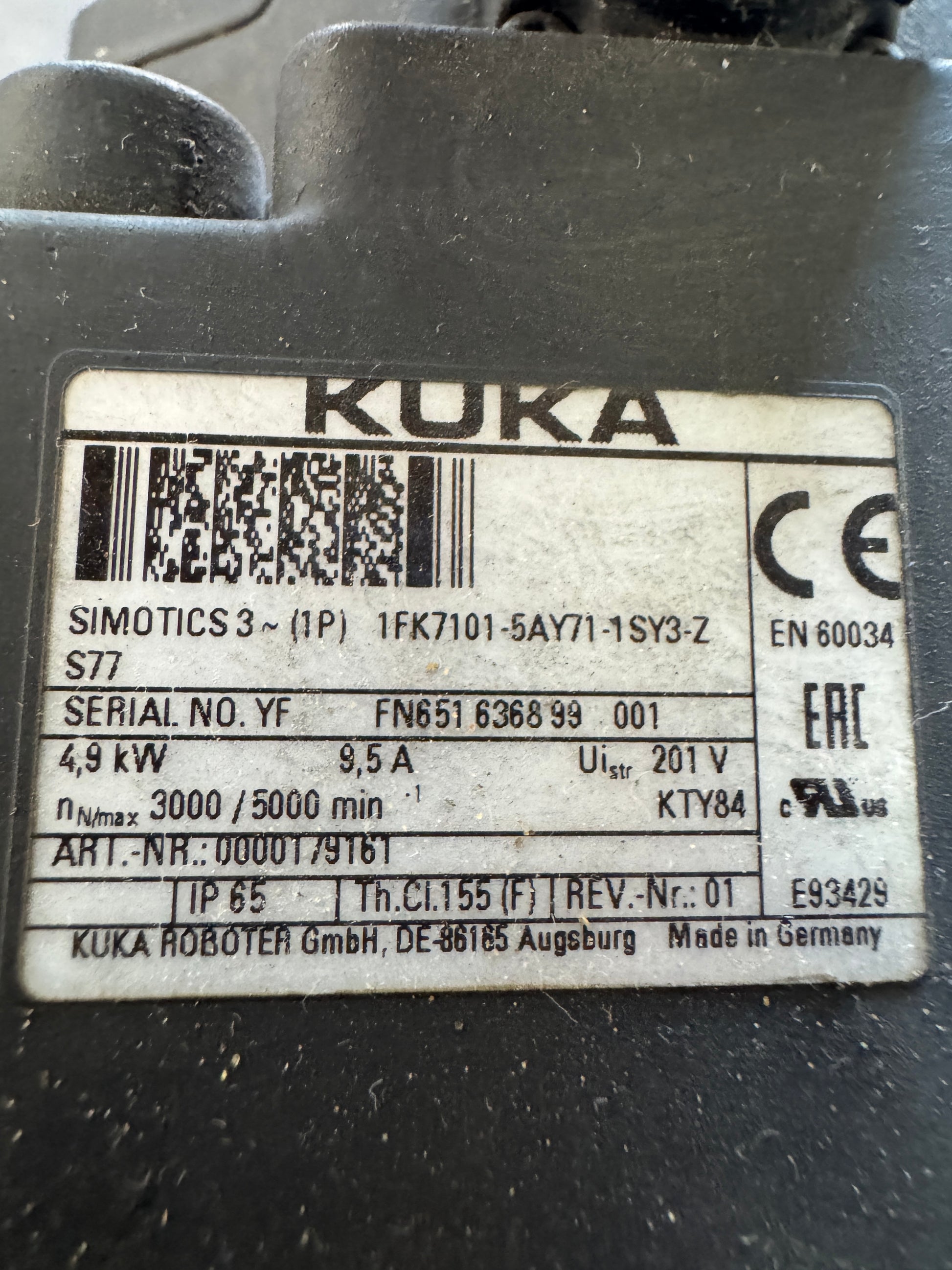

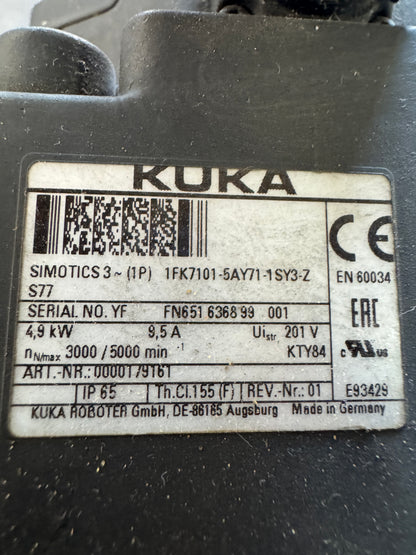

KUKA part number 1FK7101-5AY71-1SY3-Z is a SIMOTICS 3 three-phase synchronous servo motor from KUKA Roboter GmbH, manufactured in Germany and labeled under the S77 series designation. The nameplate confirms 4.9 kW output, 9.5 A current draw, 201 V (Ui str), and a rated speed of 3000 RPM with a maximum of 5000 RPM. The motor carries an IP 65 enclosure rating, Insulation Class F (Th.Cl. 155), and a KTY84 temperature sensor. Certifications visible on the nameplate include CE, EAC, and cULus (E93429), conforming to EN 60034.

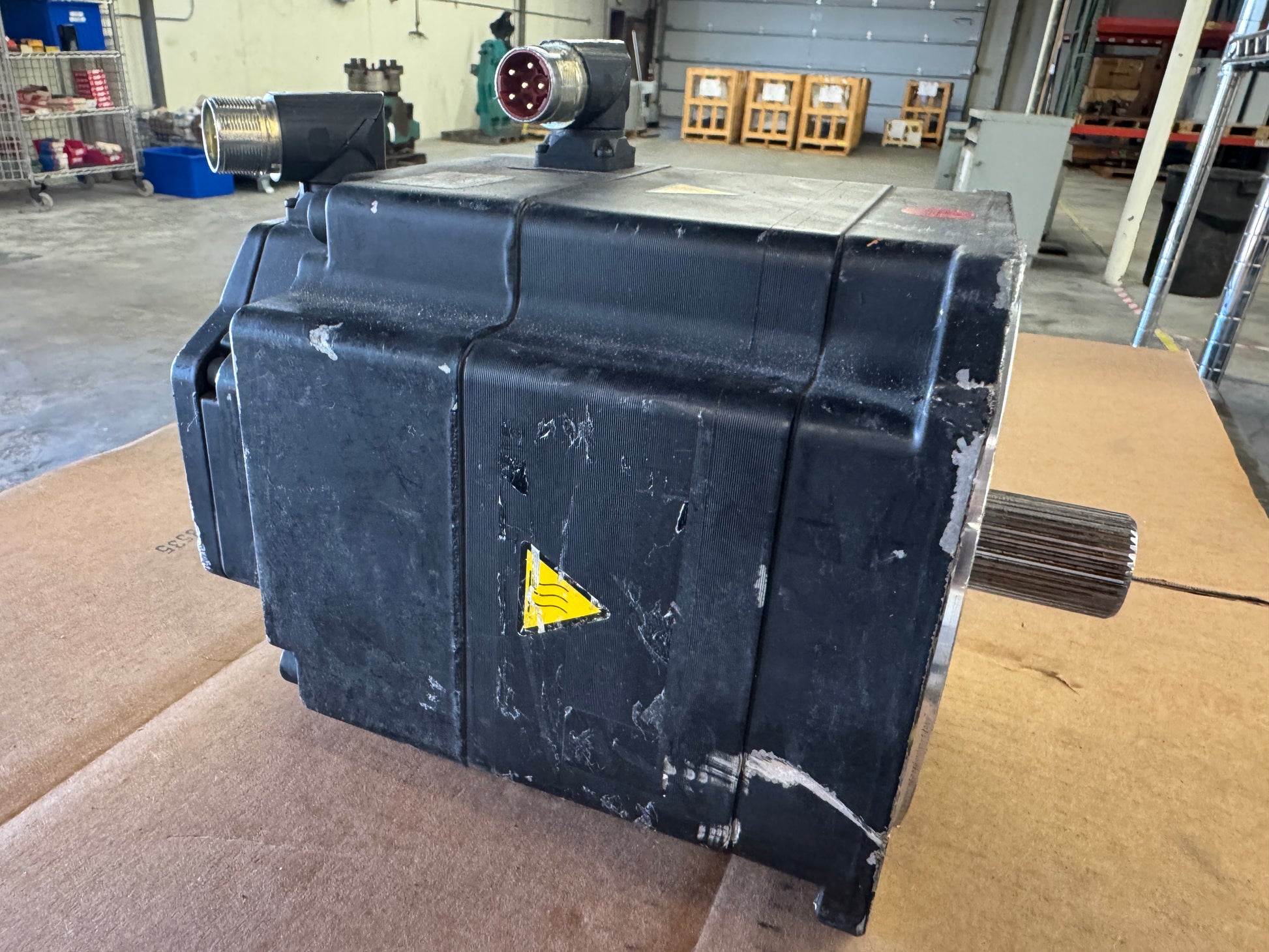

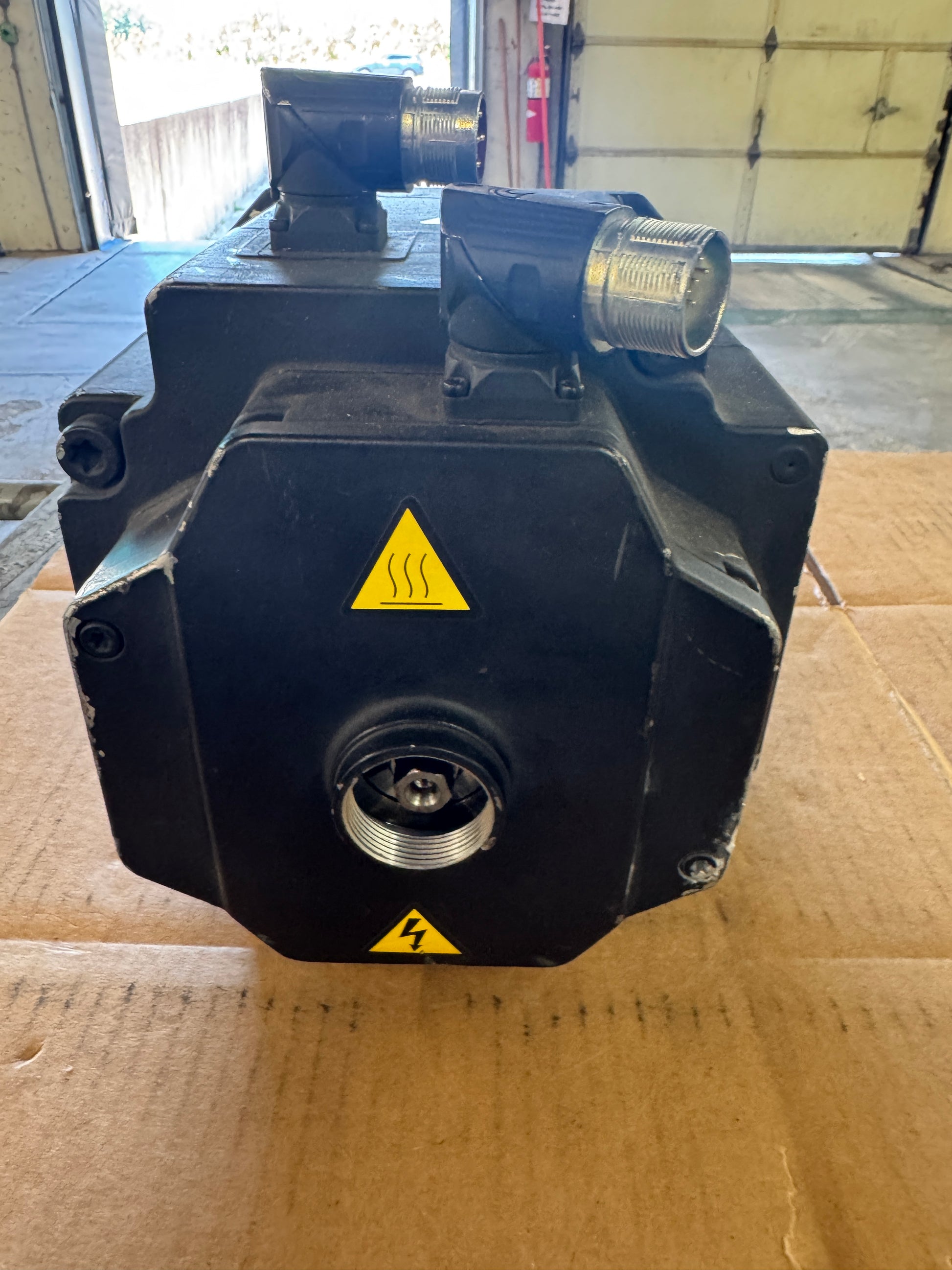

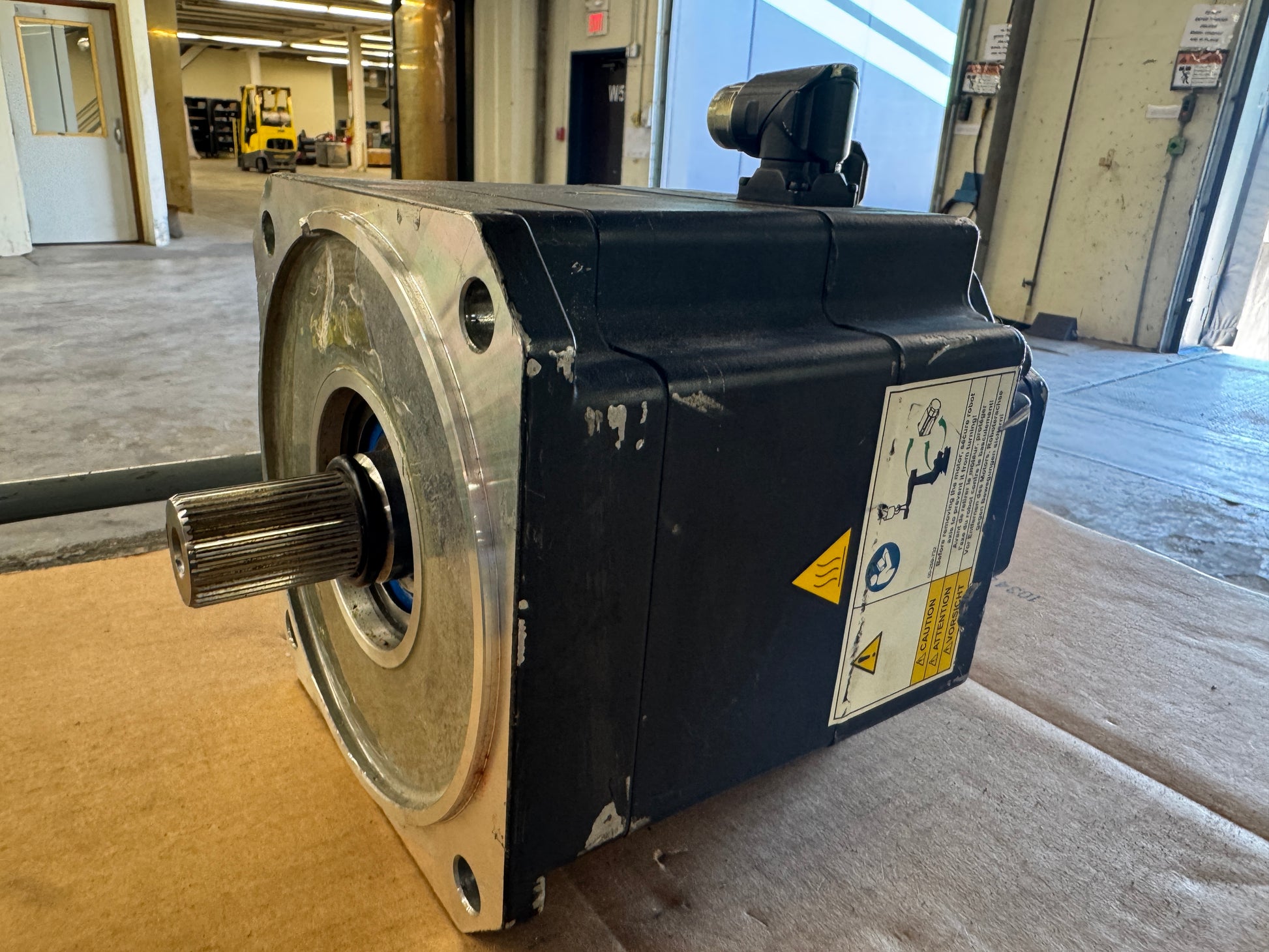

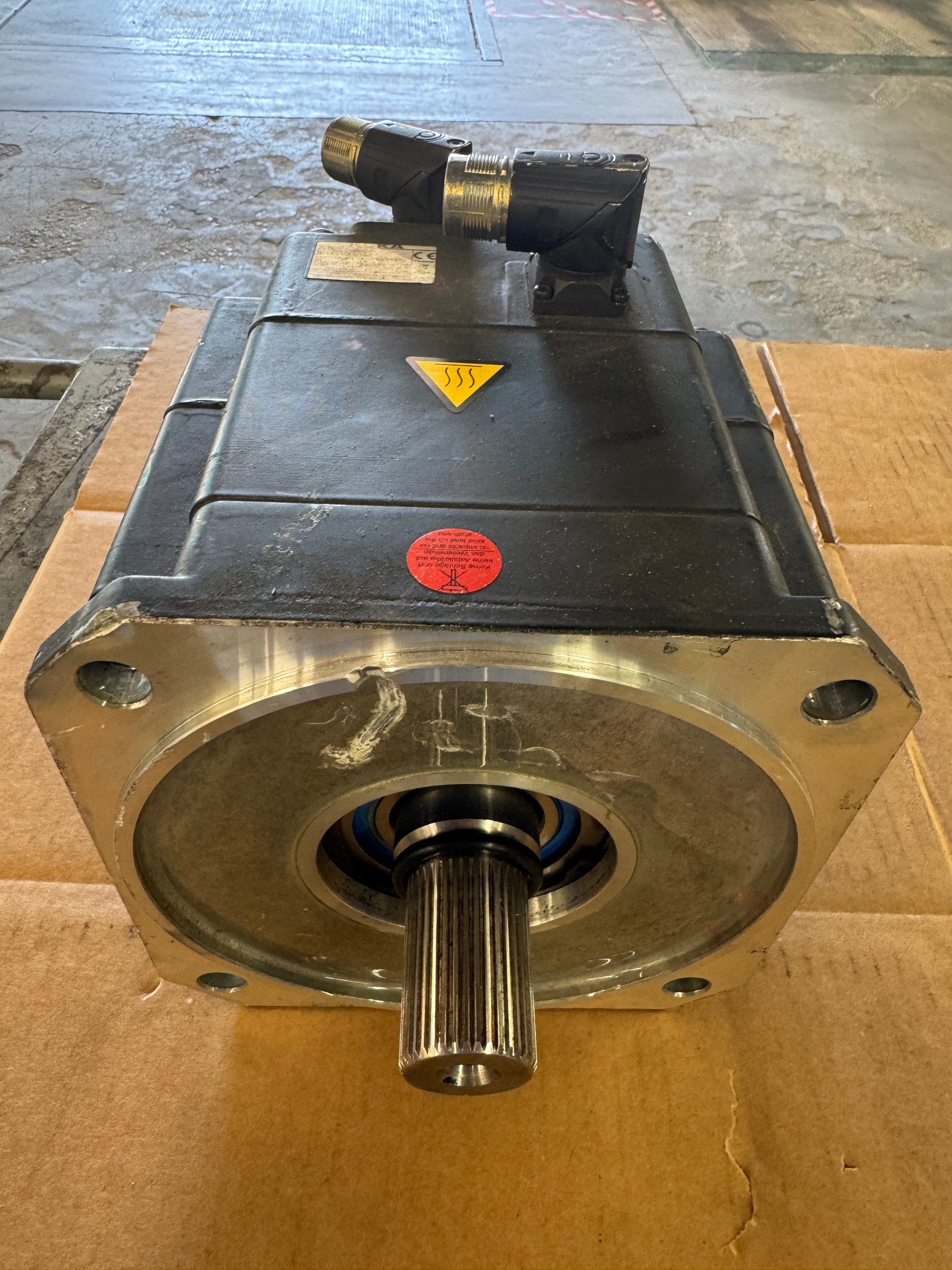

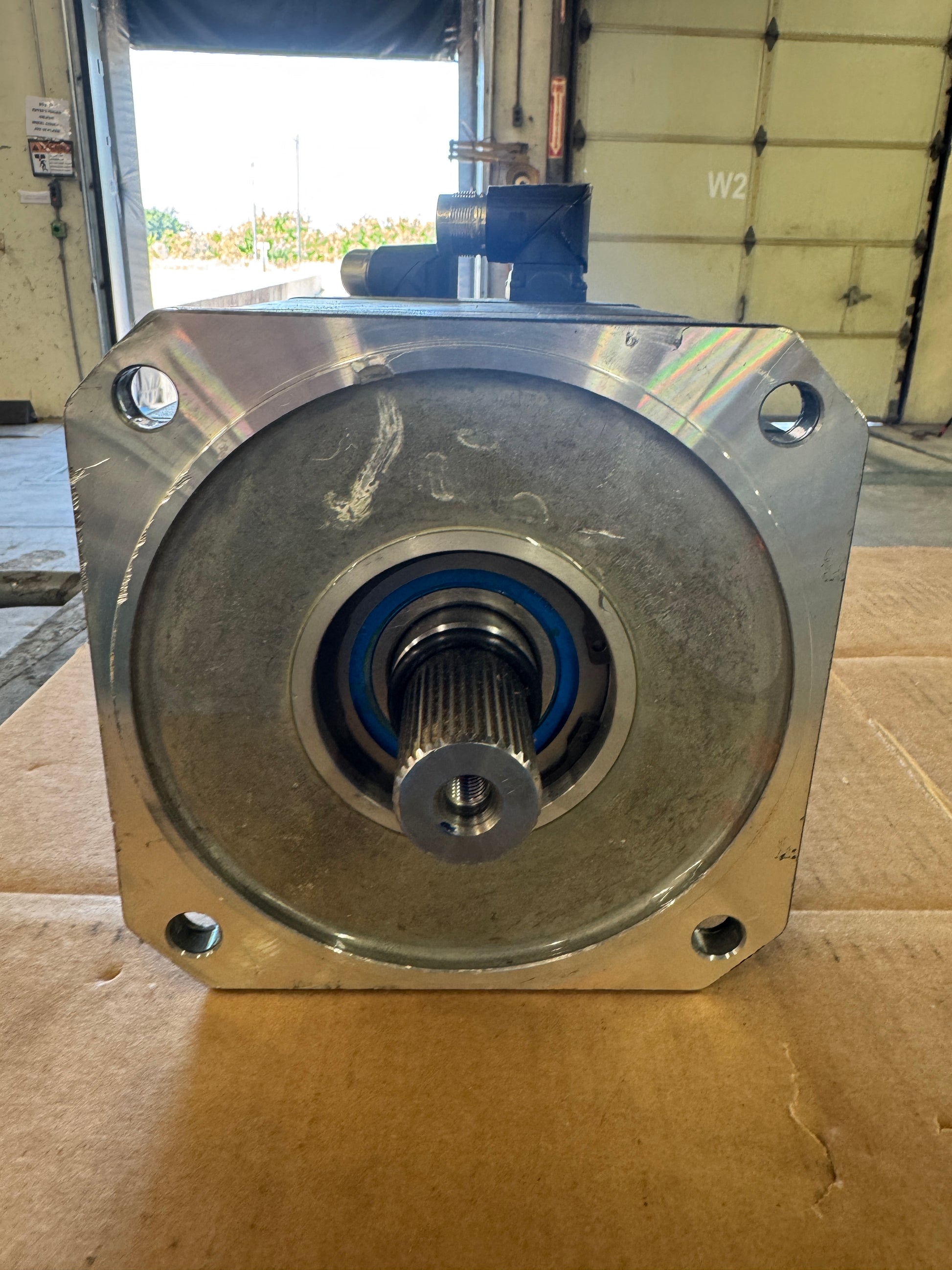

The motor features a splined output shaft, a square flange mounting face, and dual circular connector ports on the top housing for power and feedback connections. KUKA internal article number 00001/9161 and serial number YF FN651 6368 99 001 are confirmed from the nameplate. The motor shows cosmetic wear consistent with field removal from a KUKA robotic system. Buyers sourcing this motor for KUKA robot axis replacement or servo system repair should match against the full MPN including the S77 suffix and REV.-Nr. 01 as labeled.

Stock # 0526-01524
