Lafert North America AC Motor ST100LS8 - 1 HP 900 RPM

$478.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

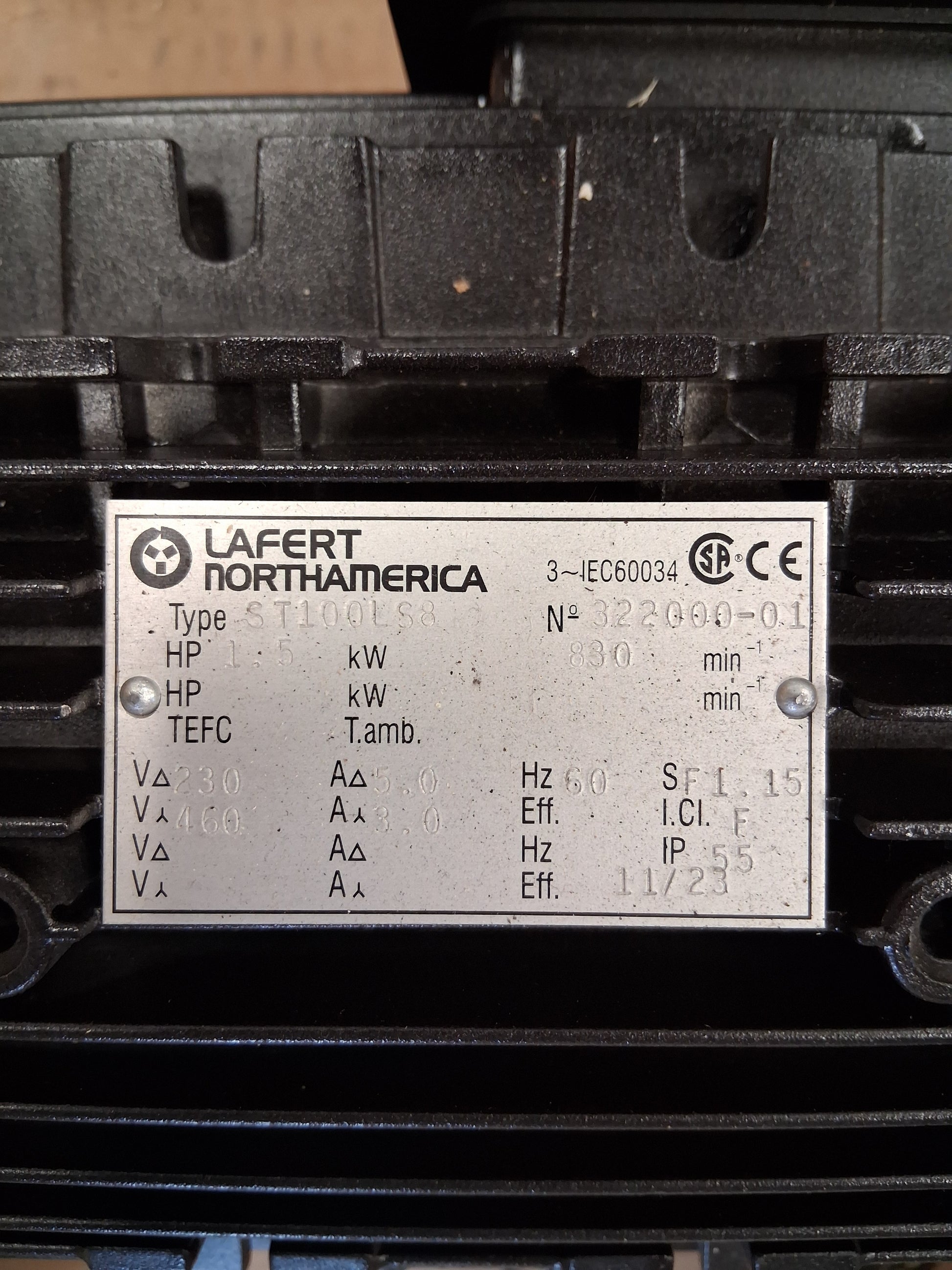

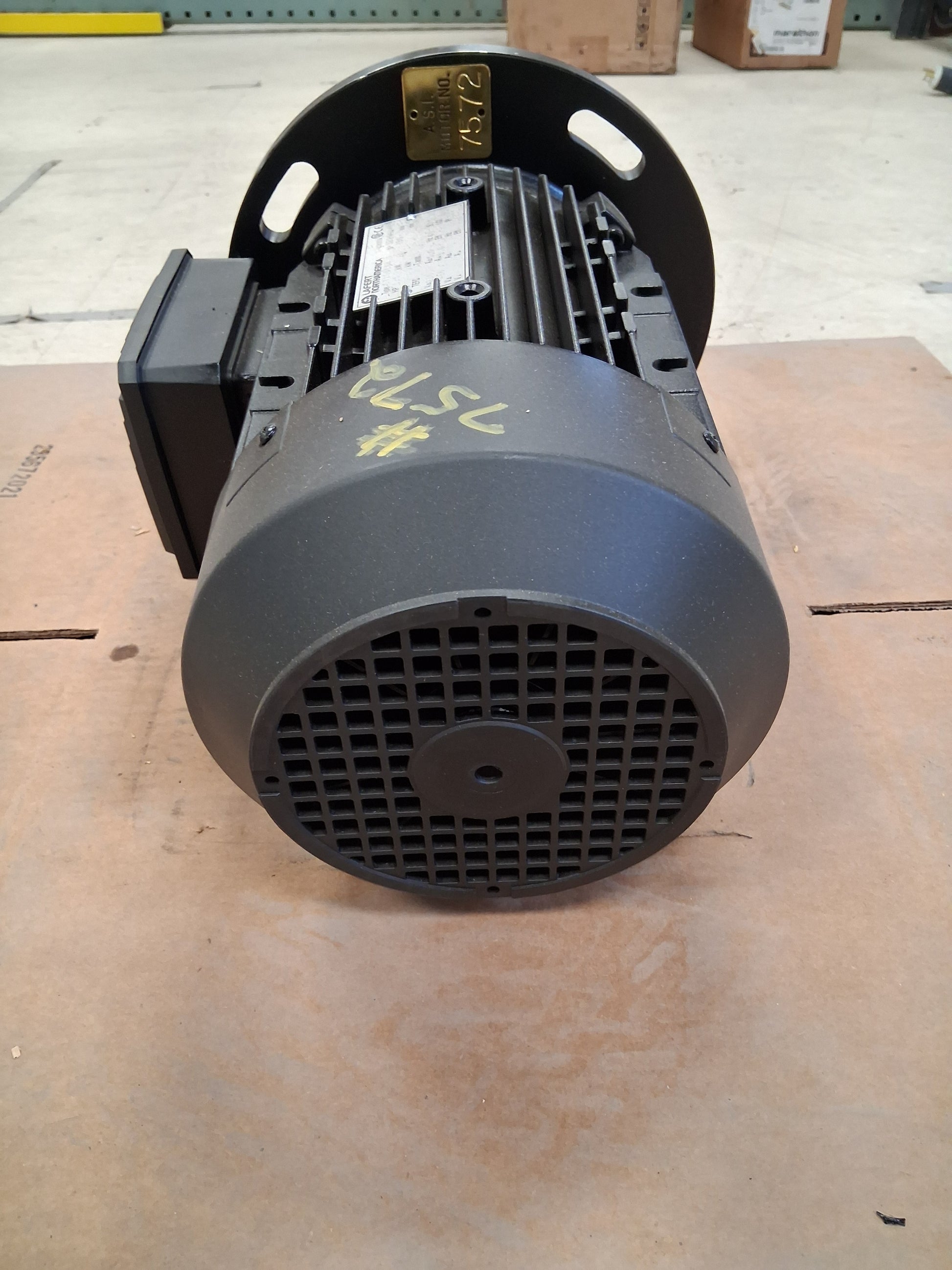

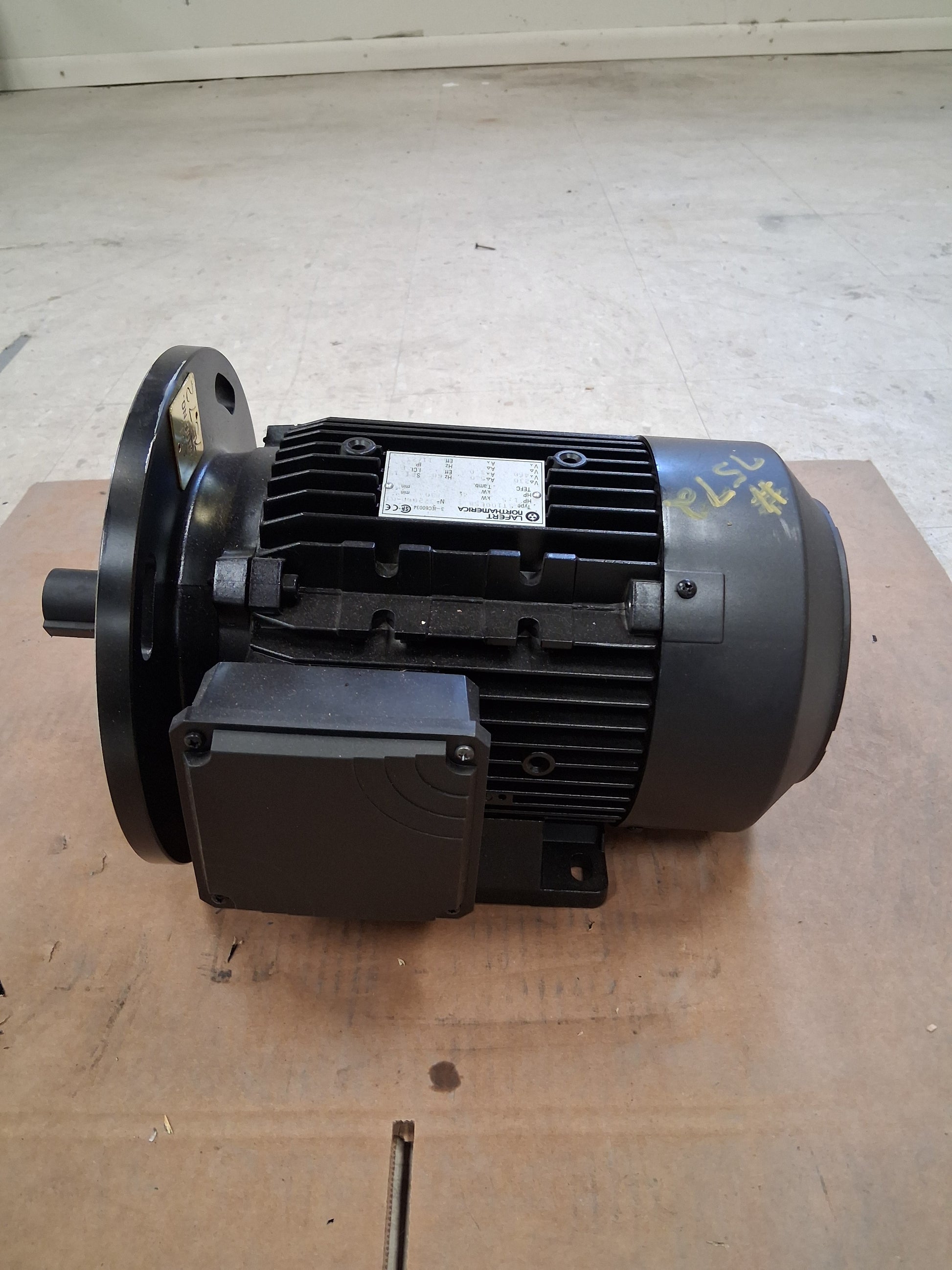

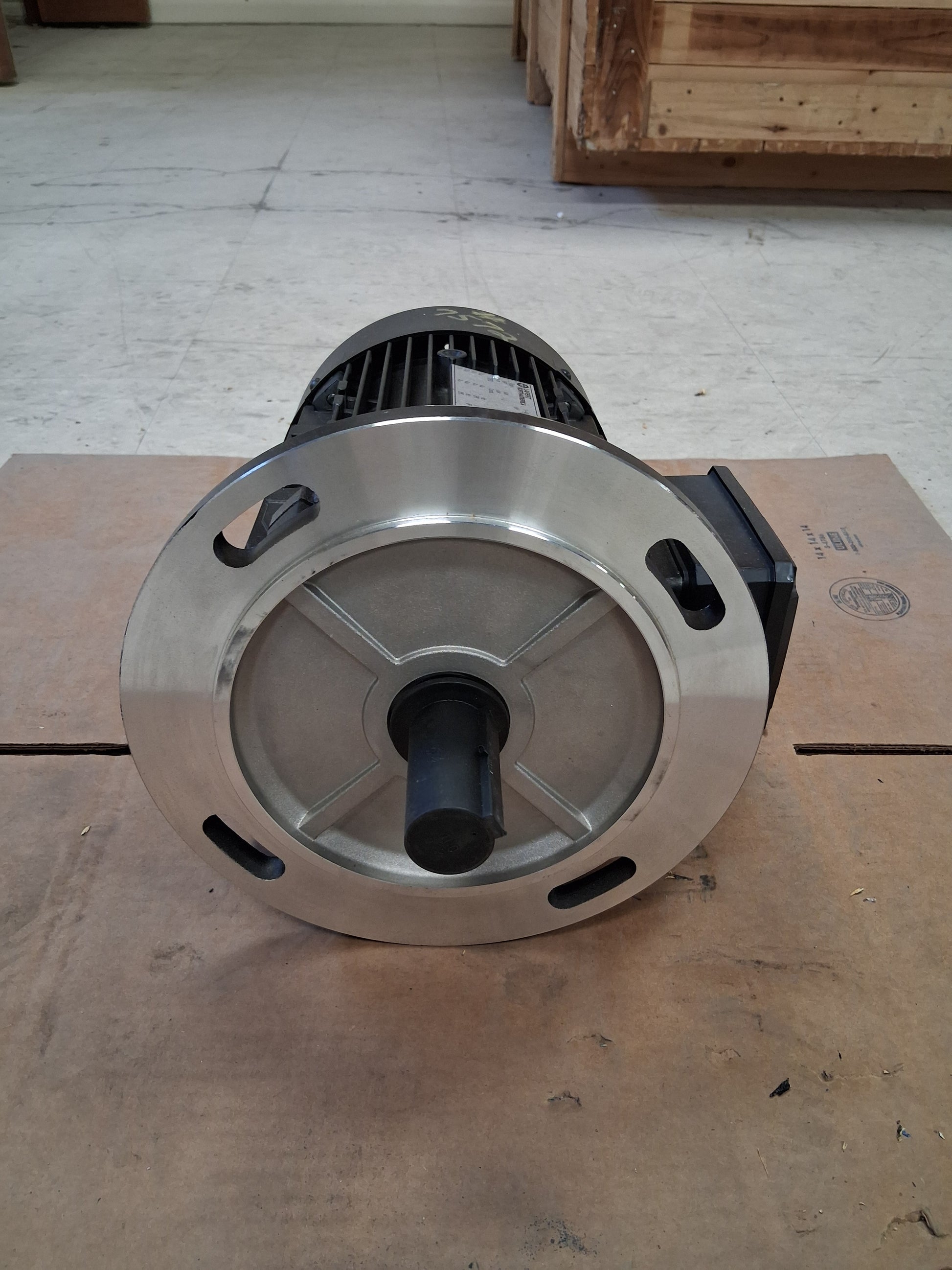

Manufactured by Lafert North America, the ST100LS8 is a three phase AC induction motor rated at 1.5 HP with a synchronous speed of 830 RPM. The nameplate identifies it as an 8 pole motor configured for dual voltage operation at 230V delta with 5.0 amp draw or 460V wye with 3.0 amp draw at 60 Hz. The motor carries a serial number of 322000-01 and a date code of 11/23, indicating November 2023 manufacture. Construction is TEFC (Totally Enclosed Fan Cooled) with an IP55 ingress protection rating and Class F insulation. Service factor is listed at 1.15. The unit is built on a 100 frame size with a B5 large flange mounting interface and includes integrated mounting feet for combined foot and flange installation flexibility. A junction box is mounted on the side of the stator housing for power termination. The aluminum frame construction reduces overall weight compared to cast iron designs while maintaining structural rigidity. Certifications shown on the nameplate include CSA and CE, with compliance to IEC 60034. Lafert ST series motors are commonly specified for industrial applications including food processing, packaging machinery, conveyor drives, pumps, gear reducer pairings, and OEM machinery integrations where a metric frame with North American voltage compatibility is required. The 8 pole, low speed configuration suits applications requiring high torque output at reduced shaft speed.

Stock # 0526-02304
