Lafert North America AC Motor ST100LS8 - 2 HP 900 RPM
Lafert North America AC Motor ST100LS8 - 2 HP 900 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

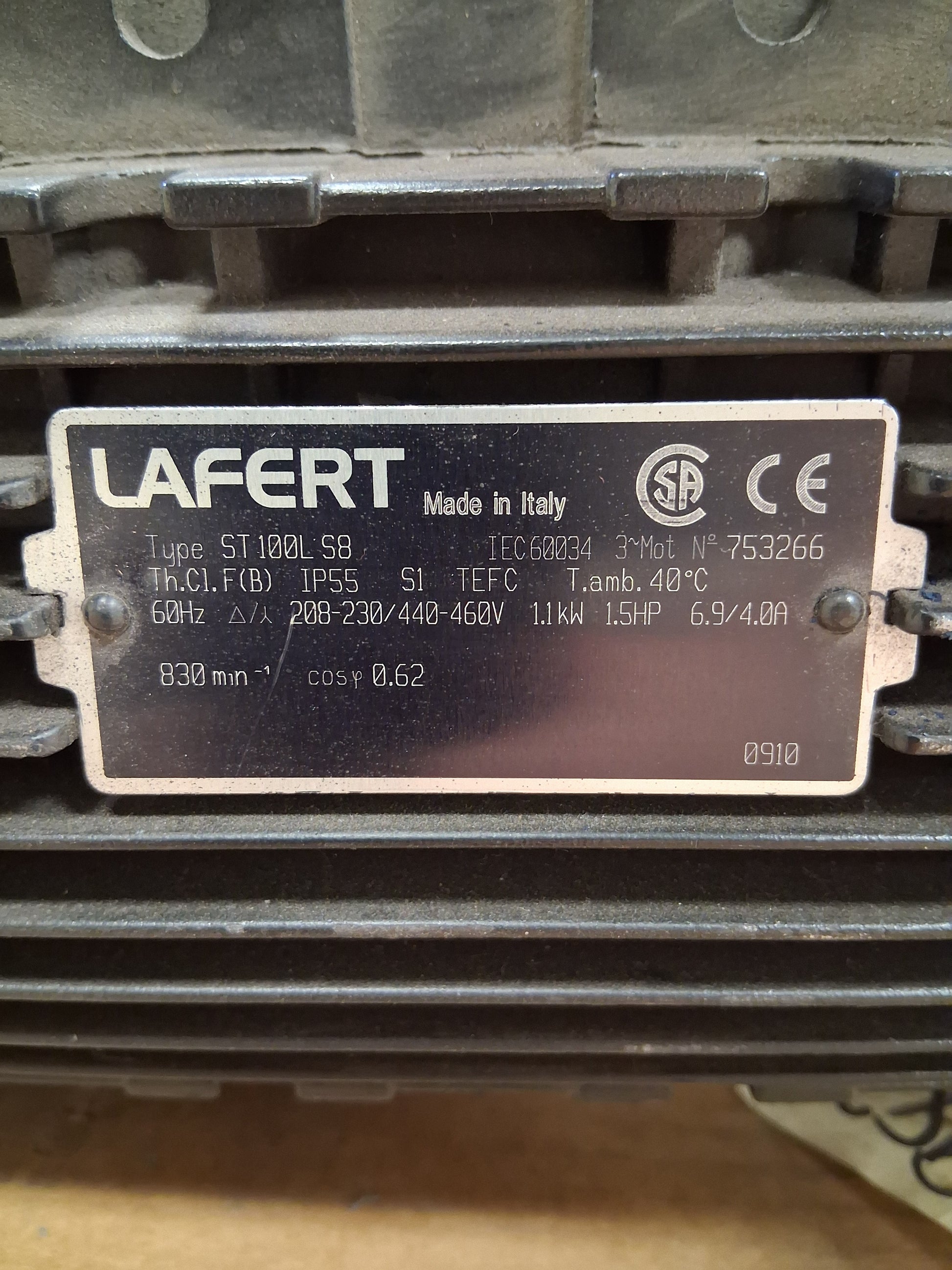

The Lafert ST100L S8 is a three phase induction motor manufactured in Italy and rated at 1.1 kW (1.5 HP). Nameplate data confirms a dual voltage configuration of 208 to 230 VAC delta and 440 to 460 VAC wye at 60 Hz, with corresponding full load current of 6.9 amps and 4.0 amps. Rated speed is 830 RPM and power factor is 0.62. The motor carries IEC 60034 compliance along with CSA and CE markings, with serial number 753266 stamped on the nameplate and date code 0910.

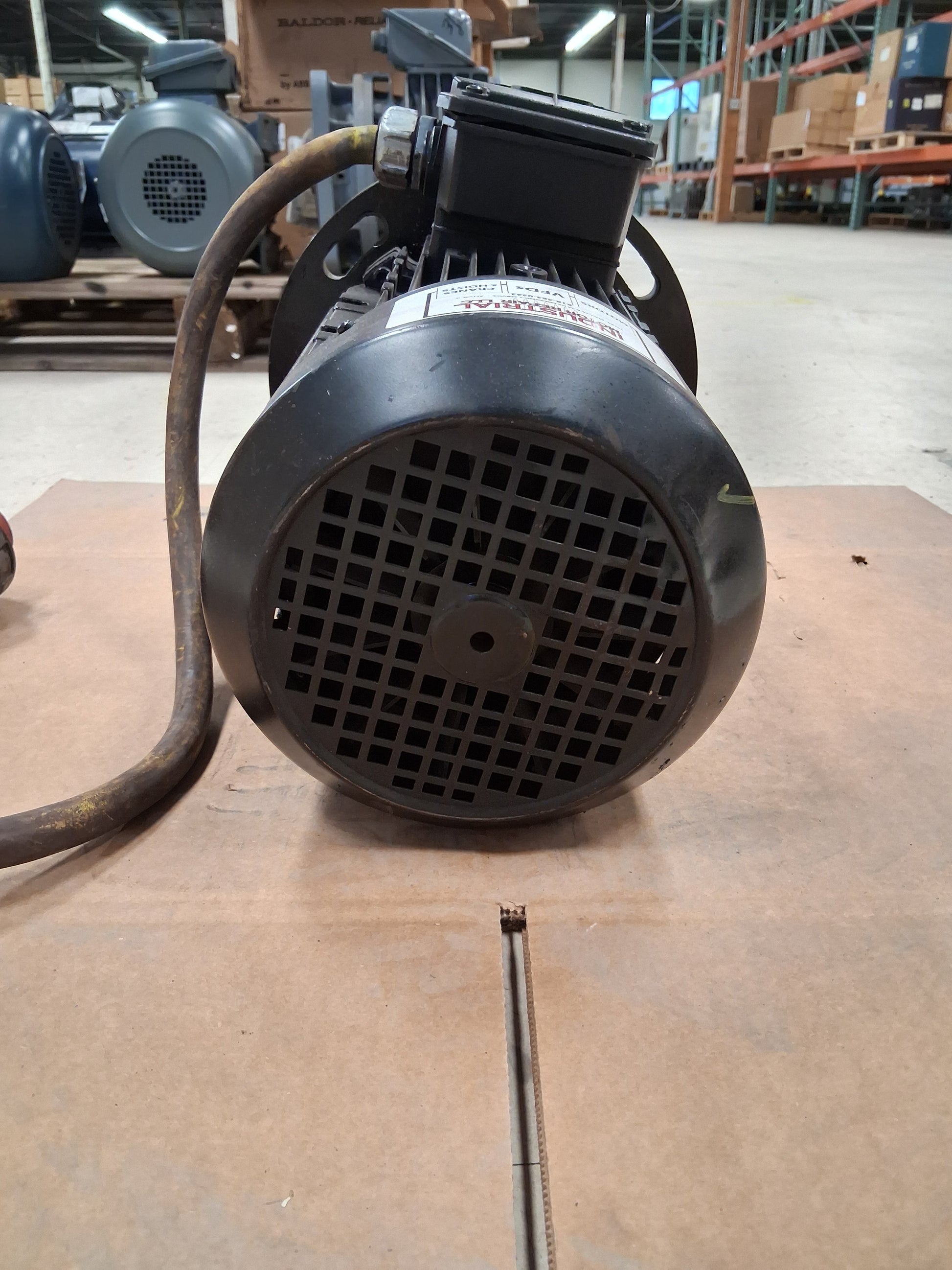

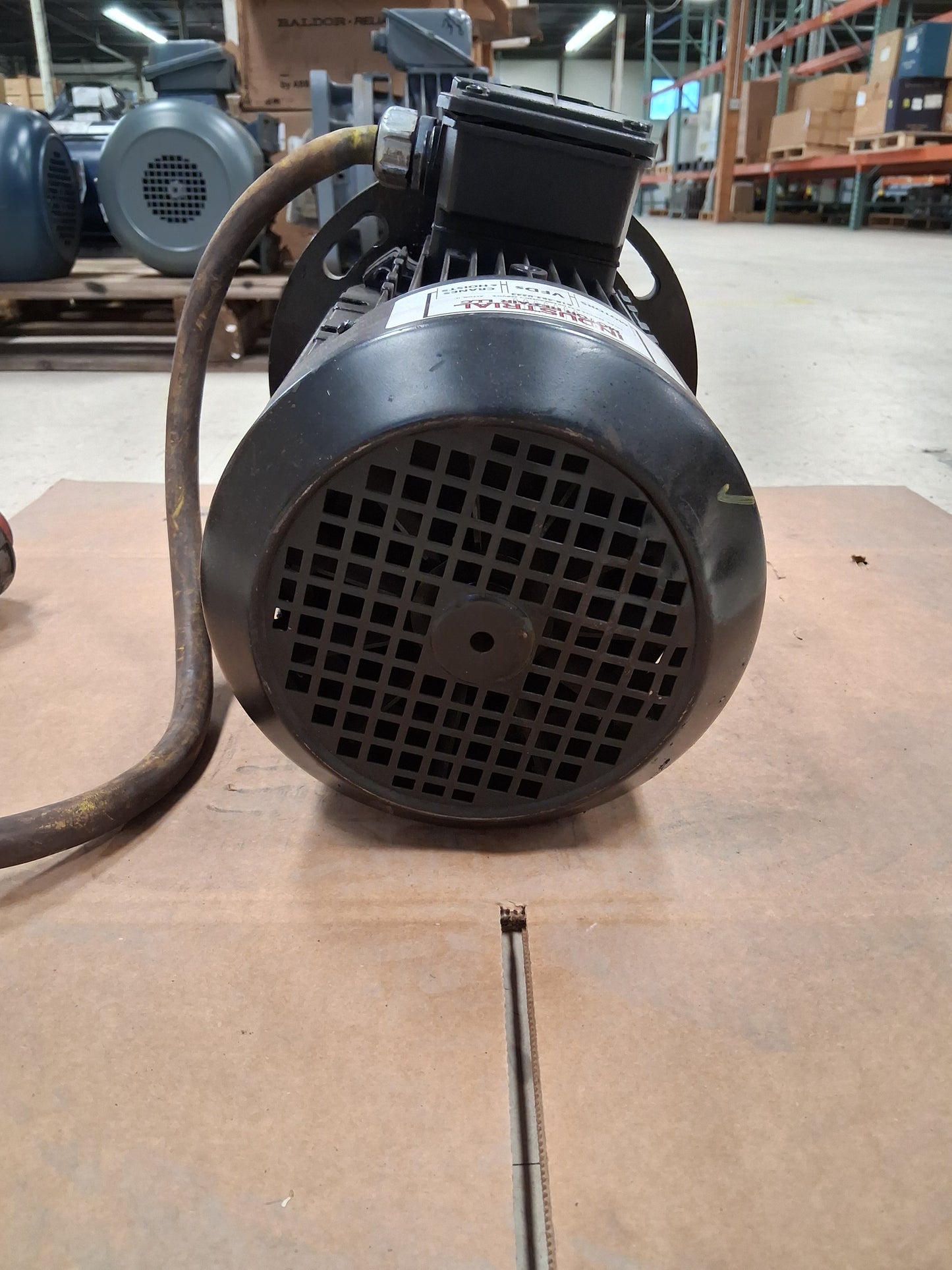

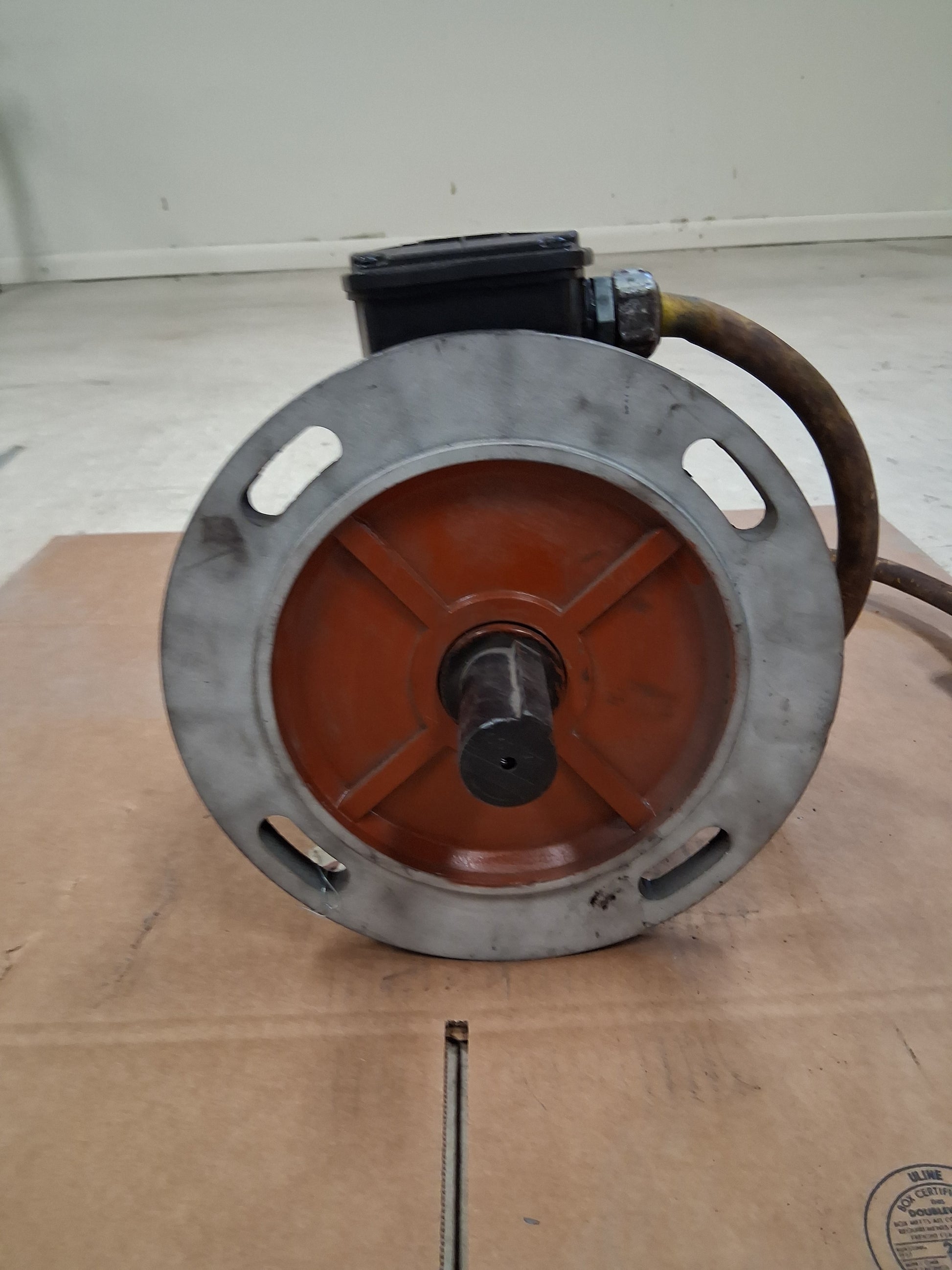

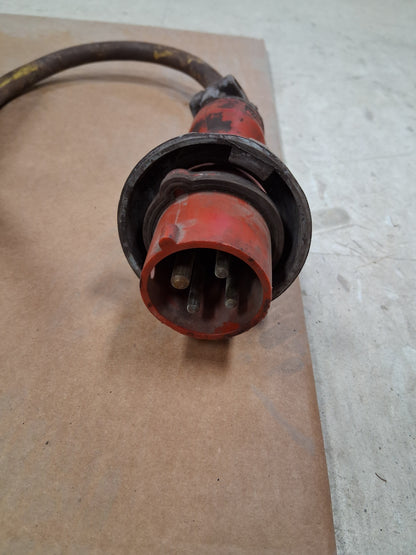

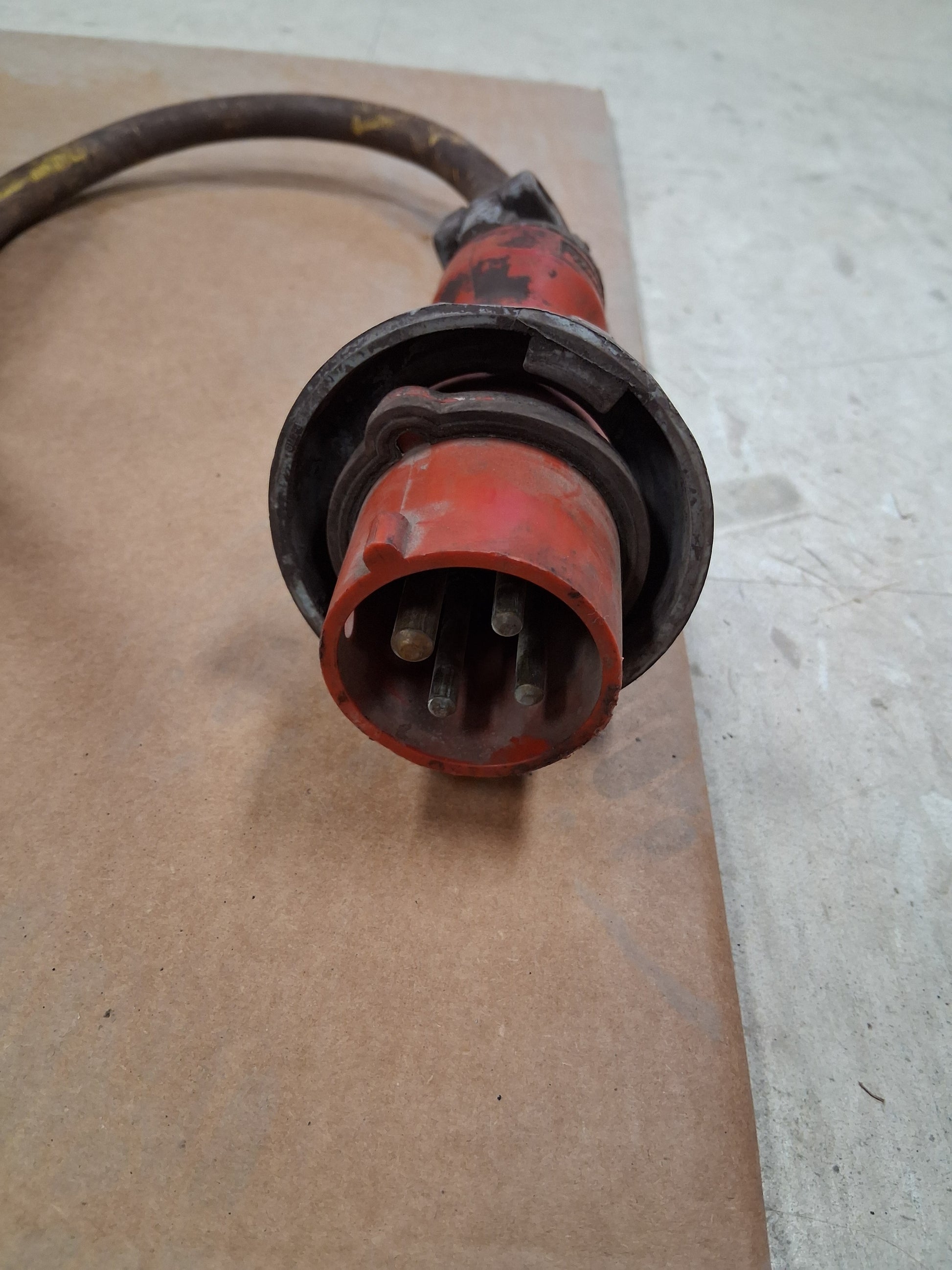

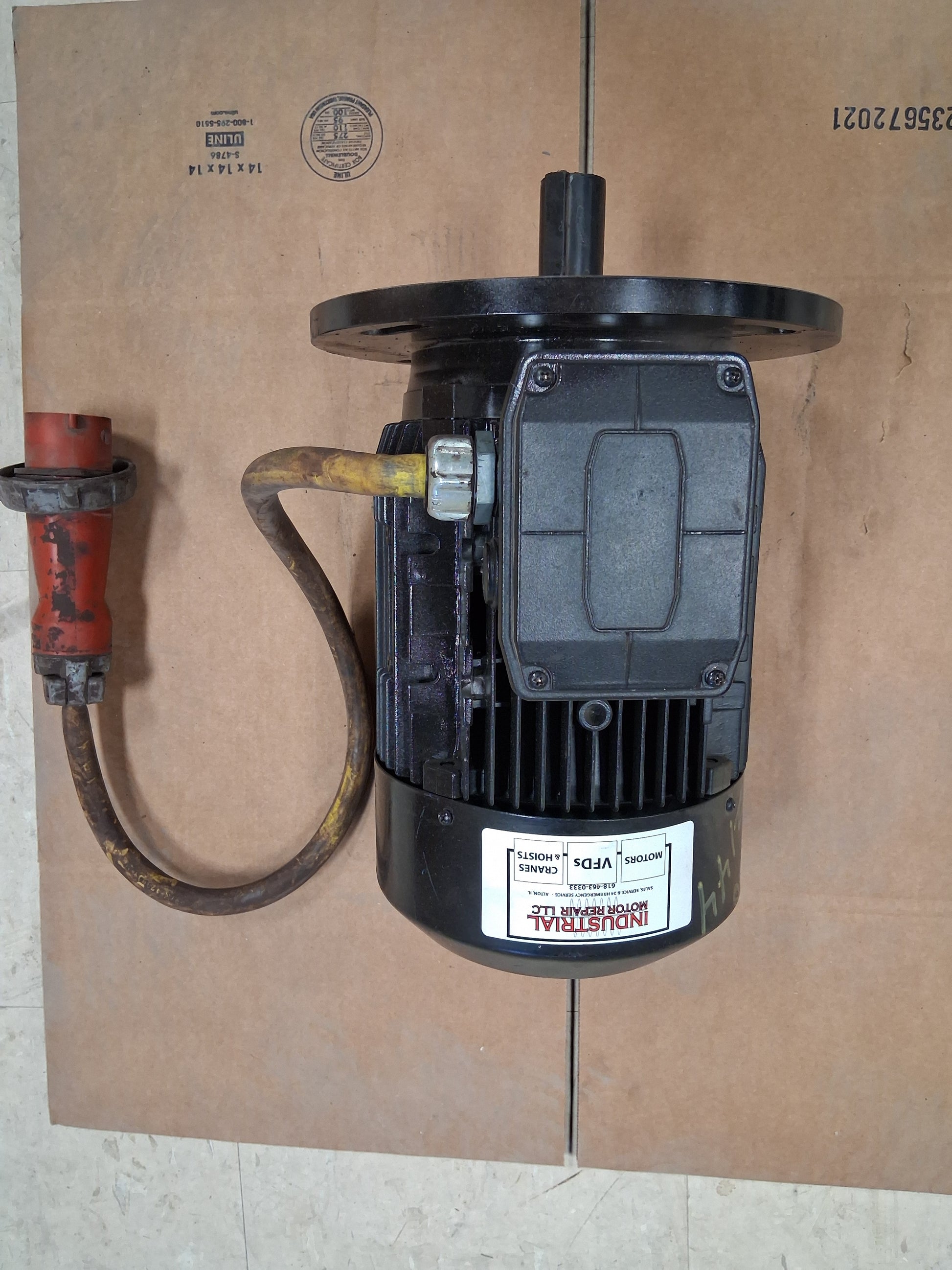

Construction is TEFC (totally enclosed fan cooled) with an IP55 ingress protection rating, Class F thermal insulation with Class B temperature rise, S1 continuous duty rating, and a 40 degree C maximum ambient temperature. The frame is an IEC 100L size with a B5 style mounting flange featuring slotted bolt holes for adjustable positioning. A keyed output shaft is fitted to the drive end. A side mounted terminal box is provided for power and ground connections, and a factory installed power lead with a multi pin industrial connector is attached.
This 8 pole low speed configuration is commonly used in applications requiring high torque at reduced shaft speeds, including conveyor drives, mixers, agitators, fan and blower service, gearmotor pairings, and OEM machinery integration. The metric IEC frame and B5 flange interface support installation into systems originally specified for European motor standards.
Stock # 0526-02297
