Lapp Hook-Up Wire 4510143 18 AWG, 1 mm2, 100 m
Lapp Hook-Up Wire 4510143 18 AWG, 1 mm2, 100 m
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 4510143
Stock #: 0326-01071

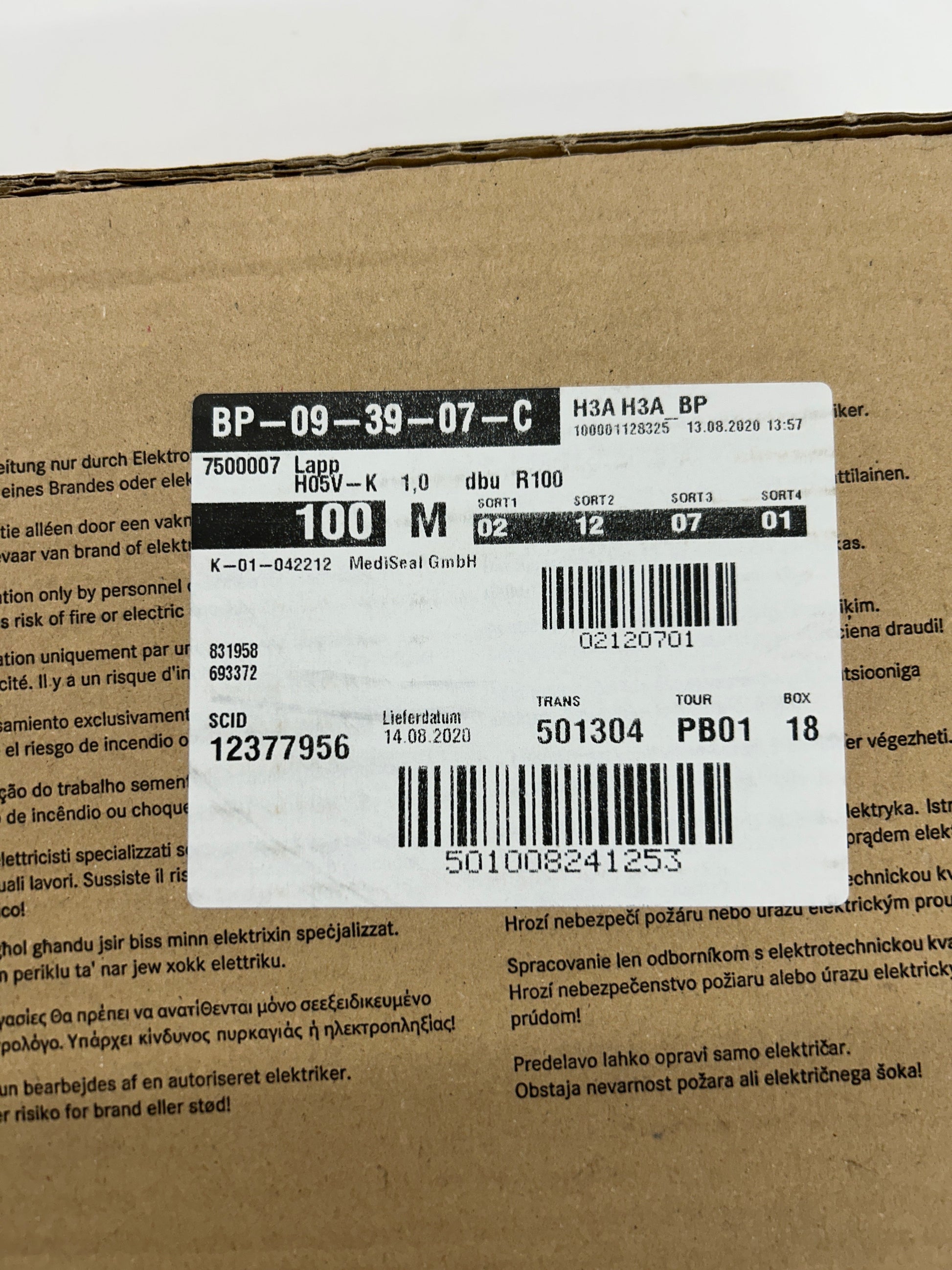

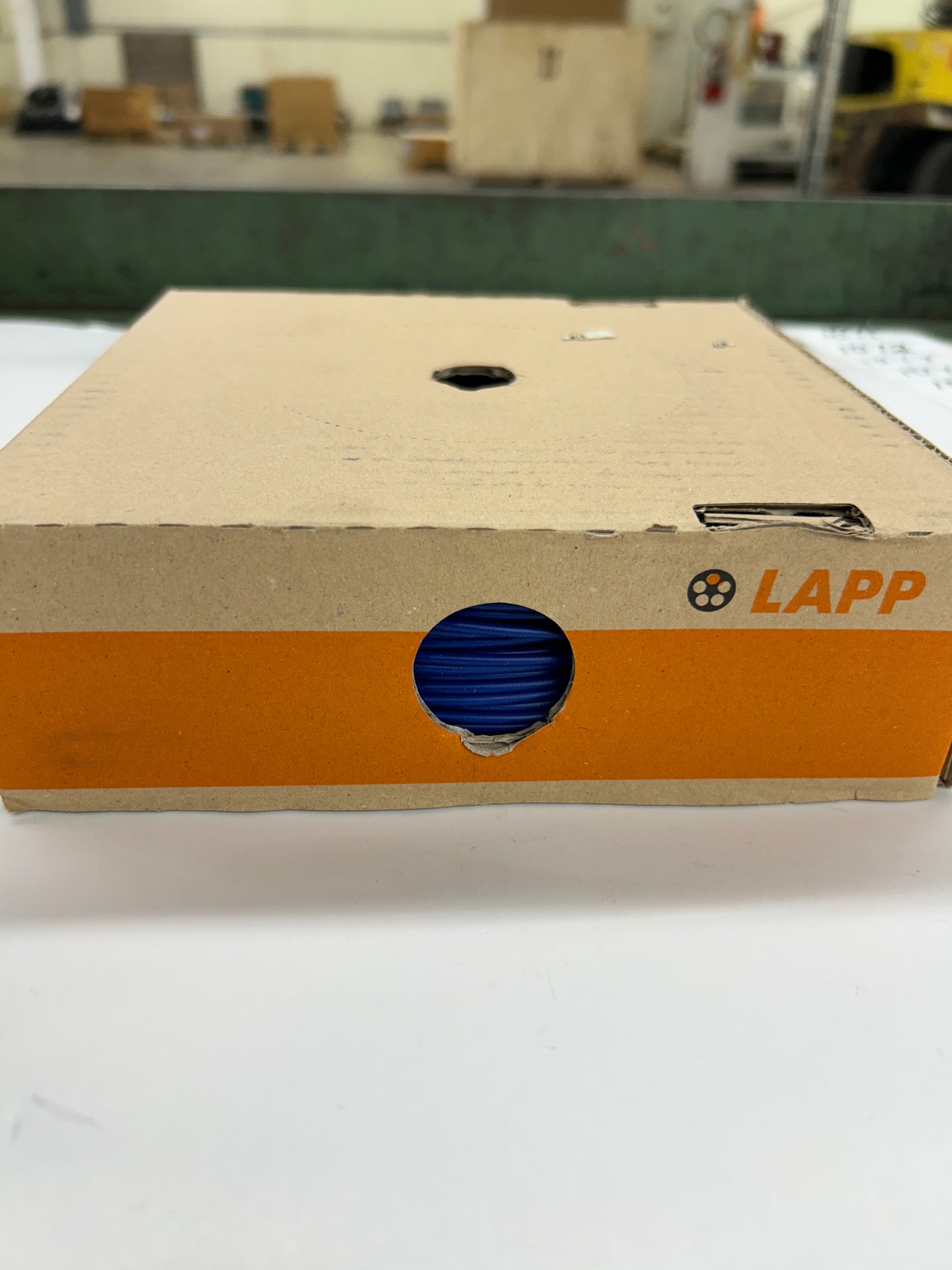

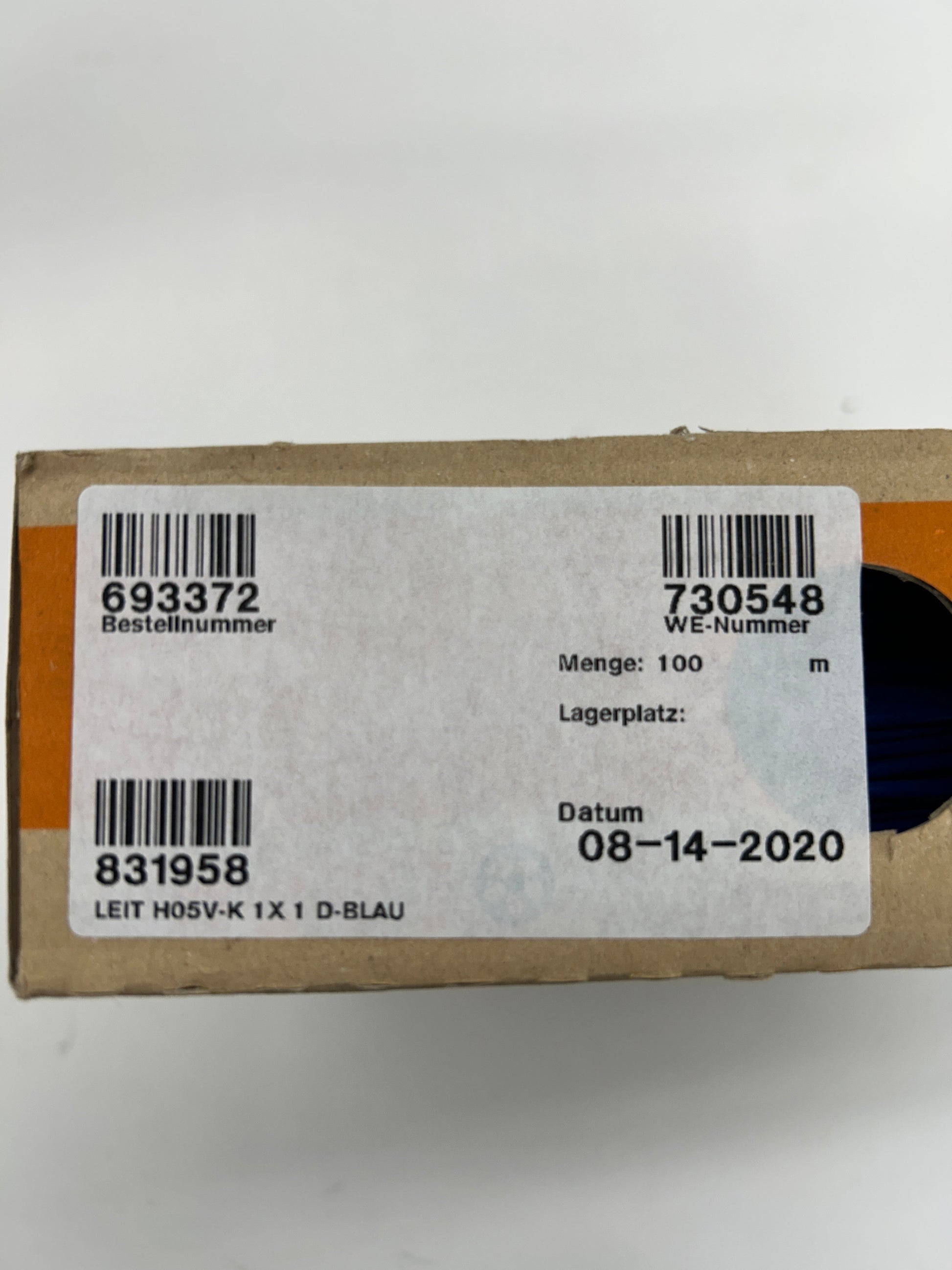

Lapp part number 4510143 is a single-core H05V-K HAR-certified hook-up wire, supplied in a 100-meter cardboard dispenser box. The conductor is a fine-stranded bare copper construction per IEC 60228 Class 5, with a cross-sectional area of 1.0 mm2 (approximately 18 AWG) and PVC-based insulation in dark blue. Rated at 300/500 V (U0/U), the wire carries a nominal test voltage of 2000 V and is rated for a temperature range of up to 80 degrees C in fixed installation. The outer diameter measures 2.4 to 2.8 mm. This wire type is certified to EN 50525-2-31 and carries the European HAR mark, making it suitable for use in European equipment and machinery as well as for panel and control cabinet wiring, internal device wiring, and MRO replacement applications. Fire behavior is rated Eca per the CPR (Construction Products Regulation), and the product is RoHS compliant. The label on the box identifies Article 4510143, Quantity 100 m, Lot C 2020/13213/1, and a BOB date of 16/04/2020. The box is sealed and shows intact original packaging. Lapp Group is a Stuttgart-based manufacturer with a well-established position in the European and global industrial cable market.
Stock # 0326-1071
