Lapp Hook-Up Wire 4520022 2.5 mm2, 14 AWG, 100 m
Lapp Hook-Up Wire 4520022 2.5 mm2, 14 AWG, 100 m
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 4520022
Stock #: 0326-01053

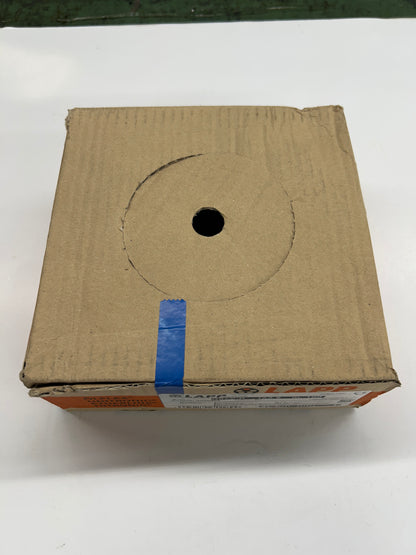

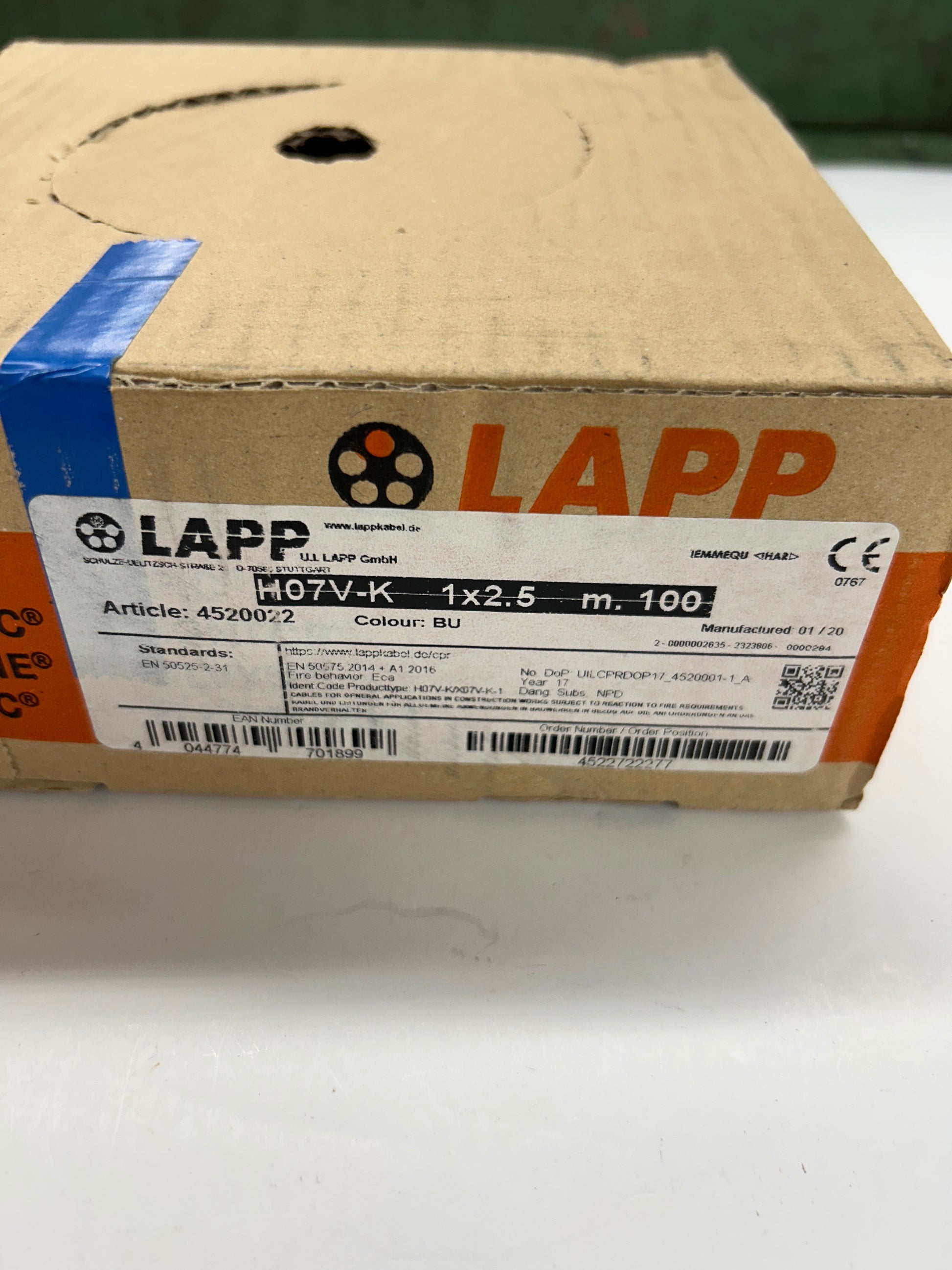

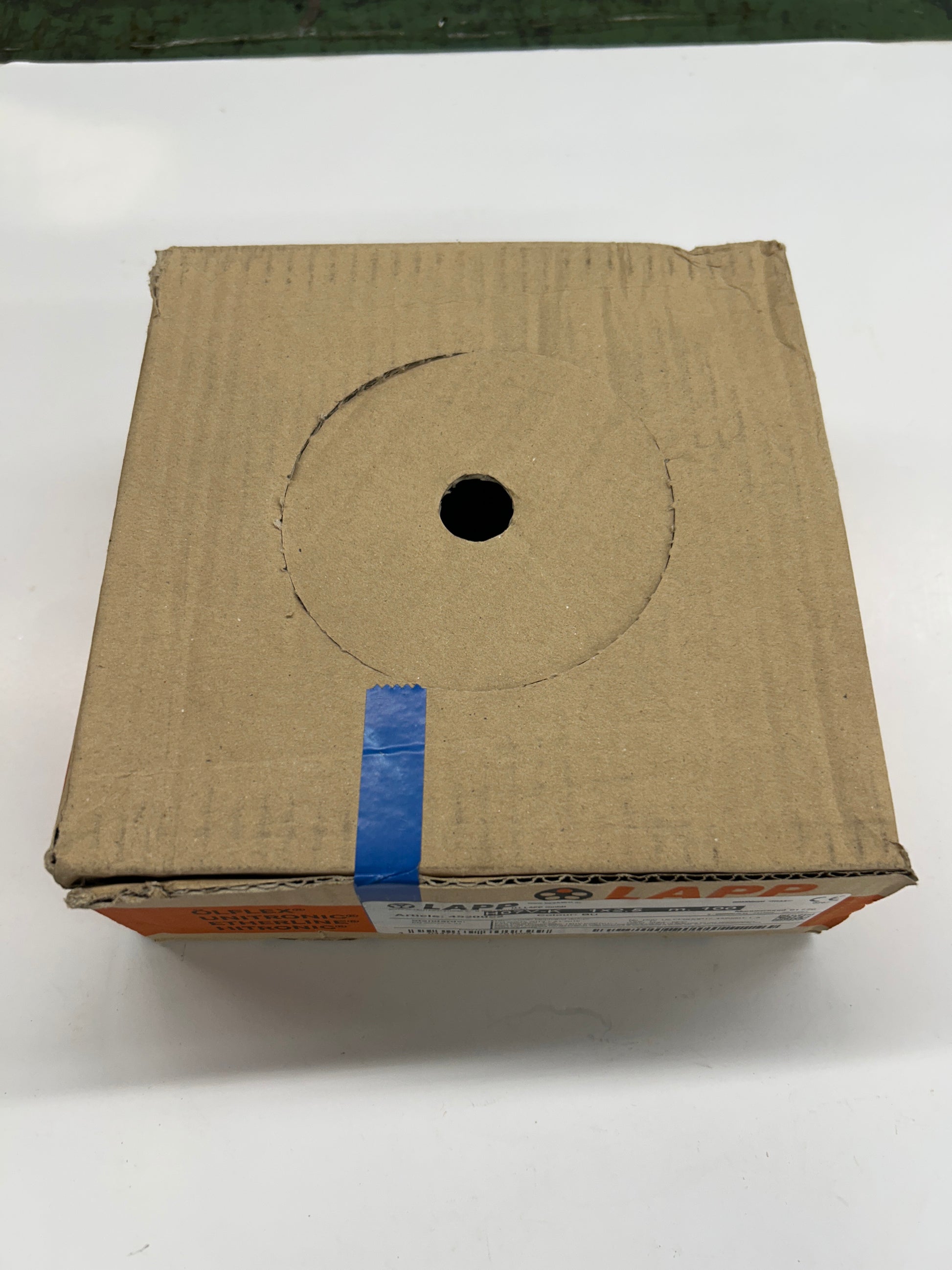

A single core hook up wire from Lapp (U.I. Lapp GmbH), part number 4520022, wound on a 100-meter (328 ft) spool in the original manufacturer cardboard box. Manufactured January 2020 per label. Color is blue (BU). The wire is built to harmonised European type H07V-K, carrying the HAR certification mark per EN 50525-2-31. Conductor cross section is 2.5 mm2 (equivalent to 14 AWG), fine-stranded bare copper per IEC 60228 Class 5. Insulation is flame-retardant PVC rated at 450V/750V (U0/U), with a test voltage of 2.5 kV. Outer diameter ranges from 3.4 to 4.1 mm. Suitable for internal wiring of devices and control cabinets, panel wiring, installation in closed cable ducting, and use in or under plaster in conduit. Minimum bending radius for fixed installation is 4 times the outer diameter. Operating temperature range is -40 degrees C to +80 degrees C. CE marked. Compliant with fire behavior classification Eca per EU Construction Products Regulation. Article number 4520022 is consistent across Lapp's published documentation and active distributor listings. Spool is in original Lapp branded cardboard dispenser box with pull-through hole in top.
Stock # 0326-1053
