WEG M08H-45763 Inverter Duty Motor 100 HP 1800 RPM
WEG M08H-45763 Inverter Duty Motor 100 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

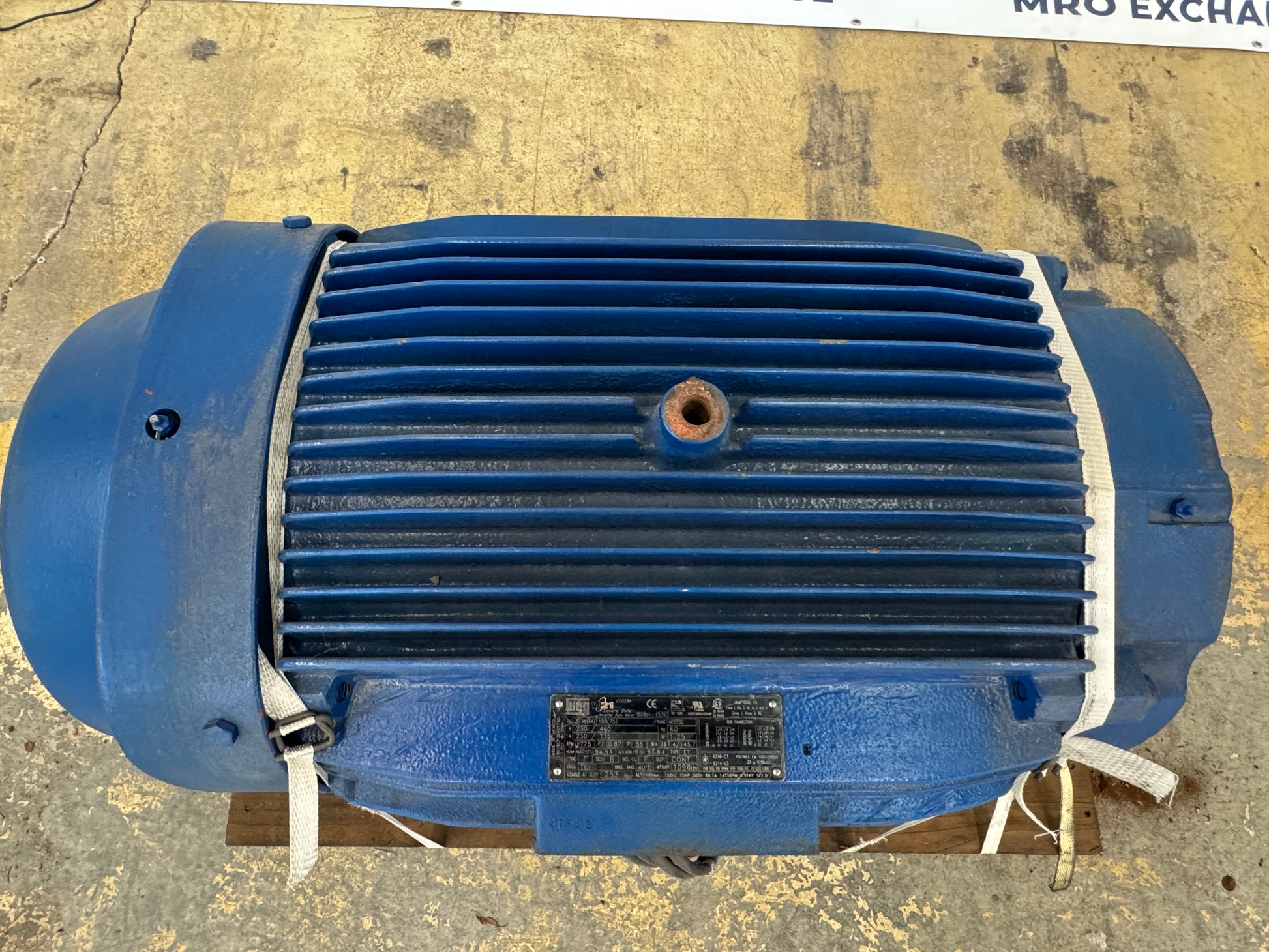

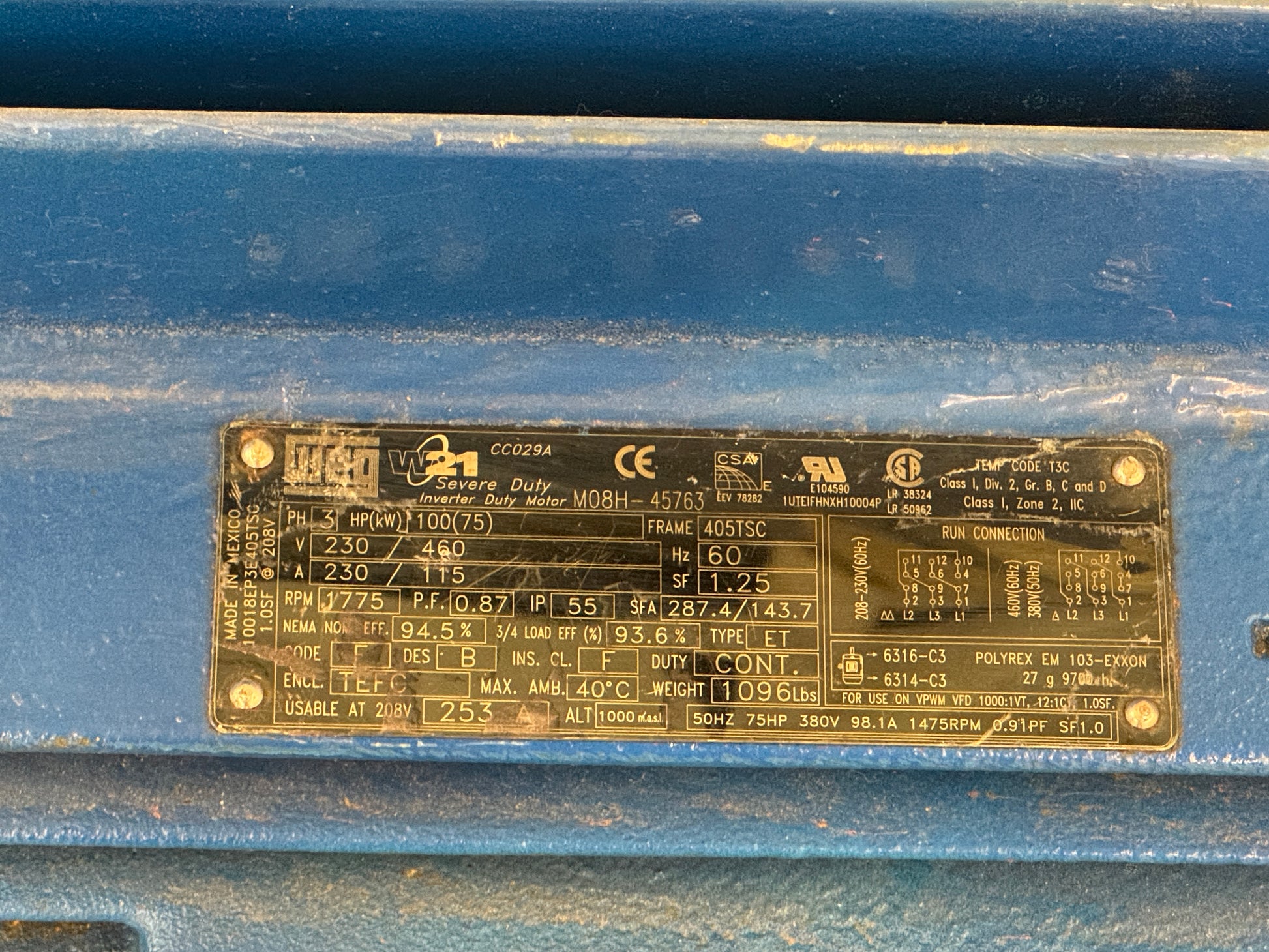

The WEG M08H-45763 is a W21 severe duty inverter duty AC motor rated at 100 HP (75 kW), 1775 RPM, with a 405TSC frame and TEFC enclosure. Catalog identifier CC029A appears on the nameplate. Built for three phase operation at 230/460V, 60 Hz, with full load amperage of 230/115 A and a service factor of 1.25. The unit carries CSA and CE certification and is rated Class I, Division 2, Groups B, C, and D, as well as Class I, Zone 2, IIC, with temperature code T3C. NEMA nominal efficiency is 94.5% at full load and 93.6% at 3/4 load. Power factor is 0.87. IP55 ingress protection and Class F insulation are standard. The motor is designated NEMA Design B, Code F, Duty CONT, with a maximum ambient rating of 40 degrees C. Run connection wiring diagrams are provided on the nameplate for 208 to 230V at 60 Hz, 460V at 60 Hz, and 380V at 50 Hz operation. Bearings are listed as 6316 C3 on the drive end and 6314 C3 on the opposite end, lubricated with Polyrex EM 103 EXXON grease, 27 g, 9700 hours. The motor is usable at 208V drawing 253 A and is rated for VPWM VFD operation at 1000:1 VT, 12:1 CT, 1.0 SF. At 50 Hz the rating is 75 HP, 380V, 98.1 A, 1475 RPM, 0.91 PF, SF 1.0. Nameplate weight is 1096 lbs. Made in Mexico, plate code 10018EP3E405TSC 1.0SF 208V.
Stock # 0226-088
