Lenze Frequency Inverter I55AE125B1A010002S 230/240V AC
Lenze Frequency Inverter I55AE125B1A010002S 230/240V AC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

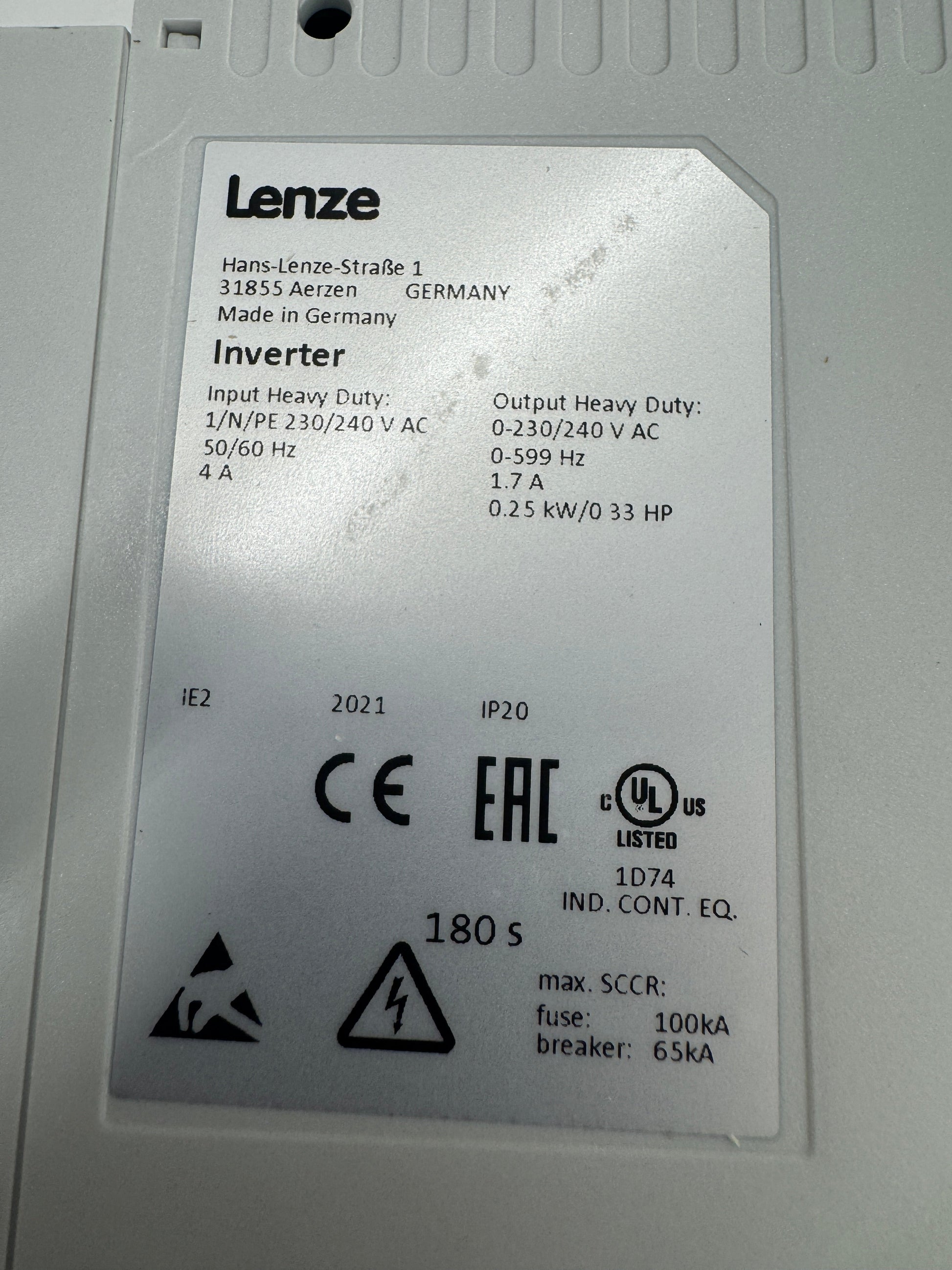

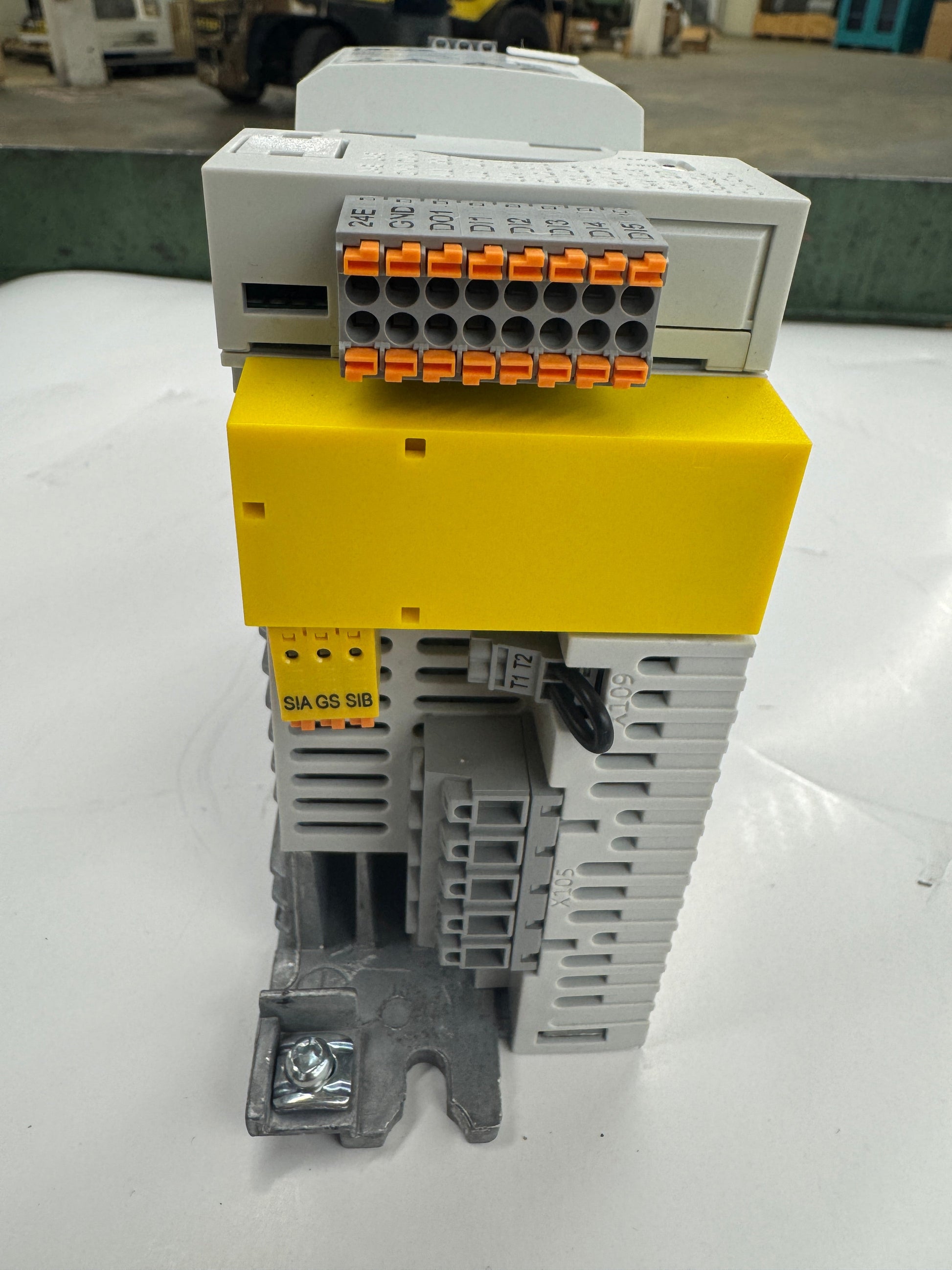

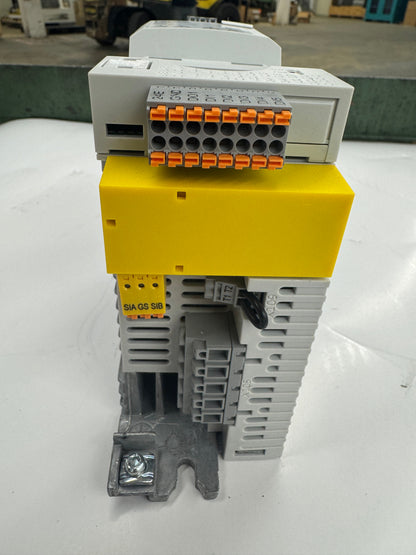

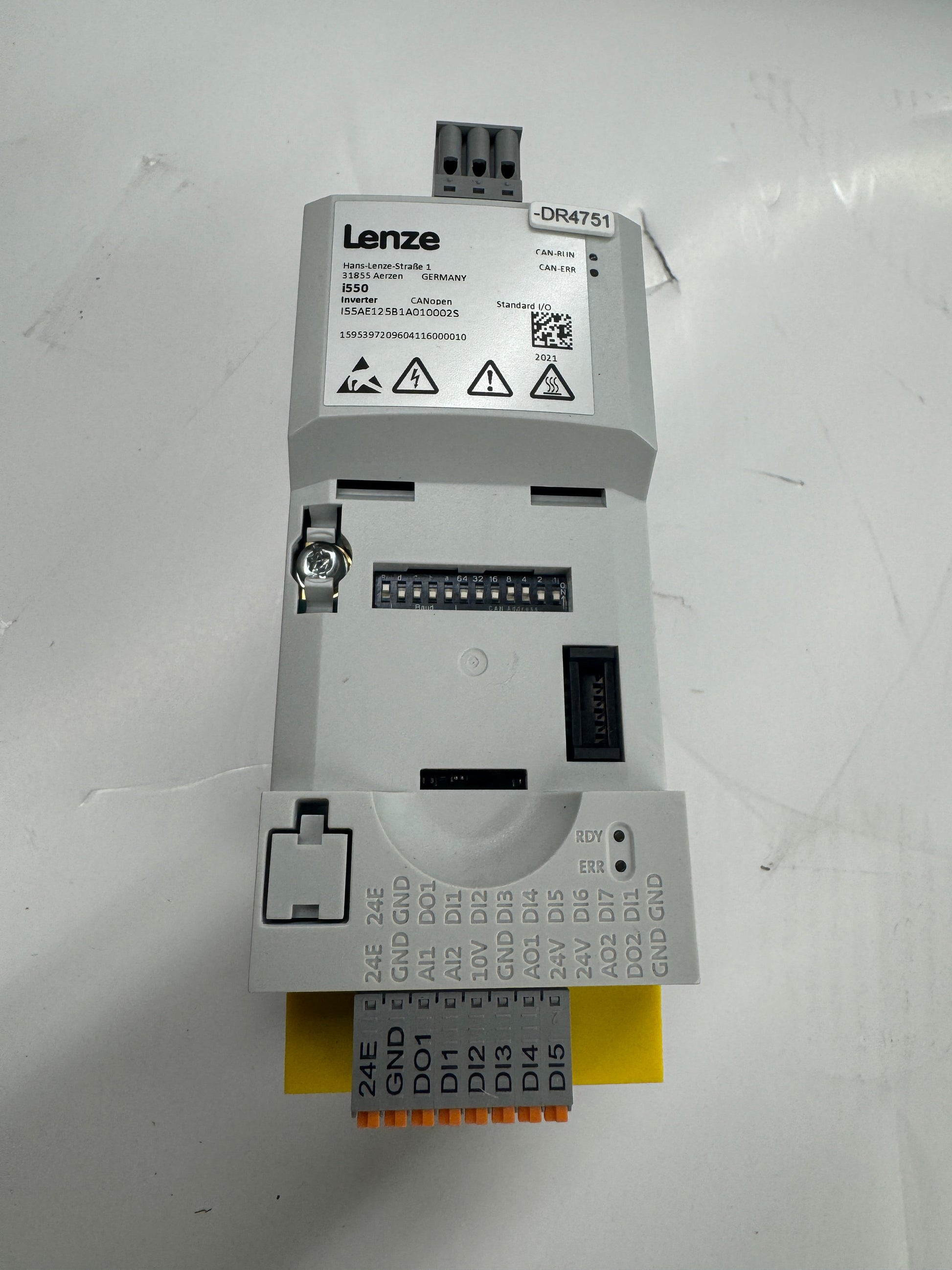

The Lenze i550 is a compact cabinet frequency inverter rated at 0.25 kW / 0.33 HP with a single-phase input of 1/N/PE 230/240V AC at 50/60 Hz and 4 A. Output is 0 to 230/240V AC, 0 to 599 Hz, 1.7 A. The unit carries MPN I55AE125B1A010002S and was manufactured in Germany in 2021. Enclosure rating is IP20, efficiency class IE2, with UL listing for industrial control equipment (1D74). The i550 series uses a modular architecture separating the power unit and control unit, allowing scalable I/O and communication configurations. This unit includes Standard I/O with CANopen fieldbus communication, as confirmed by the i550 label and visible control unit markings. The control unit face shows CAN-RIIN and CAN-ERR indicator LEDs along with RDV and ERR status outputs. Standard I/O terminals are broken out on the lower plug-in connector block, with digital inputs DI1 through DI7, digital outputs DO1 and DO2, analog input AI1 and AI2, analog output AO1, and 24V supply points. An integrated yellow safety module cover is present on the unit. The drive is designed for DIN rail or panel mounting and is suited for conveyor systems, packaging machinery, pump and fan applications, and other variable-speed motor control tasks. Max SCCR: fuse 100 kA, breaker 65 kA. The 180-second capacitor discharge warning label is visible on the nameplate.
Stock # 0326-1105
