Lenze Inverter I55AE125B1A010002S 230/240V AC
Lenze Inverter I55AE125B1A010002S 230/240V AC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

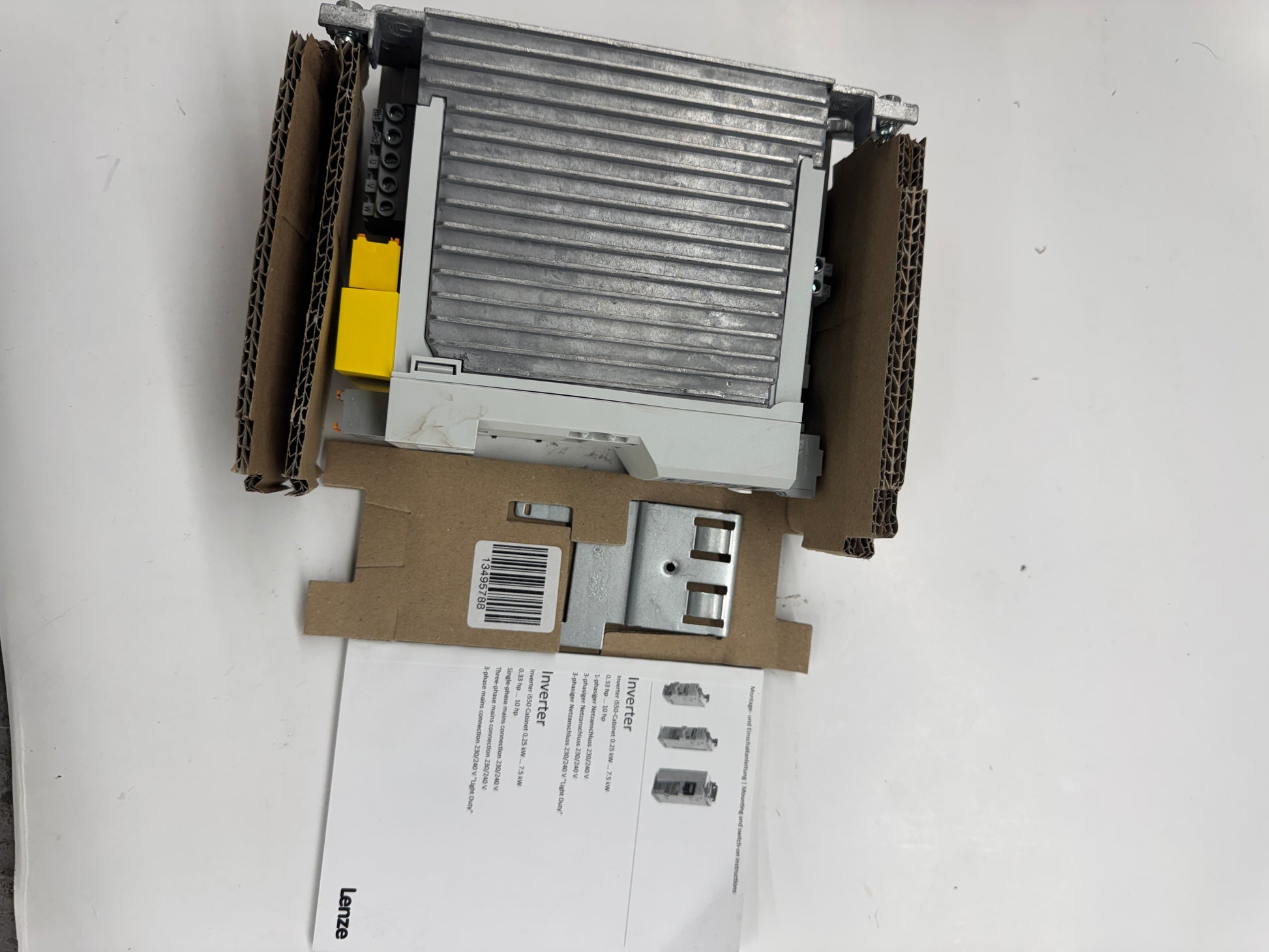

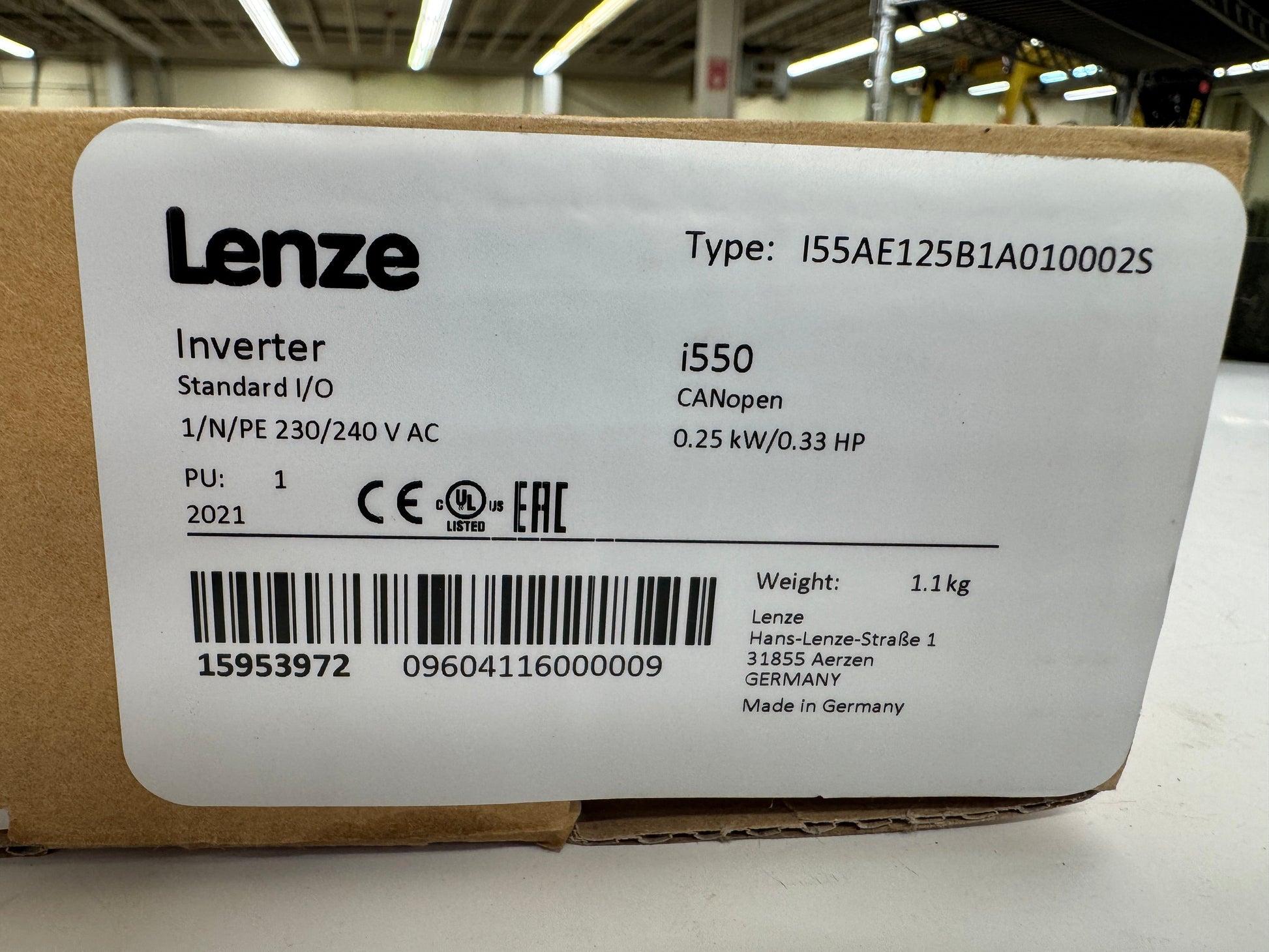

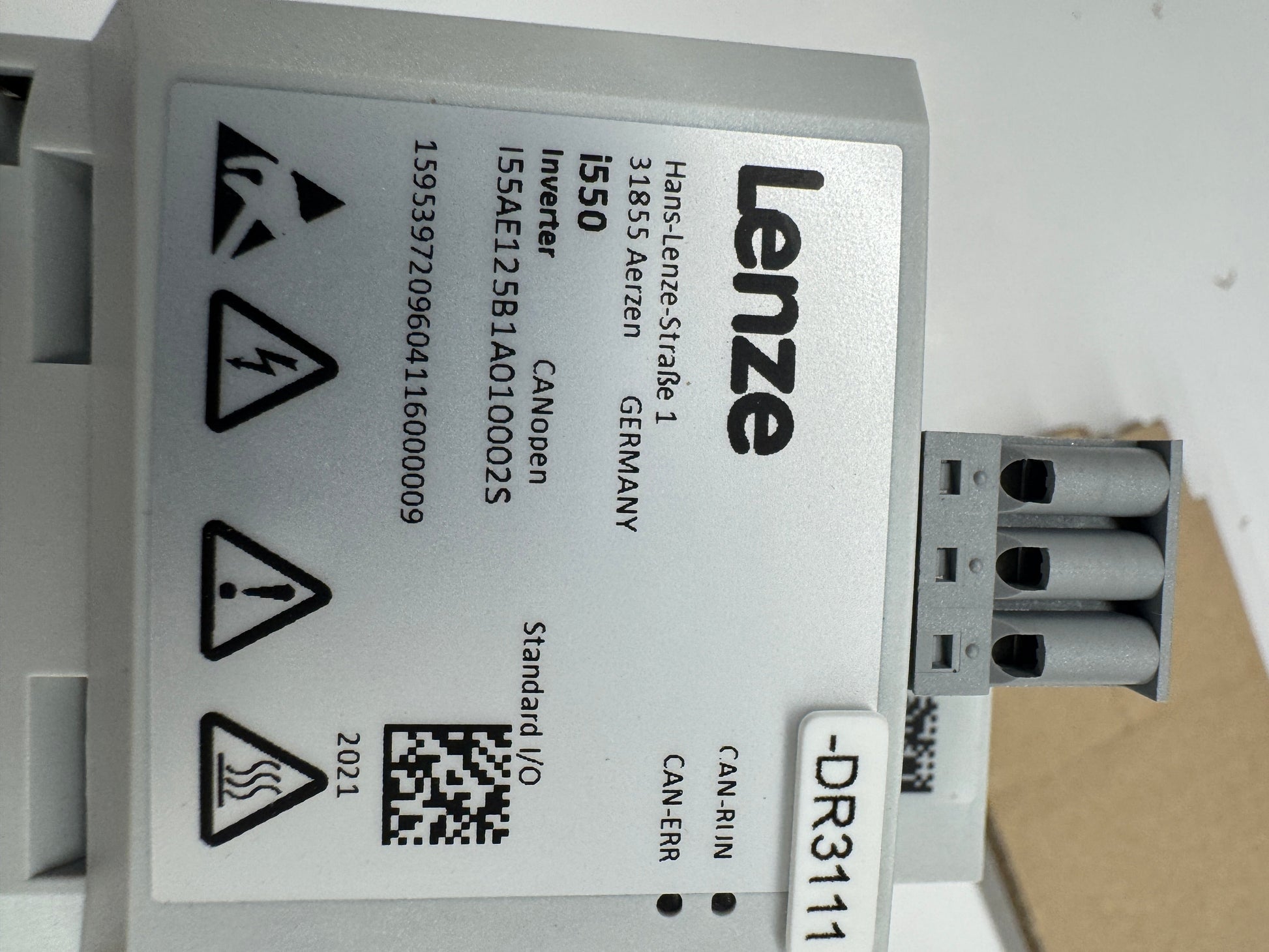

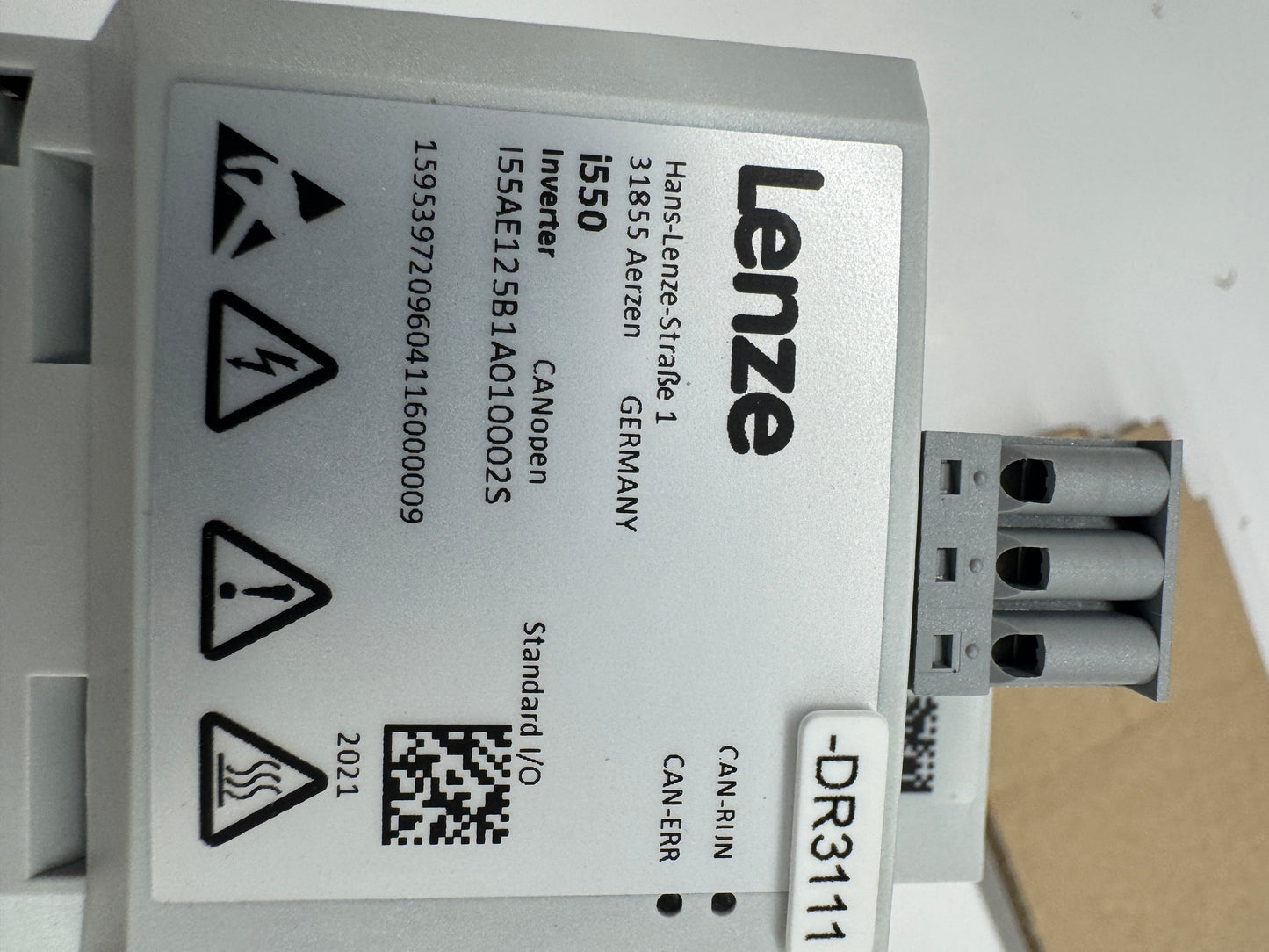

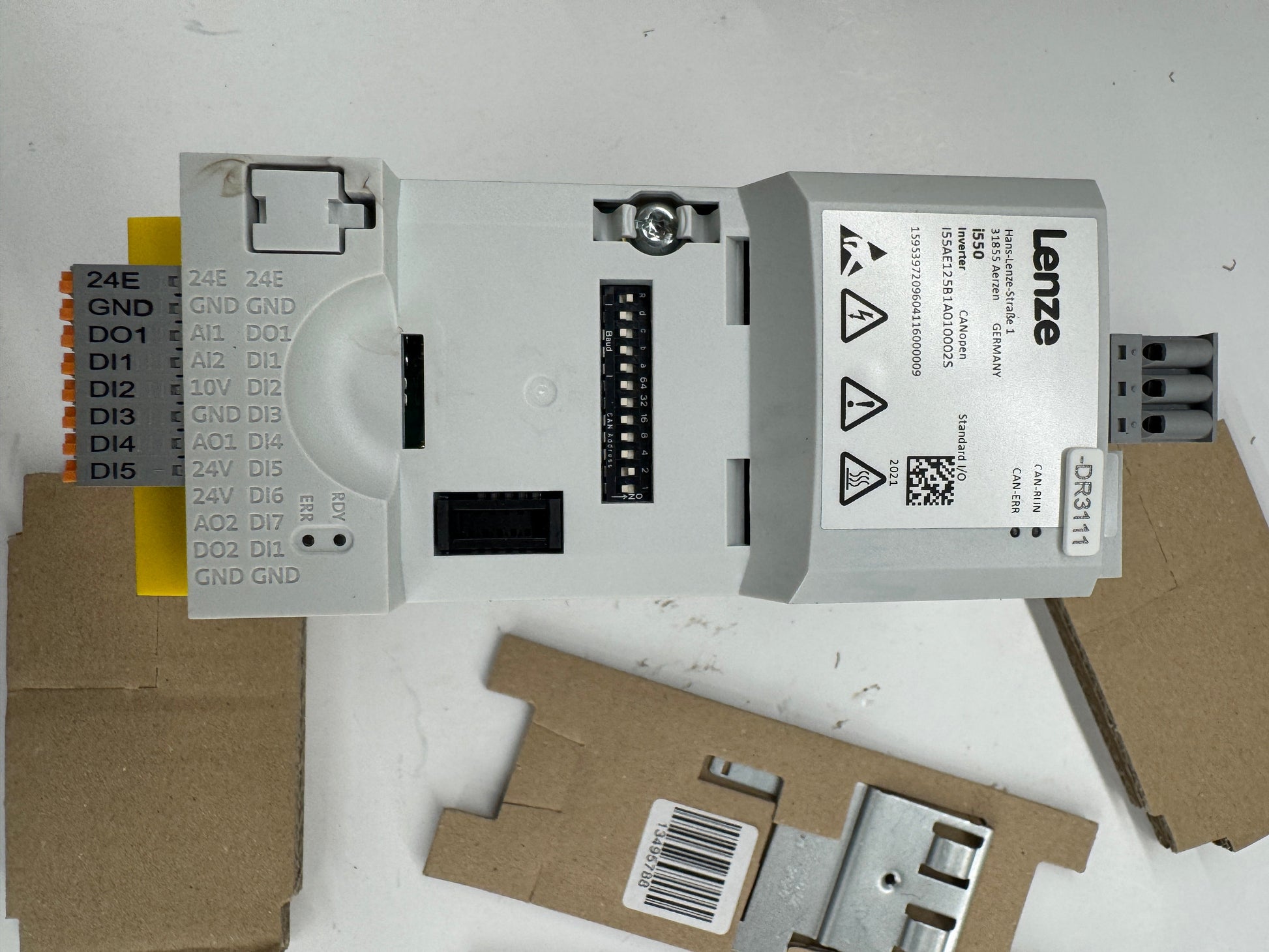

The Lenze i550 is a compact single-phase input frequency inverter rated at 0.25 kW / 0.33 HP with an input voltage of 1/N/PE 230/240V AC and an output of 3-phase 0 to 230/240V AC. Part number I55AE125B1A010002S, this unit carries the i550 cabinet series designation and is configured with Standard I/O and integrated CANopen fieldbus communication. The CANopen interface supports node address and baud rate configuration via onboard DIP switch, with CAN-RUN and CAN-ERR indicator LEDs visible on the unit nameplate. Standard I/O includes digital inputs DI1 through DI5, digital outputs DO1 and DO2, analog inputs AI1 and AI2, analog outputs AO1 and AO2, and 24V supply terminals. The unit is IP20 rated and designed for DIN-rail or panel mounting in a control cabinet. Certifications visible on the box label include CE, cULus Listed, and EAC. Manufactured in Germany, date code 2021, serial number 09604116000009. Barcode 15953972 is present on the original outer carton. The i550 series is designed for use in conveyor drives, traveling drives, pump and fan applications, winding, and hoist drives across a power range starting at 0.25 kW. The unit ships with its original cardboard packaging, DIN-rail mounting bracket, and what appears to be a printed quickstart guide.
Stock # 0326-1074
