Lenze Servo Motor Power Cable 1-000000-03357 7 m, 4x1.5 + 2x2x0.75 mm2, M23 Connector to Flying Leads
Lenze Servo Motor Power Cable 1-000000-03357 7 m, 4x1.5 + 2x2x0.75 mm2, M23 Connector to Flying Leads
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 1-000000-03357
Stock #: 0326-01058

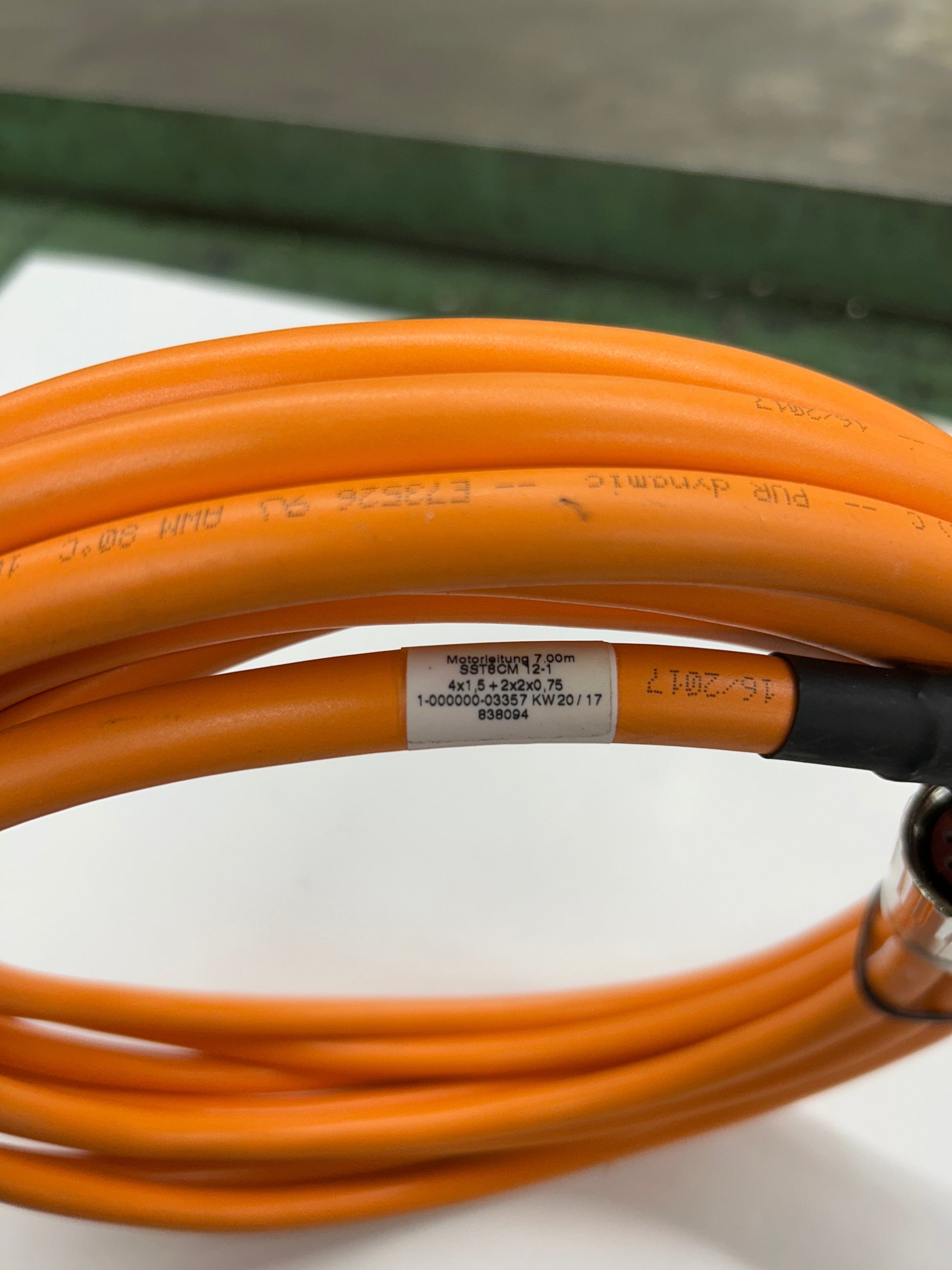

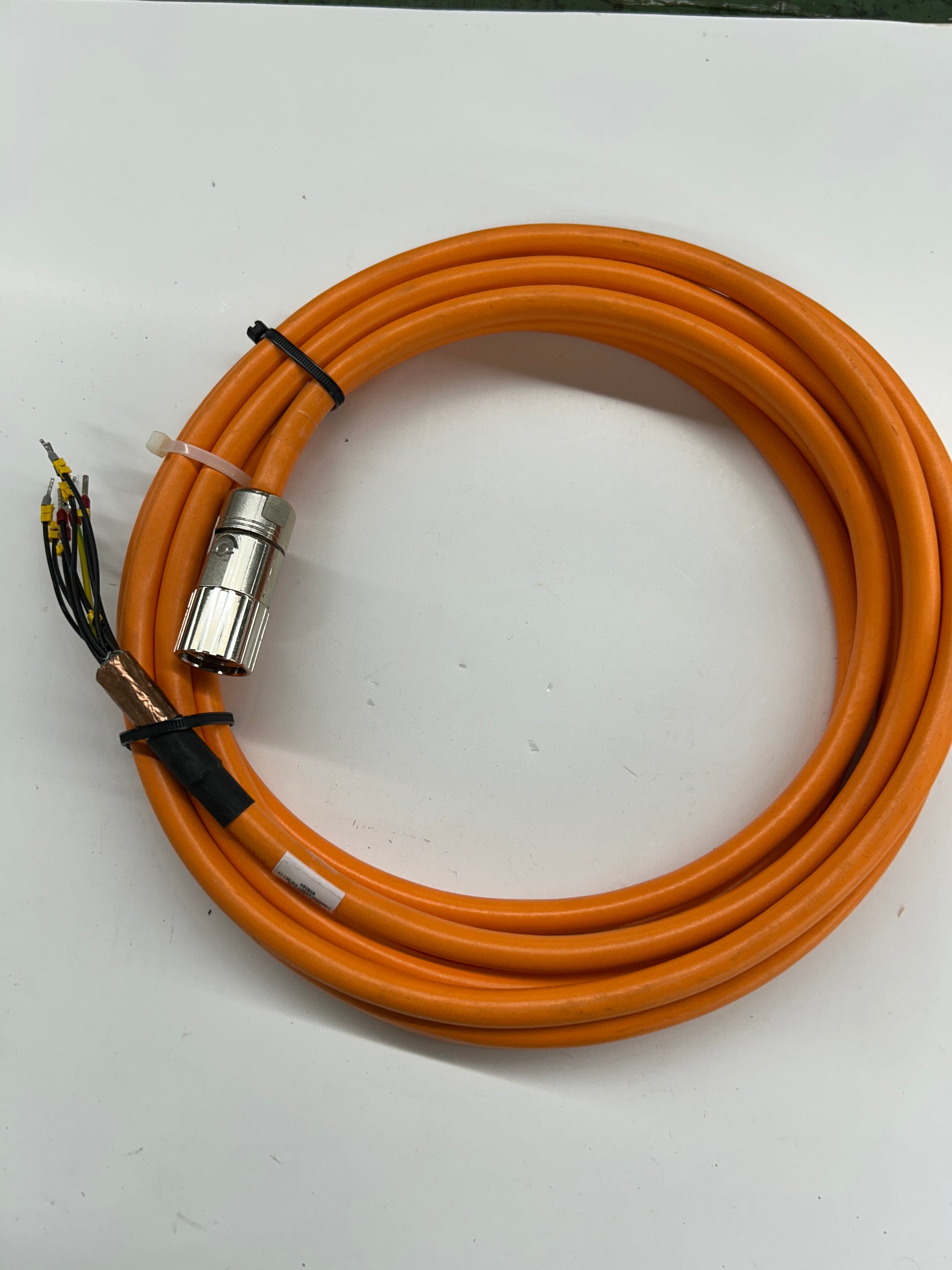

Used in Lenze servo motor drive systems, this factory-assembled motor power cable carries part number 1-000000-03357 and is designated SST6CM 12-1 on the cable label. The cable measures 7.00 meters (approximately 23 feet) in length and features an M23 circular connector at the motor end with a flying lead termination at the drive end, consistent with direct connection to Lenze servo drive cabinets.

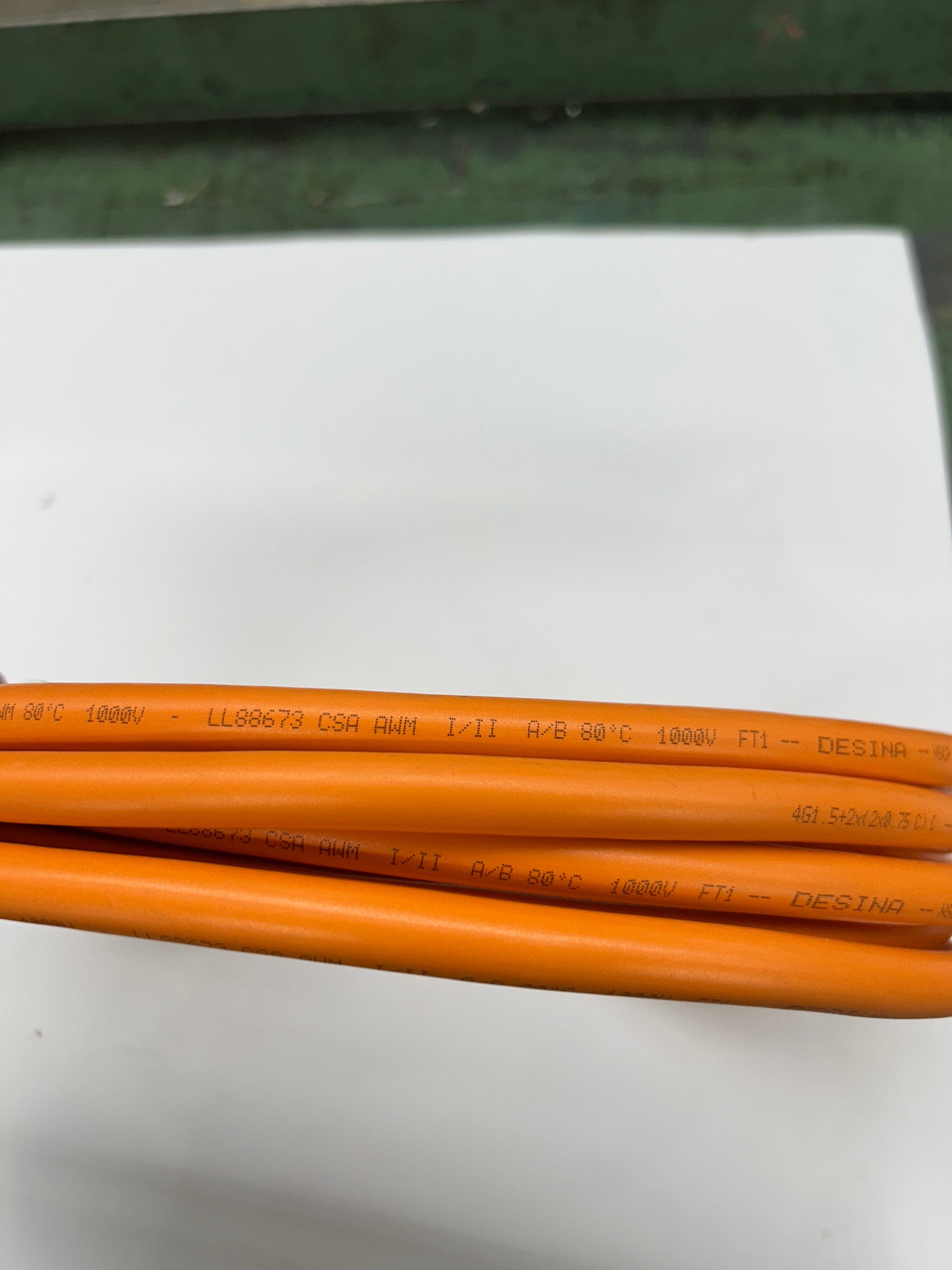

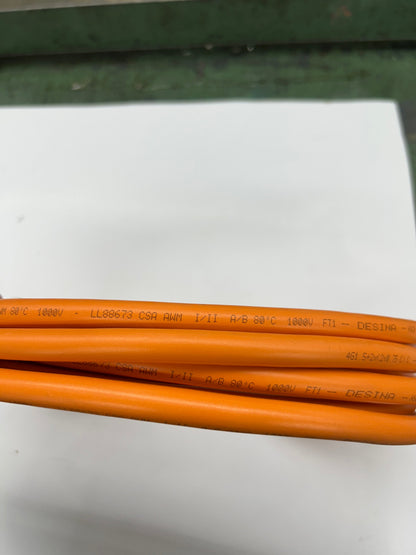

Cable construction is 4x1.5 + 2x2x0.75 mm2, comprising four power conductors at 1.5 mm2 cross-section and two pairs of 0.75 mm2 control or brake conductors. The outer jacket is PUR dynamic grade, designed for use in continuous-flex and drag-chain applications. The cable jacket is printed with the DESINA designation, confirming compliance with the German machine tool industry standardized wiring interface. CSA approval is printed on the jacket (UL File LL88673, CSA AWM I/II A/B), along with a voltage rating of 1000V and temperature rating of 80°C.

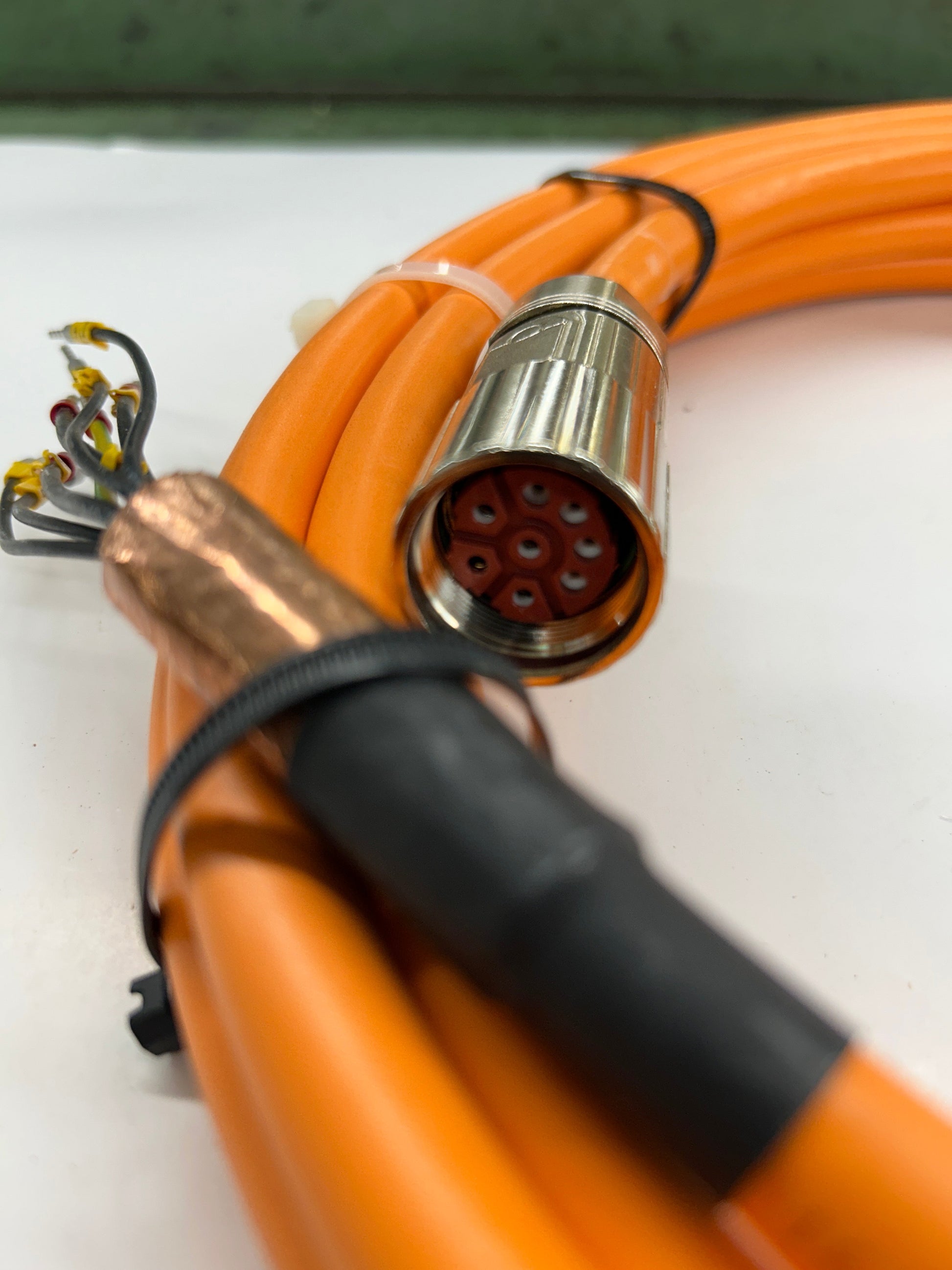

Manufacture date is KW 20/2017 (calendar week 20, year 2017). The M23 connector body is metallic with a threaded coupling ring and a 7-position red insulated insert visible at the face. The cable serial reference 838094 is noted on the label.
This cable is compatible with Lenze MCS and similar series servo motors that use the M23 power connector interface. Conductor cross-sections are suitable for motor frame sizes in the low-to-mid power range.
Stock # 0326-1058
