LH Research Mighty-Mite Power Supply MM23-E0868/115 m00147
LH Research Mighty-Mite Power Supply MM23-E0868/115 m00147
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

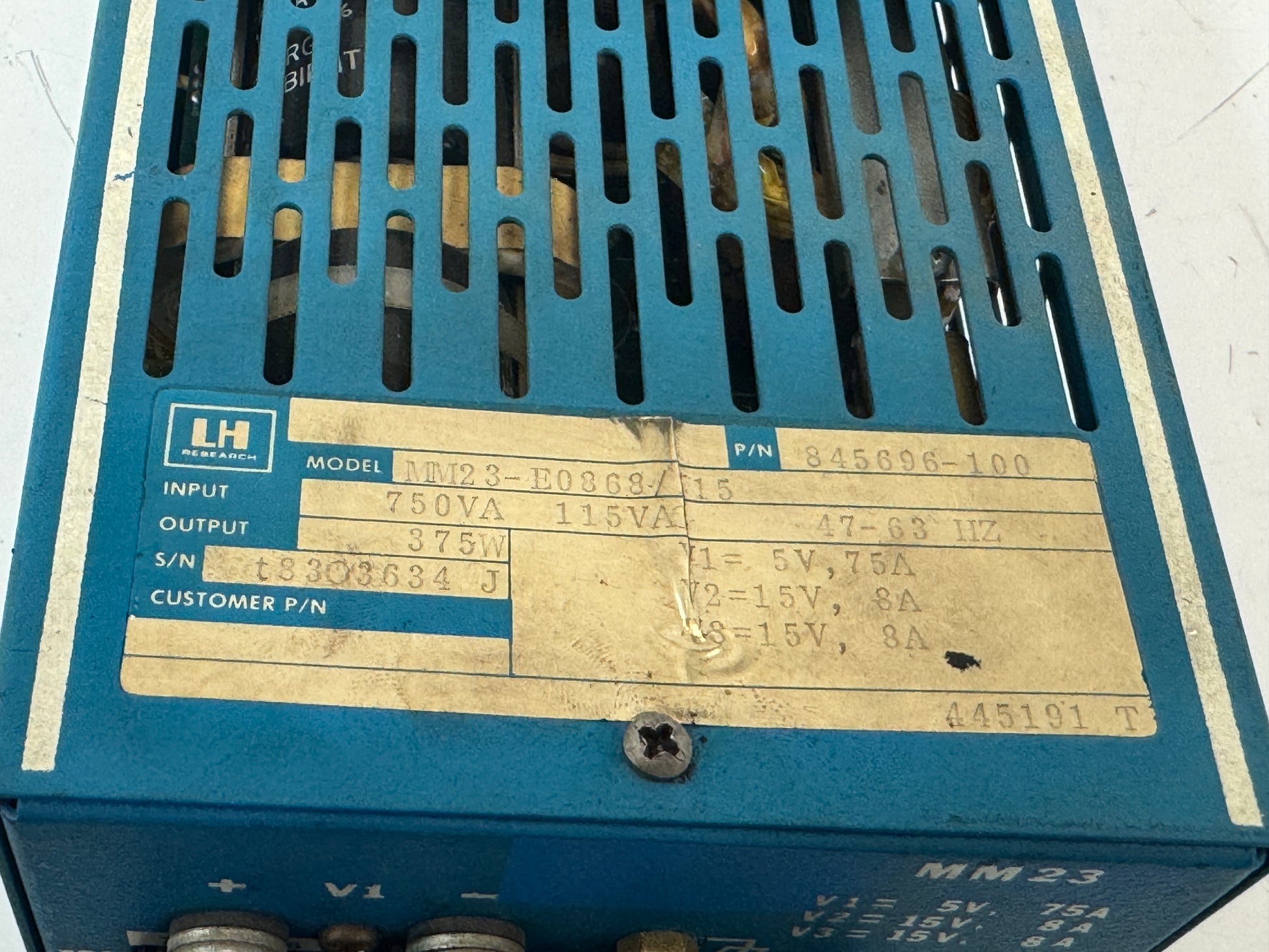

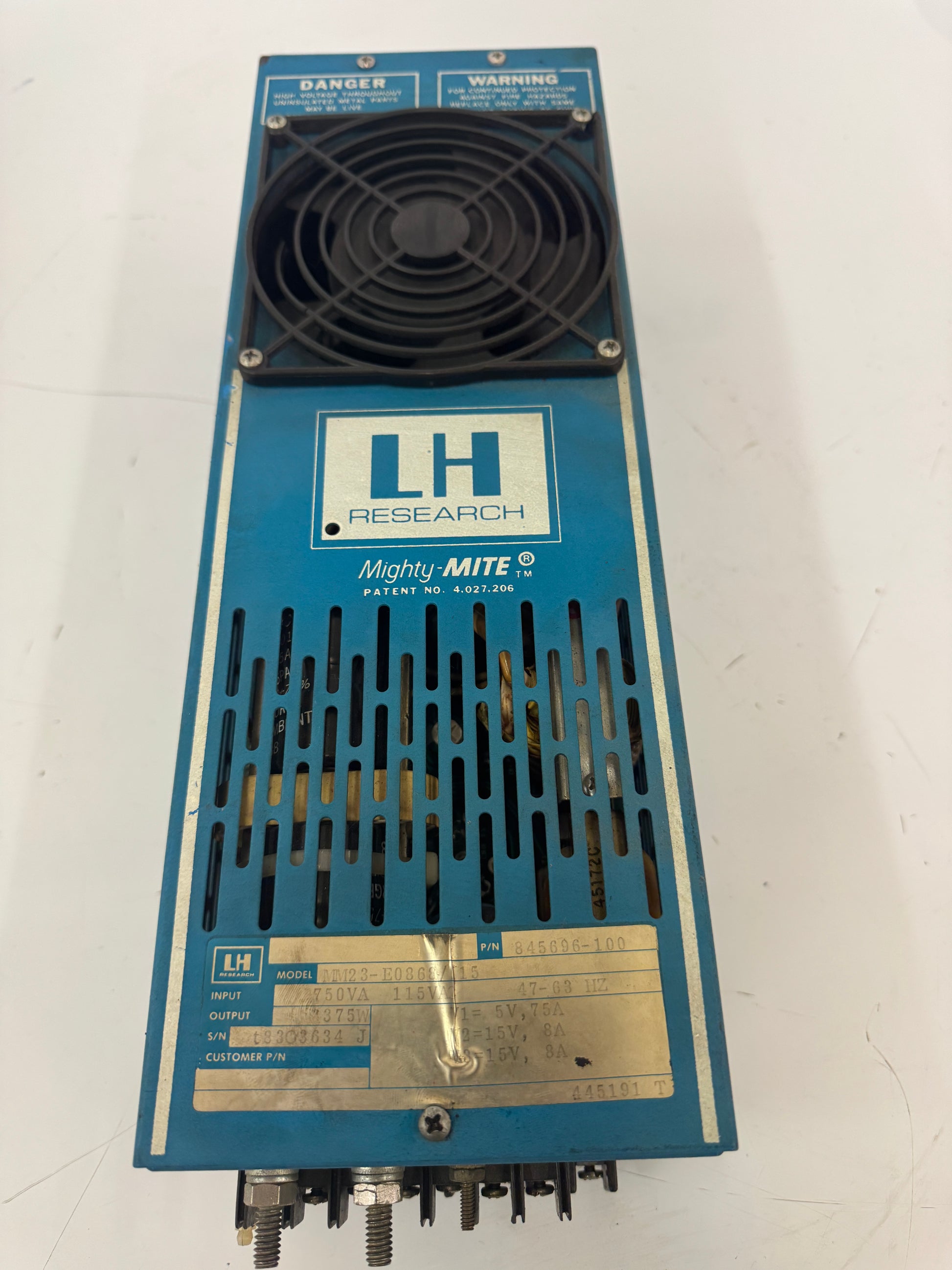

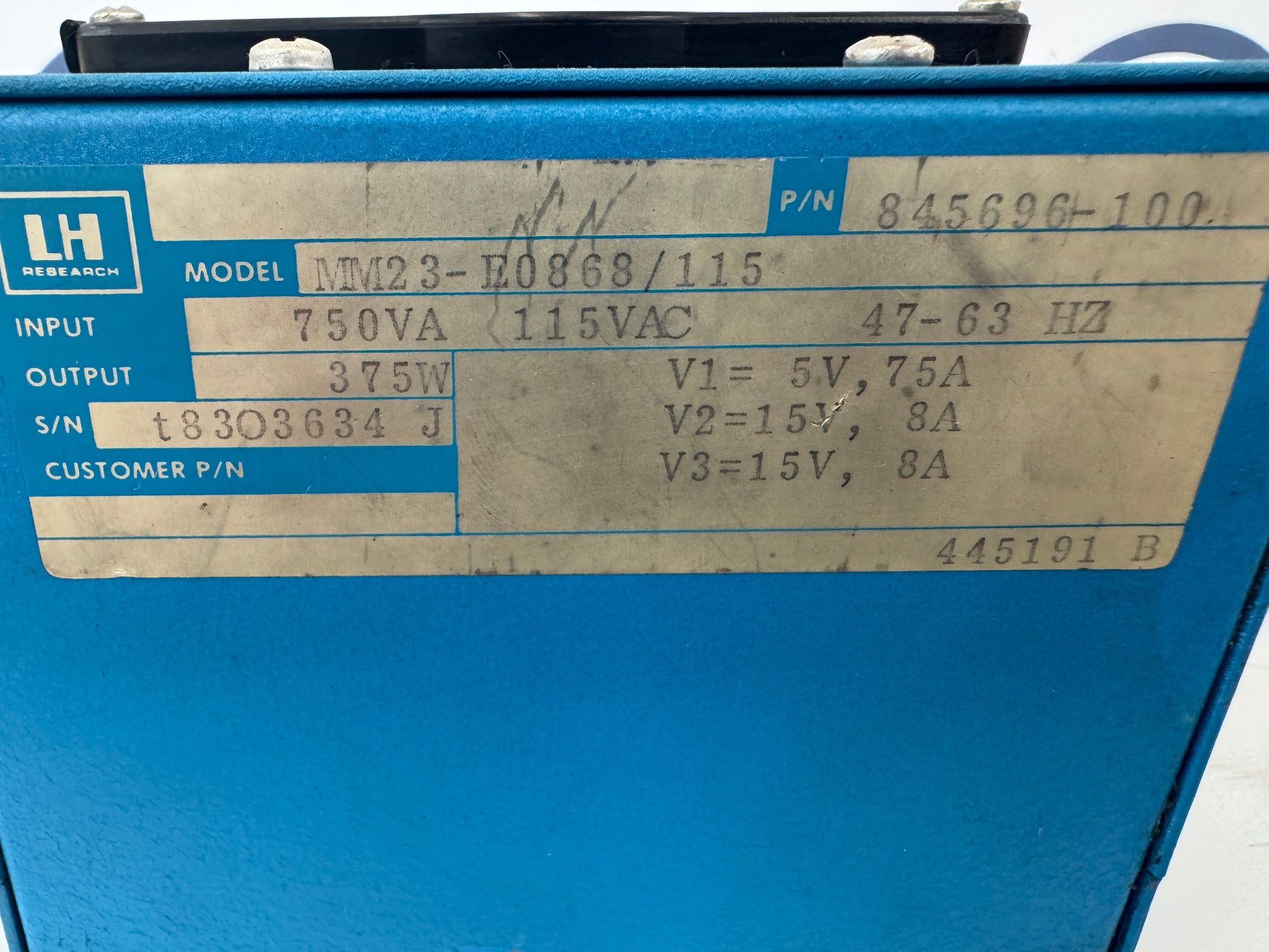

The LH Research MM23-E0868/115 is a Mighty-Mite series switchmode power supply with a part number of 845696-100. This three output unit accepts a 115 VAC, 47 to 63 Hz input rated at 750 VA and delivers 375 W of total output power. Output 1 (V1) is rated at 5 VDC, 7.5 A, and outputs 2 and 3 (V2, V3) are each rated at 15 VDC, 8 A. The serial number on the unit is t8303634 J. Terminal connections are arranged on the front face with labeled studs and a barrier strip for V1, V2, V3, and sense lines (+S1, +S2, S3), along with an I1 limit adjustment. The chassis is a vented blue enameled steel enclosure with an integrated cooling fan mounted to the top panel. LH Research Mighty-Mite supplies are commonly found in CNC controls, industrial automation cabinets, medical electronics, test equipment, and legacy machine tool platforms requiring multi rail low voltage DC. This model has been discontinued by the manufacturer, making it suitable for spare inventory, drop in replacement, or repair stock applications where the original supply is no longer available through factory channels. Mounting flanges and front terminal access remain standard to the MM23 chassis footprint.
Stock # 0226-147
