Marathon AC Motor GT1310A - 3 HP 1800 RPM
Marathon AC Motor GT1310A - 3 HP 1800 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:

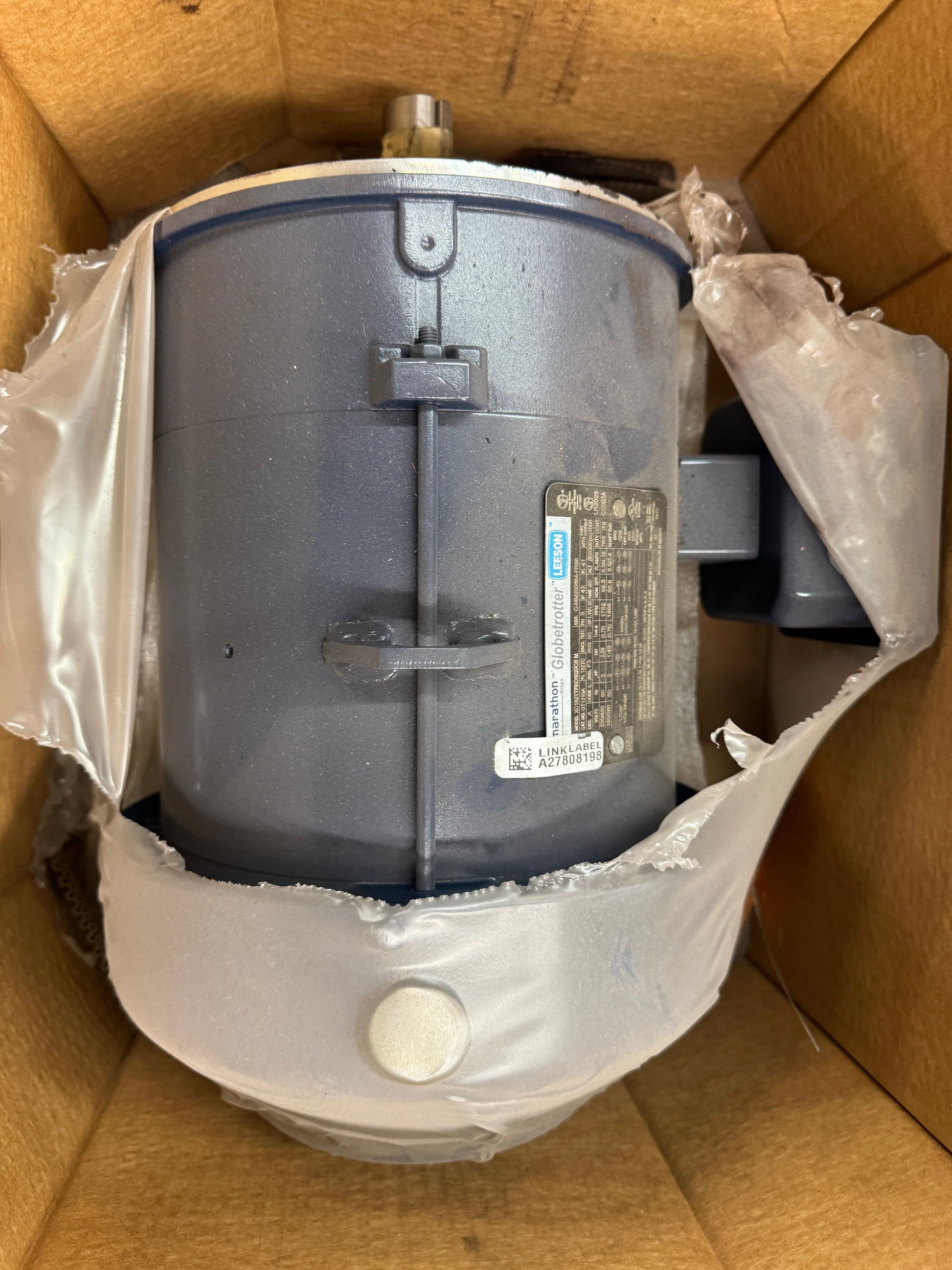

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

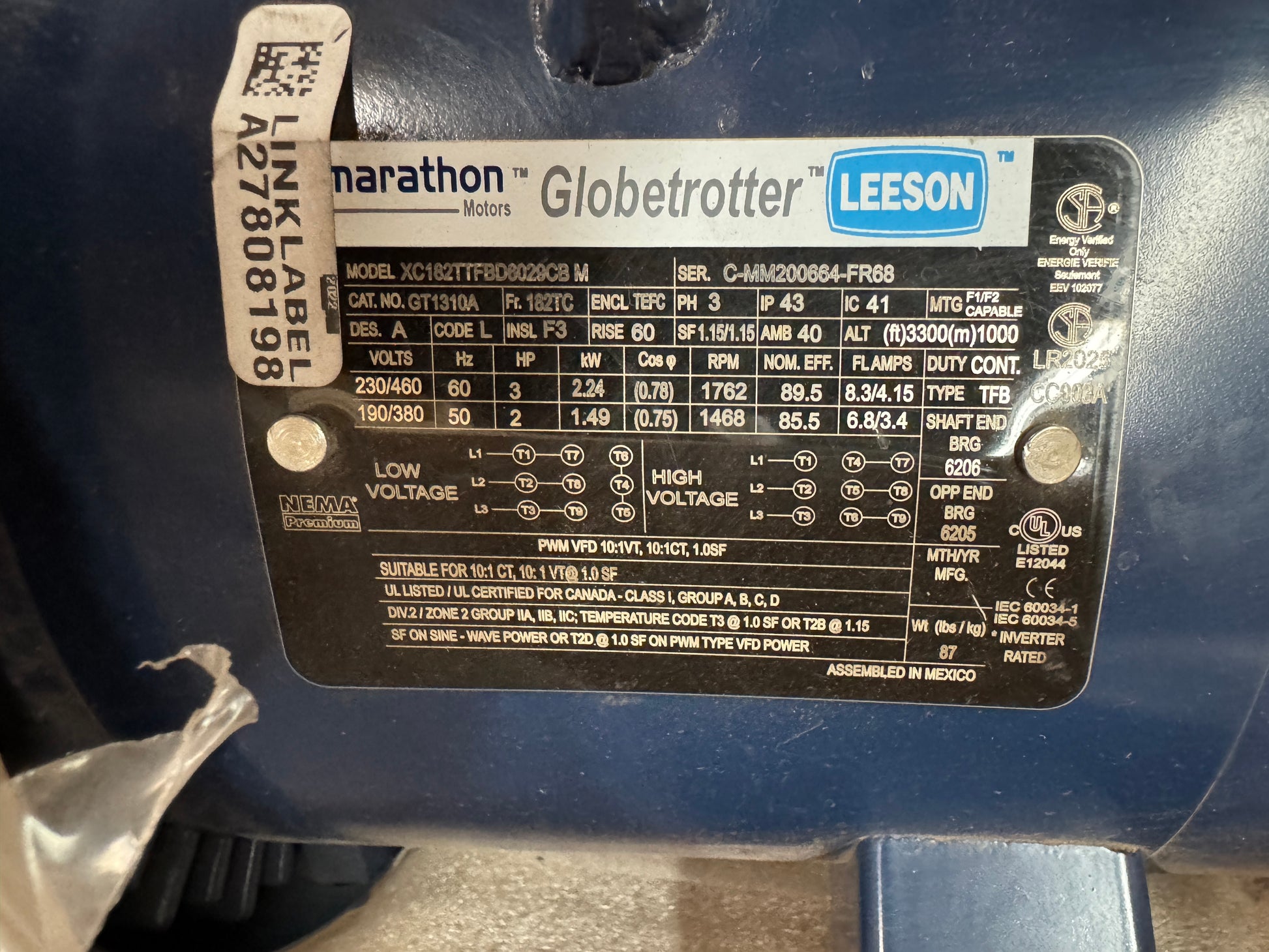

The Marathon GT1310A is a three-phase AC general purpose motor produced under the Leeson Globetrotter line by Regal Rexnord, rated at 3 HP and 1762 RPM at 60 Hz. It carries catalog number GT1310A and model designation XC182TTFBD8029C8 M, with serial number C-MM200664-FR68. The motor is built to NEMA 182TC frame dimensions with a TEFC (Totally Enclosed Fan Cooled) enclosure rated IP43. Operating voltage is 230/460V at 60 Hz for three-phase service, with full load amperage of 8.3/4.15A. At 50 Hz the motor operates at 190/380V, 1468 RPM, and 2 HP equivalent output. Insulation is Class F with a temperature rise of 60°C and ambient rating of 40°C. Service factor is 1.15/1.15. The motor is NEMA Premium efficiency rated with a nominal efficiency of 89.5% at 60 Hz. It is inverter rated and suitable for VFD applications at 10:1 constant torque and 10:1 variable torque speed ranges. Mounting configuration is F1/F2 capable. Drive end bearing is 6206 and opposite drive end bearing is 6205. The motor carries UL listing, CSA certification for Canada, CE mark, and compliance with IEC 60034-1 and IEC 60034-5. It is rated for Division 2, Zone 2 hazardous locations, Class I Groups A, B, C, and D, with temperature code T3 at 1.0 SF. Nameplate weight is 87 lbs. Assembled in Mexico. The motor is presented in its original shipping carton with plastic protective wrap intact.
Stock # 0526-02440
