Marathon Electric Inverter Duty Motor JVF 213TTFW4076DF - 3 HP 1200 RPM
Marathon Electric Inverter Duty Motor JVF 213TTFW4076DF - 3 HP 1200 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

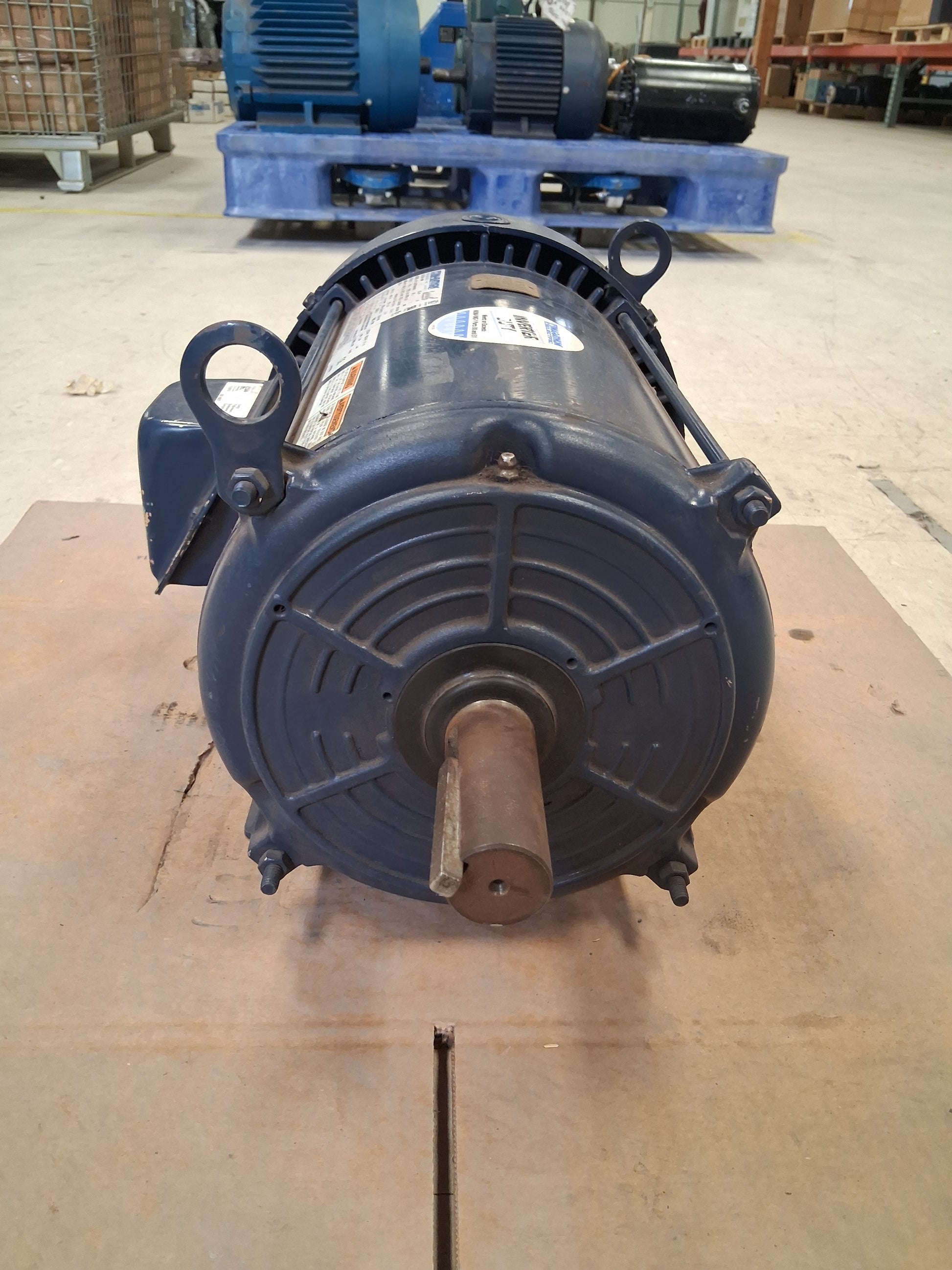

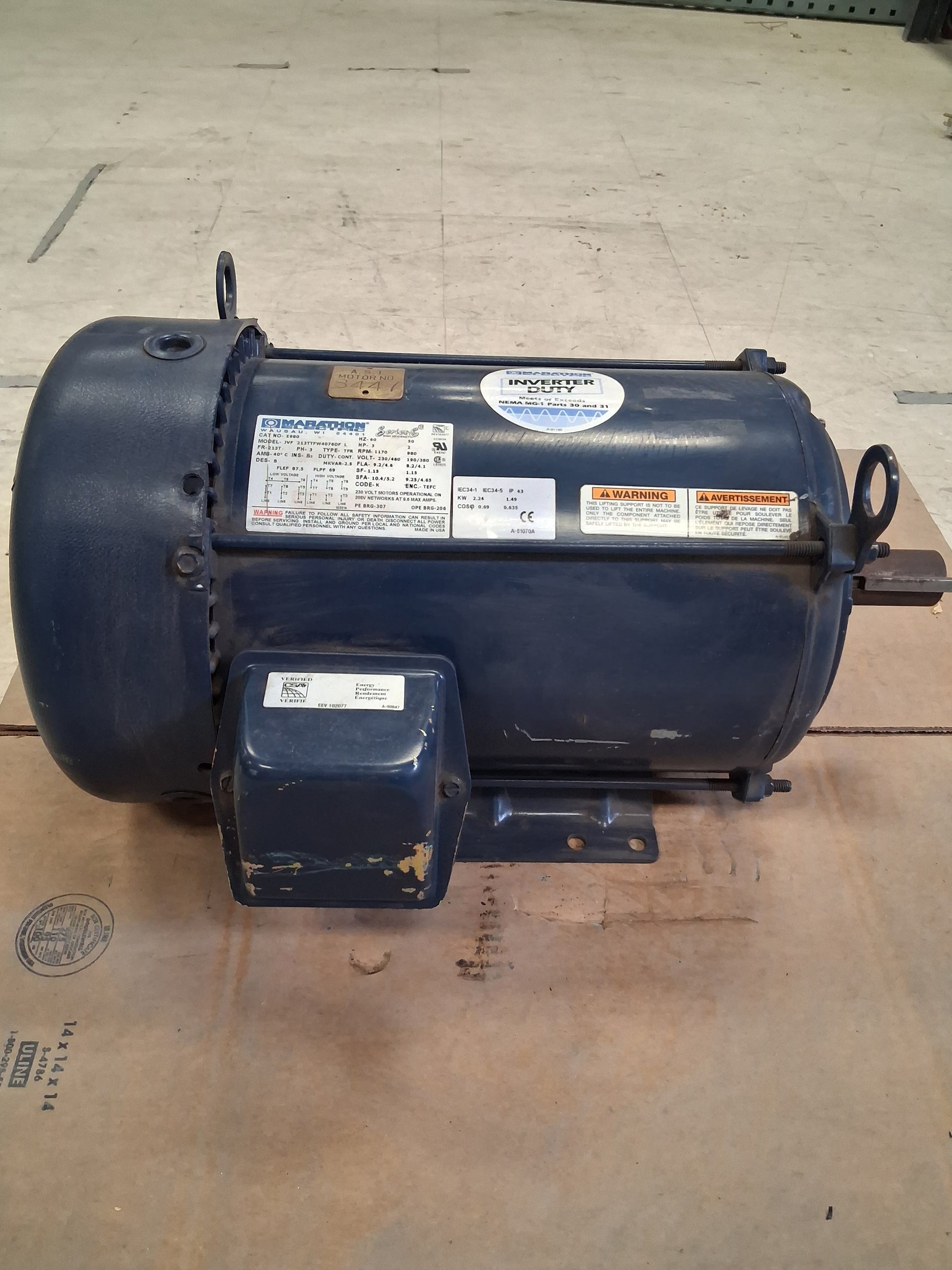

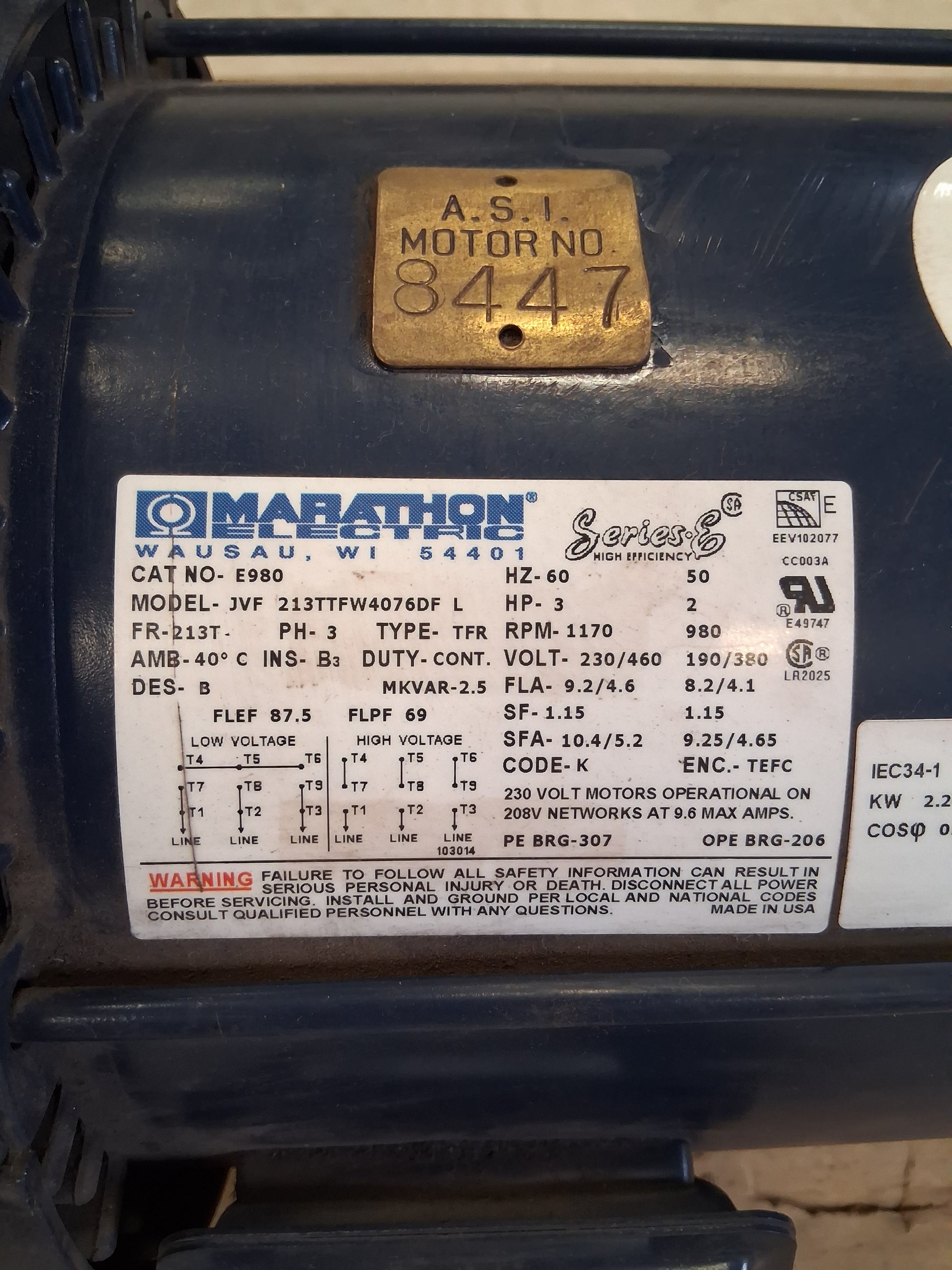

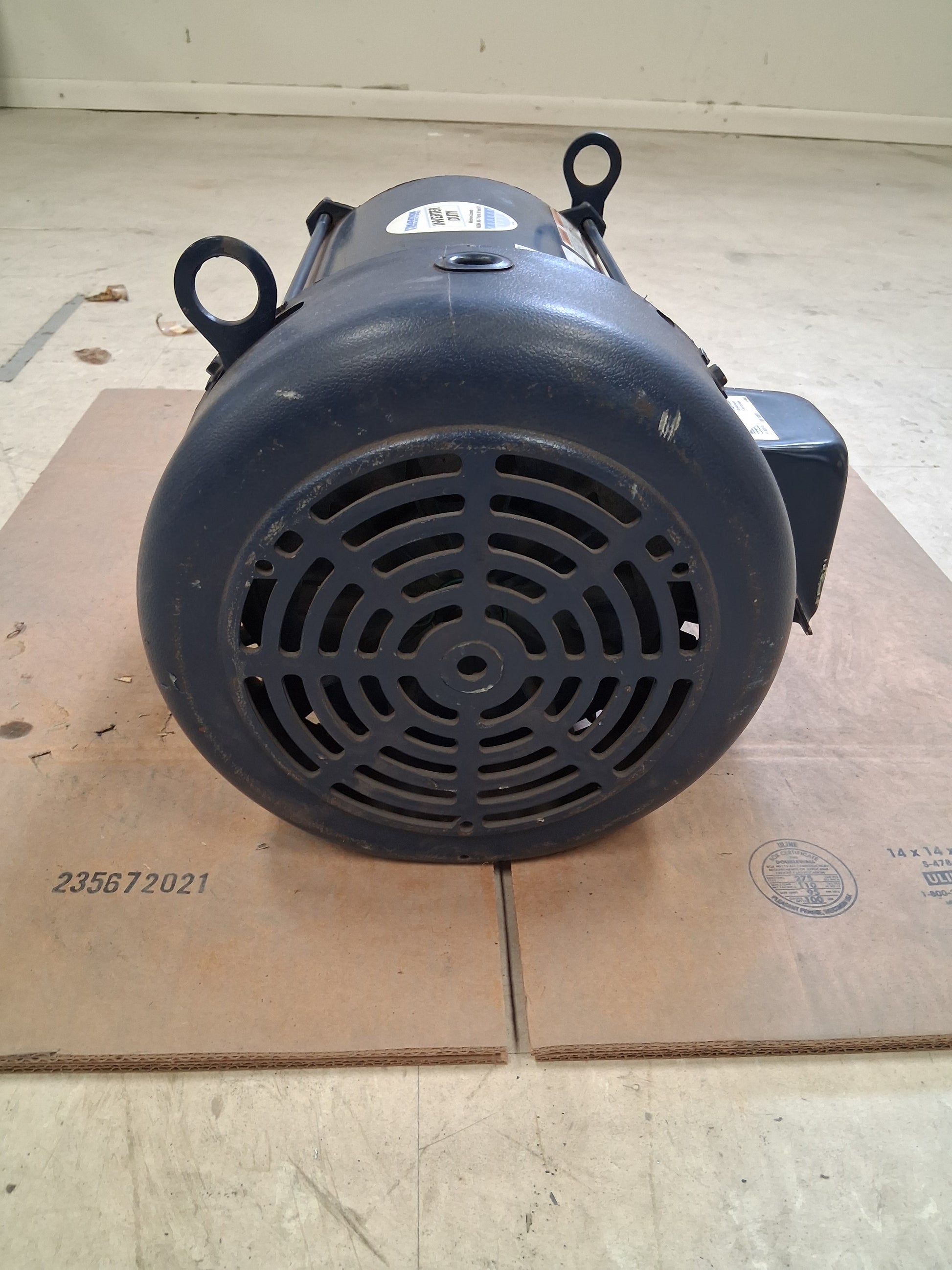

Marathon Electric catalog number E980, model JVF 213TTFW4076DF L, is a three phase Series E high efficiency inverter duty AC induction motor manufactured in Wausau, Wisconsin. The nameplate identifies a 3 HP output at 60 Hz with 1170 RPM nameplate speed, dual voltage operation at 230/460 VAC, and full load amperage of 9.2/4.6 amps. On 50 Hz service it carries a 2 HP rating at 980 RPM with 190/380 VAC and 8.2/4.1 FLA. The motor is built on a NEMA 213T frame with TEFC enclosure, Class B insulation, 40°C ambient rating, continuous duty, NEMA Design B, 1.15 service factor, and Code K locked rotor. Nameplate efficiency is 87.5 percent at full load with a 69 power factor and 2.5 MKVAR rating. Bearings are listed as PE BRG 307 on the drive end and OPE BRG 206 on the opposite drive end. The Inverter Duty label confirms compliance with NEMA MG 1 Parts 30 and 31 for use with variable frequency drives. CSA verified energy performance, UL recognized at file E49747, and CE marked under IEC34 1 and IEC34 5 with IP43 rating. Lifting eyes are fitted to the stator housing and a rigid base supports horizontal mounting. The conduit box is cast and side mounted. Typical applications include conveyors, pumps, compressors, machine tools, and other industrial machinery operated through a variable frequency drive.
Stock # 0526-02313
