Marathon Motors AC Motor 182TTFC6076 (CAT# GT1005) - 1 kW 1200 RPM
Marathon Motors AC Motor 182TTFC6076 (CAT# GT1005) - 1 kW 1200 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

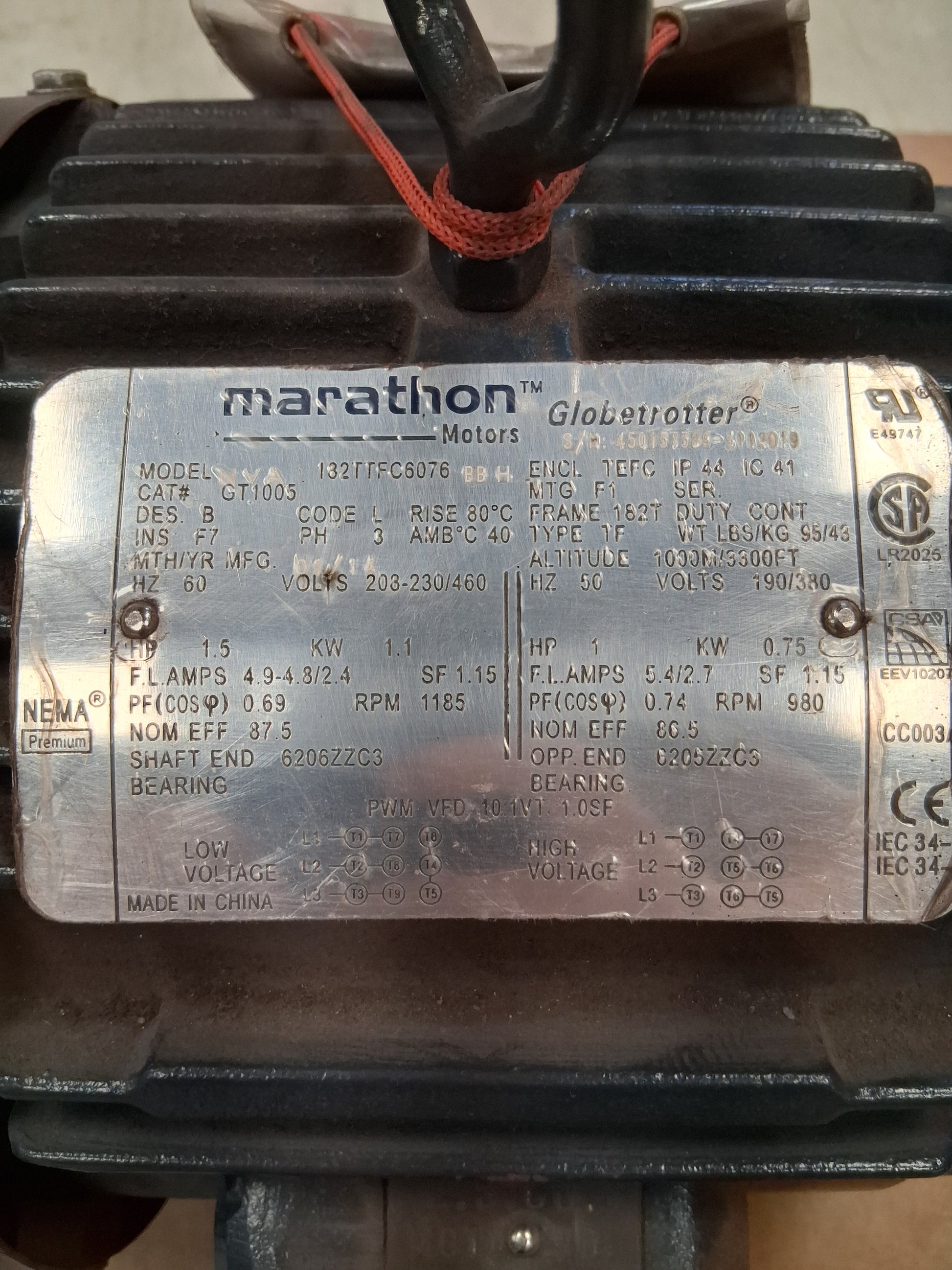

The Marathon Globetrotter 182TTFC6076 (catalog GT1005) is a three phase NEMA Premium efficiency AC induction motor rated at 1.5 HP (1.1 kW) on 60 Hz service and 1 HP (0.75 kW) on 50 Hz service. At 60 Hz, the motor operates at 1185 RPM nameplate speed with full load amps of 4.9 to 4.8 / 2.4 across 208 to 230 / 460 volt three phase input. At 50 Hz, it operates at 980 RPM on 190 / 380 volts. The motor carries a 1.15 service factor and a Class F insulation system with an 80 degree C rise. Construction is TEFC (totally enclosed fan cooled) with an IP44 / IC41 enclosure rating and a cast iron 182T NEMA frame. The shaft end bearing is a 6206ZZC3 and the opposite end bearing is a 6205ZZC3. Mounting designation is F1, with F2 reversibility. Inverter duty is rated for PWM VFD service at 10:1 variable torque and 1.0 service factor. The motor is suitable for general purpose industrial applications including pumps, fans, blowers, conveyors, and compressors in environments requiring sealed enclosure protection. Nameplate efficiency is 87.5 percent at 60 Hz and 86.5 percent at 50 Hz. Carries CSA, UL, and CE certifications. Lifting eye bolt and conduit box are installed. Sold in used surplus condition with nameplate fully legible.
Stock # 0526-02294
