Mazak CDM2L25-380AZ-C73L 145 PSI Max Rc 1/8 In. Pneumatic Cylinder
Mazak CDM2L25-380AZ-C73L 145 PSI Max Rc 1/8 In. Pneumatic Cylinder
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

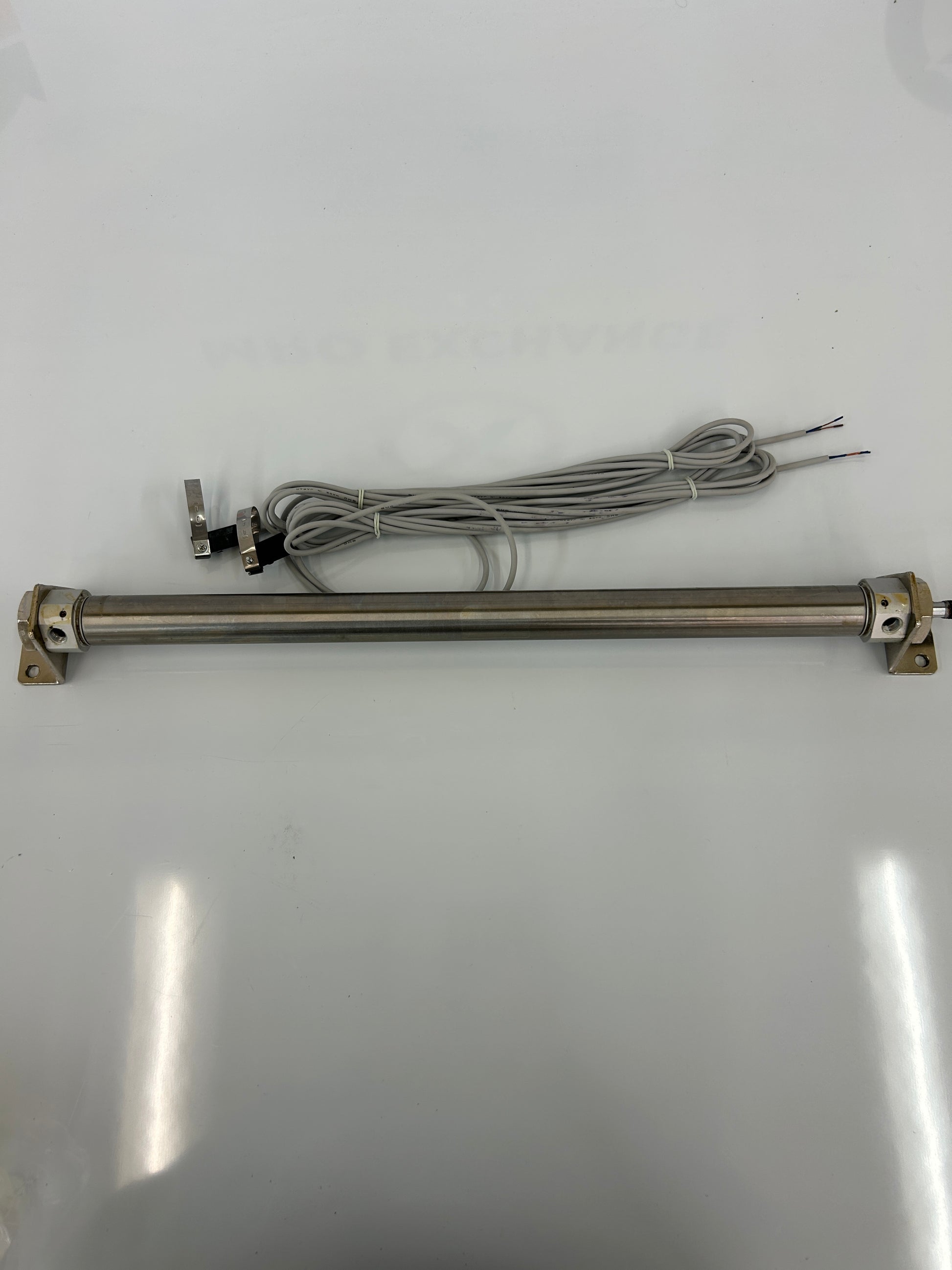

The SMC CDM2L25-380AZ-C73L is a round body, double acting pneumatic air cylinder from the CM2 Z series. The model code identifies a 25 mm bore, 380 mm stroke configuration with axial foot style mounting (L), air cushion (AZ suffix), and factory installed D-C73L reed auto switches. The unit ships with the cylinder body, two foot mounting brackets installed on either end, and the pair of D-C73L solid state auto switches with mounting bands and lead wires as pictured. Original Mazak parts bag and label are present, with Mazak part number VO29281 and description CYLINDER CDM2L25-380AZ-C73L. The CM2 Z series uses a stainless steel body with female rod end available as standard, rubber and air cushioning, and Rc port threads sized for the 25 mm bore class. The D-C73L is a two wire reed switch with LED indicator, compatible with the built in magnet on the piston. Typical applications include linear actuation in CNC machining centers, packaging machinery, material handling equipment, automation cells, and OEM pneumatic assemblies where stroke positions need to be sensed electrically. The MPN encodes mounting style, bore, stroke, cushion type, and auto switch model in standard SMC catalog format. Verify exact compatibility against the SMC CM2 Z series catalog for your application before installation.
Stock # 0226-065
