The Mitsubishi Electric MDS-B-CV-260 is a power regenerative power supply unit designed for use with Mitsubishi MDS-B series servo drives and spindle drives in CNC machine tool applications. It belongs to the MELDAS 500 series drive system platform and serves as the centralized DC bus converter for multi-axis drive configurations.
Rated input is 3AC 200-230V at 50/60 Hz with a rated current of 95A. Rated DC output is 270-311V at 115A, corresponding to a 26 kW capacity. The unit incorporates an Intelligent Power Module (IPM) for the converter section, consolidating what was previously built into individual drive units into a single shared power supply. This design reduces overall heat generation within the drive cabinet.

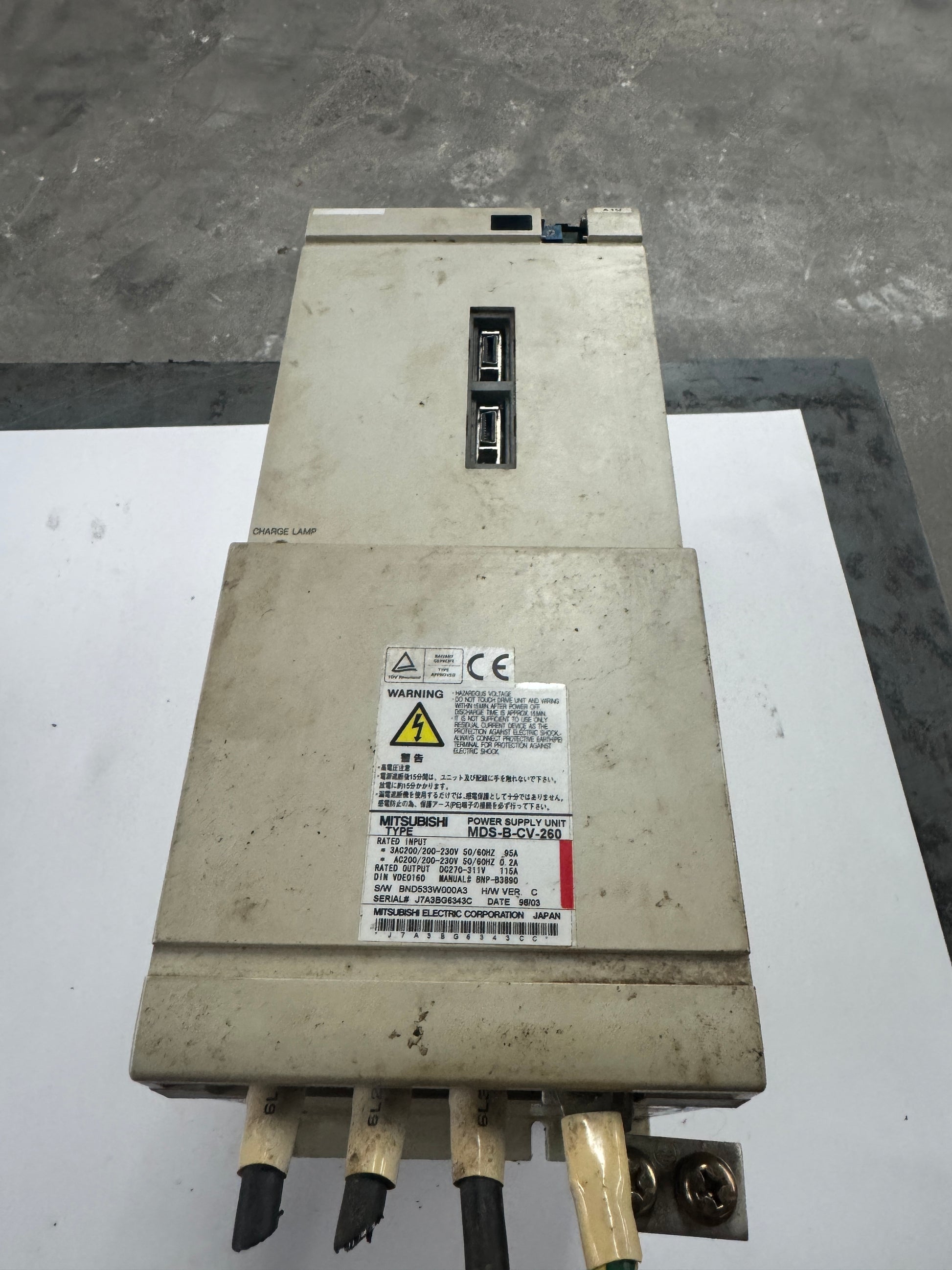

Hardware version C is confirmed on the nameplate. Software version BND533W000A3 is indicated. Serial number J7A3BG6343C with a date code of 98/03 is present on the label. Manual number BNP-B3890 and DIN VDE0160 compliance are also noted. The unit carries CE marking and has received TUV third-party approval for European Safety Standards compliance.

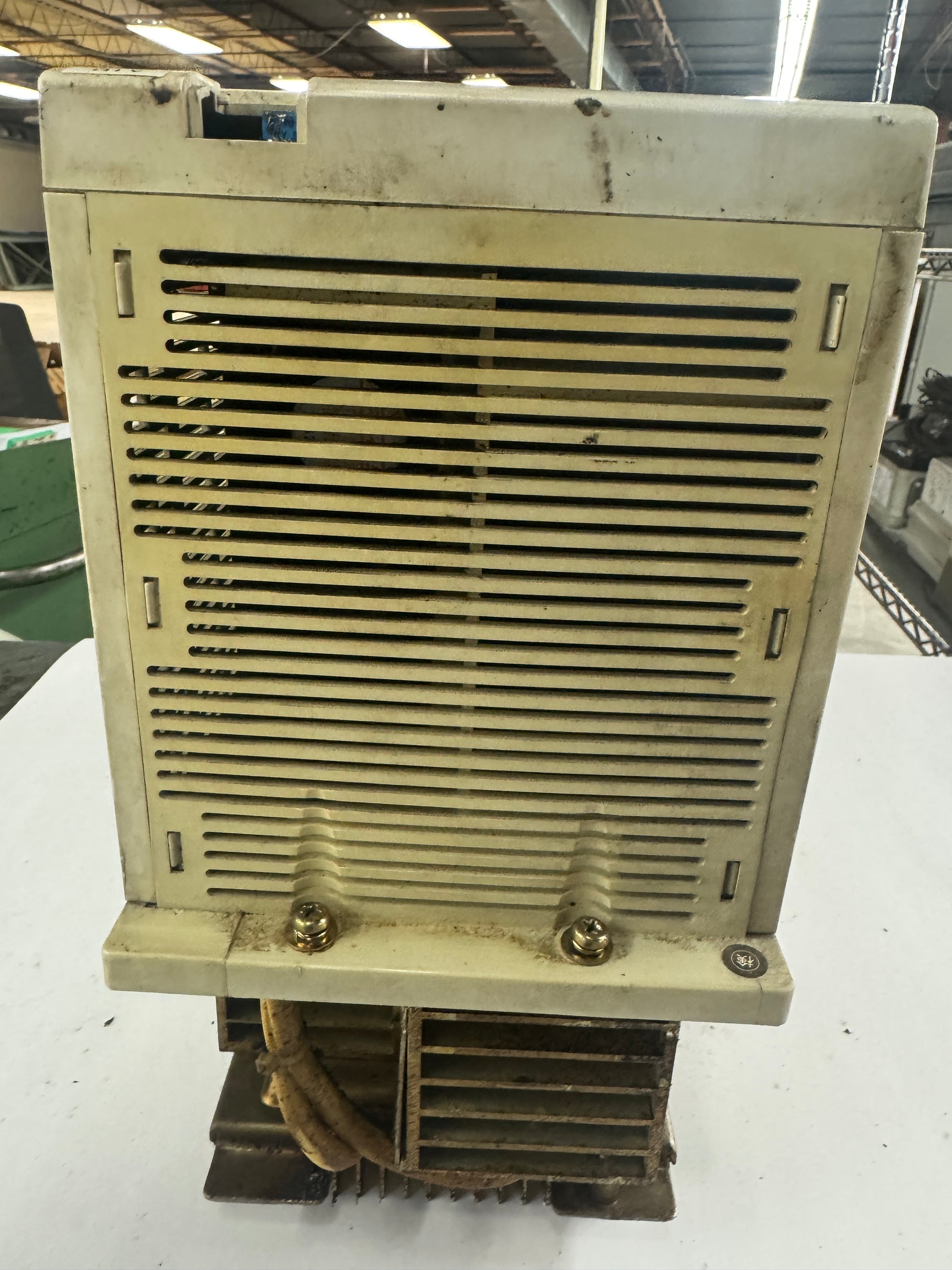

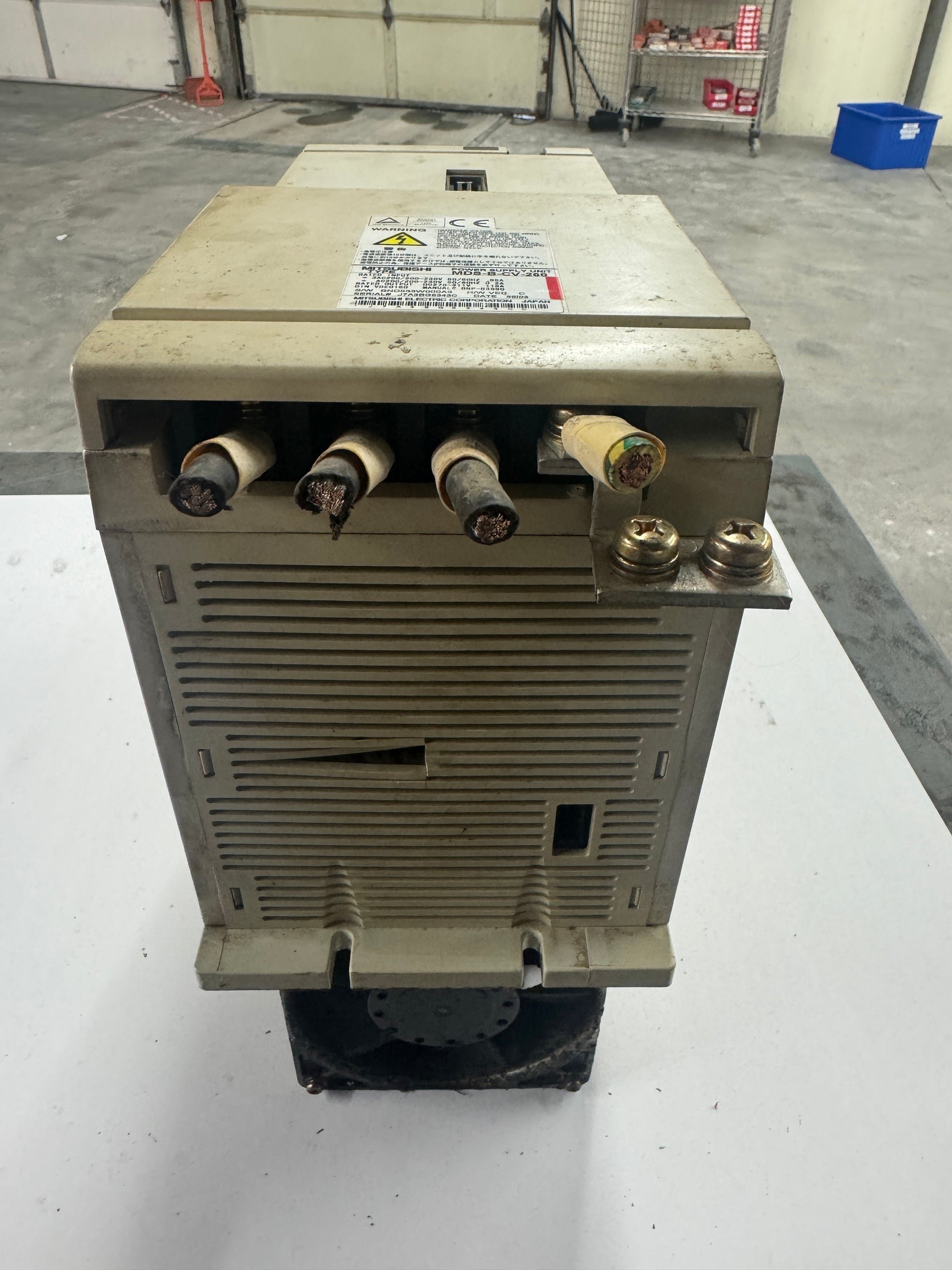

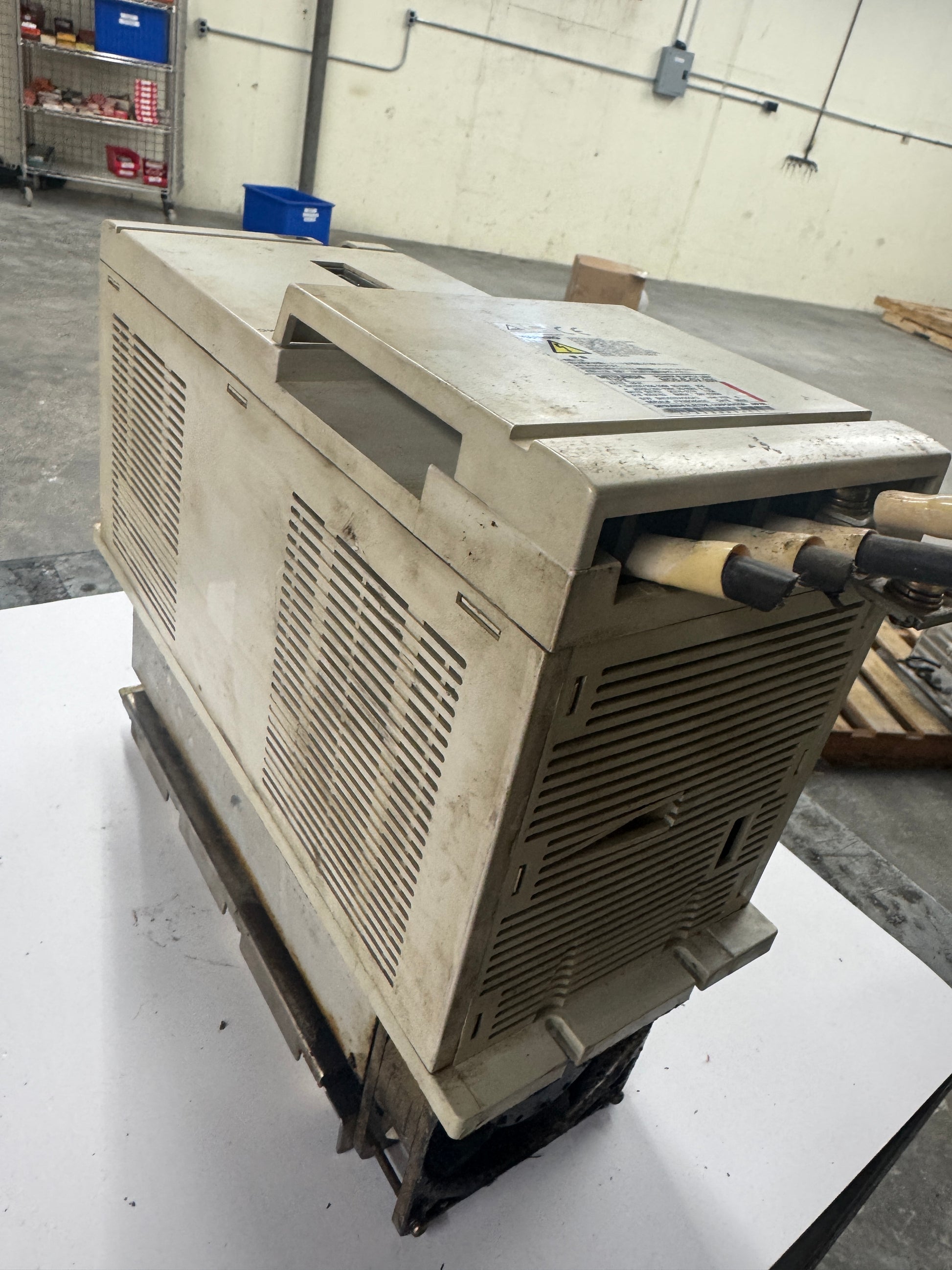

A charge lamp indicator is located on the front face of the unit. The rear-mounted cooling fan is integral to the thermal management of the power supply. Output terminals for DC bus connections and input terminals for three-phase AC are accessible from the bottom of the unit. This item is offered as removed surplus.
Stock # 0426-02093
