Mitsubishi Electric Servo Drive Unit MDS-C1-V1-35-N
Mitsubishi Electric Servo Drive Unit MDS-C1-V1-35-N
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

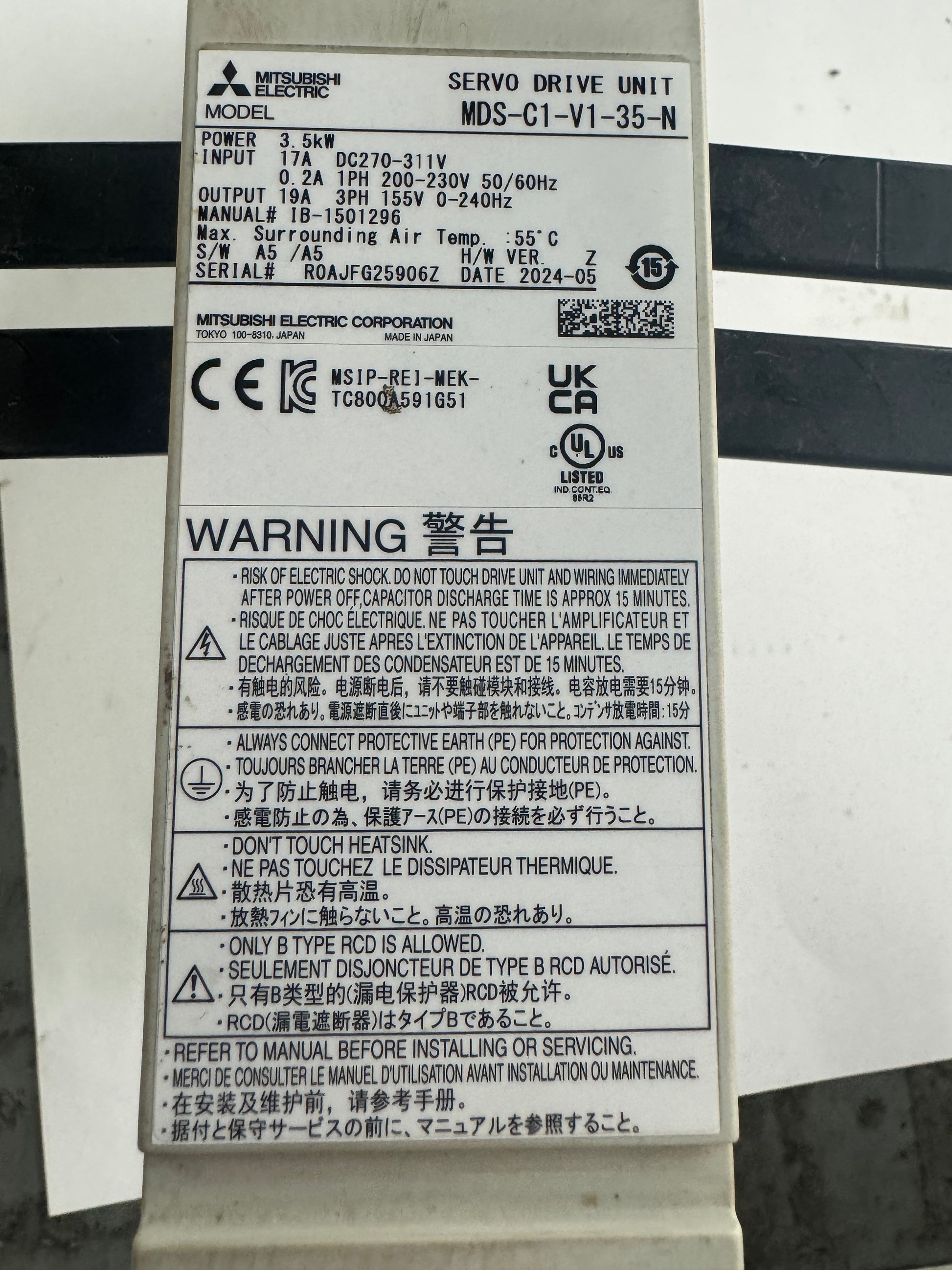

The Mitsubishi Electric MDS-C1-V1-35-N is a 3.5 kW AC servo drive unit from the MDS-C1 series, designed for use in CNC machine tool applications. The nameplate confirms a DC bus input of 270 to 311V, a single-phase control input of 0.2A at 200 to 230V 50/60Hz, and a three-phase output of 19A at 155V with a frequency range of 0 to 240Hz. Power rating is 3.5 kW. Manual reference is IB-1501296.
Hardware version is confirmed as Z, with software revision A5/A5. Serial number R0AJFG25906Z, date code 2024-05, indicating manufacture in May 2024. Made in Japan by Mitsubishi Electric Corporation, Tokyo.

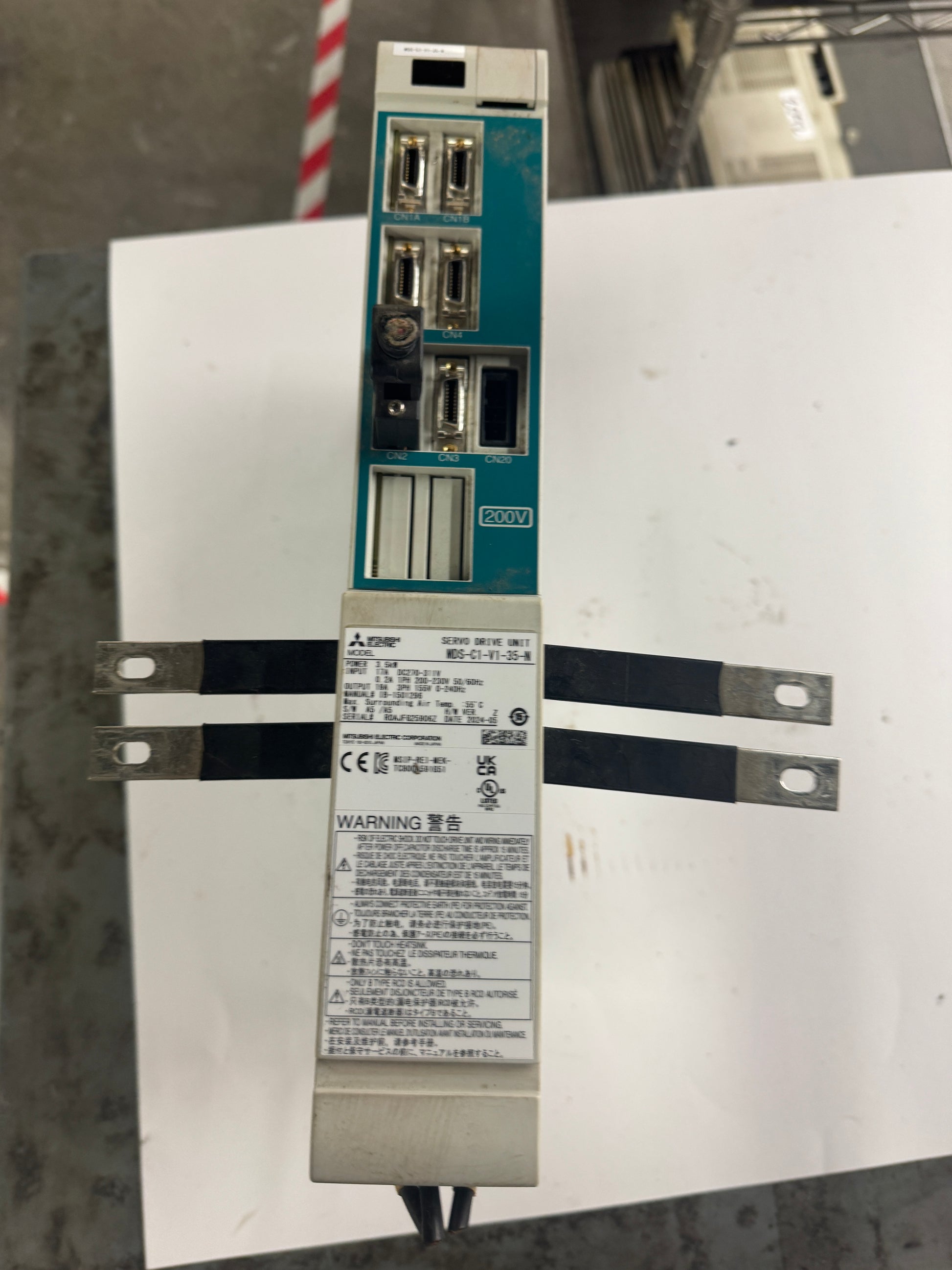

Certifications visible on the nameplate include CE, KC, UKCA, and cULus Listed (IND CONT EQ, file 86R2). The front panel features a teal connector section with labeled ports including CN1A, CN1B, CN4, CN2, CN3, and CN20, consistent with the MDS-C1 series interface layout. A 200V identifier is visible on the front connector panel.
This unit carries MPN MDS-C1-V1-35-N and is the current production revision of the MDS-C1-V1-35 platform, which replaces the MDS-B-V1-35. Sold as removed surplus. No accessories, cables, or documentation are included unless separately stated.
Stock # 0426-02094
