Mitsubishi MDS-DH-SP-80 Spindle Drive Unit 400V Untested Surplus
Mitsubishi MDS-DH-SP-80 Spindle Drive Unit 400V Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: MDS-DH-SP-80
Stock #: Stock # 0626-01754

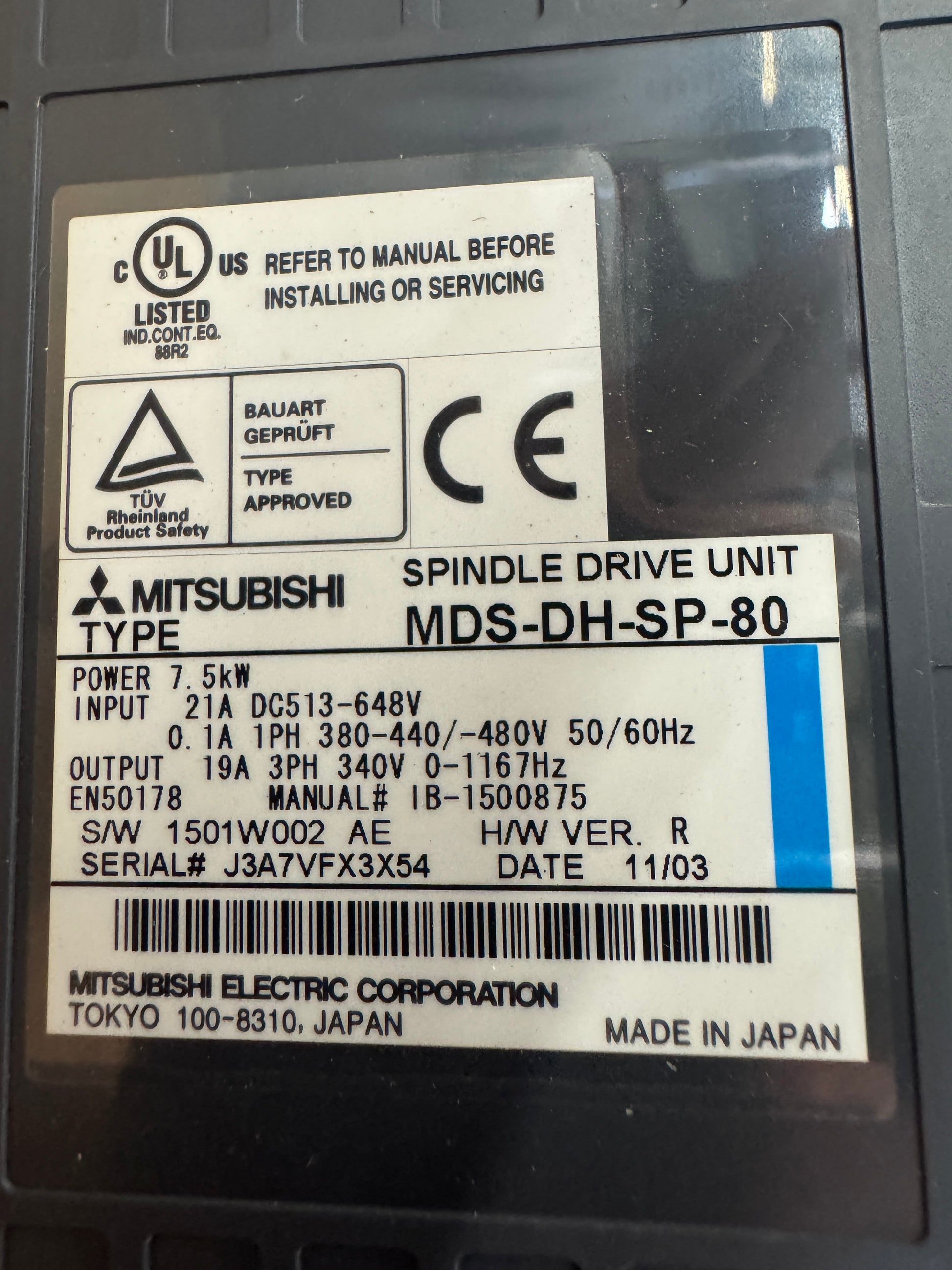

Product Specifications
- Manufacturer: Mitsubishi
- MPN / Model: MDS-DH-SP-80
- Product Type: Spindle Drive Unit
- Power: 7.5 kW
- Input: 21A DC 513 to 648V; 0.1A 1PH 380 to 440 / 480V 50/60Hz
- Output: 19A 3PH 340V 0 to 1167Hz
- Voltage Class: 400V
- Standard: EN50178
- Manual Number: IB 1500875
- S/W: 1501W002 AE
- H/W Version: R
- Serial Number: J3A7VFX3X54
Product Description

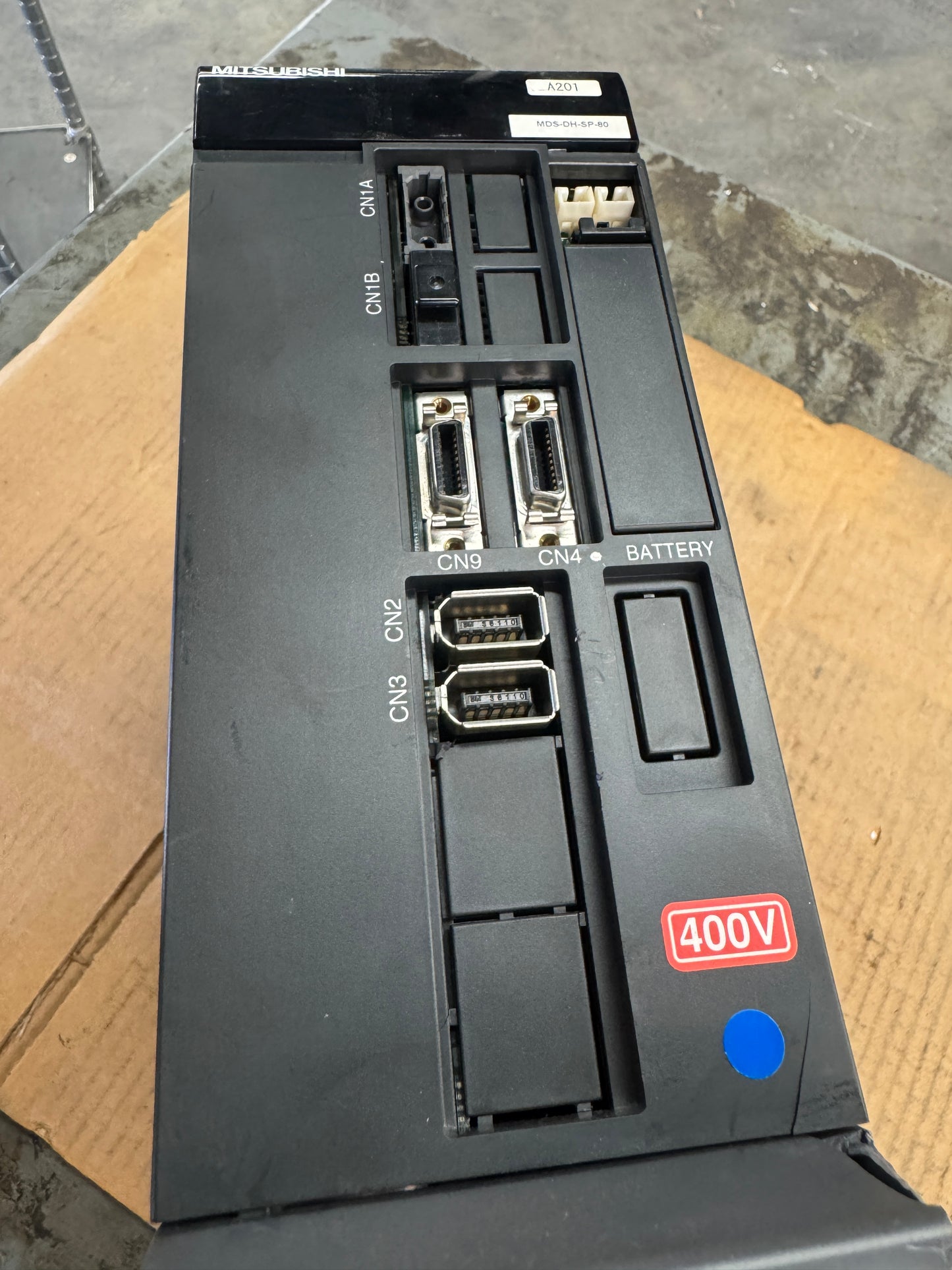

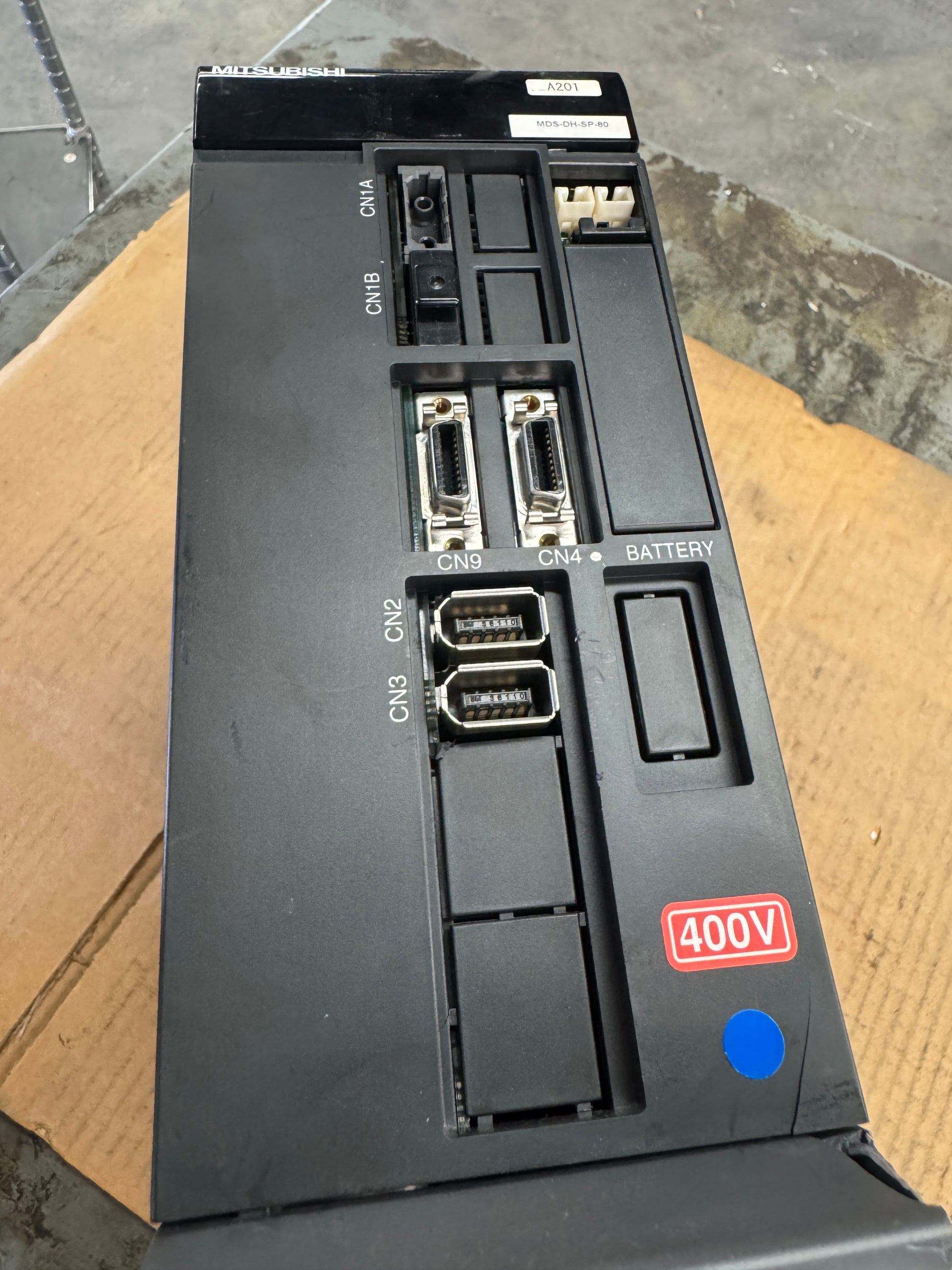

Mitsubishi MDS-DH-SP-80 is a spindle drive unit from the MDS-DH 400V series, identified by the type designation printed on the unit nameplate. The rating plate lists 7.5 kW power, input of 21A at DC 513 to 648V along with 0.1A single phase 380 to 440 / 480V at 50/60Hz, and output of 19A three phase 340V across 0 to 1167Hz. Connector positions visible on the unit include CN1A, CN1B, CN4, CN9, CN2, CN3, and a battery slot. The drive is marked for 400V operation and carries UL, TUV Rheinland, and CE markings. Serial number J3A7VFX3X54 and manual reference IB 1500875 are shown on the label. This information is useful for buyers matching the exact Mitsubishi catalog number for spindle drive replacement, spare inventory, or maintenance sourcing on CNC machine tools. Buyers should use the exact MPN and the visible software version 1501W002 AE and hardware version R to confirm compatibility with their existing equipment.
