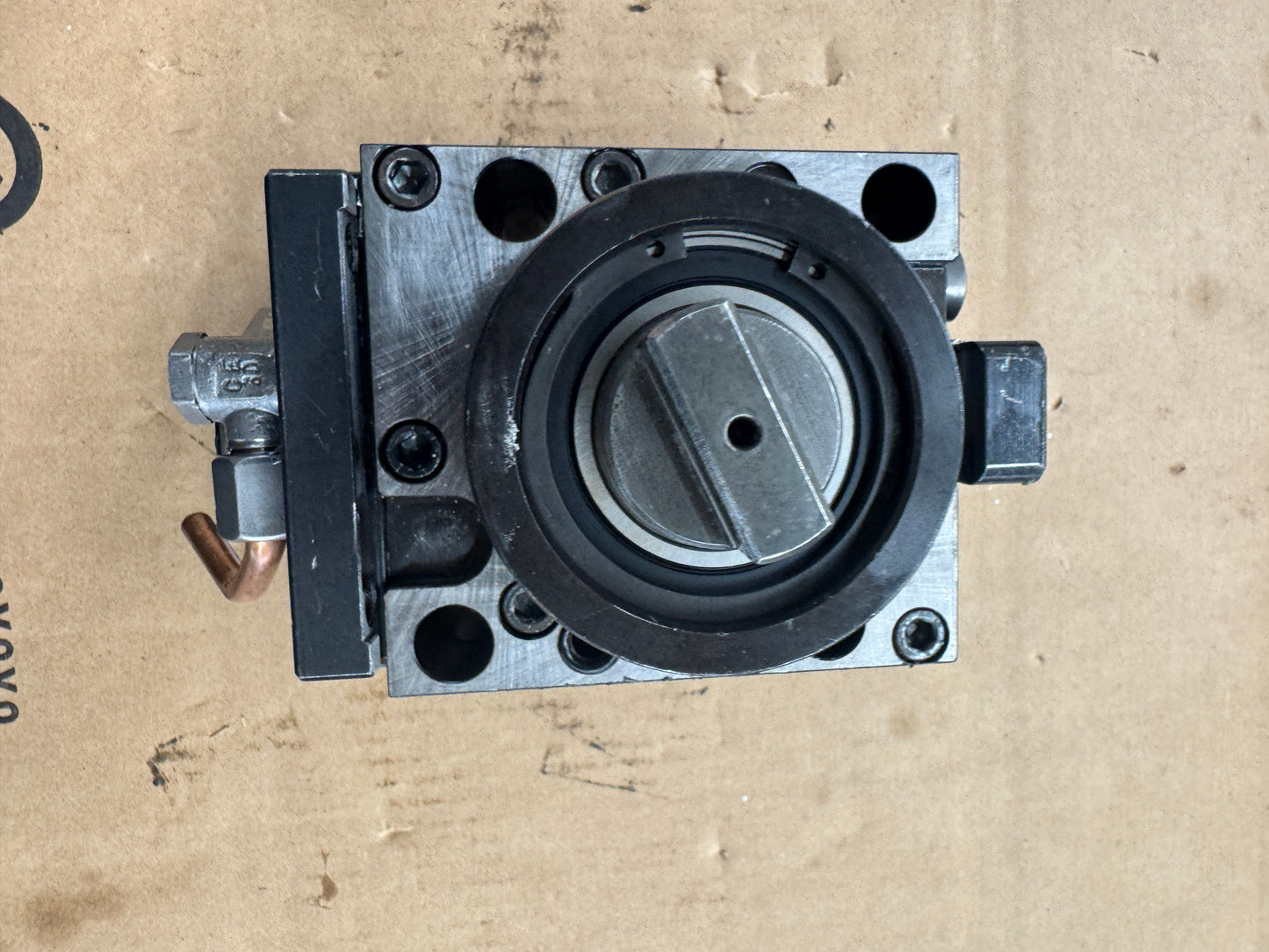

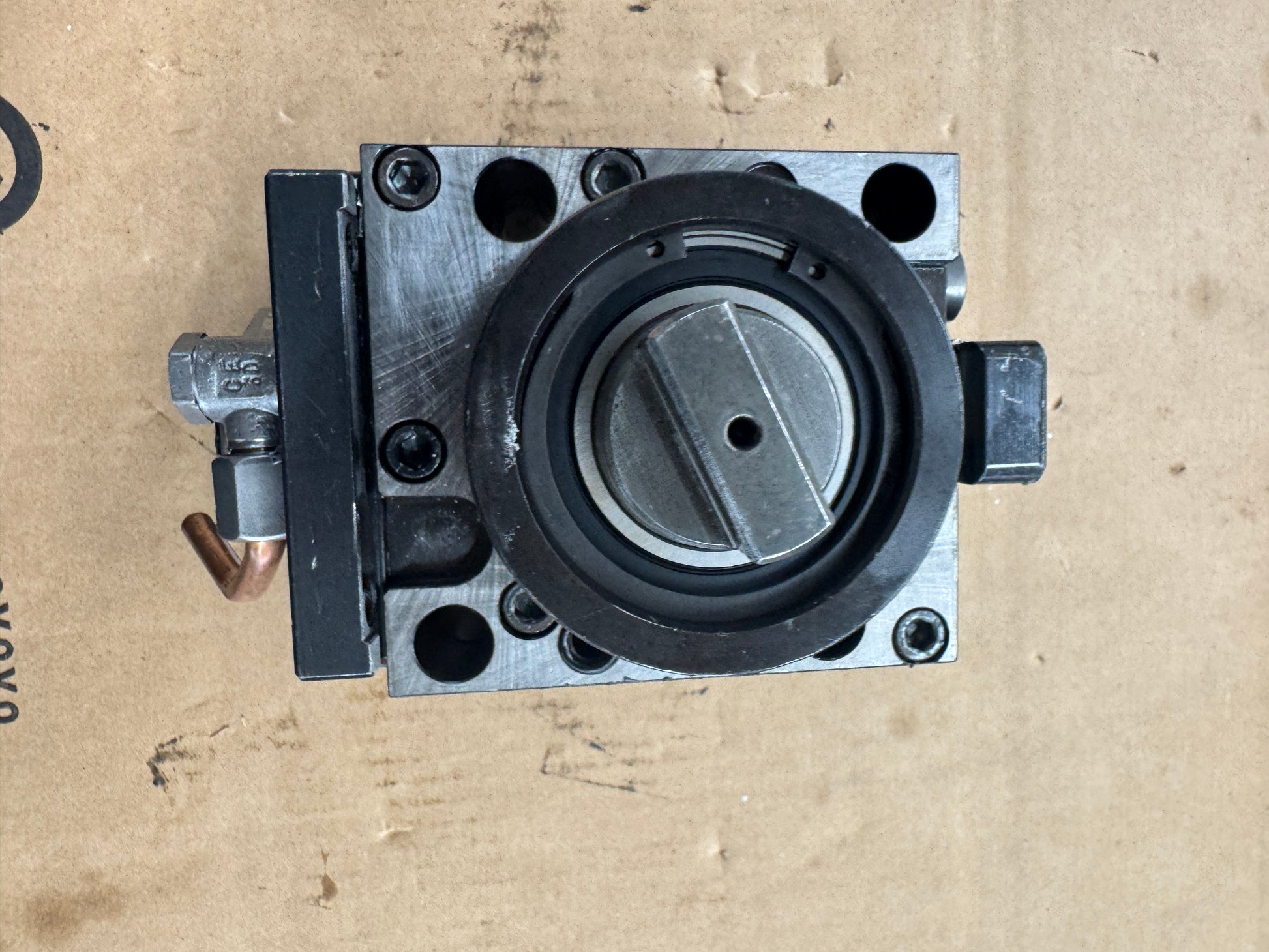

MT Marchetti Live Tool Holder MTA715 / COD.02240132 | ER32 Collet System, 3 to 20 mm Clamping Range | Orientation: Axial | Coolant Through A7157-11

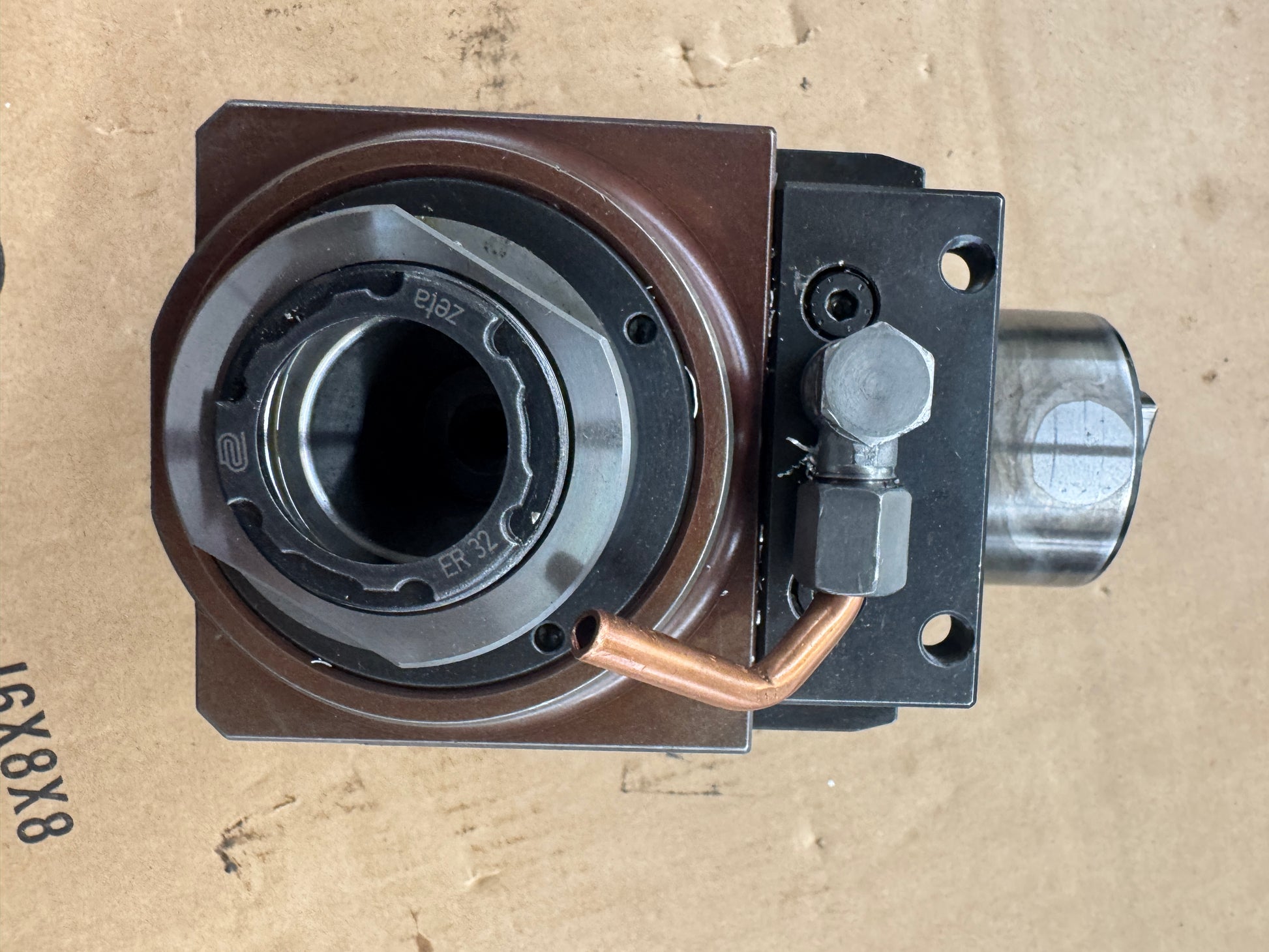

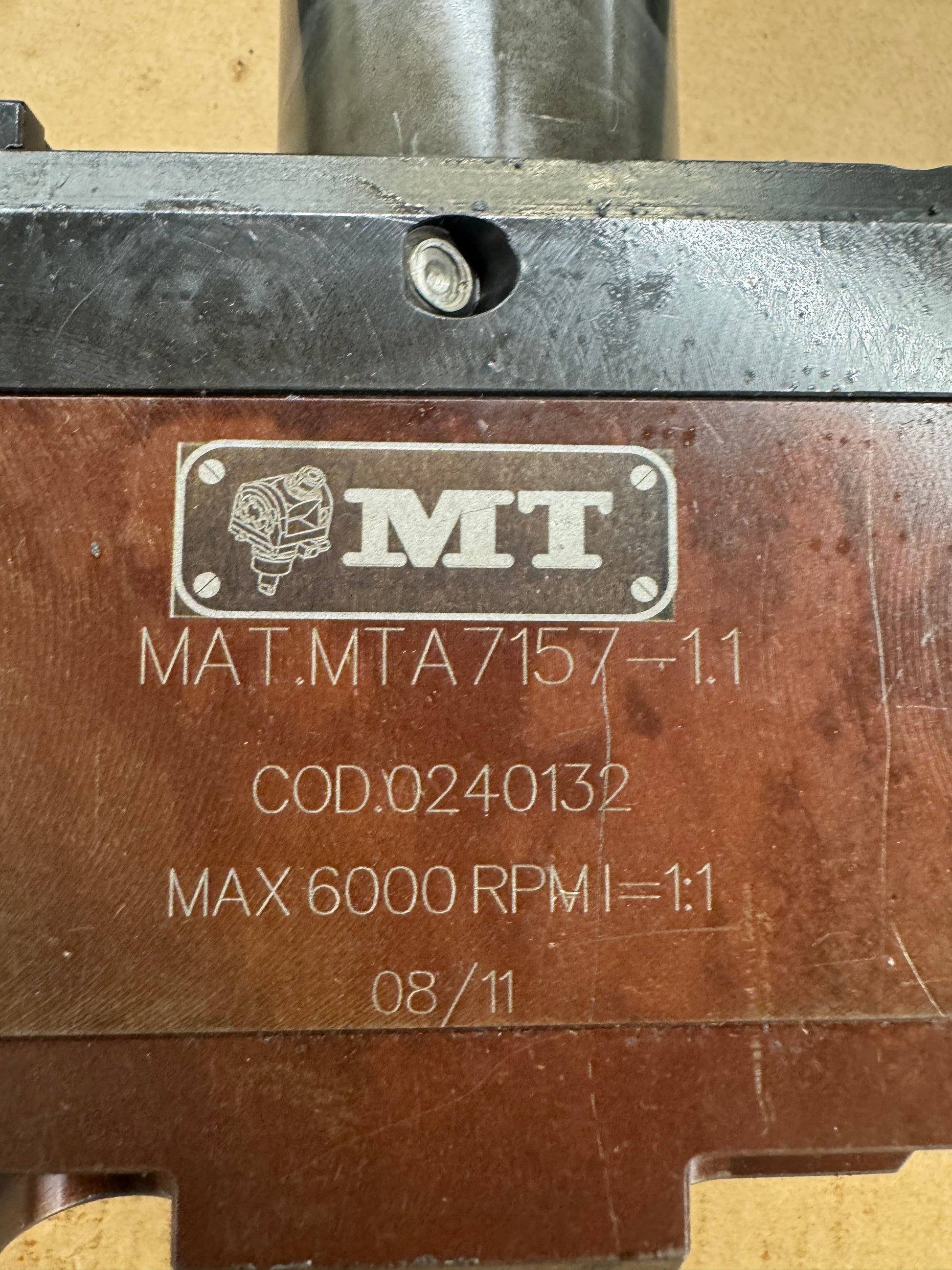

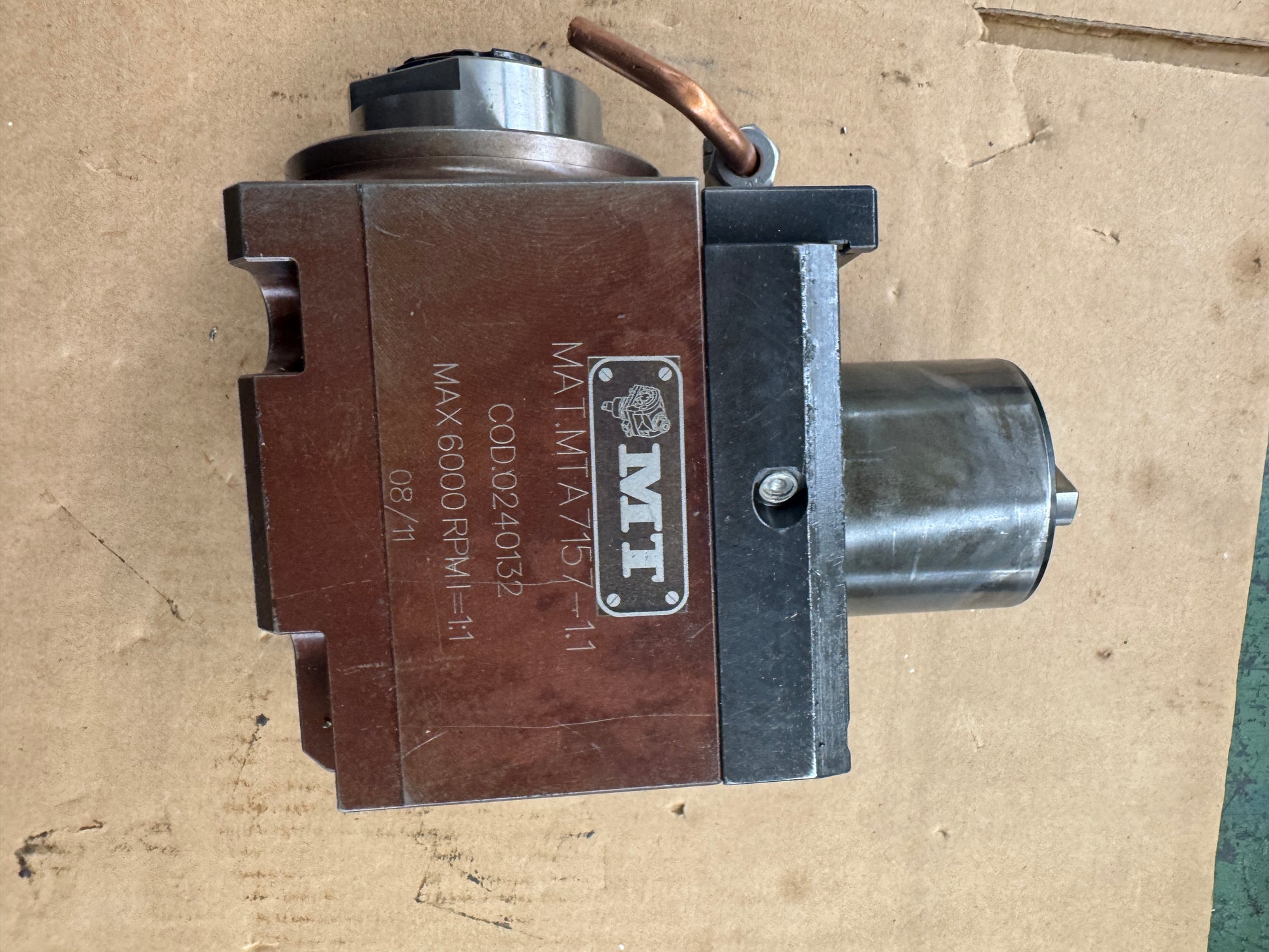

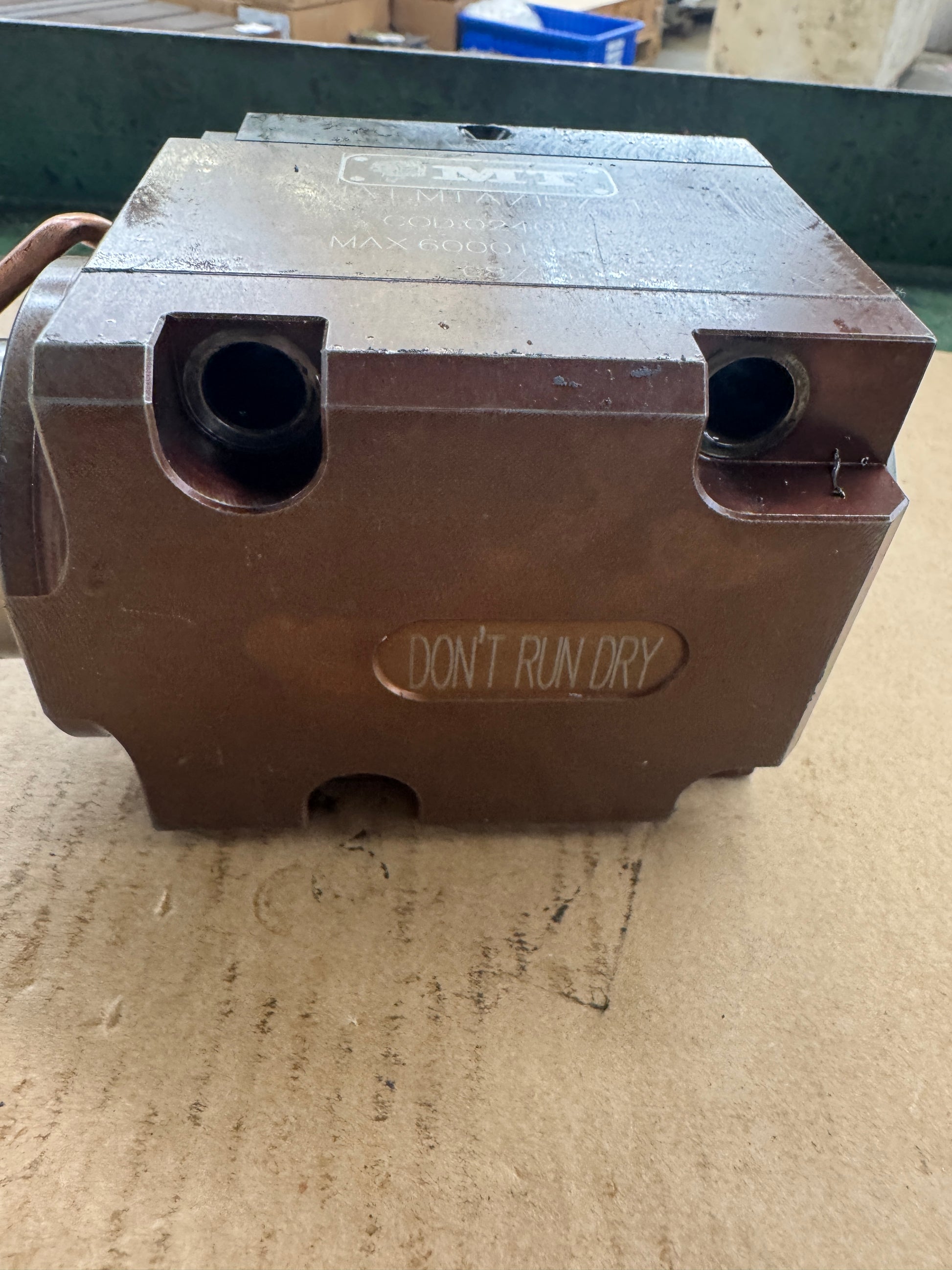

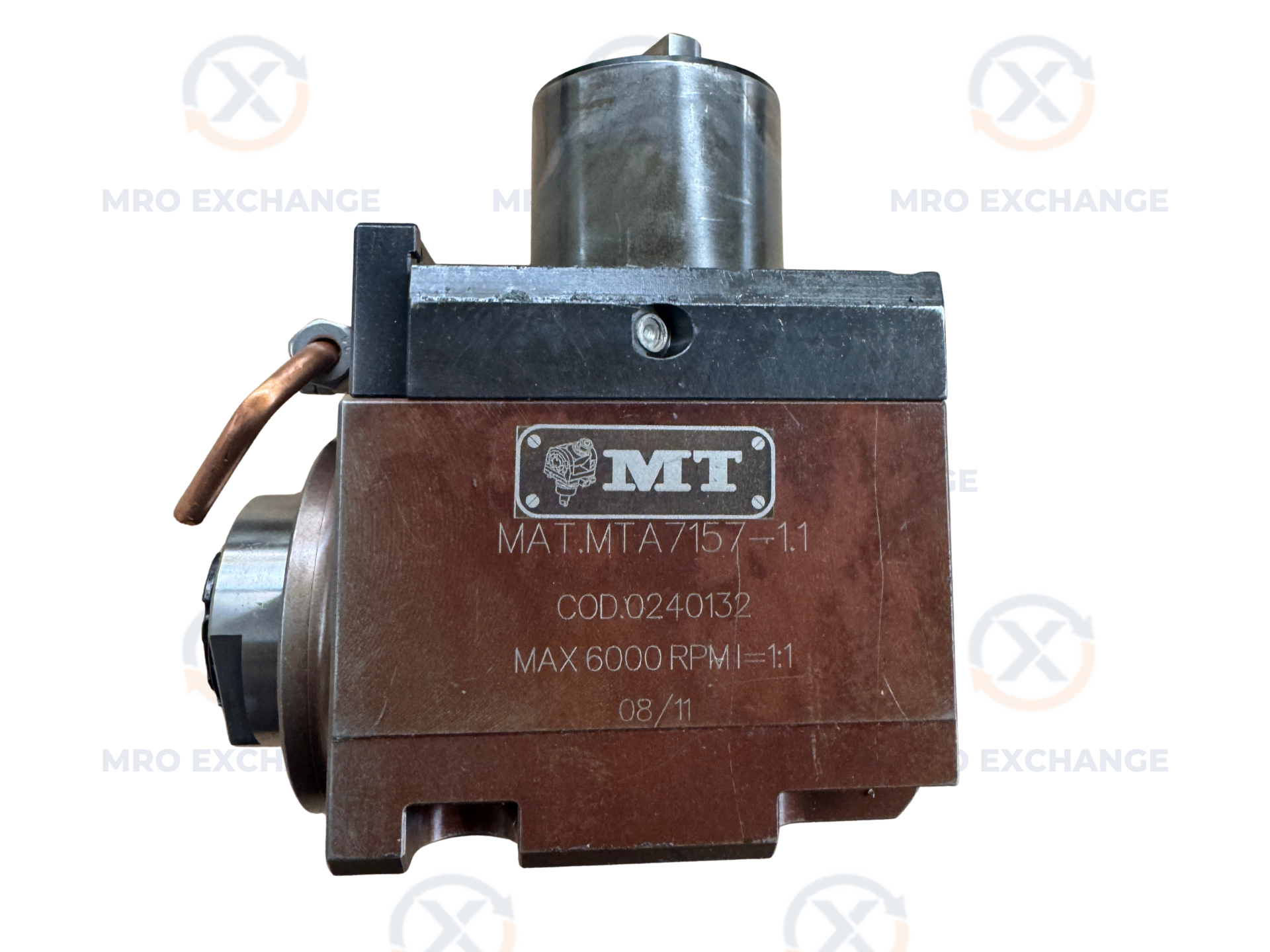

Used in CNC turning centers requiring driven axial tooling, this IMT live tool holder is built around an ER32 collet system with a clamping range of 3 to 20 mm. The unit carries IMT model designation MTA715 and internal code COD.02240132, with a nameplate date of 08/11 indicating manufacture in August 2011. The gear ratio is 1:1 and the maximum rated spindle speed is 6000 RPM as stamped on the body. A copper through-coolant tube is integrated into the body of the unit, confirming coolant delivery capability. The mounting interface is a proprietary IMT bolt-on turret pattern designated MAT.MTA715 and is not a standard BMT or VDI size. Buyers should cross-reference the bolt pattern dimensions against their turret specification before purchase. The ER32 collet nut is marked "Zeta" on the visible face. The unit displays general wear consistent with prior CNC lathe use. The body casting bears the inscription "DON'T RUN DRY," confirming this unit requires continuous lubrication when in operation. IMT is an Italian manufacturer of driven tooling systems supplying machine-specific live tool holders for major CNC lathe platforms. This holder is suited for drilling, milling, and tapping operations performed on the lathe turret without workpiece repositioning.

Stock # 0426-01219
