MT Marchetti Live Tool Holder OKU0800232 | BMT60 | ERA32 + ERA32 Twin Output | Orientation: Axial | Coolant Through 1001-1

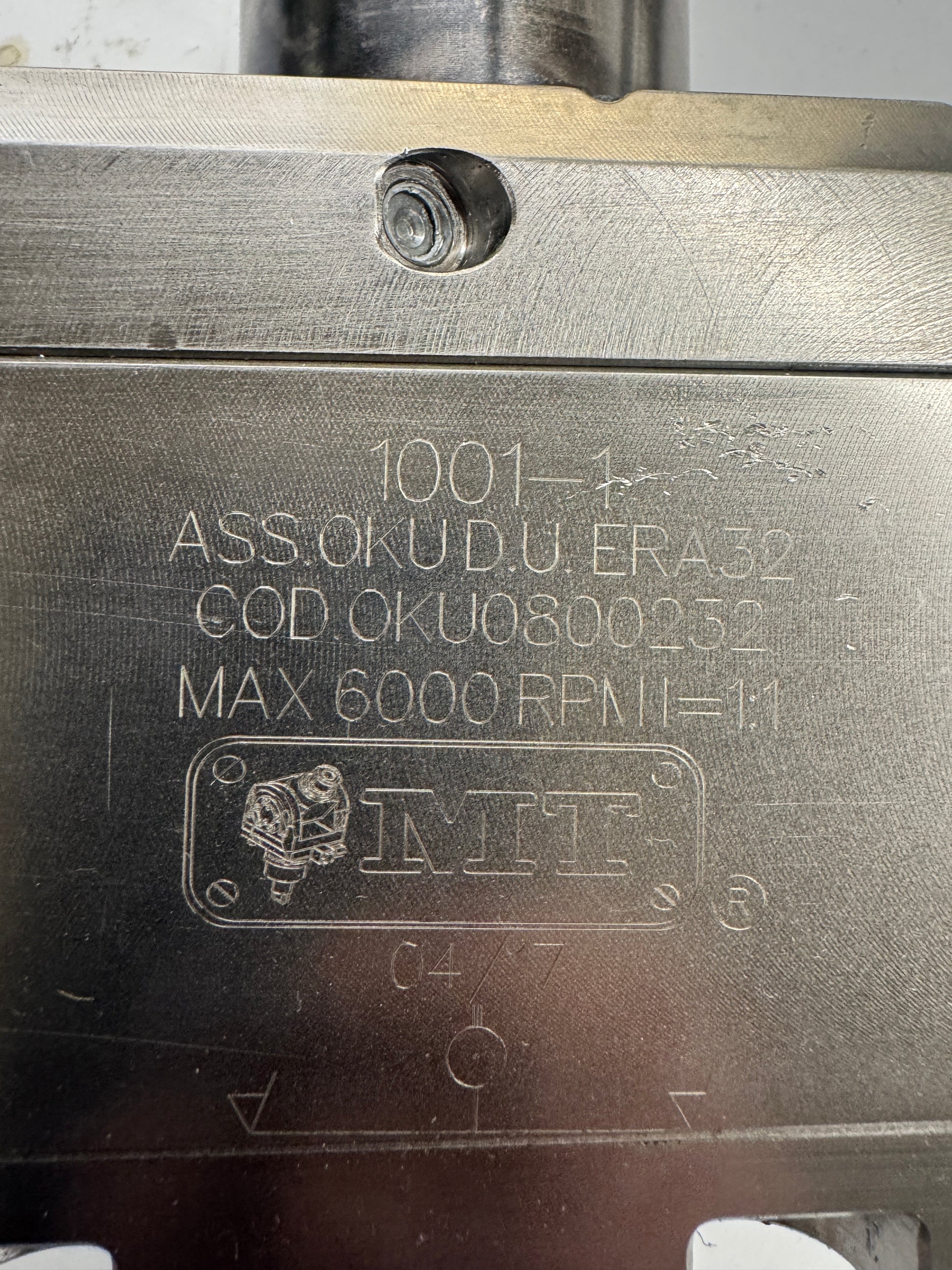

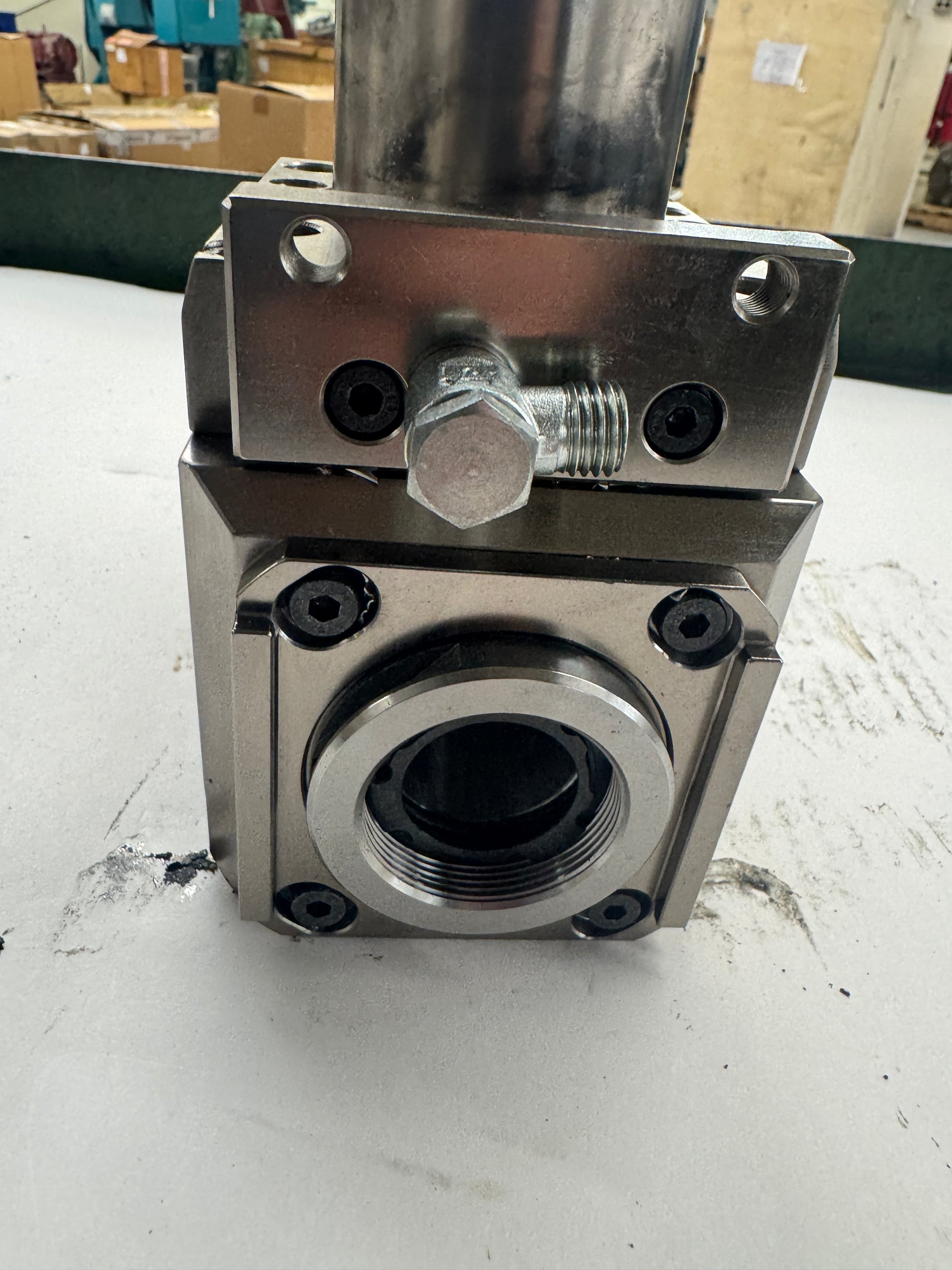

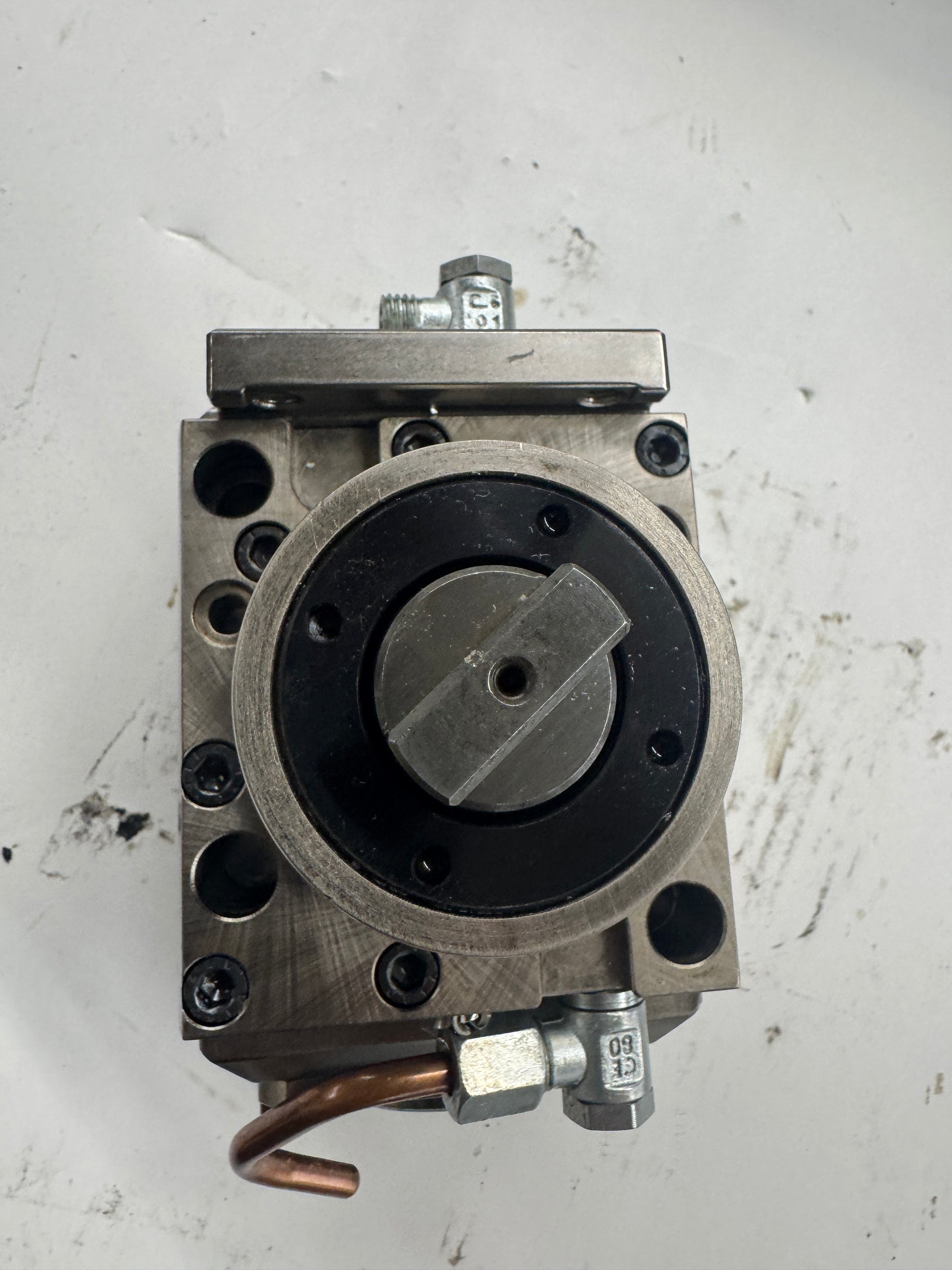

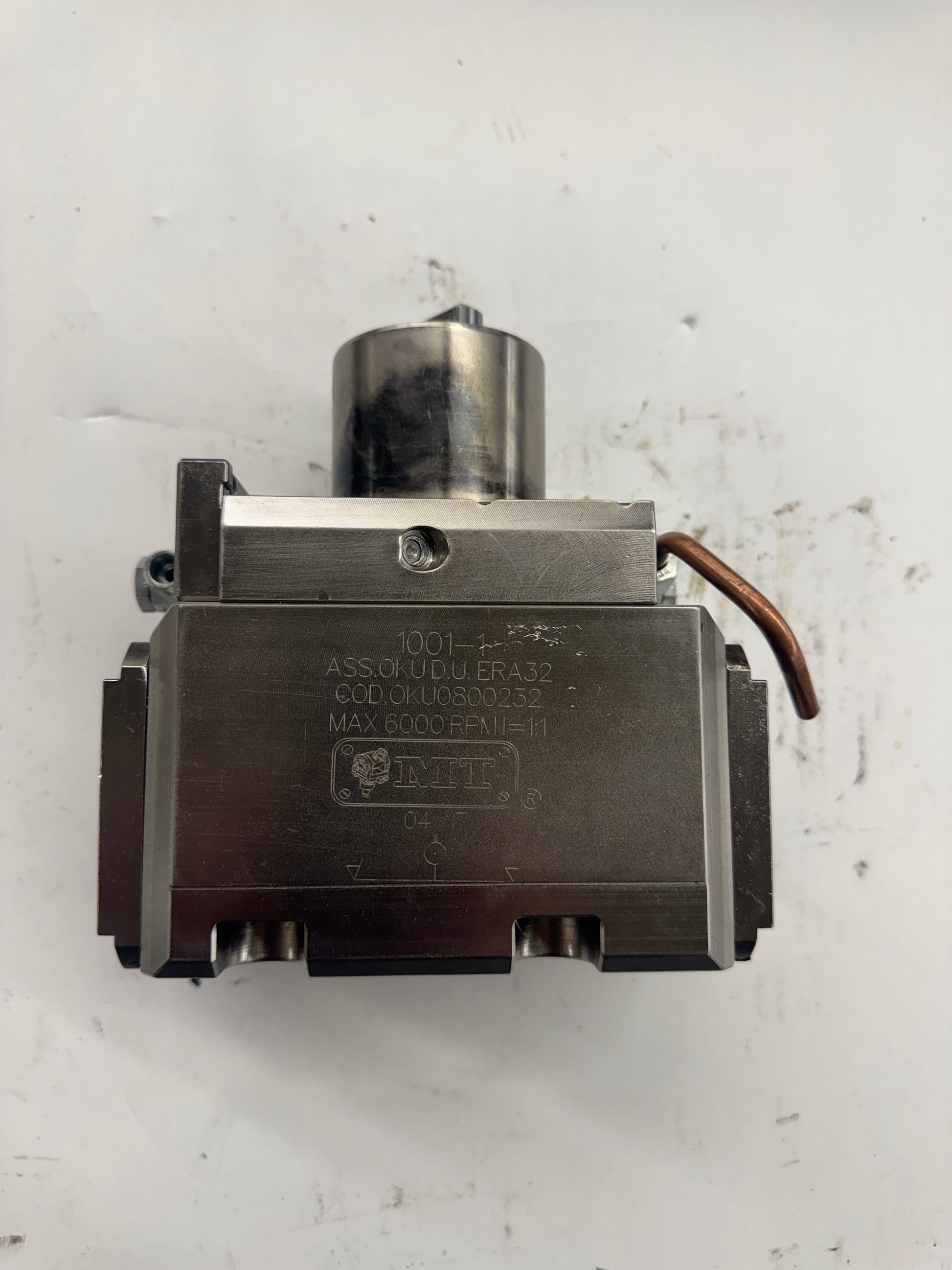

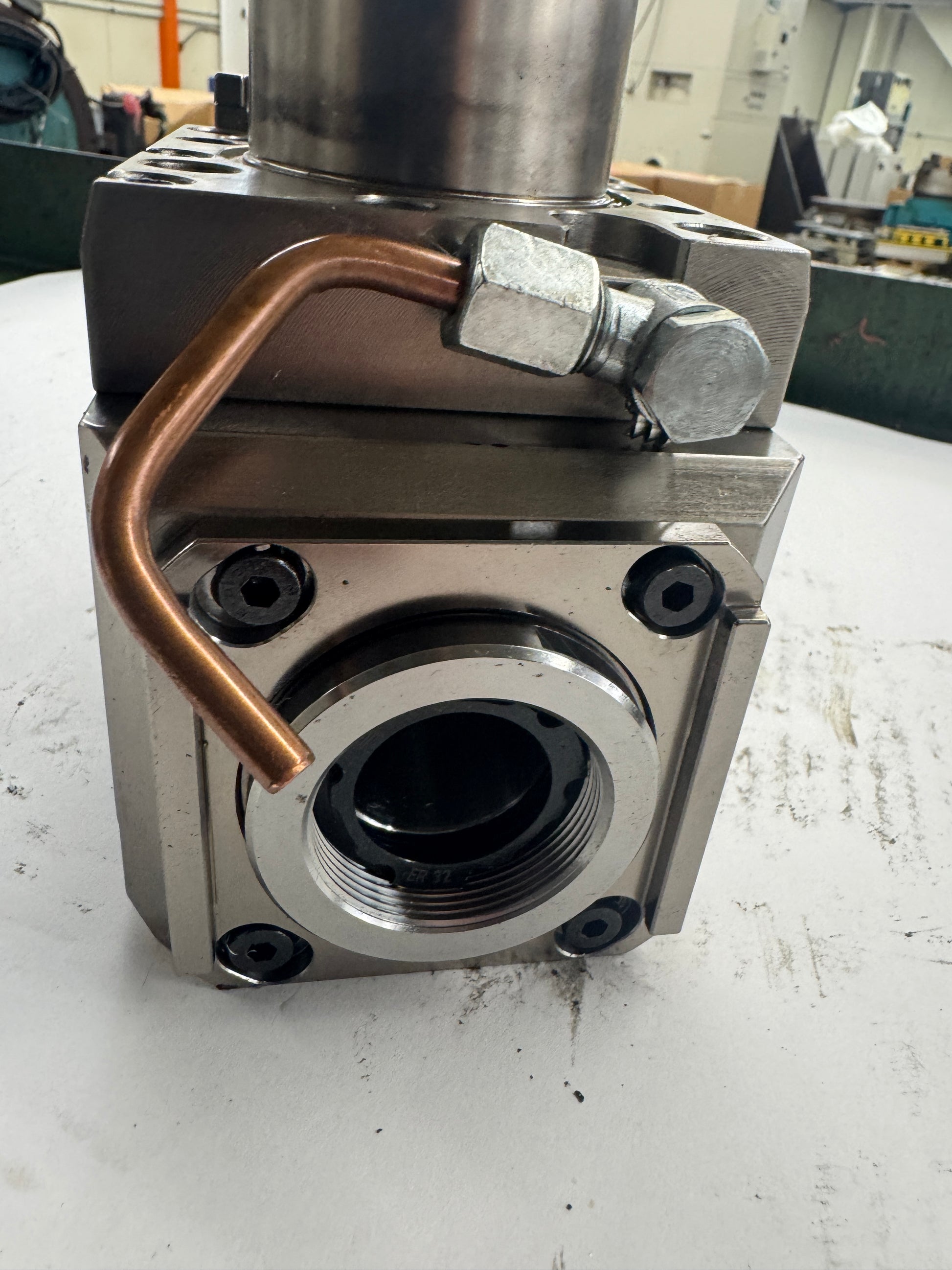

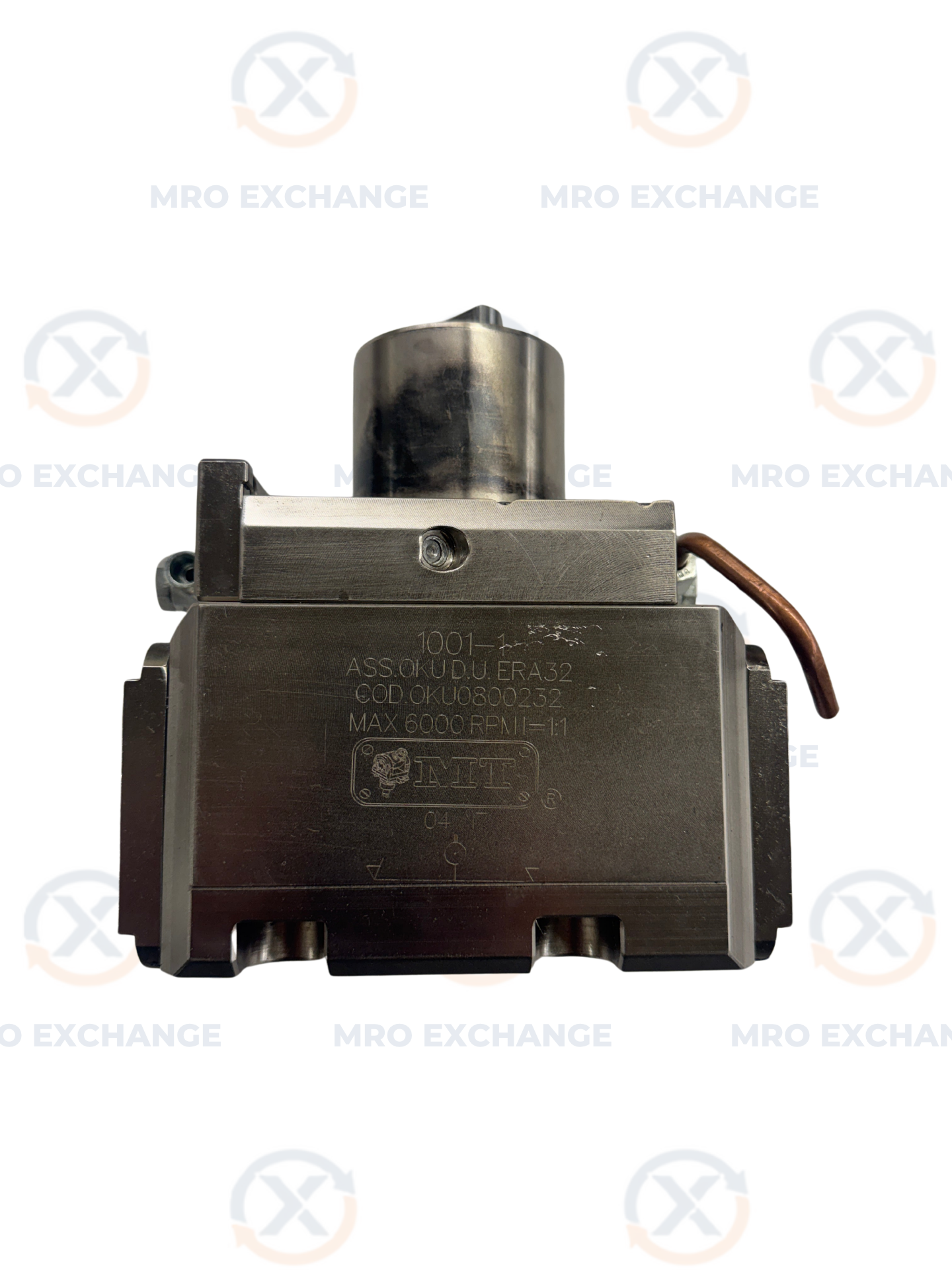

The M.T. Marchetti OKU0800232 is an axial opposite-face twin driven live tool holder engineered for Okuma CNC turning centers equipped with the Okuma proprietary VDI turret coupling. Manufactured in Italy by M.T. Marchetti (MTT), a globally recognized leader in precision live tooling for CNC lathes, this unit features two opposing ERA32 collet spindles configured to machine simultaneously on the main and sub spindles without a turret index. The assembly designation reads as follows: ASS. OKU D.U. ERA32, COD OKU0800232, MAX 6000 RPM, I=1:1. The 1:1 ratio drive configuration and 6000 RPM maximum speed are confirmed from the engraved nameplate. Date code 04/17 is laser etched on the body, consistent with Marchetti's individual serial traceability practice. The external copper coolant tube visible in photographs routes coolant through the housing to both spindle positions. The machined body is constructed from hardened alloy steel with a factory-ground finish throughout. Mounting interface is the Okuma-specific proprietary VDI coupling as indicated by the OKU product series designation. Compatible machines include Okuma CNC turning centers utilizing this turret drive standard, including models in the LB and Captain series with dual-spindle capability. This item is offered as a used or surplus industrial component. No collets, wrenches, or accessories are included unless otherwise stated.

Stock # 0426-01215
